86TR3DK

An 86-inch touch board that runs its own Android 13 system

The LG CreateBoard 86TR3DK is an interactive digital board for rooms where one large display has to carry lessons, presentations and group work. Its 86-inch IPS panel shows 3840x2160 resolution in a 16:9 format, with a 1,200:1 contrast ratio, 10-bit colour and a 178-degree viewing angle. Because the board runs Android 13 itself, presenters can open files, browse the web and start sessions without a separate computer on the desk.

Touch, writing and sharing facts that matter in practice

Multi-touch is rated at up to 40 points under Windows and 32 points under Android, so several people can write or move objects at the same time. Touch accuracy is ±1mm, response time is 5ms or less, and the anti-glare protective glass is 3T with 88% transmission. Two writing pens are included. Built-in teaching tools such as rulers, tables and sticky notes help teachers build activities quickly, and resources can be shared by QR code. Wireless sharing lets a host show up to nine screens at once when the LG CreateBoard Share app is installed, and devices on the same network can join without it, although the app gives a steadier link.

Connectivity, expansion and audio

• Inputs: three HDMI inputs with HDCP 2.2, one VGA input, one USB-C port with power delivery and DisplayPort Alt Mode, four USB 3.0 Type-A ports and one USB 2.0 Type-A port
• Expansion: a built-in OPS slot with OPS power, so a compatible OPS computer can sit at the back of the panel
• Network and wireless: Gigabit LAN, Wi-Fi 802.11a/b/g/n/ac/ax (Wi-Fi 6) through the Wi-Fi module, and Bluetooth 5.0
• Audio: two 15W speakers and an optical S/PDIF audio output

Where it fits across Qatar

In a university seminar room in Education City, the 86-inch panel suits a group of lecturers and students working from the same material, and a laptop connected by USB-C keeps cables away from the front of the room. In a boardroom in West Bay or Msheireb, the OPS slot lets a compatible computer run meeting software from behind the board, and colleagues on the same network can join a shared screen. In a school in Al Rayyan or Lusail with several classrooms, the optional ConnectedCare DMS cloud service, sold separately, lets IT managers monitor and manage boards without visiting each room.

Planning the weight, power and environment

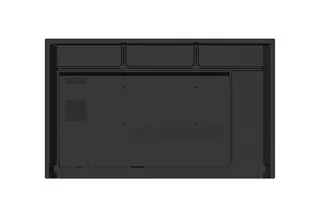

The head weighs 58.6 kg and 75.9 kg packed, so plan for at least two people and suitable lifting equipment at delivery. Dimensions are 1957 x 1160 x 100 mm with an 800 x 600 mm VESA mounting pattern, and the bezel is black at 15 mm on three sides and 44 mm at the bottom. The power supply accepts 100-240V at 50/60 Hz, typically drawing 385W and up to 580W. Operating temperature is 0 to 40 °C at 10 to 90% relative humidity, so keep the board in an air-conditioned room away from direct sunlight and dust, and confirm the position with the SmartRooms Qatar team before placing it near windows or an entrance. The optional WM-L000S wall mount and ST-000F floor stand can be added to the quotation, and a free site survey helps confirm wall strength, cable routes and power points before installation.

Request a quote

Send us your room size, mounting plan, OPS requirements and whether you need ConnectedCare DMS. SmartRooms Qatar usually returns a quotation within one working day. We accept purchase orders and government tenders, and delivery can be arranged to all eight municipalities of Qatar. Request a quote for the LG CreateBoard 86TR3DK today.
