B8650

MAXHUB B5 Series B8650 86-inch Education Interactive Flat Panel

Screen size: 86″
Resolution: 3840(H)×2160(V)
Touch: Infrared recognition
System: Windows 11 Pro

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The MAXHUB B8650 is an 86-inch education interactive flat panel from the B5 Series, with a 3840 x 2160 display and 50-point infrared touch. It combines a 50MP camera, an 8-microphone array that picks up voices up to 12 metres away, and a 2.2-channel speaker system rated at 88 dB. An MT82S PC module running Windows 11 Pro fits its 40-pin slot. It suits lecture theatres, classrooms and training rooms across Qatar. Request a quote today.

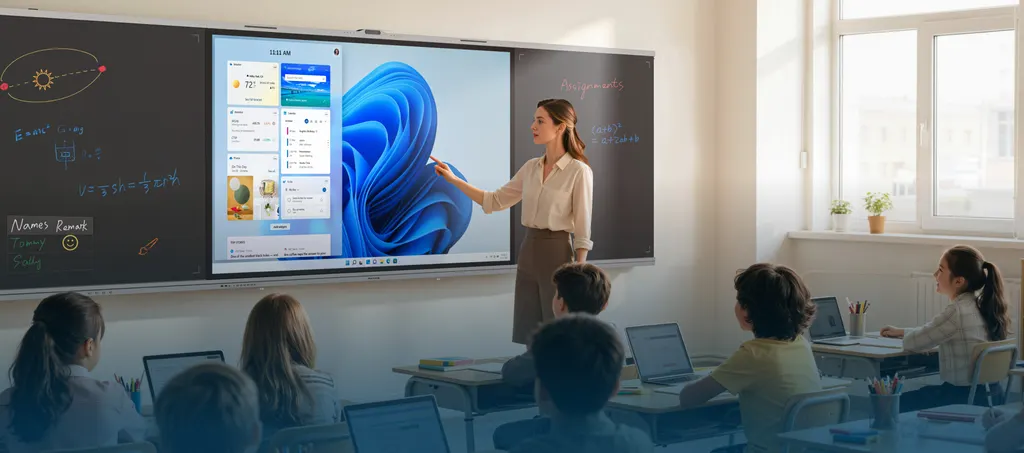

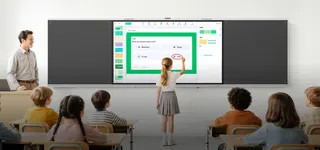

An 86-inch education panel built around the classroom

The MAXHUB B8650 is an 86-inch interactive flat panel from the B5 Series, designed for education and training spaces. It brings together a 3840 x 2160 display, infrared touch, a 50MP camera, an 8-microphone array and a 2.2-channel speaker system in one unit. For a school or university in Qatar, that removes the need to buy and mount a separate camera, microphone and speaker set for every room.

Display, writing surface and eye comfort

The panel is rated at 400 nits typical and 450 nits maximum, with a typical contrast ratio of 1,200:1 and a dynamic contrast figure of 50,000:1. Colour depth is 10-bit, or 1.07 billion colours, and colour gamut is 98% sRGB with colour accuracy of ΔE≤1. The etched anti-glare surface has 25% haze, and an ambient light sensor is included. Teachers can write with ordinary chalk, dustless chalk or liquid pens. The eye-care section lists TÜV Flicker Free and TÜV Low Blue Light certification.

Touch, annotation and the PC module

Infrared touch supports 50 touch points with ±1.5 mm accuracy. The MAXHUB Think&Ink annotation tools add direct annotation, multi-level object recognition and single-pen dual-colour writing. The specification also lists an MT82S PC module with a 13th Generation Intel Core i5 processor, Intel UHD Graphics, Windows 11 Pro, 8GB RAM expandable to 32GB and 256GB storage expandable to 1TB. The module fits the panel's 40-pin slot.

Camera and microphones for in-room and remote teaching

The 50MP camera has a 150° diagonal and 120° horizontal field of view. Its features include person counting, random selection and gesture recognition, with the AI analysis running on the device and anonymised. The eight-microphone array covers a 180° pickup angle and reaches up to 12 metres, with AI spatial sound, echo cancellation, AI noise cancellation and automatic gain control. The speakers run as 2.2 channels with 2x8W plus 2x18W output and an 88 dB sound pressure level at one metre.

Where the B8650 fits in Qatar

A lecture theatre in Education City: 12-metre voice pickup helps a lecturer moving across the front of the room stay audible for remote participants.
A private school in Al Wakrah fitting out senior classrooms: one panel covers lessons, group activities and polls.
A training centre near the Industrial Area: the PC module's RJ45 port and Wi-Fi 6 support sessions that connect to the company network.

Planning the installation

An 86-inch panel needs a secure wall bracket or a suitable mobile stand, so fix the mounting point, the wall or trolley loading and the cable route before ordering. SmartRooms Qatar offers free site surveys, which is the right time to check sunlight from windows and viewing distances from the back row. The panel accepts 100 to 240 V at 50/60 Hz, with typical consumption of 150 W and standby of 0.5 W or less, and carries Energy Star certification. The data does not list an operating temperature range, so confirm the room environment with the SmartRooms Qatar team before installing near windows or in a space without air conditioning.

The B8650 has IP5X dust protection and a 3-year limited warranty, with up to 50,000 hours of operation under standard usage conditions. Products are covered by the manufacturer's warranty. Request a quote from SmartRooms Qatar and the team will confirm lead times and installation details with your quotation.

Highlights

86-inch panel with 3840 x 2160 resolution
50-point infrared touch with ±1.5 mm accuracy
50MP camera with person counting and gesture recognition
8-microphone array with 12-metre pickup range
2.2-channel SkyWave speakers rated at 88 dB
3-year limited warranty, up to 50,000 operating hours

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

B865042

Display · Diagonal Size (inch): 86
Display · Aspect Ratio: 16:9
Display · Resolution: 3840(H)×2160(V)
Display · Panel Brightness: 400 nits (typ.) 450 nits (max.)
Display · Side-Viewing Brightness: ≥ 1/3 of center brightness (±60°)
Display · Contrast Ratio: 1,200:1 (typ.) 50,000:1 (dynamic)
Display · Color Depth: 1.07B (10bit)
Display · Color Gamut (typ.): 98% sRGB
Display · Color Accuracy: ΔE≤1
Display · Surface Technology: Non-glare, 25% haze Etched-AG Technology Support writing with ordinary chalk, dustless chalk and liquid pens
Display · Sensor: Ambient light sensor
Display · Eyes Care: TÜV Flicker Free TÜV Low Blue Light
Touch System · Touch Technology: Infrared recognition
Touch System · Touch Point: 50 Points touch
Touch System · Accuracy: ±1.5mm
Touch System · MAXHUB Think&Ink: Sideboard Writing Synchronization Direct Annotation Multi-level Object Recognition Single Pen Dual Color
Operating System (MT82S PC Module) · System: Windows 11 Pro
Operating System (MT82S PC Module) · CPU: 13th Generation Intel® Core™ i5 Processor
Operating System (MT82S PC Module) · GPU: Intel® UHD Graphics for 13th Gen Intel® Processor
Operating System (MT82S PC Module) · RAM: 8GB(Up to 32GB)
Operating System (MT82S PC Module) · ROM: 256GB(Up to 1TB)
Connectivity · I/O Ports (Interactive Display): HDMI IN × 2 USB 2.0 × 1 USB 3.0 × 2 Touch × 1 USB Type-C × 1 AUDIO OUT × 1 RS232 × 1
Connectivity · I/O Ports (PC Module): HDMI OUT × 1 USB 2.0 × 3 USB 3.0 × 3 MIC IN × 1 RJ45 × 1
Connectivity · PC Module Slot: Module slot (40 Pins) × 1
Connectivity · Wi-Fi: Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Camera · Quantity: × 1
Camera · Resolution: 50MP
Camera · FOV: 150° DFOV, 120° HFOV
Camera · Feature: Person counting Random election Gesture recognition
Audio · Audio System: SkyWave Sound System
Audio · Sound Channel: 2.2
Audio · Speaker Power: 2×8W+2×18W (output) 2×12W+2×30W (maximum)
Audio · Sound Pressure Level: 88 dB (1m)
Microphone · Quantity: 8-mic array
Microphone · Pick-up Angle: 180°
Microphone · Pick-up Range: 0~12m
Microphone · Feature: AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)
Power · Power Supply: AC 100~240V 50/60Hz
Power · Power Consumption (standby): ≤0.5W
Power · Power Consumption (typ.): 150W
Power · Power Saving: Energy Star Certification

Downloads

9 files from the manufacturer

PDF Datasheets MAXHUB_Smart Blackboard_B8650_Datasheet_Black.pdf 414 KB PDF Datasheets MAXHUB_Smart Blackboard_B8650_Datasheet_White.pdf 382 KB PDF Manuals & guides MAXHUB_Smart Blackboard B5 Series_Quick Start Guide.pdf 3.0 MB PDF Drawings & CAD MAXHUB_Sideboard (Left)_B86BB&B86BW_Mechanical_Drawing.pdf 252 KB PDF Drawings & CAD MAXHUB_Sideboard (Right)_B86BB&B86BW_Mechanical_Drawing.pdf 252 KB PDF Drawings & CAD MAXHUB_Smart Blackboard_B8650&B86BB_Mechanical_Drawing.pdf 803 KB PDF Drawings & CAD MAXHUB_Smart Blackboard_B8650_Mechanical_Drawing.pdf 812 KB URL Drawings & CAD · Opens on manufacturer site B8650_ID Drawing URL Other documents · Opens on manufacturer site MAXHUB_B5_Series_Smart Blackboard_Presentation

Questions about B8650

Who is the MAXHUB B8650 best suited for?

The B8650 suits rooms where a large screen must be seen from the back row, such as lecture theatres, boardrooms and large training rooms. Its 86-inch diagonal, 3840 x 2160 resolution and 50 touch points let a presenter write, annotate and switch sources from the front of the room. Schools and universities in Doha, Lusail and Education City are typical settings, and corporate training rooms running hybrid sessions with colleagues abroad also fit well.

Will the screen stay readable near windows in a Doha building?

The panel is rated at 400 nits typical and 450 nits maximum, and its etched anti-glare surface has 25% haze to reduce reflections. An ambient light sensor is included. These figures do not replace a site check, because direct sunlight through large windows in Doha can still wash out any screen. Book a free site survey with SmartRooms Qatar to review window positions, the mounting point and the blinds needed.

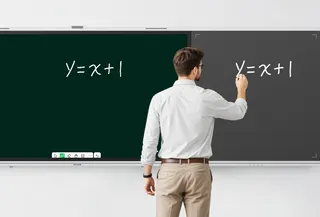

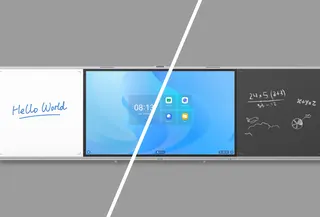

Can teachers keep writing with chalk?

Yes. The surface supports ordinary chalk, dustless chalk and liquid pens. The MAXHUB Think&Ink tools add direct annotation and single-pen dual-colour writing, so teachers can keep their usual technique while the same panel shows digital slides, video and web content. This suits classrooms that combine traditional teaching with digital material.

Does the B8650 include a computer?

The specification lists an MT82S PC module with Windows 11 Pro, a 13th Generation Intel Core i5 processor, 8GB RAM expandable to 32GB and 256GB storage expandable to 1TB. It fits the display's 40-pin module slot. Confirm in your quotation whether the module is part of your order so you know exactly what is supplied.

Which ports do I need for laptops and room PCs?

The display has two HDMI IN ports, one USB Type-C, two USB 3.0, one USB 2.0, a touch port, an AUDIO OUT and an RS232 serial port. The PC module adds an HDMI OUT, three USB 2.0, three USB 3.0, a MIC IN and an RJ45 network port. This layout lets a teacher connect several sources and a wired network without a hub.

Does it support Wi-Fi 6 and Bluetooth 5.2?

Yes. Wi-Fi 6 is supported with 802.11ac/b/g/n/a/ax on 2.4GHz and 5GHz bands, and Bluetooth is version 5.2. This helps in meeting rooms where cabling is difficult, because staff can connect laptops and phones wirelessly. Ask your IT team to check the network band and security settings before installation.

How does the camera help in lessons and meetings?

The 50MP camera has a 150° diagonal and 120° horizontal field of view. It supports person counting, random selection of participants and gesture recognition, and the AI analysis runs on the device in anonymised form. A teacher can count people in the room, pick a student at random or let students answer with gestures, and the camera also serves remote sessions with a campus or office abroad.

Will a lecture theatre hear a speaker at the back?

The eight-microphone array covers a 180° pickup angle up to 12 metres, with AI spatial sound, echo cancellation, AI noise cancellation and automatic gain control. This suits a lecture theatre at Education City where the lecturer moves across the front of the room. The 2.2-channel speakers, rated at 88 dB at one metre, carry the sound through the space, and the echo and noise controls help remote participants hear clearly.

How does it suit meetings with teams abroad?

A boardroom in West Bay that holds regular meetings with teams in other countries needs clear audio at both ends. The B8650 combines a 50MP camera with a 150° diagonal view, an eight-microphone array with 12-metre pickup and echo and noise processing, and 2.2-channel speakers. Place the camera so it frames participants clearly from the head of the table, and check that your video conferencing platform works with the connection plan.

What power does it need in Qatar?

The power supply is listed as AC 100 to 240 V at 50/60 Hz, which covers the 240 V, 50 Hz mains used in Qatar. Typical consumption is 150 W and standby is 0.5 W or less. The data does not give a plug type, so confirm the plug and socket arrangement with the SmartRooms Qatar team before ordering and plan a dedicated socket near the mounting point.

What warranty comes with the B8650?

The B8650 carries a 3-year limited warranty and is rated for up to 50,000 hours of operation under standard usage conditions. SmartRooms Qatar supplies it under the manufacturer's warranty. Ask for the warranty terms in writing with your quotation, and tell the team your expected daily hours of use so they can confirm the panel suits the room.

Can a school order several units under one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several classrooms with B8650 panels can send one LPO covering all units and request one quotation for the full quantity, with installation planned after a free site survey.
