Maxhub F8650 · Price in Qatar

Name: MAXHUB F5 Series F8650 86-inch Education Interactive Flat Panel
Brand: Maxhub
SKU: maxhub-f8650
Availability: InStock

Overview

The MAXHUB F8650 is an 86-inch 4K interactive flat panel built for education. It pairs a 50-point infrared touch surface with five cameras for classroom views and participation tools, plus an 8-microphone array that picks up voices up to 12 m away. A built-in Android 15.0 system runs the display, and a Windows 11 Pro PC module (MT82S) fits its 40-pin slot. Suited to lecture halls and large classrooms across Doha, Al Wakrah and Lusail.

An 86-inch education display for large teaching spaces

The MAXHUB F8650 is an 86-inch interactive flat panel from the F5 Series, designed for classrooms, lecture theatres and training rooms where one large shared surface must serve a whole group. Its 3840×2160 panel delivers 4K detail across a 16:9 screen, and a 178° viewing angle keeps writing and diagrams readable for students seated at the sides of the room.

Display and touch figures that matter in a room

Panel brightness is rated at 400 nits typical and 450 nits maximum, with side brightness at least one third of centre brightness at ±60°. Contrast is 5,500:1 typical and 50,000:1 dynamic. Colour depth is 10-bit (1.07 billion colours) with a 98% sRGB gamut and ΔE≤1 colour accuracy. The 3mm 9H tempered glass is zero-parallax, and its anti-glare surface, rated at 25% haze, limits reflections from windows. The infrared touch system recognises 50 points with ±1.5mm accuracy, and Think&Ink annotation adds direct writing, multi-level object recognition and a pen that switches between two colours.

Refresh rate: 60Hz with 6.5ms response time
Eye comfort: TÜV Flicker Free and TÜV Low Blue Light listed
Backlight: DLED

Cameras and audio built for lessons and remote teaching

Five cameras cover the room: an 8MP panoramic camera, two 13MP telephoto cameras and two 13MP fusion cameras, with a 60MP resolution rating and 5× optical zoom. On-device AI supports person counting, random student selection and gesture recognition, so a teacher can run a poll or pick a respondent without leaving the board. The 8-microphone array covers a 180° pickup angle out to 12m, with echo cancellation, AI noise cancellation and auto gain control. The SkyWave 2.2-channel system is rated at 88 dB at 1m and lists 2×8W + 2×18W output.

Where the F8650 fits in Qatar

In Al Wakrah, a private school refitting its largest classroom for older students can use the 86-inch format to show a full lesson page while the cameras follow group activity. In Education City, a university training centre running a lecture theatre can connect the PC module for Windows applications, since the source lists a Windows 11 Pro module with an Intel Core i5 processor. For a government training unit in Msheireb, the microphone array suits sessions where trainers and remote teams join the same call from other sites.

Planning the installation and the environment

Plan a site survey before wall mounting an 86-inch panel. SmartRooms Qatar offers free site surveys and professional installation.
Operating range is 0℃ to 40℃ at 10% to 90% RH. Doha summers can exceed 45°C, so the room must be air-conditioned.
Power input is AC 100–240V 50/60Hz. Confirm the socket and supply with your electrical contractor before installation.
Altitude rating is below 5000 meters, and IP5X dust protection is listed.

The F8650 carries a 3-year limited warranty and is rated for up to 50,000 hours of operation under standard usage conditions. Request a quote from SmartRooms Qatar for the F8650 with installation, and share your room size and mounting type so the quotation reflects the job. Quotations are usually provided within one working day.

Highlights

86-inch 3840×2160 4K display with 16:9 aspect ratio
50-point infrared touch with ±1.5mm accuracy
Five cameras with 5× optical zoom and AI classroom tools
8-microphone array with 180° pickup up to 12m
SkyWave 2.2-channel audio rated at 88 dB at 1m
3-year limited warranty, up to 50,000 hours operation

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

54 specifications · Source: manufacturer · checked Oct 2026

F865054

Display · Diagonal Size (inch): 86
Display · Aspect Ratio: 16:9
Display · Resolution: 3840(H)×2160(V)
Display · Viewing Angle: 178° (H/V)
Display · Panel Type: Wide Viewing Angle Panel
Display · Panel Brightness: 400 nits (typ.) 450 nits (max.)
Display · Side-Viewing Brightness: ≥ 1/3 of center brightness (±60°)
Display · Contrast Ratio: 5,500:1 (typ.) 50,000:1 (dynamic)
Display · Color Depth: 1.07B (10bit)
Display · Color Gamut (typ.): 98% sRGB
Display · Color Accuracy: ΔE≤1
Display · Glass: Zero parallax 3mm thickness 9H tempered
Display · Surface Technology: Anti-glare, 25% haze
Display · Eyes Care: TÜV Flicker Free TÜV Low Blue Light
Display · Refresh Rate: 60Hz
Display · Response Time: 6.5ms
Display · Backlight Unit: DLED
Touch System · Touch Technology: Infrared recognition
Touch System · Touch Point: 50 Points touch
Touch System · Accuracy: ±1.5mm
Touch System · MAXHUB Think&Ink: Direct Annotation Multi-level Object Recognition Single Pen Dual Color
Operating System (Built-in) · System: Android 15.0
Operating System (Built-in) · CPU: Octa-core A55
Operating System (Built-in) · GPU: Mali-G52 MC1
Operating System (MT82S PC Module) · System: Windows 11 Pro
Operating System (MT82S PC Module) · CPU: 13th Generation Intel® Core™ i5 Processor
Operating System (MT82S PC Module) · GPU: Intel® UHD Graphics for 13th Gen Intel® Processor
Operating System (MT82S PC Module) · RAM: 8GB(Up to 32GB)
Operating System (MT82S PC Module) · ROM: 256GB(Up to 1TB)
Connectivity · I/O Ports (Interactive Display): HDMI IN × 2 USB 2.0 × 1 USB 3.0 × 2 Touch × 1 USB Type-C × 1 AUDIO OUT × 1 RS232 × 1
Connectivity · I/O Ports (PC Module): HDMI OUT × 1 USB 2.0 × 3 USB 3.0 × 3 MIC IN × 1 RJ45 × 1
Connectivity · PC Module Slot: Module slot (40 Pins) × 1
Connectivity · Wi-Fi Module Slot: Module slot × 1
Connectivity · Wi-Fi Module (SI07B): Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Camera · Quantity: × 5
Camera · Resolution: 60MP 8MP Panorama ×1 13MP Telephoto ×2 13MP Fusion Camera ×2
Camera · Feature: Person counting Random election Gesture recognition
Audio · Audio System: SkyWave Sound System
Audio · Sound Channel: 2.2
Audio · Speaker Power: 2×8W+2×18W (output) 2×12W+2×25W (maximum)
Audio · Sound Pressure Level: 88 dB (1m)
Microphone · Quantity: 8-mic array
Microphone · Pick-up Angle: 180°
Microphone · Pick-up Range: 0~12m
Microphone · Feature: AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)
Environment · Operating Temperature: 0℃~40℃
Environment · Storage Temperature: -20℃~60℃
Environment · Operating Humidity: 10%~90%RH
Environment · Storage Humidity: 10%~90%RH
Environment · Altitude: Below 5000 meters
Power · Power Supply: AC 100~240V 50/60Hz
Power · Power Consumption (standby): ≤0.5W
Power · Power Saving: Energy Star Certification

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about F8650

What is the MAXHUB F8650 designed for?

The MAXHUB F8650 is an 86-inch 4K interactive flat panel for education. Its 3840×2160 resolution, 50-point touch and built-in Android 15.0 system suit lecture halls, large classrooms and training rooms where one display must serve a whole group. Teachers can annotate lessons directly on the glass, while the built-in cameras and microphones support classroom interaction and remote teaching.

How does the F8650 differ from the 75-inch F7550?

Both models share the same display, touch, camera, audio and connectivity specifications, so screen size is the main difference. The F8650 measures 86 inches on the diagonal, against 75 inches for the F7550. Choose the 86-inch model for lecture halls and boardrooms where many people sit farther back, and confirm wall space and viewing distance with a site survey before ordering.

How bright is the F8650 in a room with large windows?

The panel is rated at 400 nits typical and 450 nits maximum, with contrast of 5,500:1 typical and 50,000:1 dynamic. Its anti-glare surface, rated at 25% haze, reduces reflections from windows. In a Doha office or school with large glazing, close blinds during presentations and position the panel away from direct sunlight, since coatings help but do not replace good room control.

Does the F8650 include a PC or run Windows applications?

The source lists a Windows 11 Pro PC module (MT82S) with a 13th Generation Intel Core i5 processor, 8GB RAM upgradable to 32GB and 256GB storage upgradable to 1TB. It connects through a 40-pin module slot. Ask the SmartRooms Qatar team whether the PC module is included in your quotation or should be added as a separate item before you plan the setup.

Which ports does the F8650 offer for laptops and devices?

The display offers two HDMI IN ports, one USB Type-C, two USB 3.0 and one USB 2.0 port, plus a Touch port, AUDIO OUT and RS232. The PC module adds an HDMI OUT, three USB 2.0 and three USB 3.0 ports, a MIC IN and an RJ45 network port. A school with several teacher laptops can use the two HDMI inputs to switch between sources during a lesson.

Is the F8650 suitable for Qatar's summer heat?

The operating temperature range is 0℃ to 40℃, and storage is -20℃ to 60℃. Doha summer temperatures can exceed 45°C, so the panel should sit in an air-conditioned room, not in an unshaded lobby or outdoor pavilion. Ask the SmartRooms Qatar team to check your room conditions before you request a quotation so the location is confirmed in advance.

How do the cameras work in a classroom?

Five cameras provide coverage: an 8MP panoramic camera, two 13MP telephoto cameras and two 13MP fusion cameras, with 5× optical zoom. Listed features include person counting, random selection and gesture recognition. In a secondary classroom in Lusail, a teacher can see how many students are taking part, pick a student at random or let students answer with gestures, all without moving away from the front of the room.

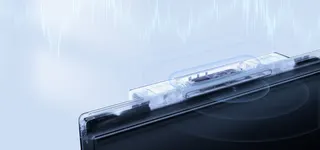

How far can the F8650 microphones pick up a voice?

The 8-microphone array covers a 180° pickup angle and a pickup range of 0 to 12m. It includes AI spatial sound, echo cancellation, AI noise cancellation and auto gain control. This suits a seminar room in Education City where a lecturer moves across the room or a remote team joins a video call. Test pickup in your actual room, because furniture and air-conditioning noise affect results.

What audio output does the SkyWave system provide?

The audio system is a 2.2-channel SkyWave Sound System rated at 88 dB at 1m. Speaker output is listed as 2×8W + 2×18W, with a maximum of 2×12W + 2×25W. The display also has an AUDIO OUT port. For a large hall in a Msheireb training centre, check the room acoustics before ordering, and ask the SmartRooms Qatar team whether an extra speaker is needed for the back rows.

What should I plan before mounting an 86-inch panel?

Start with the wall or stand, checking the wall structure, cable routes to the mains socket and the viewing distance for the back row. SmartRooms Qatar offers free site surveys and professional installation, and quotations are usually provided within one working day. Share the room dimensions and mounting type with your request so the quotation covers the full job.

What warranty and efficiency ratings does the F8650 have?

The F8650 carries a 3-year limited warranty from the manufacturer and is rated for up to 50,000 hours of operation under standard usage conditions. Standby power consumption is 0.5W or less, and the model carries ENERGY STAR certification. These figures help facilities teams plan long-term running costs for a fleet of classroom displays.

Can a ministry or school buy the F8650 through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A ministry or school ordering several F8650 units for different classrooms can issue one LPO and request a quotation that lists each room, so every unit is specified and delivered to the correct site.
