V5550

What the 55-inch XBoard V7 V5550 is built to do

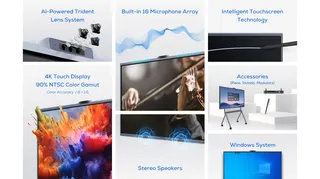

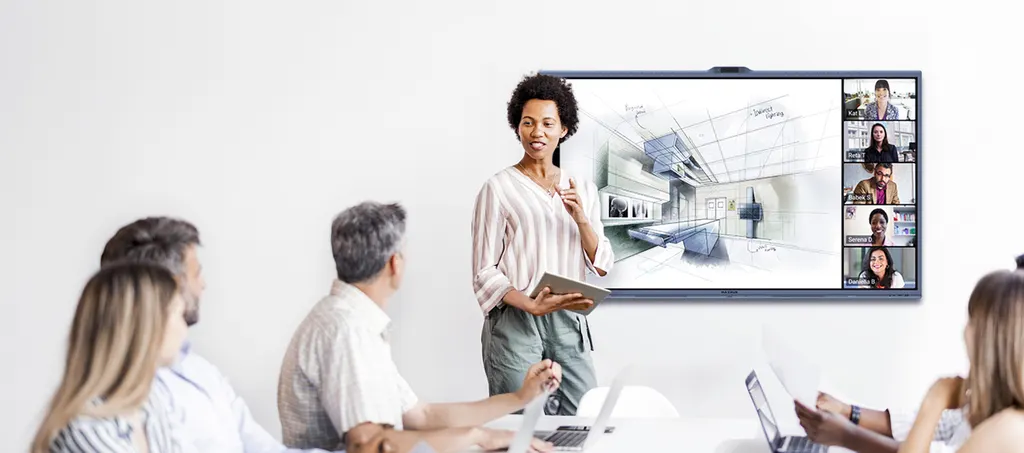

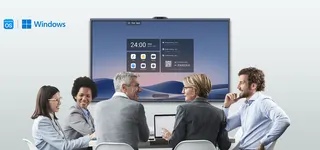

The MAXHUB XBoard V7 V5550 is an all-in-one collaboration board. A 55-inch touch display sits alongside a built-in camera, a microphone array and speakers, and the unit runs MAXHUB OS 7.0 powered by Windows. In practice, one panel replaces a separate screen, webcam, speakerphone and whiteboard, which means fewer devices to cable, mount and support in each room.

Display and touch figures that matter in a meeting room

The 55-inch 16:9 panel offers 3840 × 2160 resolution at 60 Hz, with 350 nits typical brightness and 1,200:1 typical contrast. Its ADS panel carries a non-glare surface with 25% haze, which helps reduce reflections from windows and ceiling lights. The 3 mm, 9H tempered glass is zero parallax, so ink appears directly under the pen tip. Colour is rated at 90% NTSC with 10-bit depth and Delta E of 1.5 or less.

Touch uses infrared recognition with 50 touch points. The listed object recognition threshold is 1.5 mm, accuracy is ±0.5 mm, response time is 2.5 ms or less and writing height is 1 mm or less. Several people can write at once during brainstorming sessions, and features such as palm rejection, handwriting recognition and Windows Ink make the surface closer to a whiteboard in daily use.

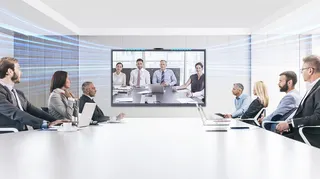

Cameras, microphones and speakers for hybrid meetings

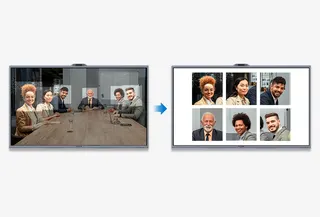

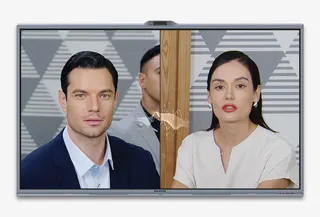

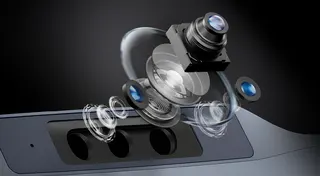

Three 50 MP cameras (one panorama and two telephoto) sit in a built-in ejecting module. The set offers 2x optical and 5x digital zoom, with a 99° diagonal, 86° horizontal and 69° vertical field of view. Auto framing, speaker tracking, multiple-speaker tracking, personalised presets and intelligent focus keep remote participants following whoever is speaking.

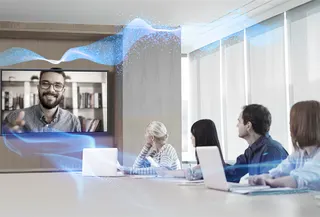

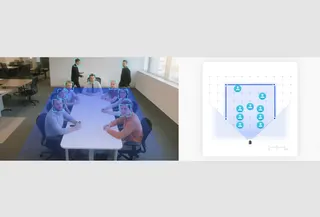

A 16-microphone array covers a 180° pickup angle out to 15 m, with AI noise cancellation, echo cancellation and automatic gain control. The 2.1 speaker system is rated at 2×10W plus 20W.

Where it fits in Qatar

• Smaller boardrooms in West Bay or Lusail: a 55-inch panel suits rooms where participants sit close to the screen, and the camera covers the table without a separate webcam.
• Classrooms and seminar rooms in Al Wakrah or Al Rayyan: teachers can annotate lessons directly on the touch surface, and Wi-Fi 6 with Bluetooth 5.2 supports device connections without cable clutter.
• Huddle rooms for ministries and authorities in Doha: meetings that connect Doha teams with colleagues abroad during the Sunday to Thursday working week.

Compared with the 65-inch and 75-inch models in this series, which use a VA panel rated at 5,000:1 typical contrast and a 6.5 ms response, the V5550 uses an ADS panel with 1,200:1 typical contrast and an 8 ms response time. Choose it when the room is smaller and the viewing distance is shorter.

What to plan before ordering

The source data does not list an operating temperature range, power consumption or wall-mount specification for this model. Ask for these details before you commit, and confirm the operating environment, particularly for a window-facing wall or a lobby exposed to dust, since the listed certification is IP5X design standards. SmartRooms Qatar offers free site surveys to check wall structure, glare, cable routes and power outlets. Qatar mains power is 240 V, 50 Hz with BS 1363 (Type G) sockets, so confirm the unit's power requirement against that supply.

The manufacturer's 3-year advanced replacement warranty applies. For multi-room projects, schools, ministries and government bodies can issue a purchase order (LPO) or submit through a Monaqasat tender, and pay by bank transfer, cheque or purchase order. Request a quote from SmartRooms Qatar, and we will usually reply within one working day with a quotation for your rooms and quantity.
