Name: MAXHUB XBoard V7 Series V6550 65-inch Collaboration Board
Brand: Maxhub
SKU: maxhub-v6550
Availability: InStock

Overview

The MAXHUB XBoard V6550 is a 65-inch 4K collaboration board for meeting rooms that need a large touch surface and built-in video conferencing. It pairs a 3840 × 2160 VA panel with 5000:1 typical contrast, 50-point infrared touch, three 50 MP cameras with auto framing and a 16-mic array. It suits huddle rooms and boardrooms in Doha, Lusail and Education City that run hybrid meetings.

What the MAXHUB XBoard V6550 is

The MAXHUB XBoard V6550 is a 65-inch all-in-one interactive display from the XBoard V7 Series. It combines a touchscreen, a Windows-based environment, a built-in camera array and a microphone array in one unit, so a meeting room needs fewer separate devices. In this series its 65-inch size sits between the 55-inch V5550 and the 75-inch V7550.

Display and touch figures that matter

The 3840 × 2160 VA panel delivers 350 nits typical brightness and 5000:1 typical contrast, with a 6.5 ms response time and a 60 Hz refresh rate. Its non-glare surface, with 25% haze, reduces reflections from windows and ceiling lights, and the 3 mm tempered glass front is rated 9H. The unit includes an ambient light sensor and an ultrasonic detection sensor.

Touch uses infrared recognition with 50 touch points, so several people can write at once. The object recognition range is 1.5 mm or more, accuracy is ±0.5 mm, response is 2.5 ms or less and writing height is 1 mm or less. Windows Ink support, palm rejection and handwriting recognition are included, and touch input can be returned to Windows, Android, Linux, Mac OS X and Chrome OS hosts.

Cameras, microphones and speakers for hybrid meetings

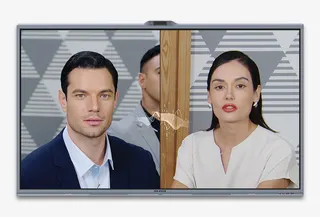

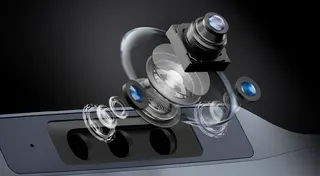

Three 50 MP cameras provide panoramic and telephoto views with 2x optical and 5x digital zoom, and the diagonal field of view is 99 degrees. Auto framing, speaker tracking, multiple-speaker tracking and intelligent focus help remote colleagues follow the discussion, while personalised presets store the framing you use most.

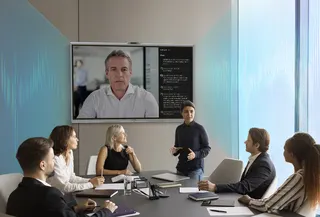

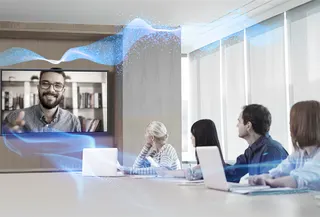

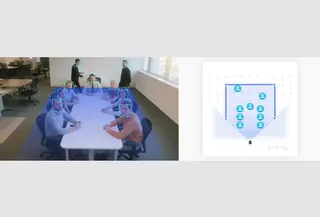

A 16-microphone array picks up speech across a 180-degree angle at distances of up to 15 metres. Echo cancellation, AI noise cancellation and automatic gain control work with an intelligent audio fence to keep voices clear. The 2.1 speaker system is rated 2×10W+20W.

Where it fits in Qatar

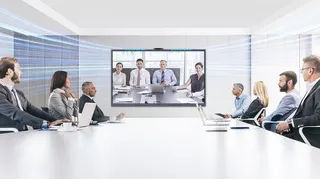

Corporate boardroom in West Bay: executives review a project with a regional team joining from abroad, while the camera follows whoever is speaking.

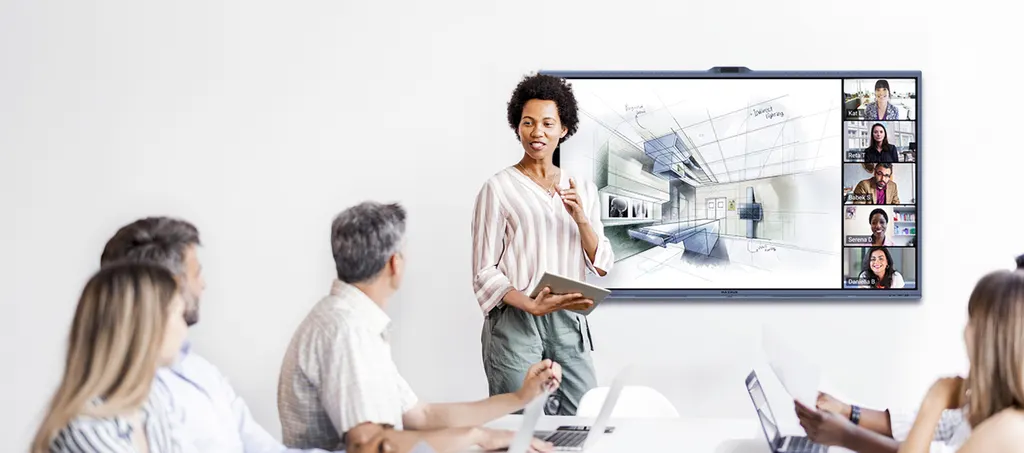

Design studio in Lusail: a team sketches and annotates drafts directly on the board, with 50 touch points letting several people write at the same time.
Seminar room in Education City: a lecturer and visiting researchers share slides from laptops, using the HDMI and USB-C inputs or wireless sharing.

What to plan before ordering

The rear and side connections include two HDMI IN ports, one USB Type-C port, two USB 3.0 ports, one USB 2.0 port, a TOUCH 2.0 port, audio in and out, RS232, and an RJ45 network input, plus PC and Wi-Fi module slots. Wi-Fi 6 (802.11ax, 2.4 GHz and 5 GHz) and Bluetooth 5.2 are listed. For control, RS232 and IP control integrate with Crestron, Extron and Q-sys, and fleet management uses MAXHUB Pivot with Microsoft Intune.

Before installation, check the wall, the mounting position and the room's cooling and sun exposure. The source data does not list the unit's weight, mounting dimensions or operating temperature range, so these must be confirmed with the SmartRooms Qatar team. The device carries IEC 62368-1 safety certification, Class B EMC, Energy Star and IP5X design standards. SmartRooms Qatar offers free site surveys, and multi-unit projects can be ordered under one LPO or government tender. The manufacturer's 3-year advanced replacement warranty applies.

Send your room size, intended use and number of units to SmartRooms Qatar and request a quote for supply, delivery across Qatar and professional installation.

Highlights

65-inch 3840 × 2160 VA panel with 5000:1 typical contrast
50-point infrared touch with ±0.5 mm accuracy
Three 50 MP cameras with 2x optical zoom and auto framing
16-mic array with 180° pickup and 0-15 m range
MAXHUB OS 7.0 powered by Windows, Wi-Fi 6 and Bluetooth 5.2
RS232 and IP control with Crestron, Extron and Q-sys integration

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

V655062

Display · Model: V6550
Display · Screen Size (Inch): 65
Display · Aspect Ratio: 16:9
Display · Panel: VA
Display · Backlight: DLED
Display · Brightness (Typ.): 350 nits
Display · Glass: Zero parallax 3mm thickness 9H tempered
Display · Surface Technology: 25% haze Non-glare technology
Display · Resolution: 3840 × 2160
Display · Refresh Rate: 60 Hz
Display · Contrast Ratio: 5000:1 (typ.)
Display · Viewing Angle (H × V): 178° / 178°
Display · Color Gamut: 90% NTSC
Display · Display Orientation: Landscape
Display · Response Time: 6.5 ms
Display · Life Time: ＞50,000 hours
Display · Operation Hours (Hours / Day): 16 / 7
Display · Display Color: 1.07B (10 bit)
Display · Color Accuracy: Delta E ≤ 1.5
Display · Sensor: Ambient light sensor Ultrasonic detection sensor
Touch System · Touch Technology: Intelligent Touchscreen Technology (infrared recognition)
Touch System · Touch Point: 50 points touch
Touch System · Object Recognition Range: ≥1.5 mm
Touch System · Accuracy: ±0.5 mm
Touch System · Response Time: ≤2.5 ms
Touch System · Writing Height: ≤1 mm
Touch System · System (Touch Return): Windows11/Windows10/ Windows8/Windows7/ Android/Linux/ Mac OS X/Chrome OS
Touch System · Feature: Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition
Connectivity · HDMI IN: × 2
Connectivity · USB 2.0: × 1
Connectivity · USB 3.0: × 2
Connectivity · USB Type-C: × 1
Connectivity · TOUCH 2.0: × 1
Connectivity · AUDIO IN: × 1
Connectivity · AUDIO OUT: × 1
Connectivity · RS232: × 1
Connectivity · RJ45 IN: × 1
Connectivity · PC Module Slot: Module slot × 1
Connectivity · Wi-Fi Slot: Module slot × 1
Connectivity · Wi-Fi: Wi-Fi 6 supported 802.11ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Camera · Quantity: 3
Camera · Resolution: 50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto)
Camera · Zoom: 2x optical zoom 5x digital zoom
Camera · Field of View: 99° (Diagonal) 86° (Horizontal) 69° (Vertical)
Camera · Position: Built-in ejection
Camera · Feature: Personalized presets Auto framing Speaker tracking Multiple-speaker tracking Intelligent focus
Audio · Sound Channel: 2.1
Audio · Speaker Power: 2×10W+20W
Microphone · Quantity: 16-mic array
Microphone · Pick-up Angle: 180°
Microphone · Pick-up Range: 0~15m
Microphone · Feature: Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)

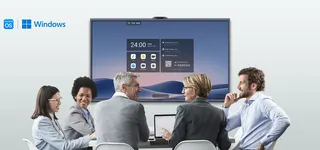

Feature · System OS: MAXHUB OS 7.0 powered by Windows
Feature · Screen Share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast / P2P
Feature · Device Management: MAXHUB Pivot
Feature · Protocol Control: RS232 / IP control Supports integration with Crestron / Extron / Q-sys
Feature · Special Features: Microsoft Intune
Certification · Safety: IEC 62368-1
Certification · EMC: Class B
Certification · Environment: Energy Star
Certification · IP Rating: IP5X design standards

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about V6550

Who is the MAXHUB V6550 designed for?

It suits medium-sized meeting rooms where one 65-inch screen must serve people in the room and remote participants. A corporate boardroom in West Bay can show a presentation from a laptop while the built-in 50 MP cameras and 16-mic array carry the discussion to colleagues in other cities. The 65-inch size fits rooms too small for an 86-inch panel but too large for a 55-inch display.

How does the V6550 differ from the V5550 and V7550?

The V6550 uses a VA panel with 5000:1 typical contrast and a 6.5 ms response time. The 55-inch V5550 uses an ADS panel rated at 1200:1 typical contrast with an 8 ms response time. The 75-inch V7550 shares the V6550's VA panel and 5000:1 contrast in a larger size. Choose the V6550 when you want the 65-inch format with the higher contrast figure.

What brightness, contrast and response time does the display offer?

The 3840 × 2160 display has 350 nits typical brightness, 5000:1 typical contrast, a 6.5 ms response time and a 60 Hz refresh rate. It shows 1.07 billion colours at 10 bit, with 90% NTSC colour gamut and Delta E of 1.5 or less. The 3 mm tempered glass has a non-glare surface with 25% haze, which helps content stay readable near windows and lights.

How does the touch work for a design team in Lusail?

A design team in Lusail can write with up to 50 touch points at once, so several people can sketch on the same board. The infrared touch has a 1.5 mm or more object recognition range, ±0.5 mm accuracy, response of 2.5 ms or less and writing height of 1 mm or less. Windows Ink support, palm rejection and handwriting recognition are included, and touch input can be returned to Windows, Android, Linux, Mac OS X and Chrome OS hosts.

Which ports are available for laptops and room PCs?

The V6550 has two HDMI IN ports, one USB Type-C port, two USB 3.0 ports, one USB 2.0 port, a TOUCH 2.0 port, audio in and out, an RS232 port and an RJ45 network input. It also has a PC module slot and a Wi-Fi module slot. Wi-Fi 6 (802.11ax on 2.4 GHz and 5 GHz) and Bluetooth 5.2 are listed for the unit, so confirm which module your computer needs before ordering.

Can staff share screens wirelessly without cables?

Yes. MAXHUB Share supports BYOM, Miracast, AirPlay, Chromecast and P2P connections, so people can present from their own devices. In a Doha office or a hotel meeting room, this removes the need to find the right cable before a meeting starts. Wireless performance depends on the network and devices in the room, so test it with your IT team before the first meeting.

How does the camera handle participants in a hybrid meeting?

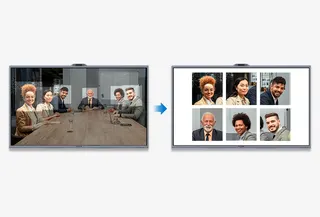

Three 50 MP cameras sit in a built-in ejection unit with 2x optical and 5x digital zoom. Auto framing adjusts the view to include people in the room, while speaker tracking and multiple-speaker tracking follow who is talking. Personalised presets save framing for regular seating positions. The diagonal field of view is 99 degrees, horizontal 86 degrees and vertical 69 degrees.

Can the display be integrated into an existing room control system?

Yes. The V6550 supports RS232 and IP control and supports integration with Crestron, Extron and Q-sys. Facilities teams running a control panel in a ministry meeting room can add the display to the same system as other AV devices. Device management is handled through MAXHUB Pivot, and Microsoft Intune is listed as a special feature for managed deployments.

How could a government office in Msheireb use it for meetings with overseas teams?

An office in Msheireb can place the V6550 in a meeting room where officials join colleagues abroad by video. The 16-mic array picks up speakers across a 180-degree angle up to 15 metres away, and echo and noise cancellation reduce background sound. The unit runs MAXHUB OS 7.0 powered by Windows, so the meeting software your office already uses can run on the display itself.

Will it perform in a hot industrial meeting room in Mesaieed?

The source data does not give an operating temperature range for this model, so SmartRooms Qatar cannot confirm its performance in unconditioned spaces. For a meeting room in Mesaieed or Ras Laffan, plan for indoor, air-conditioned use and check cooling, sun exposure and dust control with the SmartRooms Qatar team before ordering. The manufacturer lists IP5X design standards, which relate to dust protection.

How would a private school in Al Wakrah fit out several classrooms with it?

A private school in Al Wakrah can order units for several rooms under one LPO and request one quotation covering all of them. The 65-inch format suits mid-sized classrooms and seminar rooms, and the touch surface lets students work together at the board. Confirm mounting heights and room layouts first, because wall and power arrangements vary between rooms. Quotations are usually provided within one working day.

Do I need a site survey before wall-mounting the V6550?

Yes. SmartRooms Qatar offers free site surveys, and we recommend one before mounting a 65-inch panel. The survey should check the wall construction, load capacity, cable routes and the camera position relative to the seating. The source data does not list the unit's weight or mounting dimensions, so these details must be verified before installation begins.
