Name: MAXHUB XBoard V7 Series V7550 75-inch Interactive Collaboration Board
Brand: Maxhub
SKU: maxhub-v7550
Availability: InStock

Overview

The MAXHUB XBoard V7550 is a 75-inch 4K interactive collaboration board for medium and large meeting rooms. Its VA panel offers 5000:1 typical contrast, 50-point infrared touch lets several people write at once, and three 50MP cameras with 2x optical zoom and a 16-mic array handle hybrid meetings. It suits corporate boardrooms in Lusail and West Bay and seminar rooms in Education City.

A 75-inch 4K board for mid-sized meeting rooms

The MAXHUB XBoard V7550 is the 75-inch model in the XBoard V7 Series. One unit brings together a 3840 × 2160 display, a touch layer, a pop-up camera module and a speaker and microphone system, so a single screen can host a video call, a whiteboard session and a presentation. Its VA panel delivers a typical contrast ratio of 5000:1, which keeps dark content readable when people sit at an angle to the screen.

Display and touch facts that matter day to day

The 3mm zero-parallax glass is 9H tempered and carries a 25% haze non-glare finish that reduces reflections from windows and ceiling lights. Typical brightness is 350 nits, and an ambient light sensor and an ultrasonic detection sensor are fitted. The infrared touch system recognises 50 touch points at once, with a response time of 2.5 ms or less and a writing height of 1 mm or less, so several people can annotate together. Windows Ink, palm rejection, sharp erase and handwriting recognition are included.

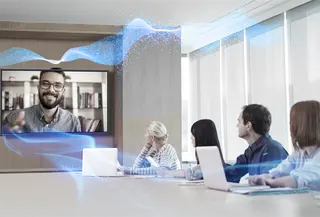

Cameras and audio built for hybrid meetings

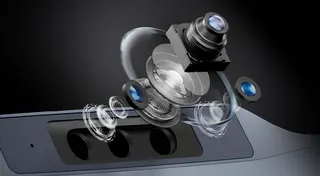

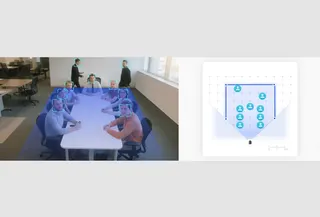

Three 50MP cameras, one panorama and two telephoto lenses, deliver a 99° diagonal, 86° horizontal and 69° vertical field of view, with 2x optical and 5x digital zoom. Auto framing, speaker tracking, multiple-speaker tracking, intelligent focus and personalised presets keep remote participants in view. A 16-mic array picks up sound across 180° up to 15 m, with echo cancellation, AI noise cancellation and automatic gain control. The 2.1 speaker system is rated 2×10W+20W.

Connectivity and control for IT teams

Two HDMI inputs, two USB 3.0 ports, one USB 2.0 and one USB Type-C
TOUCH 2.0, RJ45 LAN input, RS232 and IP control
PC module slot, Wi-Fi module slot, Wi-Fi 6 (802.11ax) on 2.4GHz and 5GHz, Bluetooth 5.2
Integration with Crestron, Extron and Q-sys control systems
MAXHUB Share wireless sharing, MAXHUB Pivot device management and Microsoft Intune support

Touch return supports Windows 11, 10, 8 and 7, Android, Linux, Mac OS X and Chrome OS. The board runs MAXHUB OS 7.0, powered by Windows, and carries IEC 62368-1 safety certification, Class B EMC, ENERGY STAR certification and IP5X design standards.

Where the V7550 fits in Qatar

In a boardroom in Lusail or West Bay, a 75-inch screen suits a table of eight to twelve people who need to see slides and remote participants at the same time. A government ministry meeting room in Doha can use the camera and microphone system to connect with teams abroad from one screen, without a separate conference camera on the table. In Education City, a seminar room can use the touch surface for annotated teaching while presenters share laptops over Wi-Fi or HDMI.

What to plan before installation

Wall mounting a panel this size needs a site survey to check wall structure, sightlines from every seat and the position of power and data outlets. Measure the room before ordering so the board sits at a comfortable height for the front row. The source data does not give an operating temperature range for this model, so if the board will sit in a space that is not air-conditioned, such as a lobby with glass frontage or a sun-exposed area, confirm the environment with the SmartRooms Qatar team before you order. The manufacturer provides a 3-year advanced replacement warranty.

Request a quote for the MAXHUB XBoard V7 Series V7550 from SmartRooms Qatar. Send us your room plan and we will return a quotation, usually within one working day, with delivery to all eight municipalities of Qatar and professional installation available.

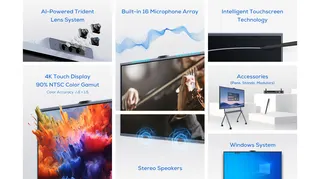

Highlights

75-inch 4K (3840 × 2160) VA display
Infrared touch with 50 points and 2.5 ms response
Three 50MP cameras, 2x optical zoom, auto framing
16-mic array with 180° pickup up to 15 m
Wi-Fi 6, PC module slot, Crestron, Extron, Q-sys integration
ENERGY STAR certified; 3-year advanced replacement warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

V755062

Display · Model: V7550
Display · Screen Size (Inch): 75
Display · Aspect Ratio: 16:9
Display · Panel: VA
Display · Backlight: DLED
Display · Brightness (Typ.): 350 nits
Display · Glass: Zero parallax 3mm thickness 9H tempered
Display · Surface Technology: 25% haze Non-glare technology
Display · Resolution: 3840 × 2160
Display · Refresh Rate: 60 Hz
Display · Contrast Ratio: 5000:1 (typ.)
Display · Viewing Angle (H × V): 178° / 178°
Display · Color Gamut: 90% NTSC
Display · Display Orientation: Landscape
Display · Response Time: 6.5 ms
Display · Life Time: ＞50,000 hours
Display · Operation Hours (Hours / Day): 16 / 7
Display · Display Color: 1.07B (10 bit)
Display · Color Accuracy: Delta E ≤ 1.5
Display · Sensor: Ambient light sensor Ultrasonic detection sensor
Touch System · Touch Technology: Intelligent Touchscreen Technology (infrared recognition)
Touch System · Touch Point: 50 points touch
Touch System · Object Recognition Range: ≥1.5 mm
Touch System · Accuracy: ±0.5 mm
Touch System · Response Time: ≤2.5 ms
Touch System · Writing Height: ≤1 mm
Touch System · System (Touch Return): Windows11/Windows10/ Windows8/Windows7/ Android/Linux/ Mac OS X/Chrome OS
Touch System · Feature: Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition
Connectivity · HDMI IN: × 2
Connectivity · USB 2.0: × 1
Connectivity · USB 3.0: × 2
Connectivity · USB Type-C: × 1
Connectivity · TOUCH 2.0: × 1
Connectivity · AUDIO IN: × 1
Connectivity · AUDIO OUT: × 1
Connectivity · RS232: × 1
Connectivity · RJ45 IN: × 1
Connectivity · PC Module Slot: Module slot × 1
Connectivity · Wi-Fi Slot: Module slot × 1
Connectivity · Wi-Fi: Wi-Fi 6 supported 802.11ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Camera · Quantity: 3
Camera · Resolution: 50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto)
Camera · Zoom: 2x optical zoom 5x digital zoom
Camera · Field of View: 99° (Diagonal) 86° (Horizontal) 69° (Vertical)
Camera · Position: Built-in ejection

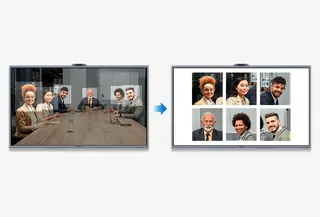

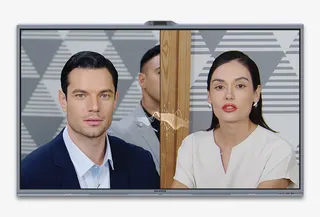

Camera · Feature: Personalized presets Auto framing Speaker tracking Multiple-speaker tracking Intelligent focus
Audio · Sound Channel: 2.1
Audio · Speaker Power: 2×10W+20W
Microphone · Quantity: 16-mic array
Microphone · Pick-up Angle: 180°
Microphone · Pick-up Range: 0~15m
Microphone · Feature: Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)

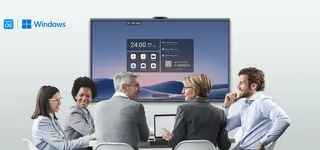

Feature · System OS: MAXHUB OS 7.0 powered by Windows
Feature · Screen Share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast / P2P
Feature · Device Management: MAXHUB Pivot
Feature · Protocol Control: RS232 / IP control Supports integration with Crestron / Extron / Q-sys
Feature · Special Features: Microsoft Intune
Certification · Safety: IEC 62368-1
Certification · EMC: Class B
Certification · Environment: Energy Star
Certification · IP Rating: IP5X design standards

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about V7550

What is the MAXHUB XBoard V7550 designed for?

The V7550 is a 75-inch 4K interactive collaboration board for medium and large meeting rooms. It combines touch annotation, video conferencing cameras and a microphone array in one unit. In a boardroom in Lusail or West Bay, a team can present, annotate and join a call with overseas colleagues from the same screen, without a separate conference camera on the table.

How does the V7550 compare with the V6550 and V8650?

The V7550 sits between the 65-inch V6550 and the 86-inch V8650. It shares the V6550's VA panel, 5000:1 typical contrast and 6.5 ms response time. The V8650 uses an IPS panel with 1200:1 typical contrast and an 8 ms response time, so it suits a larger lecture hall or boardroom where panel type matters more than contrast. The V7550 fits a mid-sized room.

What panel, brightness and colour performance does it offer?

The V7550 uses a VA panel with DLED backlight, 3840 × 2160 resolution and 350 nits typical brightness. Its typical contrast ratio is 5000:1, and it covers 90% NTSC colour gamut with 1.07 billion colours (10-bit) and colour accuracy of Delta E ≤ 1.5. Viewing angles are 178° horizontal and vertical, so people seated across a wide room see a consistent image. An ambient light sensor is fitted.

How accurate is the touch, and how many people can write at once?

The infrared touch system supports 50 touch points, so several people can write together. It recognises objects from 1.5 mm, with accuracy of ±0.5 mm, a response time of 2.5 ms or less and a writing height of 1 mm or less. Windows Ink, palm rejection, sharp erase and handwriting recognition are included, which helps a teacher or project team mark up a plan without stray marks from a resting hand.

Which operating systems work with the touch and the built-in software?

Touch return supports Windows 11, Windows 10, Windows 8, Windows 7, Android, Linux, Mac OS X and Chrome OS, so a connected computer on any of these systems can receive touch input. The board runs MAXHUB OS 7.0, powered by Windows. Screen sharing is provided through MAXHUB Share, which supports BYOM, Miracast, AirPlay, Chromecast and P2P connections.

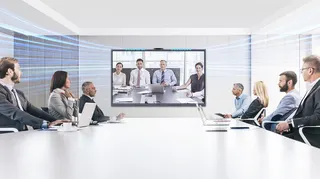

Can the V7550 support hybrid meetings between Doha and overseas teams?

Yes. The board has three 50MP cameras with 2x optical and 5x digital zoom, a 99° diagonal field of view, auto framing, speaker tracking and multiple-speaker tracking. A government team in Doha can keep remote colleagues in view as participants move around the table, while the 16-mic array picks up speakers up to 15 m away.

How well does the microphone array handle a large room?

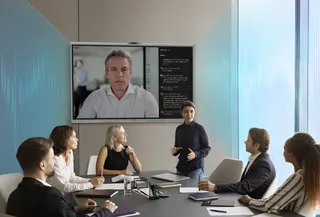

The 16-mic array has a 180° pickup angle and a pickup range of 0 to 15 m. It includes an intelligent audio fence, AI spatial sound, echo cancellation, AI noise cancellation and automatic gain control. In a large training room in Al Sadd or Msheireb, these features help people at the far side be heard without staff repeating questions. The 2.1 speakers are rated 2×10W+20W.

What ports and connectivity are included?

The board has two HDMI inputs, two USB 3.0 ports, one USB 2.0, one USB Type-C, a TOUCH 2.0 port, audio in and out, an RJ45 LAN input and an RS232 port. It has a PC module slot and a Wi-Fi module slot, supports Wi-Fi 6 (802.11ax) on 2.4GHz and 5GHz, and includes Bluetooth 5.2. The two HDMI inputs and USB ports let a laptop and a second computer be connected at the same time.

Can it integrate with our room control and device management tools?

Yes, the V7550 supports RS232 and IP control and is listed for integration with Crestron, Extron and Q-sys control systems. MAXHUB Pivot handles device management, and Microsoft Intune is listed as a special feature. An IT manager with an existing control system should confirm the integration details with the SmartRooms Qatar team before the quotation is finalised.

What should we plan before wall-mounting it in an office in Doha?

Book a free site survey before mounting. The survey checks the wall structure for a 75-inch panel, sightlines from every seat, and where power and data outlets sit. Plan cable routes early and confirm the mounting position with the installer. Once the room is measured, the quotation can list the items needed for a clean, accurate installation.

Can the V7550 go in a lobby or area exposed to heat and dust?

The source data does not give an operating temperature range for the V7550, so do not assume it suits hot or dusty spaces. Qatar summer temperatures can exceed 45°C, so a lobby with glass frontage, a sunlit atrium or a room without air conditioning needs checking first. Share the location with the SmartRooms Qatar team when you request a quote, and we will advise on the environment before installation.

What warranty and purchasing options apply?

The manufacturer provides a 3-year advanced replacement warranty for this product. SmartRooms Qatar delivers to all eight municipalities of Qatar, and quotations are usually returned within one working day. Schools, ministries and companies can order against a purchase order or LPO, or through a government tender including Monaqasat, and pay by bank transfer, cheque or purchase order.
