Name: MAXHUB XBoard V8650 86-inch Interactive Collaboration Board
Brand: Maxhub
SKU: maxhub-v8650
Availability: InStock

Overview

The MAXHUB XBoard V8650 is an 86-inch 4K interactive display with an IPS panel, 50-point infrared touch and a three-camera video module with 2x optical zoom. It runs MAXHUB OS 7.0, which is powered by Windows, so teams can join calls and annotate from one screen. It suits boardrooms, lecture halls and large training rooms across Doha, West Bay and Education City. Request a quote from SmartRooms Qatar.

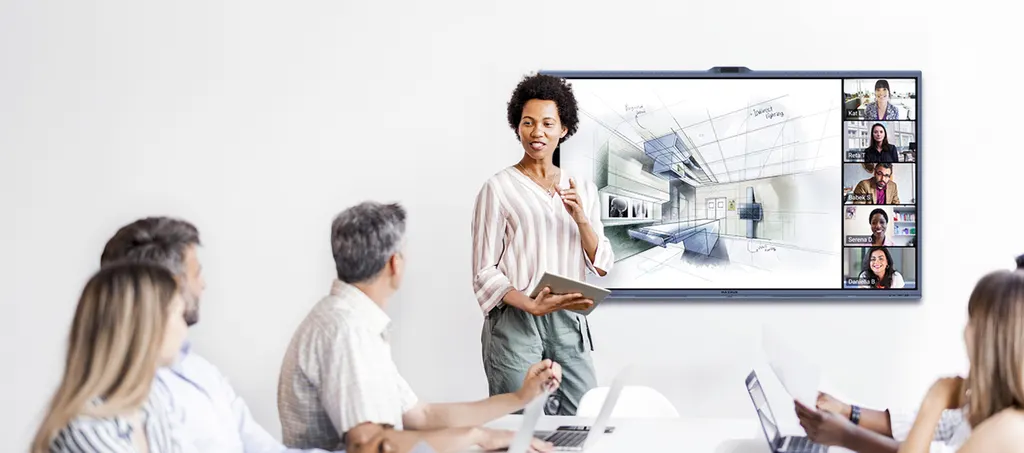

An 86-inch 4K panel built for hybrid meetings

The MAXHUB XBoard V8650 combines a large interactive display, a meeting camera, a microphone array and a Windows-based operating environment in one unit. Its 86-inch screen uses an IPS panel at 3840 × 2160 resolution, so presentations, spreadsheets and video stay sharp at the back of a large room. For organisations that run most meetings through a video platform, one unit can replace a separate screen, camera and speakerphone.

Display, touch and writing: the figures that matter

Panel: IPS, 350 nits typical brightness, 1,200:1 typical contrast and 178° / 178° viewing angles.
Surface: 3 mm zero-parallax glass with 9H tempered rating and a non-glare finish with 25% haze, which reduces reflections from ceiling lights and windows.
Colour: 90% NTSC gamut, 10-bit colour (1.07B) and Delta E of 1.5 or less.
Touch: infrared recognition with 50 touch points, ±0.5 mm accuracy and response of 2.5 ms or less.
Life: rated above 50,000 hours, with an operation pattern listed as 16 hours a day over 7 days.

Cameras, microphones and speakers for remote participants

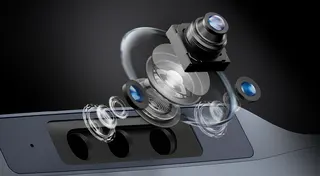

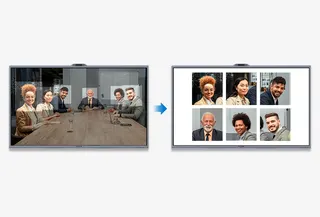

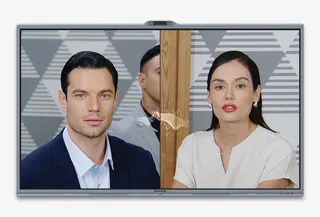

Three 50 MP cameras sit in a built-in ejection unit, one panoramic lens and two telephoto lenses, offering 2x optical and 5x digital zoom. Auto framing, speaker tracking, multiple-speaker tracking, personalised presets and intelligent focus help the video follow people in the room without a camera operator. The 16-microphone array has a 180° pickup angle and a 0 to 15 m pickup range, with AI noise cancellation, echo cancellation and automatic gain control. The 2.1 speaker system is rated at 2 × 10 W plus 20 W.

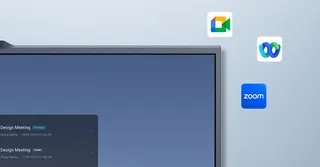

Connectivity and software for mixed Windows and personal-device teams

The panel provides two HDMI inputs, one USB Type-C port, two USB 3.0 ports, one USB 2.0 port, a TOUCH 2.0 port, audio in and out, RS232, an RJ45 input, and slots for a PC module and a Wi-Fi module. Wireless is Wi-Fi 6 (802.11ax) on 2.4 GHz and 5 GHz, with Bluetooth 5.2. Touch return is listed for Windows 11, 10, 8 and 7, Android, Linux, Mac OS X and Chrome OS. MAXHUB Share supports BYOM, Miracast, AirPlay, Chromecast and P2P screen sharing, MAXHUB Pivot handles device management, and the listed special features include Microsoft Intune.

Where the V8650 fits in Qatar

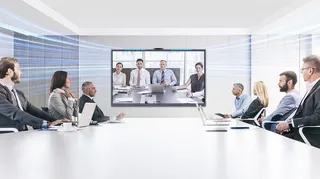

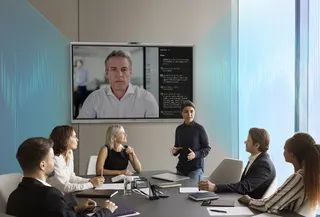

An 86-inch panel suits rooms where a large group needs one shared surface. A company boardroom in West Bay can host executives in the room while directors join from abroad. A university lecture hall or training room in Education City can use the touch surface for group exercises and display lecture material to the back rows. A government meeting room in Msheireb can present documents in Arabic and English within the same session.

What to plan before you order

Confirm wall or stand structure, viewing distances and cable routes during a free site survey.
Confirm the room environment, especially sunlight and temperature, before placing the panel near windows.
Check that your video platform and room controller work with the listed control options.
Plan Windows accounts and device management with your IT team, including Microsoft Intune where you use it.

The manufacturer provides a 3-year advanced replacement warranty and local support. SmartRooms Qatar supplies the V8650 across all eight municipalities of Qatar, with professional installation available. Request a quote and our team will confirm delivery and installation timing with your quotation, usually within one working day.

Highlights

86-inch 4K UHD (3840 × 2160) IPS display
50-point infrared touch with ±0.5 mm accuracy
Three 50 MP cameras with 2x optical and 5x digital zoom
16-microphone array with 180° pickup and 0 to 15 m range
Wi-Fi 6, Bluetooth 5.2 and PC module slot
3-year advanced replacement warranty from the manufacturer

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

V865062

Display · Model: V8650
Display · Screen Size (Inch): 86
Display · Aspect Ratio: 16:9
Display · Panel: IPS
Display · Backlight: DLED
Display · Brightness (Typ.): 350 nits
Display · Glass: Zero parallax 3mm thickness 9H tempered
Display · Surface Technology: 25% haze Non-glare technology
Display · Resolution: 3840 × 2160
Display · Refresh Rate: 60 Hz
Display · Contrast Ratio: 1200:1 (typ.)
Display · Viewing Angle (H × V): 178° / 178°
Display · Color Gamut: 90% NTSC
Display · Display Orientation: Landscape
Display · Response Time: 8 ms
Display · Life Time: ＞50,000 hours
Display · Operation Hours (Hours / Day): 16 / 7
Display · Display Color: 1.07B (10 bit)
Display · Color Accuracy: Delta E ≤ 1.5
Display · Sensor: Ambient light sensor Ultrasonic detection sensor
Touch System · Touch Technology: Intelligent Touchscreen Technology (infrared recognition)
Touch System · Touch Point: 50 points touch
Touch System · Object Recognition Range: ≥1.5 mm
Touch System · Accuracy: ±0.5 mm
Touch System · Response Time: ≤2.5 ms
Touch System · Writing Height: ≤1 mm
Touch System · System (Touch Return): Windows11/Windows10/ Windows8/Windows7/ Android/Linux/ Mac OS X/Chrome OS
Touch System · Feature: Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition
Connectivity · HDMI IN: × 2
Connectivity · USB 2.0: × 1
Connectivity · USB 3.0: × 2
Connectivity · USB Type-C: × 1
Connectivity · TOUCH 2.0: × 1
Connectivity · AUDIO IN: × 1
Connectivity · AUDIO OUT: × 1
Connectivity · RS232: × 1
Connectivity · RJ45 IN: × 1
Connectivity · PC Module Slot: Module slot × 1
Connectivity · Wi-Fi Slot: Module slot × 1
Connectivity · Wi-Fi: Wi-Fi 6 supported 802.11ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Camera · Quantity: 3
Camera · Resolution: 50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto)
Camera · Zoom: 2x optical zoom 5x digital zoom
Camera · Field of View: 99° (Diagonal) 86° (Horizontal) 69° (Vertical)
Camera · Position: Built-in ejection
Camera · Feature: Personalized presets Auto framing Speaker tracking Multiple-speaker tracking Intelligent focus
Audio · Sound Channel: 2.1
Audio · Speaker Power: 2×10W+20W
Microphone · Quantity: 16-mic array
Microphone · Pick-up Angle: 180°
Microphone · Pick-up Range: 0~15m
Microphone · Feature: Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)

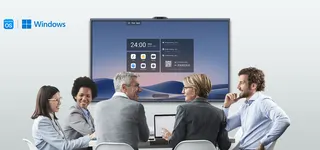

Feature · System OS: MAXHUB OS 7.0 powered by Windows
Feature · Screen Share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast / P2P
Feature · Device Management: MAXHUB Pivot
Feature · Protocol Control: RS232 / IP control Supports integration with Crestron / Extron / Q-sys
Feature · Special Features: Microsoft Intune
Certification · Safety: IEC 62368-1
Certification · EMC: Class B
Certification · Environment: Energy Star
Certification · IP Rating: IP5X design standards

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about V8650

Is the V8650 suited to hybrid meetings between Doha and teams abroad?

Yes, it is built for that use. The 86-inch panel shows 4K content to a full room, while the three 50 MP cameras with auto framing and speaker tracking keep remote participants in view. The 16-microphone array picks up voices up to 15 m away. The panel runs MAXHUB OS 7.0, which is powered by Windows, so it works as an all-in-one display. Test the call setup with your IT team during the quotation stage.

How does the V8650 differ from the V6550 and V7550?

The V8650 is the 86-inch model in the XBoard V7 range. It uses an IPS panel and lists 1,200:1 typical contrast, while the V6550 and V7550 use VA panels with 5,000:1 typical contrast at 65 and 75 inches. All three share 4K resolution, 350 nits typical brightness, 50-point touch and the same three-camera module. Choose the V8650 when your room needs the largest screen in the range.

What touch and writing features does the V8650 offer?

The panel uses infrared touch with 50 touch points, an object recognition range of 1.5 mm or more, and accuracy of ±0.5 mm. Writing height is 1 mm or less. The listed features include Windows Ink, direct annotation, palm rejection, sharp erase and handwriting recognition. Several people can write at the same time, and the device includes preinstalled graphic templates for brainstorming sessions.

How do the three cameras frame participants?

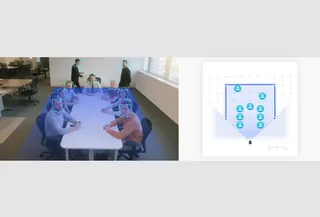

The camera module has three 50 MP lenses, one panoramic and two telephoto, with 2x optical zoom and 5x digital zoom. Its 99° diagonal field of view covers the room. Built-in features include auto framing, speaker tracking, multiple-speaker tracking, personalised presets and intelligent focus. These functions help the video follow whoever is speaking, which is useful when a meeting has several people at the table.

Will an 86-inch panel work in a boardroom in West Bay?

An 86-inch screen suits a larger boardroom, such as an executive room in a West Bay tower where leaders sit around a long table and remote directors join from abroad. The listed viewing angles of 178° horizontal and 178° vertical keep content readable from wide seating positions. Confirm the wall space and layout before ordering, and request a quote so the team can plan the installation.

Can the V8650 be used in a lecture hall or training room in Education City?

Yes, for teaching spaces that need a large interactive surface. The 50-point touch supports several students writing at once, and the 16-microphone array with a 180° pickup angle captures a lecturer moving across the front of the room. Laptops can connect through two HDMI inputs or the USB Type-C port. Confirm that your lecture recording or conferencing software runs on MAXHUB OS 7.0 before buying.

Can the V8650 be controlled from an existing room control system?

The panel offers RS232 and IP control and lists integration with Crestron, Extron and Q-sys. This allows the display to be managed from a room controller built on one of these platforms. The data sheet names the platforms but not individual command sets, so ask the SmartRooms Qatar team to confirm your exact controller model and required commands before you request the quotation.

How should a school or government office order several V8650 panels?

Schools and government offices can order by local purchase order (LPO), and government tenders including Monaqasat are supported. For example, a private school in Al Rayyan equipping several classrooms, or a ministry fitting out conference rooms, can request one quotation covering every panel, mounting and installation. Quotations usually arrive within one working day, and delivery timing is confirmed with the quotation.

Do we need a site survey before mounting an 86-inch panel?

Yes, it is worth doing. A panel this size needs suitable wall structure or a purpose-built stand, plus clear access for the installation team. SmartRooms Qatar offers free site surveys that check wall structure, power and network cable routes, and the viewing distance from the seating area. Request the survey with your quote so installation is planned before the panel arrives on site.

Can the V8650 sit in a sunlit room or lobby with large windows in Al Sadd?

The data available does not list an operating temperature range or an outdoor rating, so do not assume it suits hot or sunlit areas. The listed IP rating is IP5X design standards, which relates to dust protection rather than outdoor use. Position the panel away from direct sunlight and ask the SmartRooms Qatar team to confirm the environment before you accept the quotation.
