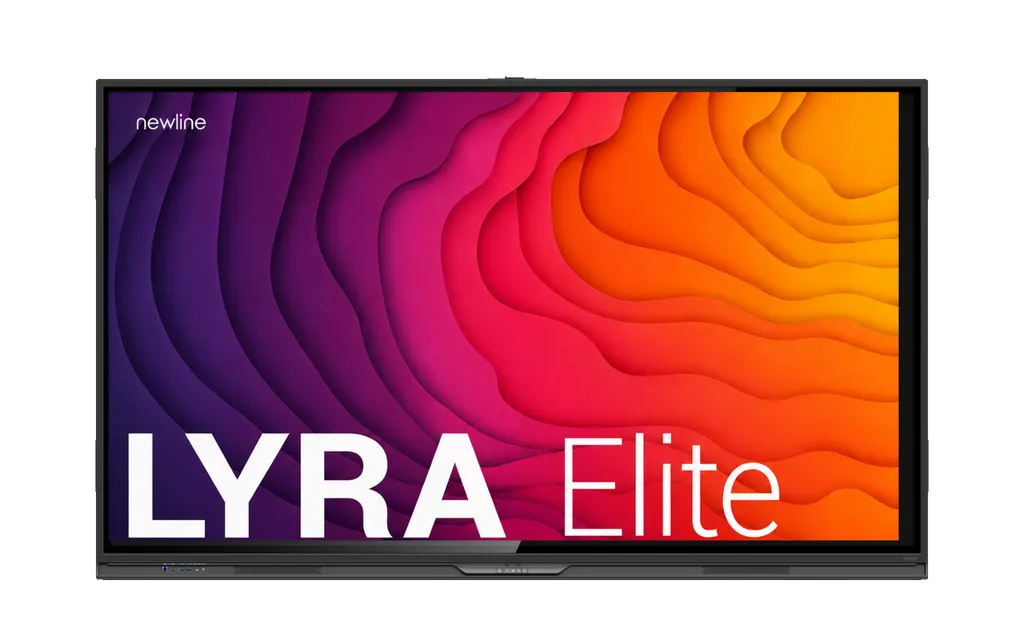

Newline Lyra Elite (Q Ultra Series)

Name: Newline Lyra Elite (Q Ultra Series) 4K Interactive Display, 55 to 98 inches
Brand: Newline
SKU: newline-lyra-elite
Availability: InStock

Overview

The Newline Lyra Elite (Q Ultra Series) is a 4K interactive display sold in 55, 65, 75, 86 and 98-inch sizes. It runs Android 16 with native Google EDLA certification, supports up to 50 touch points on Windows and Android, and connects to a laptop through one USB-C cable that also delivers up to 65W of power. Schools, ministries and meeting rooms across Doha and the wider country can match the size to their room, with an optional 4K ModCam+ camera for hybrid sessions.

What the Lyra Elite Q Ultra covers

The Newline Lyra Elite (Q Ultra Series) is a family of interactive displays available in five sizes: 55, 65, 75, 86 and 98 inches. Every size uses a 16:9 panel at 3840 × 2160 (4K) with 550 cd/m² brightness and a 5000:1 contrast ratio. Each unit runs Android 16 with native Google EDLA certification, so staff can open Google Classroom, Google Drive and Google Meet directly on the panel and reach the Google Play Store for productivity and learning apps.

Touch, ports and connection

Touch is infrared, with up to 50 simultaneous touch points on Windows and Android and 20 on MAC, Linux and ChromeOS. Accuracy is stated as ±1 mm, and the panel accepts passive pen, finger and palm input with two styluses listed. The front of the display carries a USB Type-C port rated at 65W, which carries video, audio and touch over one cable, a second HDMI IN 2.1 with HDCP 2.3, two USB 3.2 Type-A ports and a microphone input. The rear adds DisplayPort 1.2, HDMI OUT 2.1 at 4K 60 Hz, RS232, gigabit RJ45, a 15W USB Type-C port, an OPS slot and S/PDIF and line outputs. Wi-Fi 6 and Bluetooth 5.2 are built in.

Dual 20W front-facing speakers with 6Ω impedance for lessons and presentations in larger rooms.
Optional 4K ModCam+ with two integrated microphones; the camera is not included by default.
Antimicrobial tempered glass with anti-glare and anti-fingerprint treatment and certified zero bonding.

Choosing a size and planning the wall

Display area and weight rise with size, so the room should decide the model. The 55-inch model has a display area of 1210 × 680 mm and weighs 28.0 kg. The 65-inch model measures 1428 × 804 mm and weighs 33.5 kg. The 75-inch model measures 1650 × 928 mm and weighs 44.5 kg. The 86-inch model measures 1895 × 1066 mm and weighs 59.5 kg. The 98-inch model measures 2159 × 1214 mm and weighs 105.5 kg. VESA patterns run from 400 × 400 mm on the 55-inch to 800 × 400 mm on the 86-inch and 98-inch models. Electrical power consumption is listed as 108 W, 126 W, 134 W and 160 W for the 55, 65, 75 and 86-inch models; the 98-inch figure is not in the source data.

Where it fits in Qatar

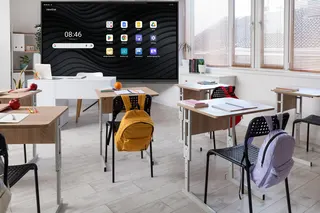

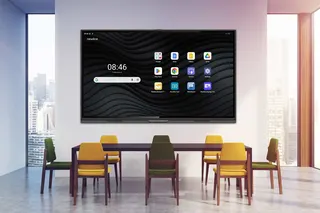

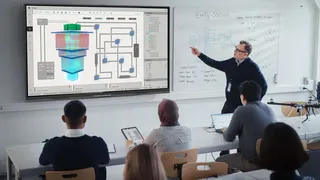

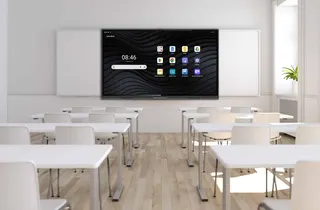

A private school in Al Wakrah fitting out a classroom can use the 65-inch model, where the touch surface and dual speakers suit a group of students at the board. A university lecture hall in Education City can use the 86-inch model with a ModCam+ so that students joining from home see the presenter and hear the room clearly. A ministry meeting room in West Bay can use the 75-inch model for video links to colleagues abroad, with the USB-C connection bringing a visiting presenter laptop online without extra cabling.

What to plan before ordering

Confirm the installation environment before the display goes into a lobby, atrium or room with large windows. The source data does not list an operating temperature range, so SmartRooms Qatar will confirm the environment with you before quoting, especially when summer temperatures in Doha can exceed 45°C. Confirm which OPS modules you need for your software, and check the wall, bracket and access route for the heavier models. SmartRooms Qatar offers a free site survey, supply, delivery to all eight municipalities of Qatar and professional installation. Quotations are usually issued within one working day, and purchase orders and government tenders are supported. Request a quote to receive a specification sheet matched to your room, size and mounting plan.

Highlights

4K panel with 550 cd/m² brightness and 5000:1 contrast
Native Google EDLA certification on Android 16
Up to 50 touch points on Windows and Android
Single USB Type-C connection with 65W power delivery
Dual 20W front-facing speakers with 6Ω impedance
Optional 4K ModCam+ with two integrated microphones

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

Source: manufacturer · checked Oct 2026

The full specification and datasheet for this model are available on request; we send them with your quotation.

Downloads

1 file from the manufacturer

PDF Datasheets Lyra-Elite-26QULT_Specsheet_EN.pdf 8.9 MB

Questions about Lyra Elite (Q Ultra Series)

Which Lyra Elite size suits a classroom in Al Wakrah?

For a typical classroom, the 65-inch model is the most practical choice in this series, with a 1428 × 804 mm display area and a net weight of 33.5 kg. Larger rooms in Education City or a boardroom in West Bay usually need the 75-inch or 86-inch models. Send your room dimensions and seating plan with your quote request so SmartRooms Qatar can confirm the right size.

Is the 4K camera included with the Lyra Elite?

No. The camera is not included by default. The Newline 4K ModCam+ is an optional add-on that provides ultra-high-definition video and two integrated microphones, so you do not need a separate microphone array for hybrid lessons. If remote students or colleagues will join your sessions, ask for the ModCam+ to be included in your quotation.

How many touch points does the Lyra Elite support?

It supports up to 50 simultaneous touch points on Windows and Android, and up to 20 on MAC, Linux and ChromeOS. The infrared touch is rated at ±1 mm accuracy and accepts passive pen, finger and palm input, with two styluses listed. If your group activities depend on many students at the board at once, confirm your operating system before ordering.

Can a laptop connect with just one cable?

Yes. The front USB Type-C port carries video, audio and touch over one cable and delivers up to 65W of power, so a presenter can share content and keep the laptop charged during a lesson. A front HDMI IN 2.1 with HDCP 2.3 is also available for laptops without USB-C, and the rear panel adds DisplayPort 1.2 and HDMI OUT at 4K 60 Hz.

Does the Lyra Elite support Google Classroom and Google Meet?

The Lyra Elite runs Android 16 with native Google EDLA certification. Staff can open Google Classroom, Google Drive and Google Meet directly on the panel, and the Google Play Store provides access to productivity and learning tools. Google EDLA certification also enables advanced security features and centralized device management, which helps school IT teams manage several panels.

What should I check before wall-mounting an 86-inch model in a lecture hall?

The 86-inch model weighs 59.5 kg and uses an 800 × 400 mm VESA pattern, so the wall structure, bracket and fixing points need checking before installation. Its outline dimensions are 1955 × 122 × 1171 mm, so measure doorways and lift access as well. SmartRooms Qatar offers a free site survey to check the wall and access route before the installation date is set.

Does the Lyra Elite support Arabic language settings?

The source data does not list language or Arabic interface support, so this cannot be confirmed from the datasheet. Offices in Doha that work in Arabic and English side by side should ask for written confirmation of language settings before ordering. Include this question in your quote request and the SmartRooms Qatar team will confirm what the product supports.

What power does the Lyra Elite need?

The datasheet lists electrical power consumption of 108 W for the 55-inch model, 126 W for the 65-inch, 134 W for the 75-inch and 160 W for the 86-inch. The 98-inch figure is not listed in the source data, so ask for it in your quotation. Share these figures with your facilities team when planning the circuit and any distribution in a boardroom.

Can the Lyra Elite be placed near a window in a hot lobby?

The source data does not give an operating temperature range, so no range can be stated here. In Doha, where summer temperatures can exceed 45°C, lobbies and rooms with large windows need the environment checked first. The anti-glare, anti-fingerprint glass helps with reflections, but SmartRooms Qatar should confirm placement, shading and cooling needs before you request a quote.

Can a school or ministry order several units through an LPO or tender?

Yes. Schools, ministries and government offices can order through a purchase order (LPO) or a government tender, including Monaqasat. Payment is accepted by bank transfer, cheque or purchase order. Each unit is covered by the manufacturer's warranty. For a school fitting out several classrooms, request one quotation covering the sizes, mounts and ModCam+ units you need.
