S Series (26S)

What the S Series is and what it does

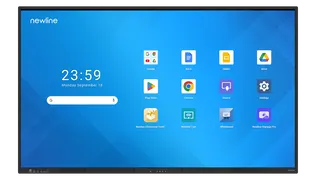

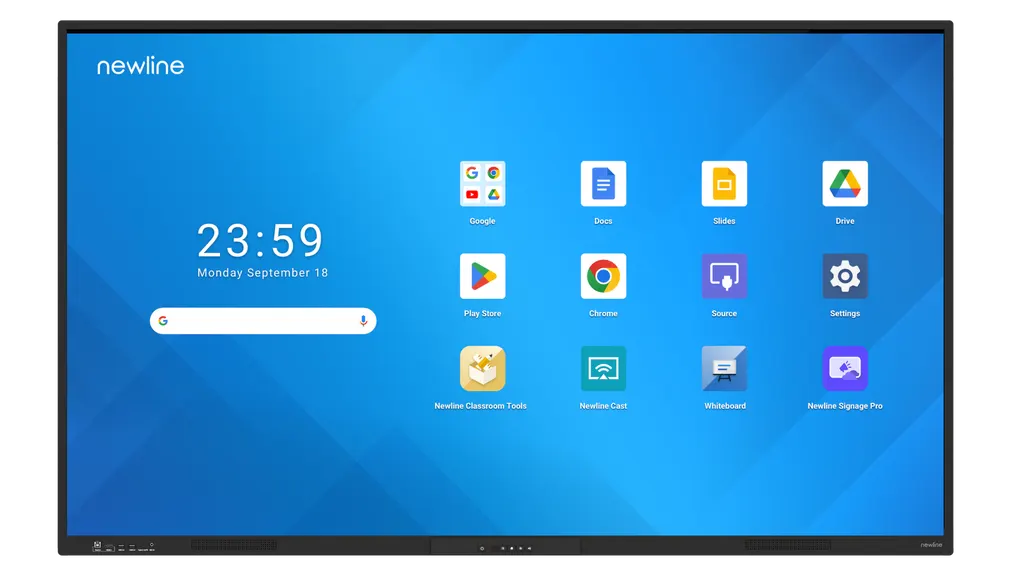

The Newline S Series (26S) is a large interactive display built for classrooms, meeting rooms and shared workspaces. It combines a 4K Direct LED panel with infrared touch, an Android 16 operating system and an integrated Wi-Fi 6 and Bluetooth 5.2 module, so teachers and teams can annotate, open apps and share content from one screen.

It is available in 65-inch, 75-inch and 86-inch sizes, which lets you match the panel to the room. A 65-inch unit suits a smaller classroom or huddle room, while an 86-inch unit suits a lecture hall or large boardroom where people sit farther from the screen.

Writing, image and touch: the facts that matter

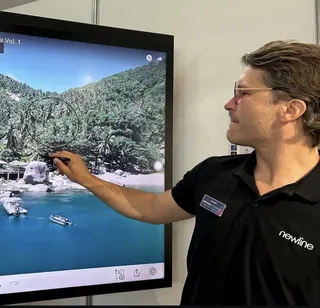

Certified Zero Bonding removes the air gap between the protective glass and the LCD panel. In practice this means fewer reflections, a greater sense of image depth and a shorter distance between the pen tip and the ink on screen, which gives a more natural writing feel for lessons and brainstorming sessions.

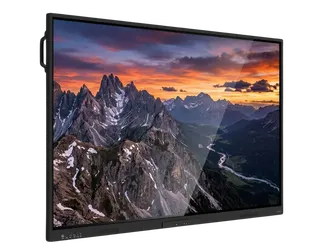

The panel offers 4K (3840 x 2160) resolution, 1.07 billion colours, 450 cd/m² brightness, a 178 degree viewing angle and a 6 ms response time. Anti-glare glass and a hardware blue light filter help keep content readable in bright rooms and during long working days. Touch uses infrared technology with ±0.5 mm accuracy, supports up to 50 touch points on Windows and Android and up to 20 on macOS, Linux and ChromeOS, and accepts a passive pen, a finger or a fist.

• Display life: rated at 50,000 hours or more.
• Surface: 7H touch surface hardness.
• Sound: two 20 W front-facing speakers.

Connectivity for mixed AV and IT rooms

The front panel has a USB Type-C port with 65 W power delivery, an HDMI input supporting 4K at 60 Hz, a USB Type-B 3.0 port for touch, two USB 3.2 Gen 1 ports and a 3.5 mm microphone input. The rear panel adds connections such as DisplayPort, VGA, RJ45 Gigabit, RS232 and audio outputs. The rear port count varies by size, so check the port map against your source devices and control system before ordering.

Where the S Series fits in Qatar

A private school in Al Wakrah fitting out new classrooms could place a 65-inch or 75-inch S Series in each room. Zero Bonding suits daily lessons, and secure multi-user profiles keep each teacher's workspace and settings separate when a room is shared across the day.

A government office in West Bay where staff join calls with colleagues abroad would benefit from integrated Wi-Fi 6, a wired RJ45 Gigabit connection and an HDMI input for laptops. In a lecture hall or boardroom in Lusail or Education City, the 86-inch model gives a larger image for a bigger audience.

Planning the installation

• VESA mounting pattern: 600 x 400 mm on the 65-inch, 800 x 400 mm on the 75-inch and 86-inch.
• Display areas: 1428 x 803 mm, 1650 x 928 mm and 1895 x 1066 mm for the three sizes.
• Standard-mode power: 88 W, 119 W and 143 W; standby below 0.5 W.

Before any wall-mounting, we carry out a free site survey to check wall structure, sightlines, power and data routes, especially for the 86-inch model. The manufacturer's dimensions are indicative and subject to adjustment, and final weights are not yet confirmed, so we will verify them with you before installation. The source data does not give an operating temperature range, so confirm the environment with the SmartRooms Qatar team before placing a unit near a glazed lobby entrance exposed to summer heat or dust storms.

Request a quote from SmartRooms Qatar with your room size, number of units and wall type. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar and install professionally.
