Newline TT-6522Z 65-inch 4K Interactive Display

Name: Newline TT-6522Z 65-inch 4K Interactive Display
Brand: Newline
SKU: newline-z-series-tt-6522z
Availability: InStock

Overview

The Newline TT-6522Z is a 65-inch 4K interactive display for corporate meeting rooms. It combines a 3mm narrow bezel, a 4K wide-angle camera, an 8-microphone array and a built-in speaker system with subwoofer, so one unit covers video calls and whiteboard sessions. Its 178° viewing angle keeps images clear from across the room. Suited to boardrooms and huddle spaces in Doha and Lusail.

What the TT-6522Z brings to a meeting room

The Newline TT-6522Z is the 65-inch model in the Z Series, Newline's range of all-in-one interactive displays for corporate workspaces. Instead of buying a panel, a conference camera, a microphone and speakers separately, the TT-6522Z integrates them into one unit. That makes it a single-box answer for hybrid meetings, where someone in the room presents or annotates on the screen while colleagues join from another office or abroad.

At 65 inches it is the most compact member of the series. That matters in rooms where a 75-inch or 86-inch panel would overwhelm the wall or the seating, such as smaller boardrooms, huddle spaces and training rooms.

The specifications that shape the buying decision

Panel: 65-inch LED-backlit 4K display at 3840 × 2160 with a 178° viewing angle and P-CAP touch.
Camera: 4K module with a 120° field of view, rated at 8M resolution.
Audio: an 8-microphone array with 8-metre pickup distance, plus two 20W speakers and a 15W subwoofer.
Ports: three HDMI 2.0 inputs, an HDMI 2.0 output, a DisplayPort 1.2 output, one USB-C port with 65W power delivery (100W optional), four USB Type-B touch ports and three USB 3.0 Type-A ports.
Expansion: an OPS-PC slot, an SDM-S slot and a Wi-Fi module slot.
Memory: 8 GB RAM and 64 GB storage for the built-in system.
Power: 190W standard consumption and 150W in eco mode, with a 100–240 V AC supply.

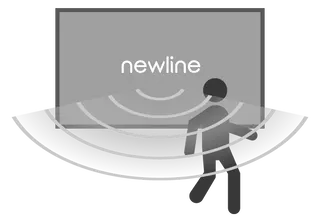

Its bezel is only 3mm wide, so the picture reads as one continuous surface on the wall. The antimicrobial tempered glass has an anti-glare and anti-fingerprint finish, and the manufacturer states the antimicrobial coating is TÜV certified, which suits surfaces touched by many staff throughout the day. A proximity sensor switches the display on and off with people's presence, helping to cut wasted power.

Where it fits in Qatar

A corporate team room in West Bay or Lusail. A department that runs a weekly hybrid meeting with colleagues in Riyadh or Dubai can replace an ageing projector and separate conference kit with one screen that handles content, camera and sound.

A training room in Education City or Al Sadd. Training centres can use the touch surface for group exercises, and user profiles keep each instructor's home screen and settings ready for the next session.

A huddle space in a government office in Msheireb. Short stand-up meetings and document reviews suit a compact 65-inch panel, and the proximity sensor reduces power use when the room is empty.

Planning the installation and the room

At about 37 kg, with outline dimensions of 1497 × 920 × 84 mm, the TT-6522Z needs a wall that can carry it. Wall-mounted and mobile stand options are both listed as optional, so confirm the mounting method with your quotation. SmartRooms Qatar offers free site surveys before wall mounting, which checks wall structure, cable routes to the power socket and the panel's position relative to the seating.

Plan the room environment as carefully as the wall. The panel's operating range is 0–40°C with 20–80% humidity, non-condensing. Outdoor temperatures in Qatar regularly pass 45°C in summer, so install the screen in an air-conditioned room, away from direct sunlight through windows and from dusty entrance areas. Its supply accepts 100–240 V AC, so confirm the power arrangement during the survey.

For several rooms, send the room sizes, your mounting preference and the quantity together. SmartRooms Qatar supplies on purchase orders (LPOs) and government tenders, including Monaqasat, and quotations are usually issued within one working day. Request a quote for the TT-6522Z and we will confirm the lead time in the quotation.

Highlights

65-inch 4K LED display, 3840 × 2160 resolution, 178° viewing angle
Built-in 4K camera with 120° field of view
8-microphone array with 8-metre pickup distance
Two 20W speakers plus 15W subwoofer

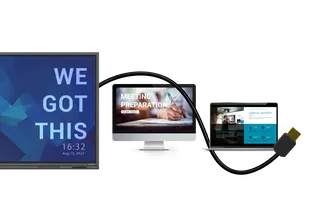

Single USB-C cable: data, video, audio and 65W power
3mm narrow bezel and antimicrobial tempered touch glass

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

7 specifications · Source: manufacturer · checked Oct 2026

TT-6522Z7

General · Screen Size: 65″
General · Display area (mm): 1432 × 807
General · Weight (kg): 37
General · Touch Technology: P-CAP
General · Resolution: 3840 × 2160 (4K)
General · Viewing Angle: 178°
General · Backlight: LED

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TT-6522Z

Who is the Newline TT-6522Z designed for?

It suits corporate meeting rooms, huddle spaces and training rooms where a 65-inch screen fits the room. Because the camera, microphone array and speakers are built in, a team in a smaller room can run a hybrid meeting without extra conference hardware. The 3mm bezel and 178° viewing angle help it look clean on the wall and readable from every seat.

How far away can the microphone array pick up voices?

The 8-microphone array has a pickup distance of 8 metres, which covers a typical meeting room where people sit at the far end of the table from the screen. It works alongside the 4K camera, which has a 120° field of view, so remote participants can see and hear people across the room clearly.

Can the TT-6522Z be installed in a room without air conditioning?

No. Its working temperature range is 0–40°C with 20–80% humidity, non-condensing. Outdoor summer temperatures in Qatar often exceed 45°C, so install it in an air-conditioned room, away from direct sun through windows. If you are unsure about a room's conditions, confirm them with the SmartRooms Qatar team before ordering.

Does one USB-C cable connect a laptop to the display?

Yes. The USB-C port carries data, audio, video and power over a single cable, with 65W power delivery as standard and 100W available as an option. A presenter can connect a laptop, start sharing and charge it at the same time, which keeps the table clear of extra cables.

Which ports does the TT-6522Z provide?

It offers three HDMI 2.0 inputs, an HDMI 2.0 output, a DisplayPort 1.2 output, a microphone input, an audio line out, an S/PDIF output, an RS-232 control port and RJ-45 network ports (one in, one out). It also has four USB Type-B touch ports and three USB 3.0 Type-A ports.

What is the OPS-PC slot for?

The OPS-PC slot accepts an OPS-standard computer module, so the panel can run its own PC without an external media box. The SDM-S slot is a further expansion point listed in the specifications. Confirm which module options are available with your quotation before ordering.

Does the TT-6522Z come with a wall mount or stand?

Mounting is listed as optional, with wall-mounted and mobile stand options. Whether a bracket or stand is included depends on the configuration, so ask for this to be stated in the quotation. Plan the wall for about 37 kg and outline dimensions of 1497 × 920 × 84 mm before the bracket goes up.

How heavy is the panel and what should we check before mounting?

The specification table lists about 37 kg for the TT-6522Z, and the gross shipping weight is 46.5 kg. Check the wall structure, bracket fixing points, power socket and cable route. SmartRooms Qatar offers free site surveys, which is worth booking for partition walls or glass-fronted rooms.

How does the touch surface hold up to heavy daily use?

The panel uses P-CAP touch with 20 touch points on the standard system, and 40 points when the optional Windows configuration is chosen. The tempered glass has 7H surface hardness, an anti-glare and anti-fingerprint finish, and an antimicrobial coating that the manufacturer states is TÜV certified, suiting rooms used by many people each day.

Will the screen switch off when the room is empty?

Yes. The built-in proximity sensor powers the display on and off according to human presence in the room. In a shared meeting room in an Industrial Area office or Al Sadd, the screen does not stay lit after a meeting ends. Standard consumption is 190W and eco consumption is 150W.

Can each teacher or team keep its own settings?

Yes. User profiles save the home screen and settings for teachers, students, teams or departments, so a staff member signing in at a school in Al Rayyan or a team room in Doha finds their layout ready. The Newline Ecosystem also works with other software, documents and devices your organisation already uses.

Can SmartRooms Qatar supply the TT-6522Z against an LPO or government tender?

Yes. SmartRooms Qatar supplies the TT-6522Z to organisations across Qatar against purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the product is covered by the manufacturer's warranty.
