Newline TT-7522Z 75-inch 4K Interactive Display

Name: Newline TT-7522Z 75-inch 4K Interactive Display
Brand: Newline
SKU: newline-z-series-tt-7522z
Availability: InStock

Overview

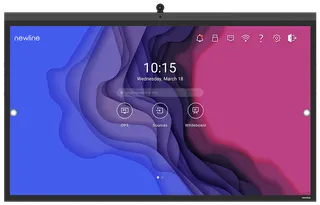

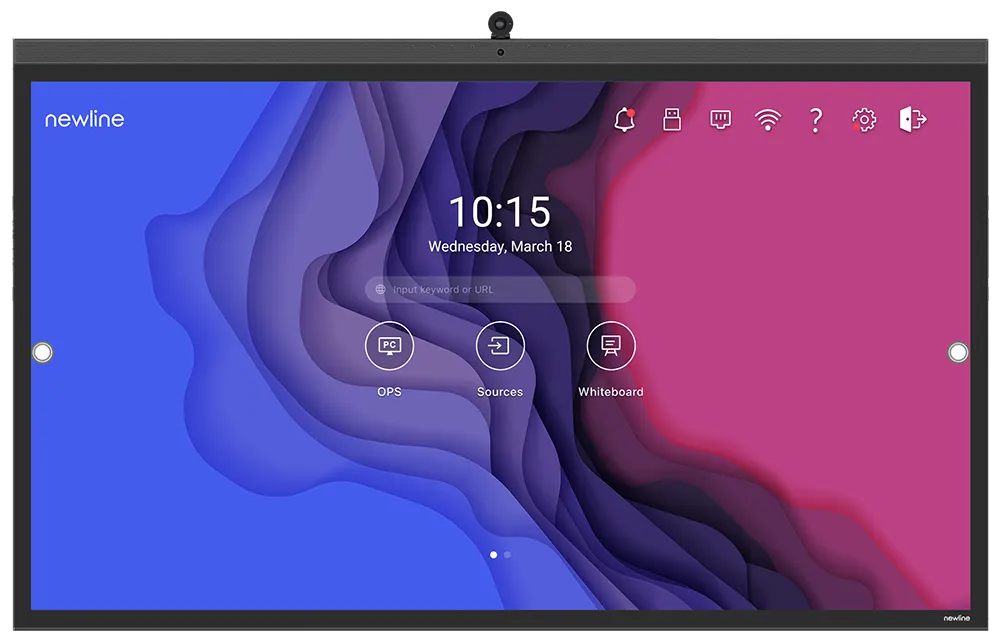

The Newline TT-7522Z is a 75-inch 4K interactive display in the Z Series, built for meetings where in-room and remote participants need to see and hear each other. It combines a 4K LED panel with P-CAP touch, a 4K wide-angle camera, an 8-microphone array and built-in speakers, with a USB-C port that carries video, touch, audio and power over one cable. Suited to Doha boardrooms.

The Newline TT-7522Z is the 75-inch model in the Z Series, the manufacturer's high-end all-in-one range for corporate workspaces. One unit combines a 4K interactive panel, a camera, microphones and speakers, so a meeting room does not need a separate display, camera and sound bar. Its 75-inch size sits between the 65-inch TT-6522Z and the 86-inch TT-8622Z, which makes it a practical choice for a mid-sized boardroom or executive meeting room.

Display and touch on a 75-inch 4K panel

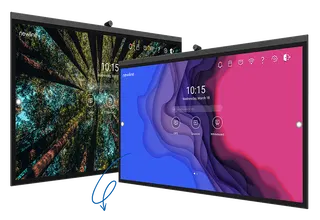

The LED panel runs at 3840 × 2160 (4K) with 400 cd/m² brightness, 5000:1 dynamic contrast and an 8 ms response time. Its projective capacitive (P-CAP) touch layer supports 20 touch points and works with a passive pen or fingers. The tempered glass is anti-glare and anti-fingerprint, and the manufacturer states that the antimicrobial coating on the touch surface is TÜV certified. The 178° viewing angle keeps the image readable for people seated at the sides of a long table.

Camera, microphones and speakers in one housing

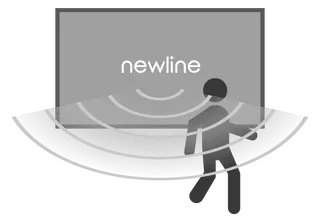

The built-in camera has an 8-megapixel module, a 120° field of view and 4K at 30 Hz output. An 8-microphone array picks up voices up to 8 metres away. The speaker system uses two 20 W speakers and a 15 W subwoofer, with a frequency response of 180 Hz to 20 kHz at -10 dB. These parts matter most when colleagues join from another city or from abroad, because room audio and video are captured without extra hardware.

Ports and expansion for meeting-room sources

The connections suit a room where laptops, room computers and conferencing systems share one screen:

Three HDMI 2.0 inputs and one HDMI 2.0 output
One DisplayPort 1.2 output and one microphone input

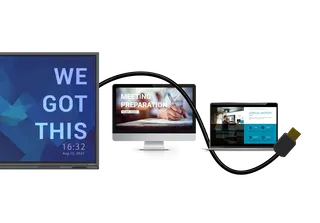

One USB 3.0 Type-C port with PD 65 W (optional 100 W), plus one USB Type-C port without PD
Four USB Type-B touch ports and three USB 3.0 Type-A ports
RJ-45 network in and out, an RS-232 control input, S/PDIF and an audio line out
One OPS-PC slot, one SDM-S slot and one Wi-Fi module slot

Planning a 75-inch installation in Qatar

At a net weight of 50 kg (64 kg gross), the TT-7522Z needs a wall that can carry it or a mobile stand, and the manufacturer lists wall-mounted and mobile stand options. The outline size is 1719 × 1044 × 85 mm without the wall bracket, and the packed box measures 1859 × 1160 × 227 mm, so check doorways and lift access before delivery. The unit takes AC 100–240 V input with a standard power consumption of 200 W. Its working range is 0°C to 40°C, so it belongs in an air-conditioned room, because Qatar's summer outdoor temperatures can exceed 45°C.

Typical scenarios in Qatar include:

An executive boardroom in West Bay running video calls with head office in another time zone
A university seminar room in Education City where a lecturer annotates slides while students join remotely
A ministry meeting room in Msheireb where presentations switch between Arabic and English

SmartRooms Qatar offers a free site survey before wall mounting, so the wall, power point and sightlines can be checked first. We deliver to all 8 municipalities of Qatar, install the unit professionally, and accept purchase orders (LPOs) and government tenders, with quotations usually within one working day. Request a quote with your room size, mounting preference and quantity, and the team will confirm the configuration and an estimated lead time with your quotation.

Highlights

75-inch LED display at 3840 × 2160 (4K) resolution
P-CAP touch with 20 points and anti-glare, anti-fingerprint glass
8 MP camera, 8-microphone array and built-in audio system
Single USB-C cable carries data, audio, video and power
178° viewing angle; operating range 0°C to 40°C
Net weight 50 kg; wall-mount or mobile stand options

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

7 specifications · Source: manufacturer · checked Oct 2026

TT-7522Z7

General · Screen Size: 75″
General · Display area (mm): 1652 × 930
General · Weight (kg): 50
General · Touch Technology: P-CAP
General · Resolution: 3840 × 2160 (4K)
General · Viewing Angle: 178°
General · Backlight: LED

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about TT-7522Z

What is the Newline TT-7522Z best suited for?

The TT-7522Z suits a mid-sized boardroom or meeting room where people present, annotate and join video calls from one screen. Its 4K camera, eight-microphone array and built-in speakers mean a room in Doha or Lusail needs no separate camera or sound bar for hybrid meetings. It is designed for corporate workspaces, and a quotation from SmartRooms Qatar can confirm the right configuration for your room.

How does the 75-inch model compare with the 65-inch and 86-inch versions?

The 75-inch TT-7522Z sits between the TT-6522Z at 65 inches and the TT-8622Z at 86 inches. Its net weight is 50 kg, compared with 37 kg for the 65-inch model and 62 kg for the 86-inch model, according to the manufacturer's specifications. Choose it when a 65-inch screen feels small for the room but an 86-inch panel would be too large or heavy for the wall.

What resolution and brightness does the panel offer?

The panel runs at 3840 × 2160 (4K) with 400 cd/m² brightness, 5000:1 dynamic contrast, an 8 ms response time and a 178° viewing angle. Those figures keep text and spreadsheets readable from the far end of a long table. The manufacturer lists a colour depth of 1.07 billion colours.

Can it be placed opposite a window in a Doha office?

Avoid placing it directly opposite a window, because strong daylight can wash out the picture even though the glass is anti-glare. Use the free site survey to test sightlines, sun direction and blind positions before mounting. A position with the window at the side usually works better for presentations in an office in West Bay or Al Sadd.

What is the operating temperature range, and does Qatar's summer affect it?

The panel is rated for operation from 0°C to 40°C at 20 to 80% relative humidity, non-condensing, and for storage from -20°C to 60°C. Outdoor temperatures in Qatar's summer can exceed 45°C, so install it in an air-conditioned meeting room and keep the room within the operating range. Confirm the environment with the SmartRooms Qatar team before installation.

Will the built-in camera and microphones handle hybrid meetings with teams abroad?

The camera is 8-megapixel with a 120° field of view and outputs 4K at 30 Hz. The eight-microphone array picks up voices up to 8 metres away, and the speakers are two 20 W units plus a 15 W subwoofer. For a Doha team calling colleagues in another country, one unit covers room audio and video without extra hardware.

Which ports are available, and can a laptop connect with one cable?

The unit has three HDMI 2.0 inputs, one HDMI 2.0 output, one DisplayPort 1.2 output, four USB Type-B touch ports, three USB 3.0 Type-A ports, RJ-45 in and out, and RS-232. One USB 3.0 Type-C port supports PD 65 W, with 100 W as an option, so a single cable can carry data, audio, video and power from a laptop.

What are the OPS-PC and SDM-S slots for?

The OPS-PC slot accepts an integrated PC module that sits inside the display, and the SDM-S slot supports SDM-S ready modules. Compatibility depends on the specific module, so tell the SmartRooms Qatar team which computer or module you plan to use when requesting a quote. This helps you avoid buying a module that does not fit your software or room setup.

Does it run Android, and how much memory does it have?

The datasheet lists Android 11 as the embedded operating system, running on an Amlogic 311D2 chipset with 8 GB RAM and 64 GB ROM. If your team prefers to present from its own laptop, connect it by HDMI or USB-C and the display works as the screen. Confirm your preferred apps with the SmartRooms Qatar team before ordering.

Is the power supply suitable for Qatar's 240 V mains?

The datasheet lists an AC 100–240 V input with a maximum current of 6.5 A for the 75-inch model, so the 240 V mains used in Qatar falls within that input range. Standard power consumption is 200 W. Check the socket location during the site survey so the display can sit close to a suitable outlet without cables trailing across the room.

How is it mounted, and how heavy is it to move?

The unit can be wall mounted or used on an optional mobile stand. Its outline size is 1719 × 1044 × 85 mm without the wall bracket, and the packed box is 1859 × 1160 × 227 mm. At 50 kg net and 64 kg gross, it needs at least two people to lift and a wall rated for its load. Our free site survey checks the wall, lift access and doorway widths before delivery in older Doha buildings.

How do schools or government entities order several units?

Schools, universities and government bodies can order through a purchase order (LPO) or a government tender, and payment is by bank transfer, cheque or purchase order. SmartRooms Qatar delivers to all eight municipalities, installs professionally and usually sends quotations within one working day. Tell us the number of units and room sizes, and the quotation will confirm the configuration and an estimated lead time.
