OneScreen OPS PC i5 11th Gen Windows 11 OPS Computer

Name: OneScreen OPS PC i5 11th Gen Windows 11 OPS Computer
Brand: OneScreen
SKU: onescreen-ops-pc-i5-11th-gen
Availability: InStock

Overview

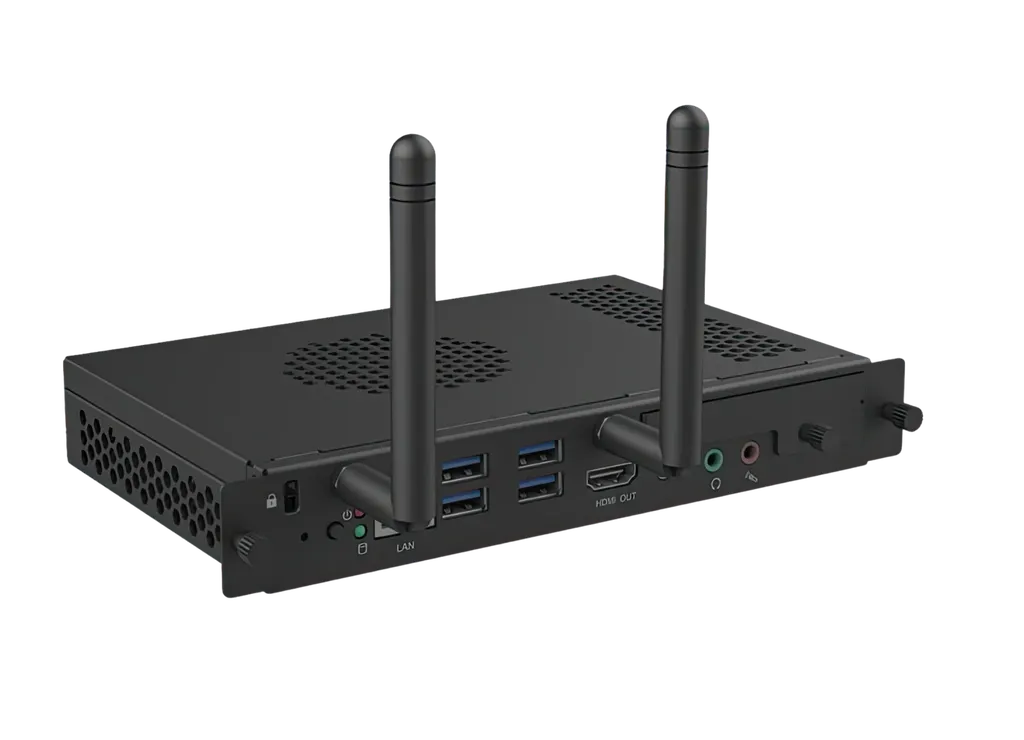

A plug-in Windows 11 computer for interactive panels that accept an OPS module, the OneScreen OPS PC i5 carries an Intel Core i5-12450H processor, 16 GB DDR4 memory and a 256 GB M.2 SATA SSD. Its single HDMI Out reaches 3840×2160 at 60Hz, and Wi-Fi 6 with Bluetooth 5.1 covers wireless needs. It suits classrooms and meeting rooms in Qatar that want one built-in computer at the front of the room.

A Windows 11 computer module that fits an OPS slot

The OneScreen OPS PC i5 is a plug-in computer for interactive flat panels that accept an OPS module. Instead of running a separate PC beside the display, the panel runs Windows 11 from its own OPS slot. That keeps cabling tidy and gives a classroom or meeting room one clean unit at the front of the room.

Processor, memory and storage for daily use

The listed processor is an Intel Core i5-12450H with a speed range from a minimum of 2.4 GHz to a maximum of 4.2 GHz. It is paired with 16 GB of DDR4 memory, Intel Iris Xe graphics and a 256 GB M.2 SATA SSD. The module also lists TPM 2.0 support, and the operating system is Windows 11.

The model name refers to 11th Gen, but the manufacturer data lists the i5-12450H. When comparing against other OPS modules, quote the processor as listed and ask the SmartRooms Qatar team to confirm the exact build before ordering.

Ports and wireless for classroom and meeting use

Four USB 3.0 ports and one USB Type-C port for keyboards, presenter receivers, storage and cameras.
One HDMI Out with a maximum resolution of 3840×2160 at 60Hz.
One RJ45 Ethernet port for wired networking.
Wi-Fi 6 and Bluetooth 5.1, with two 2.4G/5G dual-frequency antennas.
Audio: one microphone input and one audio jack.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms could give each teacher a Windows 11 computer built into the panel, with lesson files kept on the school network. In Msheireb or Lusail, a boardroom that holds video calls with teams abroad can use the RJ45 port for a wired link while Wi-Fi 6 serves visitors' devices. A training centre in Education City could standardise its rooms on one configuration, which makes support simpler.

What to plan before you order

Check the operating range before placing the module in a lobby, atrium or window-facing room. The listed range is 14°F to 122°F (-10°C to 50°C) with 10% to 90% relative humidity, and Qatar summers can exceed 45°C outdoors. The data does not describe an outdoor rating, so confirm the installation environment with the SmartRooms Qatar team.

Confirm panel compatibility, because the source data does not list compatible panels. Power comes through the 80-pin OPS module with a 12 to 19 V DC input and a 65 W maximum draw, so check the panel's OPS specification. A free site survey from SmartRooms Qatar helps confirm placement before quotation.

Request a quotation with your panel model, number of rooms and software requirements. Quotations usually arrive within one working day, and we deliver to all eight municipalities of Qatar. Request a quote today.

Highlights

Intel Core i5-12450H, speed from 2.4 GHz to 4.2 GHz
16 GB DDR4 RAM and 256 GB M.2 SATA SSD
Windows 11 operating system with TPM 2.0 support
One HDMI Out up to 3840×2160 at 60Hz
Four USB 3.0 ports, one USB Type-C and one RJ45
Wi-Fi 6, Bluetooth 5.1 and FCC certification listed

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

General1

Standby power consumption: 1.5W

Processor System2

CPU: i5-12450H
Speed: Min 2.4 GHz, Max 4.2 GHz

Environmental4

Operation temperature: 14°F~122°F
Operation humidity: 10%~90% RH
Storage temperature: -4°F~140°F
Storage humidity: 10%~90% RH

Memory1

RAM: 16 GB DDR4

Storage1

SSD: M2 SATA 256 GB

Physical Specification4

Dimensions (w/o package): 7.95 × 5.26 × 1.18 in (L x W x H)
Net Weight (lb): 1.65 lb
Gross Weight (lb): 2.34 lb
Dimensions (with package): 10.51 x 7.56 x 2.83 in

Graphics1

Graphics card: Intel® Iris Xe Graphics

Software2

Operating system: Windows 11
TPM: TPM Support - TPM Version: 2.0

Certifications1

Certifications: FCC

I/O Interface8

USB: 4× USB3.0, 1× USB Type-C
Audio: 1× MIC in, 1× Audio Jack
Ethernet: 1× RJ45
Wi-Fi: Wi-Fi 6
HDMI: 1× HDMI Out (Max resolution 3840×2160 @60Hz)
Bluetooth: ver 5.1
Antenna: 2× 2.4G / 5G Dual frequency antenna
Power Button: 1x Power Button

Power3

Power supply mode: 80 Pin OPS Internal Power Supply Module
Power Input: 12~19V DC IN
Max power consumption: 65W

Downloads

1 file from the manufacturer

PDF Datasheets OneScreen_OPS-PC-i5-11th-Gen_Spec-Sheet.pdf 624 KB

Questions about OPS PC i5 11th Gen

What is the OneScreen OPS PC i5 11th Gen used for?

It is a Windows 11 computer module that fits an 80-pin OPS slot on a compatible interactive panel, so the display can run its own software without a separate PC on the desk. It suits classrooms and meeting rooms in Qatar where teachers and presenters want one tidy, built-in computer behind the screen. Confirm panel compatibility before ordering, because the source data does not list compatible panels.

Which processor, memory and graphics does it include?

The manufacturer data lists an Intel Core i5-12450H processor running from a minimum of 2.4 GHz to a maximum of 4.2 GHz, with 16 GB of DDR4 RAM and Intel Iris Xe graphics. The model name refers to 11th Gen, but the processor in the source data is the i5-12450H, so quote that processor when comparing with other OPS modules. This configuration handles everyday presentation, browsing and document work.

Does it run Windows 11 and include TPM security?

Yes. The source data lists Windows 11 as the operating system and TPM Version 2.0 support. IT managers at schools, government offices and hospitals in Doha can use TPM 2.0 as a hardware security feature when reviewing devices. The module also carries FCC certification as listed. Share your software requirements when you request a quote so the SmartRooms Qatar team can check them against this configuration.

How is the OPS PC powered, and what is its power draw?

It uses an 80-pin OPS internal power supply module with a 12 to 19 V DC input, a maximum consumption of 65 W and a standby consumption of 1.5 W. These figures help facilities teams plan the power budget for each room and understand the standby draw when displays are idle overnight. Check the panel's OPS specification against the 12 to 19 V DC input before quoting.

What display output does it provide?

The module has one HDMI Out port with a maximum resolution of 3840×2160 at 60Hz, which is 4K at 60Hz. Check the resolution your projector or external screen requires before you order. If a room needs a second display, plan the connection with the SmartRooms Qatar team during the quotation stage so the layout works from the start.

Which ports will teachers and presenters use?

The listed I/O includes four USB 3.0 ports, one USB Type-C port, one RJ45 Ethernet port, one microphone input, one audio jack and one power button. Four USB 3.0 ports can cover a wireless keyboard receiver, a presenter dongle, a USB drive and a document camera in a typical Qatari classroom. List your peripherals when requesting a quote so the port plan can be checked.

What wireless connectivity does it have?

It supports Wi-Fi 6 and Bluetooth 5.1, with two 2.4G/5G dual-frequency antennas. In a boardroom in West Bay or a campus in Education City where many devices share one wireless network, dual-band Wi-Fi 6 gives IT teams a modern wireless option. The RJ45 port is available for wired networking, so you can choose the connection that suits your network design.

Is 256 GB of storage enough for a school classroom?

The module has a 256 GB M.2 SATA SSD, which is enough for the operating system, teaching applications and lesson files. A private school in Al Wakrah fitting out new classrooms can keep large video libraries and archives on the school network or in cloud storage rather than on each module. Discuss your software list with SmartRooms Qatar when requesting a quote so the storage plan matches your curriculum.

Can it support a meeting that connects Doha with teams abroad?

Built-in Wi-Fi 6, Bluetooth 5.1 and a wired RJ45 port let the module join video calls over the network. A boardroom in Msheireb or Lusail running video conferences with teams abroad can use the wired port for a steadier connection. The microphone input and audio jack provide connections for external audio. Confirm your conferencing software and camera setup with SmartRooms Qatar when you request a quotation.

How does it cope with Qatar summer heat and dust?

The listed operating range is 14°F to 122°F (-10°C to 50°C), with 10% to 90% relative humidity. Summer temperatures in Qatar can exceed 45°C, so lobby, atrium and window-facing installations need careful checking. The data does not describe an outdoor rating, so treat the module as an indoor, air-conditioned installation and confirm the location with the SmartRooms Qatar team before you order.

Which interactive panels can this module be fitted to?

The source data does not list compatible panel models, so SmartRooms Qatar will confirm whether your panel has a compatible 80-pin OPS slot before quotation. Send the panel model with your enquiry. Do not assume compatibility from the model name alone. Check the panel's OPS specification, mounting position and power input against the 12 to 19 V DC input listed for this module.

Can we order several units through an LPO or a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A school or ministry fitting out several classrooms can request one quotation that lists each panel and its OPS module. Delivery covers all eight municipalities of Qatar, and a free site survey helps confirm the fit before the order is placed.
