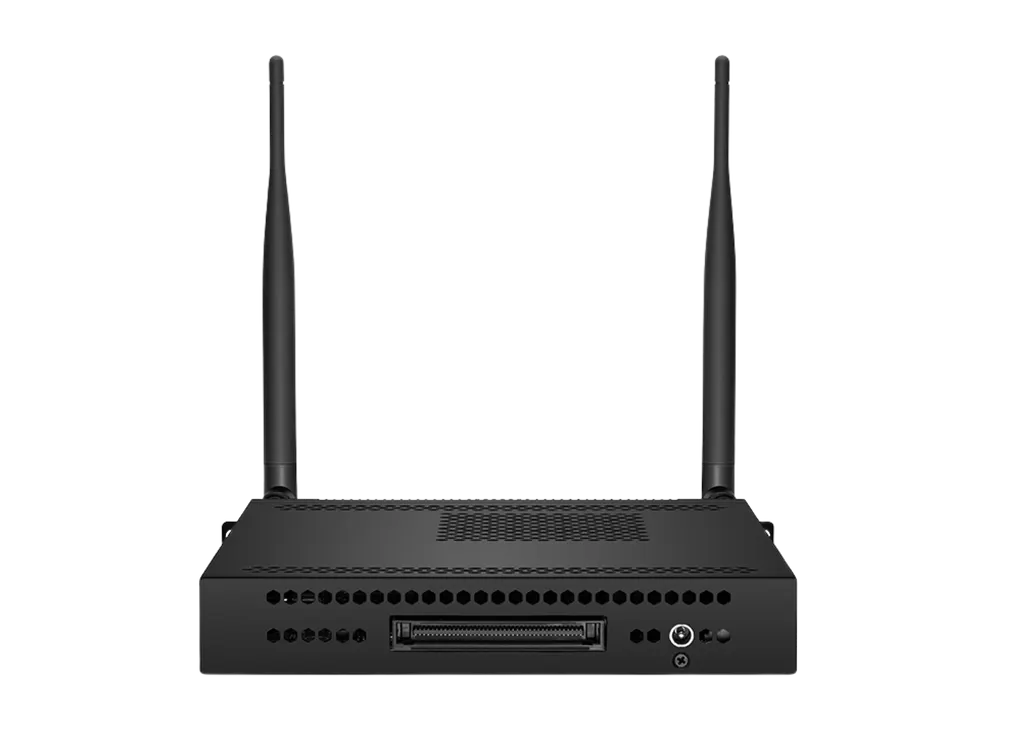

OPS PC i7 LLF

A slot-in computer for interactive displays

The OneScreen OPS PC i7 LLF is an OPS computer module that sits inside a compatible interactive display and takes over as its computer. Instead of routing a separate desktop or mini PC to the panel, teachers and presenters use the screen itself to open files, run applications and join calls. For schools, government offices and corporate meeting rooms, this keeps cabling tidy and removes one device from the room.

The module connects through an 80-pin OPS connection that includes an internal power supply module. It accepts a 12 to 19 V DC input and has a maximum power consumption of 60 W, with 40 W in standby.

Processing, memory and storage for daily demands

At its core is an Intel Core i7-12850HX processor with a speed range from 2.1 GHz up to 4.9 GHz, paired with 16 GB of DDR4 memory. The unit includes a 256 GB M.2 SATA SSD and a spare 2.5-inch SATA bay for an HDD or SSD, plus an additional memory slot. Graphics come from Intel UHD Graphics, and the system runs Windows 11 with TPM 2.0 support.

Connectivity for meeting rooms and classrooms

Six USB 3.2 ports and one USB Type-C port cover keyboards, storage and conferencing peripherals. A single HDMI 2.0 output drives a second display at up to 4K at 60Hz. For wired networks, one RJ45 Ethernet port is provided. For wireless, Wi-Fi 6 and Bluetooth 5.2 are built in, supported by two 2.4G/5G dual-frequency antennas, and a headset jack completes the set.

Where it fits in Qatar

• Training centre in the Industrial Area: running computer courses on a shared classroom panel, with lesson software sitting in the Windows 11 environment.
• Hotel meeting room in West Bay: the module housed inside the panel and connected over Wi-Fi 6 to the hotel network.
• Bank boardroom in West Bay: video calls with teams abroad, with the RJ45 port available for a fixed wired connection.

Operating temperature is rated from 0°C to 45°C, with humidity from 10% to 95% at 40°C. Summer temperatures in Doha can exceed 45°C, so the panel should sit in an air-conditioned room, away from direct sun through windows and out of exposed lobbies.

What to plan before ordering

Confirm that your interactive display has a compatible 80-pin OPS slot before ordering, and send the panel model to SmartRooms Qatar so the team can check it. Plan airflow around the slot, since the rated ceiling is 45°C. The unit measures 195.1 × 180.1 × 30.0 mm and weighs 1.20 kg net. For multiple classrooms, one quotation and one purchase order can cover every unit, delivered to any of the eight municipalities of Qatar. The product is covered by the manufacturer's warranty.

Request a quote from SmartRooms Qatar with your panel models, room types and quantities, and a quotation is usually returned within one working day.
