OPS with Android

What the OneScreen OPS with Android is

The OneScreen OPS with Android is a computing module designed to sit in the OPS bay of a compatible OneScreen interactive display, so the screen can run its own Android environment instead of relying on a separate PC beside it. It runs Android 15 and is listed in the Accessories series as a current model.

Processor, memory and storage

Inside the module is an octa-core processor (4x A76 + 4x A55) paired with a Mali-G610 MC4 graphics processor, 8 GB of RAM and 128 GB of storage. These are the figures to compare when a school or office weighs this module against a standalone mini PC, because they set how many apps and browser tabs can run together and how much room remains for stored content.

Connectivity and video ports

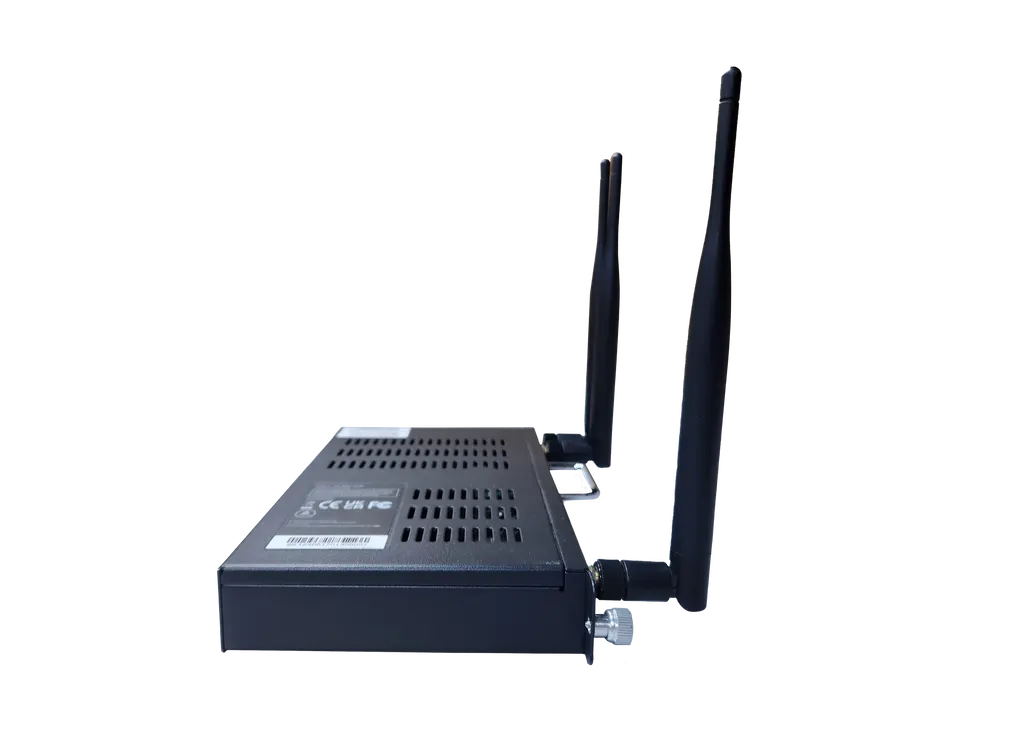

Wireless networking covers Wi-Fi 6E across the 2.4, 5 and 6 GHz bands and Bluetooth 5.3, with two antennas serving both radios. For a wired link there is a Gigabit Ethernet port rated 10M/100M/1000Mbps. On the video side, HDMI IN and HDMI OUT are each rated 4K at 60 Hz, and a USB Type-C port provides video output up to 4K at 60 Hz. Two USB Type-A 3.0 ports, a 3.5 mm audio input and a 3.5 mm line-out complete the port list.

Power, size and operating limits

The module accepts a 12 to 19 V DC input, with a typical draw of 23 W, a maximum of 30 W and standby consumption of no more than 0.5 W. It measures 180 x 119 x 30 mm and weighs 0.63 kg net. It is rated to operate between 0°C and 40°C at humidity of 10% to 90% non-condensing, and at altitudes below 5,000 metres. Qatar's outdoor temperatures often pass 45°C in summer, so the module should be installed in an air-conditioned, ventilated room rather than a closed cabinet, a hot corridor or a window-facing area exposed to dust.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can fit one module to each panel, keeping the Android setup identical from room to room. A ministry or authority in West Bay equipping a boardroom can use the HDMI ports to connect a laptop or presentation source, and rely on the Ethernet port when Wi-Fi is crowded. A training centre in Education City or a company in Msheireb can use the module in a shared meeting room where the panel is the main screen for every session.

What to plan before ordering

• Compatibility: confirm the module suits your specific OneScreen panel model and its OPS bay before ordering.
• Keyboard: the manufacturer's description mentions a wireless keyboard with an integrated trackpad, so confirm what your configuration includes.
• Environment: plan for air-conditioned, ventilated mounting, because the operating range tops out at 40°C.
• Power and cabling: the module needs a 12 to 19 V DC supply rated up to 30 W, so agree the power arrangement and cable runs in advance.
• Site survey: SmartRooms Qatar offers free site surveys to check the panel bay, Wi-Fi coverage and cable routes before installation.

Request a quote

SmartRooms Qatar supplies the OneScreen OPS with Android across Qatar, with delivery to all 8 municipalities, professional installation, and purchase orders for schools and government buyers. Send us your panel model, the number of rooms and the site location, and we will send a quotation, usually within one working day.
