OneScreen Sensor Box · Price in Qatar

Name: OneScreen Sensor Box Accessory for Interactive Touchscreens
Brand: OneScreen
SKU: onescreen-sensor-box
Availability: InStock

Overview

The OneScreen Sensor Box is a sensor add-on for OneScreen touchscreens. It adds an NFC reader for OneScreen account login, a PIR motion sensor that wakes the screen and can power it off after inactivity, and sensors for temperature, humidity, TVOC and PM2.5 dust. It suits schools, universities and offices in Doha, Lusail and Al Sadd that need controlled sign-in and room monitoring from one touchscreen. Request a quote and SmartRooms Qatar will confirm compatibility first.

What the OneScreen Sensor Box adds to a touchscreen

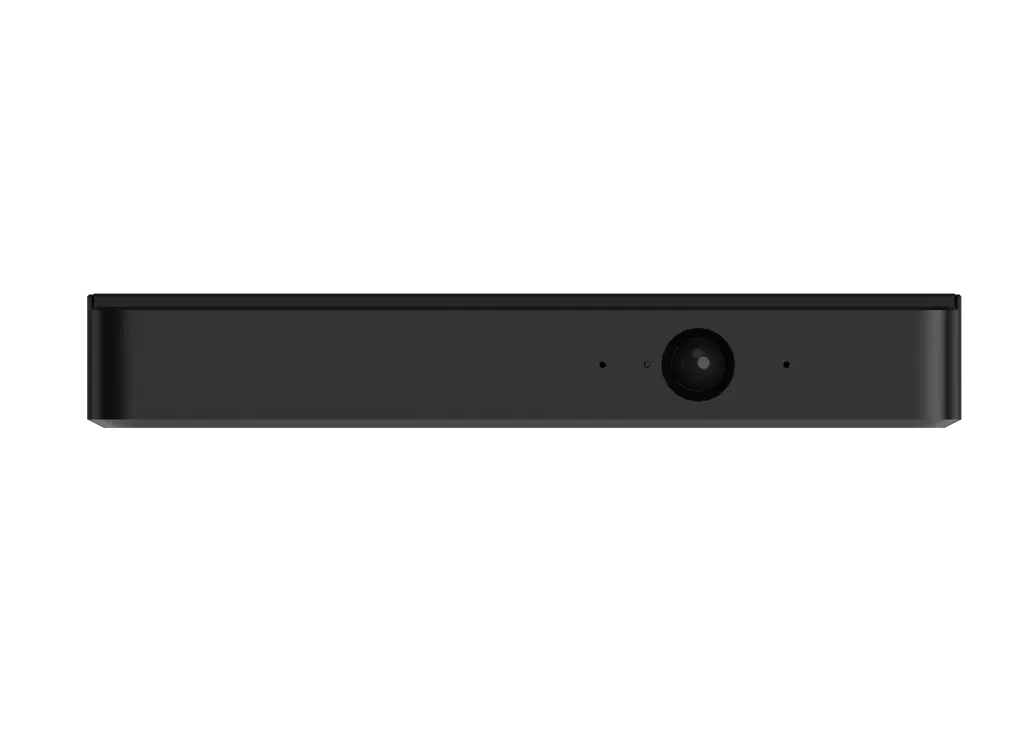

The OneScreen Sensor Box is a sensor accessory for OneScreen touchscreens. Instead of fitting a separate access reader and room monitor on the wall, it combines a motion sensor, an NFC reader and four environmental sensors in one small unit. Its physical size is 8.11 x 2.71 x 1.25 inches with a net weight of 0.4 lbs, so it can sit close to the display without taking up much space.

Motion, power-saving and NFC login

The PIR motion sensor detects movement from 0 to 16 ft across a horizontal angle of 0 to 80 degrees. When nobody is nearby, the screen can power off based on inactivity, and it wakes again when motion is detected. The NFC sensor reads ISO/IEC 14443 and ISO/IEC 15693 cards and tags from under 0.8 inches away and supports OneScreen account login, so users can sign in by tapping a card rather than typing credentials.

Temperature, humidity, air quality and dust readings

The unit reports temperature across 32°F to 113°F (0°C to 45°C) with an accuracy of plus or minus 5°F, and humidity across 30 to 80 percent with a listed accuracy of 20 percent. Its TVOC sensor covers 0 to 65,000 ppb and responds in under two seconds, while the PM2.5 sensor measures particles from 0 to 1,000 µg/m³. Together these give facilities teams a live view of conditions in the room where the display sits.

Where it fits in Qatar

University and school rooms: A study room in Education City or a classroom in Al Sadd can share one touchscreen between several users, with card-based login and readings for ventilation checks.
Corporate and government meeting rooms: A boardroom in West Bay or Msheireb can use motion wake-up so the display is ready when people walk in and returns to standby after a meeting ends.
Reception and access points: A reception area in the Industrial Area or near Hamad International Airport can use card login at the touchscreen, provided the panel is placed indoors away from direct sun and glare.

What to plan before you order

Placement matters as much as the specification list. Before ordering, check these points with the SmartRooms Qatar team:

Confirm the Sensor Box is compatible with your OneScreen panel model.
Map the seating area against the 0 to 80 degree angle and 16 ft range.
Confirm the 5V, 1A power arrangement for your site, which runs on 240 V, 50 Hz mains.
Confirm the NFC cards or tags in use follow ISO/IEC 14443 or ISO/IEC 15693.
Keep the unit indoors, because its temperature range tops out at 113°F (45°C).

SmartRooms Qatar offers free site surveys, and quotations usually arrive within one working day. If you need several units across a school or ministry, send the room list and we will prepare one quotation covering all of them. Request a quote for the OneScreen Sensor Box and our team will confirm compatibility, power and placement before you commit.

Highlights

PIR motion sensor detects up to 16 ft across 80 degrees horizontally
Screen wakes on motion and can power off after inactivity
NFC reader supports OneScreen account login with ISO/IEC 14443 and 15693
Temperature, humidity, TVOC and PM2.5 sensors in one unit
Power input 5V, 1A, with maximum consumption of 5W
Compact body measuring 8.11 x 2.71 x 1.25 inches

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

20 specifications · Source: manufacturer · checked Oct 2026

PIR (Motion) Sensor3

Motion detection range: 0-16 ft
Detection angle: 0 - 80° (Horizontal)
Function supported: Power off (based on inactivity), Screen wake up (on motion)

NFC Sensor3

Detection range: < 0.8"
ISO supported: ISO/IEC 14443, ISO/IEC 15693
Function supported: OneScreen Account Login

Power3

Power input voltage: 5V
Power input current: 1A
Maximum power consumption: 5W

Humidity Sensor2

Detection range: 30 - 80%
Accuracy: 20%

Temperature Sensor2

Detection range: 32°F - 113°F
Accuracy: -+ 5°F

Physical4

Physical dimensions: 8.11" x 2.71" x 1.25" (L x W x H)
Packaging dimensions: 10.82" x 8.97" x 2.48" (L x W x H)
Net weight: 0.4 lbs
Gross weight: 0.86 lbs

TVOC (Air Quality) Sensor2

Response time: < 2s
Detection range: 0-65000 ppb

PM2.5 (for dust and particles) Sensor1

Detection range: 0-1000 ug/m3

Downloads

2 files from the manufacturer

PDF Datasheets OneScreen_Sensor-Box_Spec-Sheet.pdf 768 KB PDF Manuals & guides OneScreen_Sensor-Box_User-Manual_Letter.pdf 1.4 MB

Questions about Sensor Box

What is the OneScreen Sensor Box used for?

It is a sensor add-on for OneScreen touchscreens that adds NFC account login, motion-based wake and power-off, and environmental readings for temperature, humidity, TVOC and PM2.5. Facilities teams can control access and monitor room conditions from the same display without installing a separate sensor system on the wall.

Which buyers in Qatar is it best suited to?

It suits organisations that share one touchscreen between several users and need sign-in and room monitoring, such as a university study room in Education City, a corporate meeting room in West Bay, or a government reception area in Doha. Its NFC reader lets staff sign in with a supported card or tag instead of typing credentials at the panel.

How far away can the motion sensor detect someone?

The PIR motion sensor has a detection range of 0 to 16 ft and a horizontal detection angle of 0 to 80 degrees. In a boardroom in Msheireb, this covers the area in front of the screen where presenters stand, but people passing well outside that arc may not be detected. Test the coverage during a site survey before fixing the unit.

Will the screen turn off automatically when nobody is in the room?

The data lists power-off based on inactivity, and screen wake-up on motion. Because the timing of inactivity is not stated in the source data, confirm how the power-off behaviour is configured on your panel when you request a quote, especially for a shared classroom where the display should not switch off during a lesson.

How does NFC login work with the Sensor Box?

The NFC sensor reads ISO/IEC 14443 and ISO/IEC 15693 cards and tags at a detection range under 0.8 inches, and its listed function is OneScreen account login. Users tap an approved card close to the unit rather than typing a password. Check that your existing staff cards use one of these standards before ordering.

Can it measure air quality in a classroom?

It includes a TVOC sensor with a range of 0 to 65,000 ppb and a response time under 2 seconds, plus a PM2.5 sensor measuring 0 to 1,000 µg/m³. In a classroom in Al Rayyan or Al Sadd, these readings help facilities teams track indoor air and ventilation trends. They are indicative readings and should not replace certified monitoring equipment where a regulator requires it.

What temperature and humidity range does it report?

The temperature sensor covers 32°F to 113°F (0°C to 45°C) with an accuracy of plus or minus 5°F. The humidity sensor covers 30 to 80 percent with a listed accuracy of 20 percent. These ranges are for indoor use, so for a server room or a glass-walled lobby in Doha, confirm the environment with the SmartRooms Qatar team before ordering.

Can it be mounted outside or near a window that gets direct sun?

The source data gives no outdoor or weatherproof rating, and the temperature sensor's range tops out at 113°F (45°C), which Doha summer heat can exceed near glass. Plan the Sensor Box for indoor use only. Ask SmartRooms Qatar to confirm the position during a free site survey, particularly for lobbies facing dusty streets or direct afternoon sun.

What power does it need, and does it run directly on Qatar mains?

The Sensor Box has a 5V, 1A input and a maximum consumption of 5W. It is a low-voltage unit, so the power arrangement must match that 5V input. The source data does not state what power supply is included. Ask SmartRooms Qatar to confirm the power arrangement in your quotation for a site supplied with 240 V, 50 Hz mains.

Is it compatible with my OneScreen panel?

The source data does not list compatible panel models, so do not assume it fits every OneScreen display. When you request a quote, send your panel model and site plan to the SmartRooms Qatar team, who will check compatibility before a purchase order is raised. This is especially important if you are adding units to panels already installed in a ministry or school.

Can a school or ministry order several units under one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supplies to all eight municipalities of Qatar. A school in Al Khor fitting out several meeting rooms can request one quotation covering every unit and raise a single LPO. Confirm quantities and mounting positions first, because the motion coverage and temperature conditions may differ from room to room.

Why should we book a site survey before installing?

Motion coverage of 0 to 16 ft at up to 80 degrees means the mounting position decides whether people are detected. SmartRooms Qatar offers free site surveys, during which the team can check the wall position, the power route and the view from the seating area. A survey before installation avoids moving units later and helps the quotation reflect the real site.
