OneScreen Touchscreen Titan Business 75-inch Interactive Display

Screen size: 75″
Resolution: 3840 × 2160
Storage: 128 GB (Expandable up to 640 GB)
Brightness: Up to 1200 cd/m2

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The OneScreen Touchscreen Titan Business 75 is a 75-inch interactive display with a 3840 x 2160 Mini-LED panel, 512 local dimming zones and up to 1200 cd/m2 brightness. It runs Android 15 with 16 GB RAM, offers 1 mm touch accuracy for detailed annotation, and includes an OPS PC slot for adding a computer. It suits boardrooms, executive offices and large training rooms in Doha, West Bay and Lusail.

What the 75-inch Titan Business panel offers

The OneScreen Touchscreen Titan Business 75 is a 75-inch interactive display for rooms where people present, annotate and join video calls in the same meeting. Its panel runs at 3840 x 2160 with a 60 Hz refresh rate and shows 1.07 billion colors, so charts, floor plans and detailed documents stay readable from the far end of a long table.

The specifications that matter for buyers

Brightness: up to 1200 cd/m2, with an ambient light sensor that adjusts output to the room.
Contrast and backlight: 100000:1 contrast from a Mini-LED backlight with 512 local dimming zones.
Touch: IR touch with 1 mm accuracy, a response time under 2.5 ms, up to 50 touchpoints, palm rejection and pen-and-touch differentiation.
Computing: Android 15 with EDLA security, an octa-core processor, a triple-core NPU rated up to 6 TOPS, 16 GB RAM and 128 GB storage expandable to 640 GB.
Sound and capture: two 20W speakers, a 25W subwoofer and an 8-array microphone with noise reduction.

These figures suit a room with bright windows or strong ceiling lighting, where a dimmer panel can lose contrast. Measure the light level in the room during the site survey so the brightness setting is confirmed before purchase.

Connecting it to existing systems

The panel provides four HDMI inputs, one HDMI output, a DisplayPort 1.2 input, three USB-C inputs (the front one rated 100W), a rear USB-C output that supports 4K at 60 Hz, two Gigabit Ethernet RJ45 ports, Wi-Fi 6E and Bluetooth 5.3. An OPS PC slot and a Type-C port on top for a webcam let you add a computer or camera to the display itself, and an RS232 serial port supports control integration.

Where it fits in Qatar

A consultancy boardroom in West Bay or Lusail: executives review slides and mark them up live during calls with teams in Europe or Asia, with palm rejection keeping the screen responsive while people rest a hand on the glass.
A private school in Al Wakrah or Al Sadd: teachers annotate shared lesson material, and students log in with the five NFC cards supplied.
A government office in Doha: teams share documents in Arabic and English and hold video meetings on a regular basis.

Planning the installation and environment

At 114.6 lbs (about 52 kg) and 67.3 x 40.6 x 3.4 inches, the panel needs a solid wall or a suitable mounting frame. A VESA 800 x 400 flush wall mount is included, and a free site survey lets SmartRooms Qatar check wall structure, cable routes and sightlines before installation. The rated operating range is 32 to 104°F (0 to 40°C) at 10 to 90% humidity, so place it in an air-conditioned room, away from windows and unconditioned lobbies, because Qatar summer temperatures can exceed 45°C. Typical power draw is 225W with a 435W maximum, so review circuit capacity with the team before wiring.

Schools and government buyers ordering several units can receive a quotation tied to an LPO or tender, with delivery to all eight municipalities and professional installation. Request a quote and the SmartRooms Qatar team will usually reply within one working day with the configuration, accessories and installation plan for your room.

Highlights

Mini-LED backlight with 512 local dimming zones
Up to 1200 cd/m2 brightness with ambient light sensor
1 mm IR touch accuracy with palm rejection
Android 15, 16 GB RAM and an OPS PC slot
VESA 800 x 400 flush wall mount included
Wi-Fi 6E, Bluetooth 5.3 and two Gigabit Ethernet ports

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

71 specifications · Source: manufacturer · checked Oct 2026

Touchscreen Titan Business 7571

size_inch: 75
datasheet: datasheets/Touchscreen-Titan-Bus-75-Spec-Sheet.pdf
datasheet_url: https://partnerportal.onescreensolutions.com/resources/Touchscreen-Titan-Bus-75-Spec-Sheet.pdf
specs · Display · Size: 75”
specs · Display · Resolution: 3840 × 2160
specs · Display · Refresh rate: 60 Hz
specs · Display · Display color: 1.07 Billion colors
specs · Display · Contrast ratio: 100000:1
specs · Display · Backlight: Mini-LED with local dimming
specs · Display · Local dimming zones: 512
specs · Display · NTSC: 90%
specs · Display · Brightness: Up to 1200 cd/m2
specs · Display · Viewing angle: 178° (H/V)
specs · Computing · OS version: Android 15 with EDLA
specs · Computing · CPU: Octa-core processor (4x A76 + 4x A55)
specs · Computing · NPU (for AI processing): Triple core (up to 6 TOPS)
specs · Computing · GPU: Mali G610 MP4
specs · Computing · Storage: 128 GB (Expandable up to 640 GB)
specs · Computing · RAM: 16 GB
specs · Other Features · Voice commands: Supported
specs · Other Features · Ambient light sensor: Yes for auto brightness adjustment
specs · Other Features · Color temperature sensor: Yes
specs · Other Features · NFC card reader: Yes, with NFC-based user login support
specs · Other Features · Webcam connector: Type-C port on top to support webcam
specs · Other Features · Blue-light filter: Yes
specs · Other Features · Wake-on-LAN: Supported
specs · Other Features · Wake-on-HDMI: Supported
specs · Sound · Speaker type: 2 Built-in, Left/Right
specs · Sound · Speaker output: 2x 20W
specs · Sound · Subwoofer: 1x 25W
specs · Sound · Microphone: Built-in 8-array microphone with noise reduction
specs · Ports & Connectivity · HDMI input: 4x (1x Front, 3x Side)
specs · Ports & Connectivity · HDMI output: 1x
specs · Ports & Connectivity · DP 1.2: 1x
specs · Ports & Connectivity · SPDIF: 1x
specs · Ports & Connectivity · Type-C in: 3x (1x Front 100W, 1x Side, 1x Top)
specs · Ports & Connectivity · Type-C out: 1x Rear (supports 4K @ 60 video out)
specs · Ports & Connectivity · Type-C functionality: Full feature Type-C with USB, Video, Audio, Network and touch support
specs · Ports & Connectivity · Audio in: 1x 3.5mm
specs · Ports & Connectivity · Audio out: 1x 3.5mm
specs · Ports & Connectivity · Touch USB ports: 2x
specs · Ports & Connectivity · USB ports: 5x (2x Front USB 3.0, 2x Side USB 3.0, 1x Side USB 2.0)
specs · Ports & Connectivity · TF Card slot: 1x (up to 512 GB)
specs · Ports & Connectivity · OPS PC slot: 1x OPS PC slot
specs · Ports & Connectivity · Serial port: 1x RS232 (DB9)
specs · Ports & Connectivity · Bluetooth: 5.3
specs · Ports & Connectivity · Wi-Fi: Wi-Fi 6E (2.4 Ghz + 5 Ghz + 6Ghz)
specs · Ports & Connectivity · Ethernet: 2x RJ45 (Gigabit Ethernet 10M/100M/1000M in/out)
specs · Physical · Operating temperature: 32°F - 104°F
specs · Physical · Operating humidity: 10% - 90% RH
specs · Physical · Product weight: 114.6 lbs
specs · Physical · Shipping weight: 132.7 lbs
specs · Physical · Product dimensions: 67.3” × 40.6” × 3.4”
specs · Physical · Shipping dimensions: 73.4” × 8.9” × 45.2”
specs · Power · Power: 0.5W (Standby)
specs · Power · Power consumption: 225W (Typical); 435W (Maximum)
specs · Included Accessories · Wall mount: VESA Standard 800 x 400 Flush Wall mount included
specs · Included Accessories · Included cables: 1x HDMI cable, 1x Power cable, 1x USB touch cable, 1x USB-C cable
specs · Included Accessories · Accessories: 2x Stylus pens with anti-bacterial coating, 1x Magnetic eraser, 1x Remote control for display, 5x NFC Cards
specs · Touch · Surface protection: Anti-glare, Anti-fingerprint, 9H hardness
specs · Touch · Touch resolution: 32768 x 32768
specs · Touch · Touch accuracy: 1 mm
specs · Touch · Annotation: Yes (over any source)
specs · Touch · Pen and touch differentiation: Yes
specs · Touch · Palm rejection: Yes
specs · Touch · Technology: IR touch with Zero bonding Gen 2
specs · Touch · Touchpoints: Up to 50 points
specs · Optional Accessories · Amplifyr: Optional (Includes 2x wireless mics and 1x receiver). Supports audio amplification
specs · Optional Accessories · Wireless Keyboard with Trackpad: Optional
specs · Optional Accessories · Camera: Optional
specs · Optional Accessories · Sensors: Optional Sensor Box Module (Motion , Humidity, Temperature, TVOC, and Particulate Matter Detection)

Downloads

14 files from the manufacturer

Questions about Touchscreen Titan Business 75

What is the OneScreen Touchscreen Titan Business 75 best suited for?

It suits medium to large meeting spaces where interactive presentations, annotation and video calls happen together. Its 75-inch 3840 x 2160 panel, 1200 cd/m2 peak brightness and 16 GB RAM support boardrooms, executive offices and training rooms. In Qatar it is a strong fit for a boardroom in West Bay or Lusail, or a training room where teams review material and mark it up live.

How does the 75-inch model differ from the 65-inch and 86-inch Titan Business?

The 75 has 512 local dimming zones, against 312 on the 65 and 640 on the 86. Its typical power draw is 225W, compared with 160W for the 65 and 265W for the 86. It weighs 114.6 lbs, between 88.2 lbs for the 65 and 143.3 lbs for the 86, and its wall mount is a VESA 800 x 400 pattern. Choose it when you need more than 65 inches without the weight and power of the 86.

Will the screen work in rooms with a lot of daylight?

The panel reaches up to 1200 cd/m2, and an ambient light sensor adjusts brightness automatically as lighting changes. This helps when daylight falls across a meeting table or ceiling lights are strong. The anti-glare, anti-fingerprint surface with 9H hardness also keeps the picture clear. If direct sun will hit the screen, the SmartRooms Qatar team can advise on placement during the site survey.

What operating temperature does the Titan Business 75 support?

The manufacturer rates the operating range at 32 to 104°F, which is 0 to 40°C, with 10 to 90% relative humidity. Qatar summer afternoons often exceed 45°C, so the panel should sit in an air-conditioned room rather than an unconditioned lobby, covered terrace or spot in direct sun near a window. If cooling in the planned room is uncertain, confirm the environment with the SmartRooms Qatar team before ordering.

What operating system and computing power does it have?

It runs Android 15 with EDLA security and an octa-core processor with four A76 and four A55 cores. A triple-core NPU is rated up to 6 TOPS, with a Mali G610 MP4 GPU, 16 GB RAM and 128 GB storage expandable up to 640 GB. Single sign-on and one-tap NFC login are supported, and a TF card slot accepts cards up to 512 GB. For Windows applications, the OPS PC slot takes a compatible OPS computer.

Can I run a Windows PC or video conferencing system on it?

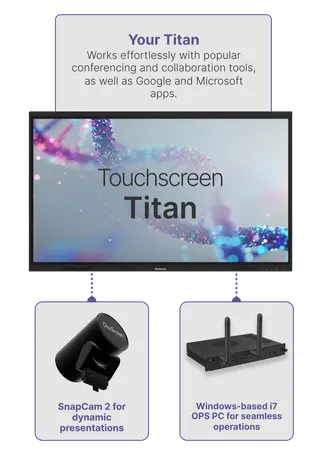

Yes, through the OPS PC slot, which accepts a compatible OPS computer and adds a Windows environment to the panel. A webcam can connect to the Type-C port on top, and video conferencing can run on the built-in Android system or on the OPS computer. The camera is an optional accessory, so specify it when you request a quote to make sure the setup matches your meeting room.

Which ports and connections are included?

The panel has four HDMI inputs (one front, three side), one HDMI output, one DisplayPort 1.2, one SPDIF output and three USB-C inputs, the front one rated 100W. A rear USB-C output supports 4K at 60 Hz. There are five USB ports, two touch USB ports, 3.5mm audio in and out, an RS232 serial port, two Gigabit RJ45 ports, Wi-Fi 6E and Bluetooth 5.3. The box includes HDMI, USB-C, USB touch and power cables.

How heavy is it, and what wall mount comes with it?

The panel weighs 114.6 lbs, about 52 kg, and measures 67.3 x 40.6 x 3.4 inches. It comes with a VESA 800 x 400 flush wall mount. Because of its weight, a free site survey is recommended to check wall structure, fixing points and clearances before installation. The shipping carton measures 73.4 x 8.9 x 45.2 inches, so check that doors and lifts on the delivery route can take it.

What accessories come in the box?

The box includes two stylus pens with an anti-bacterial coating, one magnetic eraser, a remote control and five NFC cards for user login. Optional extras include the Amplifyr audio option with two wireless microphones and a receiver, a wireless keyboard with trackpad, a camera, and a sensor box module that detects motion, humidity, temperature, TVOC and particulate matter. Specify any optional items when you request your quote.

How does the touch performance help in classrooms and boardrooms?

The IR touch system has 1 mm touch accuracy, a response time under 2.5 ms and up to 50 touchpoints. It separates pen input from finger touch and rejects palm contact, so a teacher or presenter can rest a hand on the glass while writing. Annotation works over any connected source, and the anti-glare, anti-fingerprint surface keeps the screen usable through long lessons and workshops.

Can we order several units for a school or government project?

Yes. SmartRooms Qatar supplies the panels, delivers to all eight municipalities and arranges professional installation. Schools and government buyers can issue a purchase order or LPO, and tender submissions, including Monaqasat tenders, are supported. Payment is by bank transfer, cheque or purchase order. Send your room list with sizes and mounting walls, and the team will usually return a quotation within one working day.
