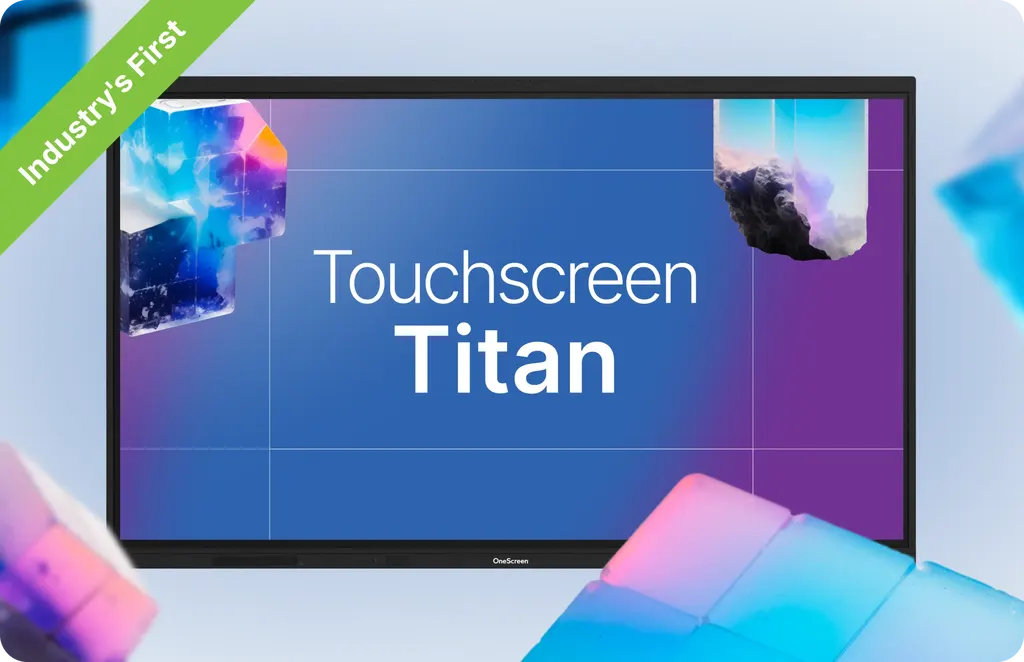

Touchscreen Titan Business 86

An 86-inch Mini-LED touch display for large Qatari rooms

The OneScreen Touchscreen Titan Business 86 is the largest model in its series, an 86-inch touch display for boardrooms, lecture halls and training spaces where a smaller panel would strain the back row. Its 3840 × 2160 resolution at 60 Hz keeps spreadsheets, floor plans and engineering drawings sharp, and the Mini-LED backlight is designed to hold contrast in rooms with large windows.

Brightness, contrast and touch for daylit rooms

The panel reaches up to 1200 cd/m2 and uses 640 local dimming zones, so dark and bright areas of a slide are lit separately. Contrast is rated at 100000:1, colour depth at 1.07 billion colours and colour coverage at 90% NTSC. The 178° viewing angle keeps the picture readable from wide seating. Writing is handled by an infrared touch layer with 1 mm accuracy, response under 2.5 ms and up to 50 touchpoints, with palm rejection and pen-and-touch differentiation.

Computing and connections for daily meetings

Android 15 with EDLA security runs on an octa-core processor with a triple-core NPU rated up to 6 TOPS, 16 GB RAM and 128 GB storage expandable to 640 GB. Ports include four HDMI inputs, one HDMI output, one DisplayPort 1.2, one SPDIF port, three USB-C inputs (a front port rated 100W, a side port and a top port for a webcam), a rear USB-C output for 4K at 60 Hz, four USB 3.0 ports, one USB 2.0 port, two Gigabit Ethernet RJ45 connectors, an RS232 serial port and an OPS PC slot. Wi-Fi 6E and Bluetooth 5.3 are built in.

Where the 86-inch model fits across Qatar

Boardroom in West Bay. A government authority reviews documents with executives while colleagues join from abroad. The large canvas lets several people annotate one file together.

Lecture hall in Education City. A lecturer writes over slides with the stylus while the 8-array microphone and speaker system support the whole audience.

Training centre in Al Sadd. Staff workshops project a shared file that teams mark up on the panel. The optional Amplifyr kit, with two wireless microphones and a receiver, adds amplification for a larger room.

Weight, power and room conditions to plan first

The panel weighs 143.3 lbs, ships at 177.5 lbs and measures 77.0 × 46.1 × 3.4 inches. The included VESA 800 x 600 flush wall mount needs a wall that can carry this load, so SmartRooms Qatar offers a free site survey before any wall-mounting. Typical draw is 265W and maximum draw 480W, with 0.5W standby, so check the circuit with your electrical contractor. The operating range is 32°F to 104°F (0°C to 40°C) at 10% to 90% relative humidity. Qatar summers can climb above 45°C, so keep the panel in an air-conditioned room away from direct sun and confirm the environment at quotation stage.

The box includes two stylus pens with an anti-bacterial coating, a magnetic eraser, a remote, five NFC cards, and HDMI, power, USB touch and USB-C cables. Request a quote from SmartRooms Qatar, usually answered within one working day, and we will confirm lead time, mounting and purchase order details in the same document.
