Touchscreen TL7 Education 105

What the TL7 Education 105 is and who it suits

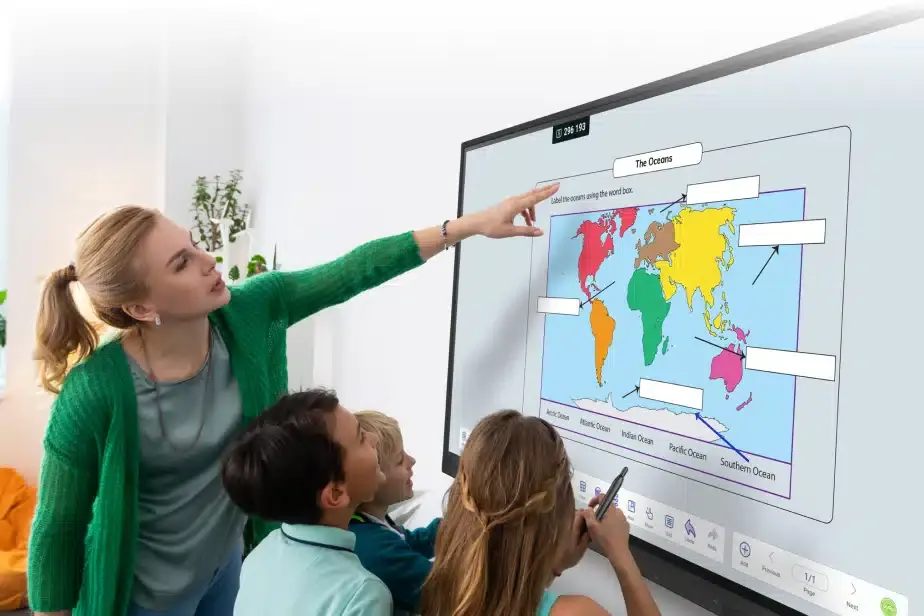

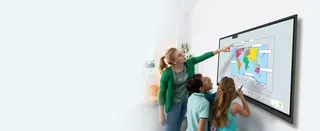

The OneScreen Touchscreen TL7 Education 105 is a 105-inch interactive display for rooms where a smaller panel would leave rear rows struggling to read. It suits lecture theatres, auditoriums, large seminar rooms and executive boardrooms, where a presenter writes, annotates and shares content on one large surface. Within the TL7 Education range it is the largest panel, and it differs from the smaller models in its operating system, touch point count and panel type.

Display and touch performance at 105 inches

The panel is a VA type with a 5120 × 2160 resolution and a pixel pitch of 0.4785 mm. Brightness is rated at 400 cd/m² with glass, the contrast ratio is 4000:1, and the display covers 90% NTSC with 1.07 billion colours at 10-bit. The response time is 6.5 ms and the viewing angle is 178 degrees horizontally and vertically, so people seated at the sides of a wide room can still read the content.

Touch is infrared with 50 touch points, an accuracy of ±1 mm, a minimum detected object size of 2 mm and a writing height of 2 mm or less. Both passive and active infrared pens are supported, and the touch response time is 5 ms or less. For a teacher writing small formulae or a planner marking up dense diagrams, these figures decide whether the board feels like a true writing surface.

Android 13, 8GB RAM and an OPS slot for desktop software

The TL7 Education 105 runs Android 13 on a processor with four high-performance and four efficiency cores, backed by 8GB RAM, 64GB storage and a Mali-G610 MP4 GPU. Apps for lessons or meetings run directly on the panel. When a session needs desktop software, the OPS slot accepts a compatible OPS PC module. The data gives a maximum power of 558 W with OPS fitted, which should be factored into electrical planning.

Connections, audio and where it fits in Qatar

Inputs include three HDMI-in ports up to 4K at 60Hz with HDCP 2.3, one DisplayPort-in at 4K 30Hz, and two USB Type-C inputs rated PD 20V 5A that carry video, audio, touch and LAN sharing. Six USB 3.0 ports, a gigabit RJ45 input and output, an RS-232 port and a 3.5mm audio output complete the connections. The audio layout is 2.1 with 2×16 W plus 15 W speakers, and the microphone array of eight units has a pickup range of 0 to 8 metres.

• A university lecture theatre in Education City, where a lecturer annotates slides and shares a laptop through HDMI or USB Type-C while students in the back rows follow the material.
• A boardroom in West Bay, where a presenter connects a laptop by USB Type-C and the meeting runs on a wired network through the gigabit RJ45 port.
• A private school auditorium in Al Rayyan, used for assemblies and staff training, with the school IT team managing settings through OneScreen Central software.

Planning the installation

The panel weighs 91.4 kg net and 119.5 kg gross, with product dimensions of 2507.2 × 1130.1 × 103.2 mm. The VESA pattern is 1000 × 400 mm and the wall-hanging screws are M8 × 25 mm. Confirm the wall structure and its load capacity before mounting. SmartRooms Qatar offers a free site survey, and quotations are usually issued within one working day. The data gives a storage range of -20 °C to 60 °C and 10% to 90% relative humidity but no operating temperature, so confirm the room environment with the SmartRooms Qatar team before placing the panel near a window or in a space without air conditioning. The power input accepts 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V mains, with a typical draw of 410 W and standby at 0.5 W or less. Products are covered by the manufacturer's warranty, and we accept purchase orders (LPOs) and government tenders. Request a quote for the TL7 Education 105 and we will confirm the mounting, power and installation plan for your room.
