OneScreen Touchscreen TL7 Education 86-inch Interactive Display

Screen size: 86″
Resolution: 4K UHD (3840 × 2160)
Touch: Zero Bonding IR (Gen 2)
System: Android 11

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The OneScreen TL7 Education 86-inch is a 4K UHD interactive display with a 40-point zero-bonding IR touch layer accurate to 1.5 mm. It runs Android 11 with 8 GB RAM and 64 GB storage, and its OPS slot takes a PC module. Suited to large classrooms, lecture theatres and boardrooms in Qatar that need one panel for teaching and meetings.

What this 86-inch panel is built for

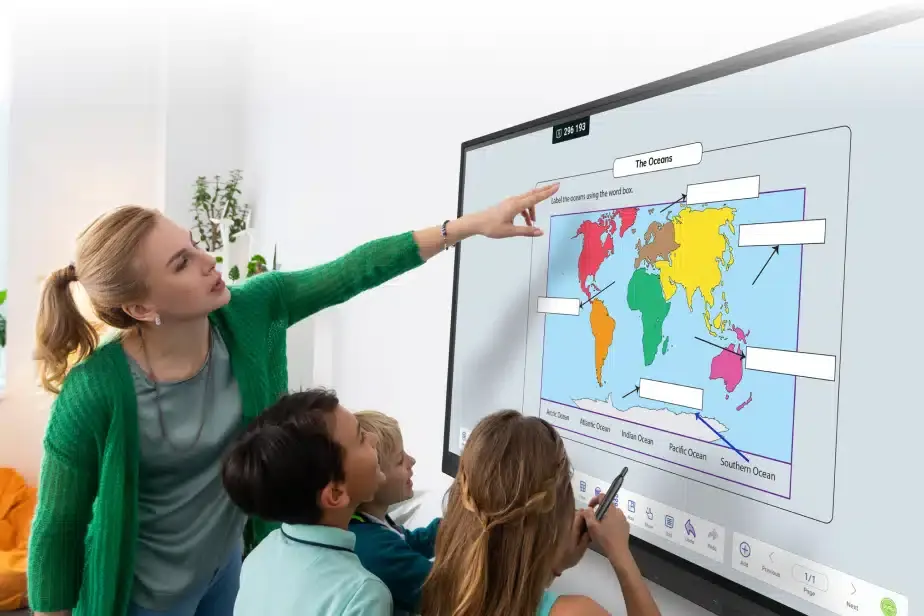

The OneScreen TL7 Education 86 is a large interactive display for teaching rooms where a whole group has to see the same material at once. Its 86-inch 16:9 LED panel runs at 4K UHD resolution (3840 × 2160) and 60Hz, with a 178° viewing angle, so learners seated to the side still read the content clearly. Brightness is rated at 400 cd/m², and the panel shows 1.07 billion colours at 10-bit depth, which keeps diagrams and photographs accurate in lessons and presentations.

Touch, computing and connections

Touch comes from a zero-bonding infrared layer (Gen 2) with 40 touch points, 1.5 mm accuracy and a response time below 7 ms. The glass carries a Mohs level 7 anti-glare, anti-fingerprint finish, which helps the surface stay readable under bright classroom lighting. Inside, the unit runs Android 11 on a quad-core ARM Cortex A55 processor clocked up to 1.8 GHz, with 8 GB of RAM and 64 GB of storage. Two 16W speakers provide stereo output, and an ambient light sensor adjusts screen brightness to the room.

Connections are arranged for both front-of-room and rear-panel use:

Front: one HDMI-In, one USB touch port, two USB 3.0 ports and one USB Type-C port rated 65W PD.
Side: two HDMI-In, one HDMI-Out, VGA-In with audio input, RS-232, two RJ-45 ports, two USB 3.0, one USB 2.0, a 3.5mm audio output and an OPS PC slot.
Wireless: Wi-Fi 6 on 2.4 GHz and 5 GHz, Gigabit Ethernet and Bluetooth 5.2.

Where it fits across Qatar

A private school in Al Wakrah fitting out its largest classroom or assembly space is one typical case. An 86-inch panel gives a whole class a readable display, and the USB touch and Type-C connections let a teacher write on the screen while a laptop is connected. For a university team in Education City running lectures for large groups, Wi-Fi 6 and OneScreen Share allow up to nine devices to share a screen, which suits seminar-style sessions where students bring their own devices. In a ministry boardroom in West Bay, the panel can hold meeting materials while IT locks settings so staff cannot change network or display configuration.

Planning the installation

This model is designed for wall mounting on a VESA 800 × 600 flush wall mount. The panel measures 77.04 × 45.66 × 3.93 inches (L × H × W) and weighs 129.08 lbs, while the shipping box measures 83.07 × 50.51 × 8.86 inches and weighs 167.33 lbs. Because the panel is large and heavy, check the wall structure, mounting height and access route before ordering. SmartRooms Qatar offers a free site survey to check these points before installation.

Power is 100–240V AC at 50–60 Hz, with a typical draw of 350 W and a maximum of 520 W, so plan circuits accordingly. The box includes an HDMI cable, power cable, USB touch cable, USB Type-C cable, remote control and two stylus pens with an anti-bacterial coating. The panel carries a 3-year standard warranty, with options for advanced hardware or extended cover. The operating temperature range is not listed in the data for this model, so confirm the room environment with the SmartRooms Qatar team before placing the panel near windows or in spaces without air conditioning.

To receive a quotation for one panel or a group order for several classrooms, send the room size, wall type and intended mounting height to SmartRooms Qatar and request a quote. Quotations are usually issued within one working day.

Highlights

86-inch 4K UHD LED panel with 3840 × 2160 resolution
40-point zero-bonding IR touch with 1.5 mm accuracy
Android 11 with 8 GB RAM and 64 GB storage
OPS PC slot, Wi-Fi 6, Gigabit Ethernet and Bluetooth 5.2
Two 16W stereo speakers and two stylus pens included
3-year standard warranty and VESA 800 × 600 wall mount

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

Touchscreen TL7 Education 8645

size_inch: 86
datasheet: datasheets/OneScreen-Touchscreen-for-Education-TL7_86-Spec-Sheet.pdf
datasheet_url: https://partnerportal.onescreensolutions.com/resources/OneScreen-Touchscreen-for-Education-TL7_86-Spec-Sheet.pdf
specs · Software & Services · Interactive Whiteboard: OneScreen Write is a powerful annotation tool with cloud drive integration, built-in browser, multi-user, pressure sensitive touch and multiple types of pens with text recognition and shape recognition
specs · Software & Services · Device Management: OneScreen Central provides cloud-based multi-device management, messaging to multiple devices, apps and settings management.
specs · Software & Services · Screen Sharing: OneScreen Share allows multi-device screen share and streaming with up to 9 devices supported (iOS, Android, Windows, Chrome, MacOS).
specs · Software & Services · Secure User Accounts: OneScreen Accounts integrates Google accounts and cloud drives for each user.
specs · Software & Services · Student Engagement and Lesson Capture: OneScreen LearningHub lets you conduct more engaging classroom sessions with real-time student participation analytics. Lessons can be recorded with audio and captions and shared with students over LMS (Moodle, Google Classroom, Canvas etc.)
specs · Software & Services · Quiz Generation: OneScreen QuizWiz supports accurate and fast AI-based quiz generation using trusted content. Its integration with Google Drive and Google forms allows easier and more secure content transfers.
specs · Software & Services · Classroom Tools: Stopwatch, timer, screen recorder, spotlight, screen capture, cloud drive, freeze and multitasking.
specs · Software & Services · Adminstration/IT Tools: Settings lock, OTA firmware updates, centralized control, network settings lock, screen lock and device cloning.
specs · Touch · Touch Type: Zero Bonding IR (Gen 2)
specs · Touch · Touch Points: 40
specs · Touch · Touch Accuracy: 1.5 mm
specs · Computing · Operating System: Android 11
specs · Computing · RAM: 8 GB
specs · Computing · Storage: 64 GB
specs · Computing · Processor: 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
specs · Power · Power Requirements: 100 - 240v AC 50-60 Hz
specs · Power · Power Consumption (typical): 350 W
specs · Power · Power Consumption (Maximum): 520 W
specs · Power · Energy Star: 110.26 W
specs · Panel · Screen Size (Diagonal): 86”
specs · Panel · Panel Backlight: LED
specs · Panel · Resolution: 4K UHD (3840 × 2160)
specs · Panel · Brightness: 400 cd/m²
specs · Panel · Aspect Ratio: 16:9
specs · Panel · Refresh Rate: 60Hz
specs · Panel · Viewing Angle: 178°
specs · Panel · Blue light filter: Yes
specs · Panel · Display Colors: 1.07 Billion (10 bit)
specs · Physical · Product Weight: 129.08 lbs
specs · Physical · Product Dimensions (L x H x W): 77.04” x 45.66”x 3.93”
specs · Physical · Shipping Weight: 167.33 lbs
specs · Physical · Shipping Dimensions (L x H x W): 83.07” x 50.51” x 8.86”
specs · Ports and Connectivity · Sensors: 1x Ambient Light Sensor for adaptive screen brightness
specs · Ports and Connectivity · Connectivity: Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
specs · Ports and Connectivity · Input/Output Ports (Side): 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x RS-232, 2x-RJ- 45, 2x USB 3.0, 1x USB 2.0,1x OPS PC Slot
specs · Ports and Connectivity · Input/Output Ports (Front): 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
specs · Audio · Speakers: 2x 16W with stereo output
specs · Accessories and Mounting · Wall Mount: VESA Standard 800 x 600 Flush Wall mount
specs · Accessories and Mounting · Cables & Accessories: 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display
specs · Glass · Surface Protection: Level 7 MoHS Anti-Glare and Anti-Fingerprint
specs · Warranty and Certifications · Warranty: 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
specs · Warranty and Certifications · Certifications: Available, RoHS, FCC, Energy Star, UL, CE, WEEE, CB

Downloads

20 files from the manufacturer

Questions about Touchscreen TL7 Education 86

Is the OneScreen TL7 Education 86 right for a boardroom or lecture hall in Doha?

Yes, especially in rooms where people sit well back from the screen. At 86 inches with 4K UHD resolution (3840 × 2160), text and diagrams stay sharp at distance, and the 178° viewing angle keeps the picture usable from the side. It suits lecture halls, large seminar rooms and executive boardrooms in West Bay, Msheireb or Lusail. Compare your room dimensions with the other sizes in the series before requesting a quote.

How accurate is the touch, and which pens come with it?

Touch uses zero-bonding infrared technology (Gen 2) with 40 touch points, 1.5 mm accuracy and a response time below 7 ms. That accuracy suits handwriting, underlining and small diagram labels on a panel this size. Two stylus pens with an anti-bacterial coating are included, along with a USB touch cable and a remote control. The glass has a Mohs level 7 anti-glare and anti-fingerprint finish, which keeps marks on the surface easier to manage.

What operating system and storage does it have, and can staff keep their own accounts?

The panel runs Android 11 on a quad-core ARM Cortex A55 processor (up to 1.8 GHz), with 8 GB RAM and 64 GB storage. OneScreen Accounts integrates Google accounts and cloud drives for each user, so teachers can sign in to their own drives and personalise their home screen with app shortcuts. The Write whiteboard tool includes a built-in browser and can import content. Confirm any extra apps your school needs with the SmartRooms Qatar team before ordering.

Which ports do I need for a laptop, a lectern PC or another source?

The front has one HDMI-In, one USB touch port, two USB 3.0 ports and one USB Type-C port rated 65W PD. The side adds two HDMI-In, one HDMI-Out, VGA-In with audio input, RS-232, two RJ-45 ports, two USB 3.0, one USB 2.0 and a 3.5mm audio output. A laptop can connect through the USB Type-C port, while a lectern PC can use an HDMI input. The box includes one HDMI cable, so check the cable types for each device before installation.

What is the OPS PC slot for?

The OPS PC slot allows a compatible OPS computing module to be fitted, so the display can run PC software alongside its built-in Android 11 system. This is useful where a school or ministry relies on PC-based teaching or presentation software. Module compatibility and whether to add one should be confirmed with the SmartRooms Qatar team when you request a quote, so the configuration matches your existing software.

Can teachers share screens from several devices at once?

Yes. OneScreen Share supports multi-device screen sharing and streaming with up to 9 devices, covering iOS, Android, Windows, Chrome and macOS. It suits university teaching teams in Education City running group work, where students share phones or laptops onto the panel. Plan the Wi-Fi 6 on 2.4 GHz and 5 GHz or the Gigabit Ethernet connection in the room design before installation, so the sharing runs reliably during sessions.

Does it work with Moodle, Google Classroom or Canvas?

OneScreen LearningHub lets teachers record lessons with audio and captions and share them with students through learning management systems including Moodle, Google Classroom and Canvas. It also provides real-time student participation analytics during interactive lessons. OneScreen QuizWiz generates AI-based quizzes from trusted content and integrates with Google Drive and Google Forms. Confirm your school's LMS setup with the SmartRooms Qatar team before a rollout across classrooms.

How can IT manage several panels across a school group?

OneScreen Central provides cloud-based multi-device management, letting IT staff message devices, manage apps and settings, and deliver OTA firmware updates from one place. Settings lock, network settings lock, screen lock and device cloning help keep each panel configured the same way. For a private school group in Al Rayyan with several campuses, one administrator can manage panels in many rooms without visiting each one to make changes.

Can it run on Qatar's 240 V supply?

Yes. The power supply is rated 100–240V AC at 50–60 Hz, which covers Qatar's 240 V mains. Typical consumption is 350 W and maximum is 520 W, which matters when planning circuits for several classrooms on the same board. A power cable is included in the box. Confirm the plug fitting for your sockets with the SmartRooms Qatar team, because the plug type is not stated in the source data for this model.

Can it go in a room with windows or without air conditioning in summer?

The source data for this model does not list an operating temperature range, so we cannot confirm one. Summer temperatures in Qatar regularly exceed 45°C, and direct sunlight through windows can heat a screen quickly. Before placing the panel near glazing, in a corridor or in a space without air conditioning, ask the SmartRooms Qatar team to confirm the environment for this model. A free site survey can check room conditions and placement.

What wall mount does it use, and how heavy is it?

The panel uses a VESA 800 × 600 flush wall mount. It weighs 129.08 lbs and measures 77.04 × 45.66 × 3.93 inches (L × H × W), while the shipping box weighs 167.33 lbs. Plan for at least two people to lift it, and confirm the wall structure can carry the load before fitting. A free site survey from SmartRooms Qatar before installation checks wall type, mounting height and access routes to the room.

Can we buy it through an LPO or a government tender, and what warranty applies?

Yes. SmartRooms Qatar supplies this panel against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. The panel carries a 3-year standard warranty, with options for advanced hardware or extended warranty. Send the quantity, the intended rooms and any tender reference when you request a quote, and the team will reply with a quotation, usually within one working day.
