43BDL3452T/00

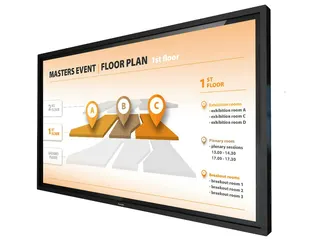

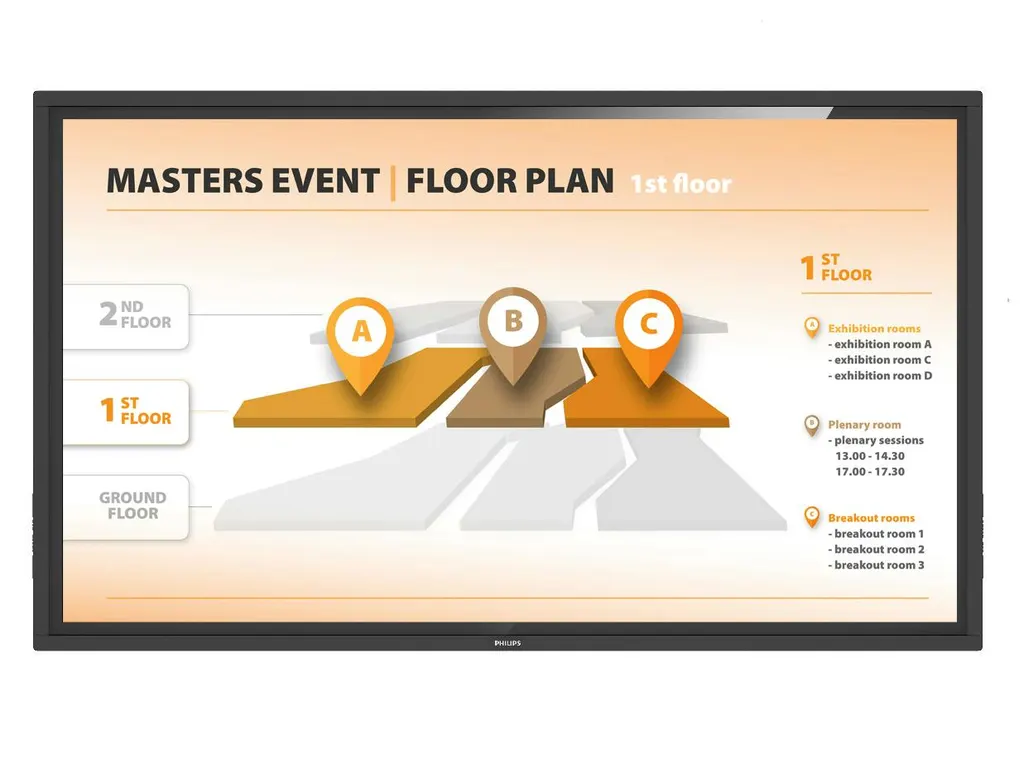

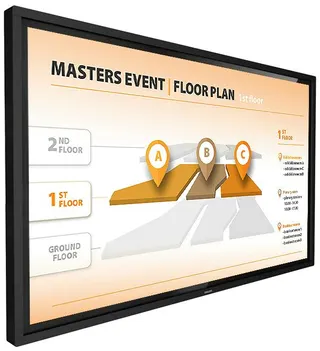

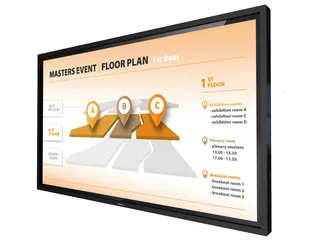

Philips 43BDL3452T 43-inch Multi-Touch 4K Display
- Screen size
- 108.0 cm
- Resolution
- 3840 x 2160
- Touch
- IRHE
- System
- Android 8.0
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Philips 43BDL3452T is a 43-inch 4K UHD multi-touch display built for shared, hands-on use. It runs Android 8.0 with an internal player, supports up to 20 simultaneous touch points behind a 3 mm tempered glass front, and uses a 400 cd/m² IPS panel with anti-glare coating. It suits wayfinding, reception desks, classrooms and meeting rooms across Qatar. Request a quote from SmartRooms Qatar.
What the 43BDL3452T is built to do
The Philips 43BDL3452T is a 43-inch interactive display with a 3840 x 2160 IPS panel, designed for groups that need to touch, drag and share content on one screen. Its 20 simultaneous touch points let several people work at once, whether a classroom team is building a project, visitors are browsing a building directory, or a design review gathers around a single screen. The touch input is listed as HID compliant and plug and play.
Specifications that matter for planning
- Display: 3840 x 2160 resolution, 400 cd/m² brightness, 1200:1 typical contrast, 8 ms typical response time and 178 degree viewing angles both horizontally and vertically. The anti-glare coating reduces reflections from ceiling lights and windows.
- Touch and protection: 20 simultaneous touch points behind a 3 mm tempered safety glass front.
- Built-in player: Android 8.0 with ARM Mali G51 graphics, 2 GB DDR3 memory, 8 GB storage and 2.4 GHz and 5 GHz Wi-Fi.
- Connectivity: two HDMI 2.0 inputs, one DVI-D, one VGA, two USB 2.0 Type A, one USB 2.0 Type B, RJ45, RS232C and IR control, 3.5 mm audio in and out, plus an OPS connection.
Power, dimensions and operating limits
The set accepts 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 100 W and maximum is 220 W, with standby below 0.5 W. The panel measures 1004.4 mm wide by 592.6 mm high, has a 16.3 mm bezel and weighs 18.54 kg, and mounts on a 200 x 200 mm M6 pattern. Operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Summer temperatures in Qatar can pass 45 °C, so install it in an air-conditioned room rather than a sunlit atrium or outdoor kiosk.
Where it fits in Qatar
- Government and corporate reception: a wayfinding screen in a ministry lobby in Msheireb or an office in West Bay, where visitors check directions in Arabic or English and staff update content from the built-in player.
- Schools: a classroom in an international or Arabic-curriculum school in Al Rayyan or Education City, where small groups of students work on the same screen and the tempered glass front handles daily use.
- Meeting rooms: a team room in Lusail or The Pearl suited to a small to medium group, connected to laptops over HDMI.
What to plan before ordering
Confirm that the wall can carry 18.54 kg and agree the mounting height with the users before installation. SmartRooms Qatar offers free site surveys, a useful step before wall-mounting a touch screen. If you want the optional BM05922 stand, add it to the quotation. Depth is 75.3 mm with a wall mount and 109.2 mm with an external OPS box. Government bodies and schools ordering several units can raise an LPO or purchase order, and quotations are usually issued within one working day.
The package includes a remote control, a 3 m power cable, a 3 m RS232 cable, an RS232 daisy chain cable, a 1.8 m IR sensor cable and a cleaning cloth. The manufacturer's warranty is three years. Request a quote from SmartRooms Qatar with your room layout and quantity, and we will confirm the configuration and estimated lead time in the quotation.
Highlights
- 43-inch 3840 x 2160 IPS panel with anti-glare coating
- 20 simultaneous touch points behind 3 mm tempered glass
- Android 8.0 internal player with 8 GB storage and Wi-Fi
- Two HDMI 2.0 inputs plus RS232C and RJ45 control
- 100 to 240 VAC input with 100 W typical consumption
- Three-year manufacturer warranty
Classroom fit
At 43″ the farthest student should sit within about 3.2 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
68 specifications · Source: manufacturer · checked Oct 2026
Miscellaneous3
- On-Screen Display Languages
- Arabic; English; French; German; Italian; Japanese; Polish; Spanish; Turkish; Russian; Simplified Chinese; Traditional Chinese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
- Warranty
- 3 year warranty
- Regulatory approvals
- CE; RoHS; CB; BSMI; FCC, Class A; CU; ETL; IMDA; PSB
Picture/Display16
- Pixel pitch
- 0.2451 (H) x 0.2451 (V) mm
- Panel resolution
- 3840 x 2160
- Viewing angle (horizontal)
- 178 degree
- Aspect ratio
- 16:9
- Brightness
- 400 cd/m²
- Diagonal screen size (metric)
- 108.0 cm
- Contrast ratio (typical)
- 1200:1
- Diagonal screen size (inch)
- 43 inch
- Viewing angle (vertical)
- 178 degree
- Display colours
- 1.07 B
- Picture enhancement
- 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; Progressive scan; 3D MA deinterlacing; Dynamic contrast enhancement
- Surface treatment
- Anti-Glare coating
- Optimum resolution
- 3840 x 2160 @ 60 Hz
- Panel technology
- IPS
- Response time (typical)
- 8 ms
- Operating system
- Android 8.0
Operating conditions6
- Altitude
- 0 ~ 3000 m
- Temperature range (storage)
- -20 ~ 60 °C
- MTBF
- 50,000 hour(s)
- Humidity range (operation)[RH]
- 20–80% (without condensation)
- Temperature range (operation)
- 0 ~ 40 °C
- Humidity range (storage) [RH]
- 5–95% (without condensation)
Supported Display Resolution2
- Video formats
- 480i, 60 Hz; 480p, 60 Hz; 576p, 50 Hz; 576i, 50 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 1080i, 25, 30 Hz; 3840 x 2160, 24, 25 Hz; 3840 x 2160, 30Hz; 480i, 30, 60 Hz; 576i, 25, 50 Hz
- Computer formats
- 640 x 480, 60, 67, 72, 75 Hz; 800 x 600, 56, 60, 72, 75 Hz; 1024 x 768, 60 Hz; 1280 x 768, 60 Hz; 1280 x 800, 60 Hz; 1280 x 1024, 60 Hz; 1360 x 768, 60 Hz; 1366 x 768, 60 Hz; 1440 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1920 x 1080, 60 Hz; 1920 x 1200, 60 Hz; 3840 x 2160, 60 Hz, 50 Hz; 720 x 400, 70 Hz; 800 x 600, 60, 72, 75 Hz
Interactivity4
- Plug and play
- HID compliant
- Protection glass
- 3 mm tempered safety glass
- Touchpoints
- 20 simultaneous touch points
- Multi-touch technology
- IRHE
Connectivity5
- Audio output
- 3.5 mm jack
- Other connections
- micro SD; OPS
- Video input
- DVI-D (x 1); HDMI 2.0 (x 2); USB 2.0 Type A (x 2); USB 2.0 Type B (x 1); VGA (Analogue D-Sub) (x 1)
- External control
- RJ45; IR (in/out) 3.5 mm jack; RS232C (in/out) 2.5 mm jack
- Audio input
- 3.5 mm jack
Convenience7
- Remote control signal
- Lockable
- Network controllable
- RS232; RJ45
- Signal loop through
- RS232; IR Loop through
- Energy-saving functions
- Smart Power
- Keyboard control
- Hidden; Lockable
- Placement
- Landscape (18/7); Portrait (18/7)
- Screen-saving functions
- Pixel Shift, Low Brightness
Accessories2
- Stand
- BM05922 (Optional)
- Included Accessories
- Cleaning cloth (x 1); IR sensor cable (1.8 m) (x 1); Philips logo (x 1); Power supply cable (3 m); Quick start guide (x 1); Remote control and AAA batteries; RS232 cable (3 m) (x 1); RS232 daisy chain cable (x 1); USB Cover and screw x 1
Dimensions10
- Set Depth
- 75.3(D@Wall mount)/109.2(D@External OPS box) mm

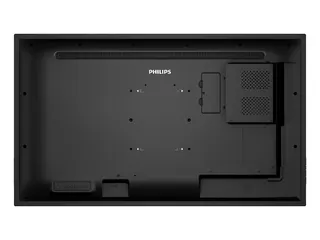

- Wall Mount
- 200 x 200 mm, M6
- Set Height
- 592.6 mm
- Set Height (inch)
- 23.33 inch
- Set Width
- 1004.4 mm
- Set Width (inch)
- 39.54 inch
- Product weight (lb)
- 40.87 lb
- Bezel width
- 16.3 mm (T/R/L/B)
- Set Depth (inch)
- 2.96 (D@Wall mount)/4.30 (D@External OPS box) inch
- Product weight
- 18.54 kg
Internal Player4
- GPU
- ARM Mali G51
- Memory
- 2 GB DDR3; 8 GB
- CPU
- 2 x A53 + 2 x A73
- Wi-Fi
- 2.4 G; 5 G
Sound1
- Built-in speakers
- 2 x 10 W
Power5
- Consumption (Typical)
- 100 W
- Energy Label Class
- G
- Power Saving Features
- Smart Power
- Consumption (Max)
- 220 W
- Mains power
- 100 ~ 240 VAC, 50/60 Hz
Multimedia Applications3
- USB Playback Picture
- BMP; GIF; JPEG; JPG; PDF
- USB Playback Video
- M2TS; M4V; MK3D; MKV; MP4; MPEG; MPG; MTS; TS; TTS; VOB; WMV
- USB Playback Audio
- AAC; AIF; AIFF; ASF; LPCM; M3U; M4A; MP3; MP4; WAV; WMA
Downloads
7 files from the manufacturer
PDF
Philips 43BDL3452T/00 datasheets (PDF, 336 KB)
PDF
Philips 43BDL3452T/00 manuals & guides (PDF, 13.6 MB)
PDF
Philips 43BDL3452T/00 manuals & guides (PDF, 13.4 MB)
PDF
Philips 43BDL3452T/00 manuals & guides (PDF)
PDF
Philips 43BDL3452T/00 drawings & cad (PDF, 384 KB)
PDF
Philips 43BDL3452T/00 certificates & compliance (PDF, 90 KB)
PDF
Philips 43BDL3452T/00 certificates & compliance (PDF, 325 KB)
Questions about 43BDL3452T/00
What is the Philips 43BDL3452T used for?
It is a 43-inch multi-touch display for shared interactive use, such as wayfinding, presentations and collaborative classroom work. Its 20 simultaneous touch points let several people use it at once. It suits reception areas, classrooms and small to medium meeting rooms where a group needs to interact with one screen.
How many people can touch the screen at the same time?
The display supports 20 simultaneous touch points, so several users can drag, draw and select at once. The touch input is listed as HID compliant and plug and play. The 3 mm tempered safety glass front protects the surface from repeated everyday contact.
Does it work without a connected computer?
Yes. It includes an internal player running Android 8.0, with 2 GB DDR3 memory, 8 GB storage and 2.4 GHz and 5 GHz Wi-Fi. Content can also be played from a USB drive in formats such as MP4, MKV, MP3 and PDF, so a school or reception desk can show information without an extra device.
Is it suitable for Qatar's hot summer conditions?
Its operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45 °C, so install it in an air-conditioned classroom, office or lobby, not in a sunlit atrium or outdoor kiosk. Ask the SmartRooms Qatar team to confirm the room environment during the site survey.
Will it run on Qatar's 240 V mains power?
The power input is rated 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 100 W and maximum is 220 W, with standby below 0.5 W. Before ordering, confirm the plug type of the supplied 3 m power cable with the SmartRooms Qatar team so it suits your sockets.
Which connections does it offer for laptops and media players?
Video inputs are two HDMI 2.0 ports, one DVI-D and one VGA. It also has two USB 2.0 Type A ports, one USB 2.0 Type B port, 3.5 mm audio in and out, RJ45, RS232C and IR control. An OPS connection is listed, and an external OPS box adds 109.2 mm of depth.
Can it be controlled over a network or building management system?
Yes, network control is listed through RJ45 and RS232. The RS232 and IR inputs and outputs allow signal loop-through, and the package includes an RS232 daisy chain cable for linking panels. The remote can be locked and keyboard control can be hidden and locked, which helps in public areas such as a ministry reception.
How big is it, and will it fit my wall?
The set measures 1004.4 mm wide, 592.6 mm high and 75.3 mm deep with a wall mount, and weighs 18.54 kg. The wall mount pattern is 200 x 200 mm M6. Check the wall strength and cable routing before installation, and book a free SmartRooms Qatar site survey to confirm the position.
Is it suitable for a ministry lobby or public building in Msheireb?
Yes, for wayfinding and visitor directories, since its 178 degree viewing angles let people read the screen from the side. The anti-glare coating reduces reflections from ceiling lighting. A lobby with a large glass frontage needs a site survey, because 400 cd/m² brightness may not overcome direct sunlight.
Are the built-in speakers enough for presentations?
The set has two built-in 10 W speakers and a 3.5 mm audio output. That is adequate for a small meeting room or a classroom with a limited group. For larger halls, connect external speakers through the audio output, and plan the cabling during installation.
What warranty comes with it, and how do I buy it?
The manufacturer provides a three-year warranty. SmartRooms Qatar supplies the unit with delivery to all 8 municipalities of Qatar, professional installation, and payment by bank transfer, cheque or purchase order. Government bodies and schools can use an LPO. Request a quote with the quantity and the installation city.
Do I need a separate stand?
The BM05922 stand is available as an option, so the panel can sit on a stand where a wall mount is not possible. It supports both landscape and portrait placement. Add the stand to the quotation with the panel and confirm the height suited to your users.
