Name: Philips 75BDL4052E/02 75-inch E-Line Interactive Touch Display
Brand: Philips
SKU: philips-75bdl4052e-02
Availability: InStock

Overview

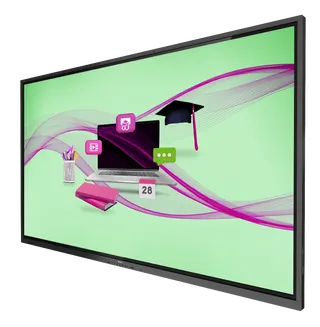

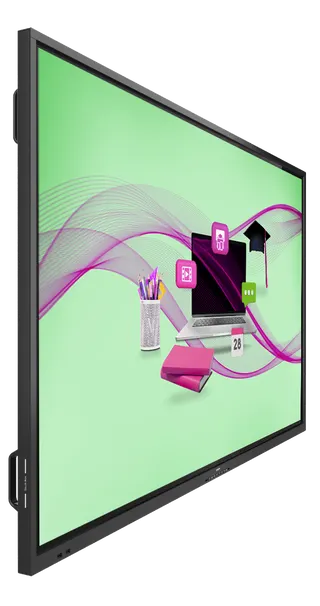

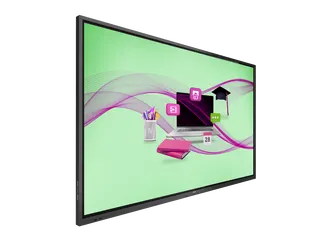

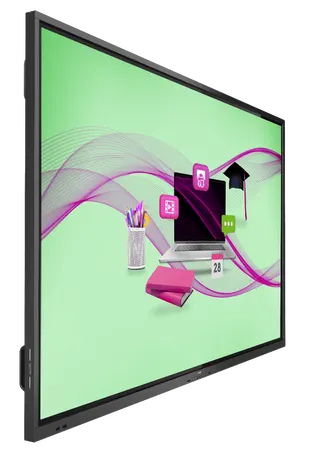

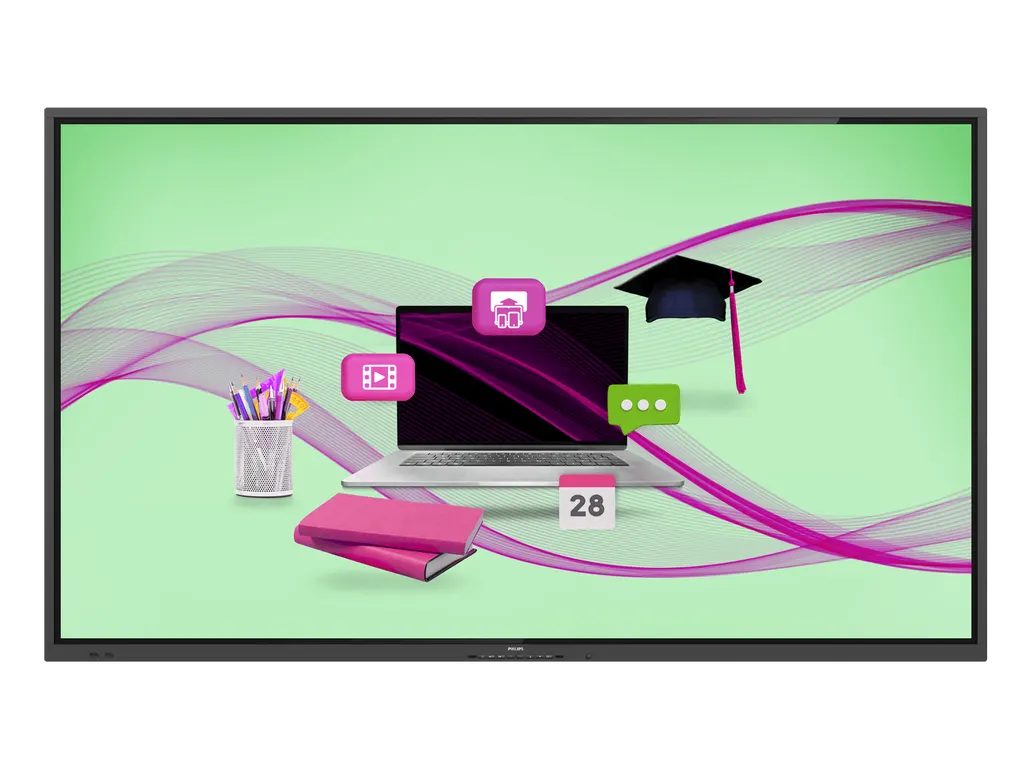

The Philips 75BDL4052E/02 is a 75-inch E-Line touch display with a 4K UHD panel, 20 simultaneous touch points and a tempered anti-glare glass front. It runs Android 11 with a built-in player, offers HDMI 2.0, USB-C with up to 65 W and an OPS slot for a dedicated computer. Suited to Qatari schools, universities and corporate meeting rooms that need one screen for collaborative lessons and presentations.

What the 75BDL4052E/02 is built to do

The Philips 75BDL4052E/02 belongs to the Collaboration 4000 Series within the E-Line range. It is a 75-inch touch display for rooms where people write, share and annotate together. Its 3840 x 2160 panel delivers 4K UHD resolution at 60 Hz, and the 74.5-inch diagonal (189.3 cm) covers a wide wall in a classroom or boardroom. Android 11 runs on the display itself, with an internal player featuring an MTK 9970A processor, 8 GB of memory and 32 GB of eMMC storage, so apps can run directly on the screen.

Touch, glass and picture performance

Touch is handled by a 0-gap infrared system with 20 simultaneous touch points, so several people can write or move objects at the same time. The touch function is HID compliant for plug-and-play connection. The front is a tempered safety glass rated 7 Mohs, with an anti-glare finish and a blue light filter, which helps in rooms with windows or strong overhead lighting. Brightness is 380 cd/m² after the glass, typical contrast is 1200:1 and the dynamic contrast figure is 500,000:1. Viewing angles are 178 degrees both horizontally and vertically, and typical response time is 8 ms.

Connectivity for lecture halls and meeting rooms

Three HDMI 2.0 inputs plus one HDMI 2.0 output for passing the signal to another display
USB-C input rated up to 65 W, for a laptop that connects and charges over one cable
Three USB 3.0, three USB 2.0 and three USB-B ports for peripherals and touch connection
RJ45, RS232C and IR control, with lockable keyboard and remote control signals
A DVI-D input, 3.5 mm audio input and output, and a micro SD slot

Where it fits in Qatar

A private school in Al Wakrah fitting out a bilingual science room can use the display to teach from the screen and take notes directly on it. The on-screen menu includes both Arabic and English. At a university in Education City, a group study room can let several students work on the screen at once during project sessions. A government office in Msheireb or a company in Lusail can use it in a meeting room where the team reviews presentations in Arabic and English within the same session.

What to plan before installation

The set weighs 55.85 kg without its stand and about 67.7 kg packed, so plan for a solid wall and at least two installers.

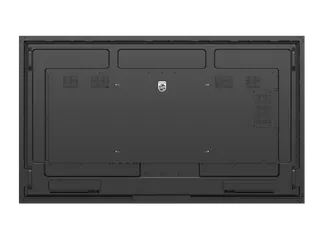

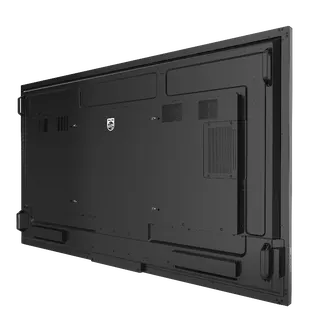

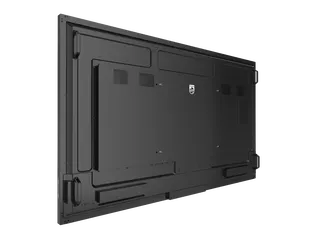

The wall mount pattern is 600 x 400 mm with M8 fixings, and the depth is 79.2 mm when wall mounted.

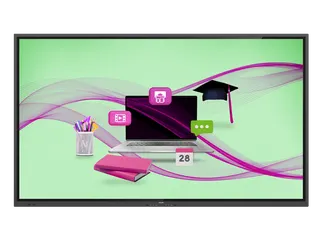

Overall size is 1715.5 mm wide and 1007.6 mm high, with 17.8 mm side bezels and a 31.7 mm bottom bezel.
The operating range is 0 to 40 °C. Qatar summers can exceed 45 °C, so install it in an air-conditioned room away from direct sun.
Mains input is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V supply. Typical consumption is 190 W.

SmartRooms Qatar offers a free site survey before any wall mounting, to check the wall structure, power position and room lighting. Request a quote to confirm quantities, mounting and installation. We accept purchase orders (LPOs) and government tenders, including Monaqasat.

Highlights

75-inch 4K UHD panel at 3840 x 2160 and 60 Hz
20 simultaneous touch points with 0-gap infrared touch
Android 11 with internal player, 8 GB memory and 32 GB storage
Three HDMI 2.0 inputs and a USB-C input up to 65 W
OPS slot plus RS232C, RJ45 and IR control options
Anti-glare, blue light filtered tempered glass front
5-year manufacturer warranty

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

76 specifications · Source: manufacturer · checked Oct 2026

Miscellaneous3

Regulatory approvals: CE; FCC, Class A; RoHS; CB; EAC; EMF; ETL
On-Screen Display Languages: Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese
Warranty: 5-year warranty

Operating conditions6

Humidity range (operation)[RH]: 20–80% (without condensation)
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% (without condensation)
Altitude: 0 ~ 3000 m
Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)

Picture/Display18

Brightness (before glass): 410 cd/m²
Display colours: 1.07 billion
Brightness (after glass): 380 cd/m²
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; Progressive scan; 3D MA deinterlacing; Dynamic contrast enhancement
OS UI resolution: 3840 x 2160 @ 60 Hz
Optimum resolution: 3840 x 2160 @ 60 Hz
Response time (typical): 8 ms
Diagonal screen size (inch): 74.5 inch
Viewing angle (vertical): 178 degree
Diagonal screen size (metric): 189.3 cm
Contrast ratio (typical): 1200:1
Panel resolution: 3840 x 2160
Pixel pitch: 0.4296 x 0.4296 mm
Operating system: Android 11
Panel technology: ADS
Viewing angle (horizontal): 178 degree
Aspect ratio: 16:9
Dynamic contrast ratio: 500,000:1

Weight4

Product without stand (lb): 123.13 lb
Product with packaging (lb): 149.25 lb
Product with packaging (kg): 67.7 kg
Product without stand (kg): 55.85 kg

Supported Display Resolution2

Video formats: 480p, 60 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 2160p, 50, 60 Hz; 480i, 60 Hz
Computer formats: 640 x 350, 70 Hz; 640 x 480, 60, 67, 72, 75 Hz; 800 x 600, 56, 60, 72, 75 Hz; 832 x 624, 75 Hz; 848 x 480, 60 Hz; 960 x 720, 75 Hz; 1024 x 768, 60, 70 Hz; 1152 x 864, 60, 70, 75 Hz; 1152 x 900, 66 Hz; 1280 x 720, 60, 70 Hz; 1280 x 768, 60 Hz, 75 Hz; 1280 x 800, 60, 75 Hz; 1280 x 960, 60 Hz; 1280 x 1024, 60, 67, 75 Hz; 1360 x 768, 60 Hz; 1366 x 768, 60 Hz; 1400 x 1050, 60, 75 Hz; 1600 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 1920 x 1200, 60 Hz; 3840 x 2160, 24, 25, 30, 60 Hz; 1440 x 900, 60 Hz; 720 x 400, 70 Hz

Interactivity4

Multi-touch technology: 0-gap Infrared touch
Touchpoints: 20 simultaneous touch points
Protection glass: Anti-Glare; Blue light filter; Tempered safety glass 7 MOHS
Plug and play: HID compliant

Connectivity6

Video input: DVI-D (x 1); HDMI 2.0 (x 3); USB 2.0 (x 3); USB 3.0 (x 3); USB-C (up to 65 W)
External control: IR (in/out) 3.5 mm jack; RJ45; RS232C (in/out) 2.5 mm jack
Other connections: OPS; micro SD; USB-B (x 3)
Audio output: 3.5 mm Mini Jack (x 1)
Video output: HDMI 2.0 (x 1)
Audio input: 3.5 mm mini jack (x 1)

Convenience8

Screen-saving functions: Pixel Shift, Low Brightness
Placement: Landscape (18/7)

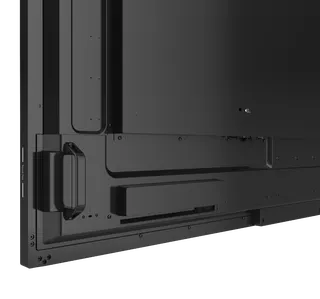

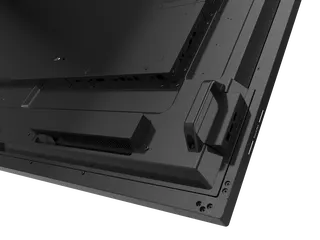

Other convenience: Carrying handles
Signal loop through: RS232; IR Loop through
Ease of installation: Smart Insert; AC Out

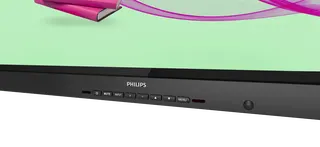

Keyboard control: Lockable
Remote control signal: Lockable
Network controllable: RS232; RJ45

Accessories2

Included Accessories: Cleaning cloth (x 1); AC Power Cord; AC Switch Cover; Cable clip (x 3); DVI-I Cable (1.8 m) (x 1); HDMI Cable (3 m) (x 1); IR sensor cable (1.8 m) (x 1); Philips logo (x 1); Quick start guide (x 1); Remote control and AAA batteries; RS232 cable; RS232 daisy chain cable (x 1); Touch Pen (x 2); USB A to B cable (3 m) (x 1); USB cover and screws
Optional accessories: Interact dongles

Dimensions10

Set Width (inch): 67.54 inch
Set Width: 1715.5 mm
Set Depth (inch): 3.99(D_Max)/3.12(D_Wallmount) inch
Smart Insert mount: 100 x 100 mm, 6xM4L6
Set Height: 1007.6 mm
Wall Mount: 600 x 400 mm, M8
Set Height (inch): 39.67 inch
Weight: 55.85 kg
Bezel width: 17.8 mm(T/R/L)x 31.7 mm(B)
Set Depth: 101.5 mm(D_Max)/79.2 mm(D_Wallmount) mm

Internal Player4

CPU: MTK 9970A
Memory: 8 GB
Wi-Fi: 2G/5G/6G 2T2R
Storage: 32 GB eMMc

Sound1

Built-in speakers: 2 x 15 W

Power5

Power Saving Features: Smart Power
Energy Label Class: G
Consumption (Max): 450 W
Mains power: 100 ~ 240 VAC, 50/60 Hz
Consumption (Typical): 190 W

Multimedia Applications3

USB Playback Video: H.263; H.264; H.265; MPEG1/2; MPEG4; VP8; VP9
USB Playback Picture: BMP; JPEG; PNG
USB Playback Audio: AAC; HEAAC; MPEG

Downloads

1 file from the manufacturer

PDF Datasheets 75BDL4052E_02_2023-05-08_04h49m32s.pdf 382 KB

Questions about 75BDL4052E/02

Who is the Philips 75BDL4052E/02 designed for?

It suits schools, universities, government offices and corporate teams that want one large screen for interactive lessons, workshops and presentations. The 75-inch panel, with 3840 x 2160 resolution, fits a classroom or a medium-sized meeting room. Teams that run touch-based collaboration software will find the 20 simultaneous touch points useful for group work at the screen.

How many people can write or touch the screen at once?

The display supports 20 simultaneous touch points using 0-gap infrared touch technology, so several people can annotate, drag objects or write at the same time. The touch function is HID compliant, so it is recognised as a standard input device when connected. Teachers in a Doha school or presenters at a university in Education City can split a group into teams at the screen without waiting for turns.

What are the picture quality specifications?

The panel measures 74.5 inches diagonally (189.3 cm), with 3840 x 2160 resolution, a 16:9 aspect ratio and a 60 Hz refresh rate. Brightness is 410 cd/m² before the glass and 380 cd/m² after it. Typical contrast is 1200:1, response time is 8 ms and colour depth is 1.07 billion colours. Viewing angles are 178 degrees horizontally and vertically, so the picture stays visible from wide seating positions.

Does it need an external computer?

Not necessarily. The display runs Android 11 and has an internal player with an MTK 9970A processor, 8 GB of memory and 32 GB of eMMC storage, so apps can run directly on the screen. For a Windows PC or other computer, it has HDMI and USB-C inputs. An OPS slot is also provided if you want to add a dedicated computer module later.

Will the screen be hard to read in a room with large windows?

The front uses anti-glare glass, which reduces reflections from windows and ceiling lights, and it includes a blue light filter. The 380 cd/m² brightness after the glass is a figure to check against your room's lighting. For a classroom in Al Sadd or a meeting room in West Bay with a window facing afternoon sun, we recommend a site survey so the screen can be placed away from direct glare.

Can the on-screen menu be set to Arabic?

Yes. The on-screen display languages include Arabic and English, along with 16 other languages such as French, German, Spanish and Simplified Chinese. This suits offices and schools in Doha where staff and students work in Arabic and English side by side. One display can therefore serve Arabic-speaking and English-speaking users in the same room.

What connections are available for a laptop and a video conferencing system?

The display has three HDMI 2.0 inputs, one DVI-D input, a USB-C input rated up to 65 W and an HDMI 2.0 output for passing video to another screen. USB-C can carry video and charging over one cable, depending on your laptop. For a conferencing system, the HDMI inputs and USB ports are the usual links, and RS232C or RJ45 allows control from a room controller. Confirm the connection your codec requires before ordering.

What wall space and mounting details should we plan for?

The wall mount pattern is 600 x 400 mm with M8 fixings. The set is 1715.5 mm wide and 1007.6 mm high, with 17.8 mm side bezels and a 31.7 mm bottom bezel. Depth is 79.2 mm when wall mounted and up to 101.5 mm at its deepest point. At 55.85 kg without stand, the panel needs a structurally sound wall and at least two installers. SmartRooms Qatar offers free site surveys before wall mounting.

Will it work with Qatar's 240 V mains supply?

The mains input is rated 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 190 W, maximum consumption is 450 W and standby power is below 0.5 W. The energy label class is G. Before installation, confirm that the supplied AC power cord fits the BS 1363 sockets in your room, as the product data does not describe the plug type.

Can it be used in a room without air conditioning in summer?

No. The rated operating temperature is 0 to 40 °C, with humidity of 20 to 80 percent without condensation, and it is rated for altitudes up to 3000 m. Qatar summers can exceed 45 °C, so the display should be installed in an air-conditioned room, not an open lobby, a sun-exposed corridor or a store room. The storage range is -20 to 60 °C.

What comes in the box?

The package includes an AC power cord, a remote control with AAA batteries, two touch pens, a 1.8 m DVI-I cable, a 3 m HDMI cable, a 3 m USB A to B cable, an RS232 cable with a daisy chain cable, an IR sensor cable, cable clips, a cleaning cloth and a quick start guide. Interact dongles are available as an optional accessory. The product is covered by a 5-year manufacturer warranty.

Can we order through a purchase order or a government tender?

Yes. SmartRooms Qatar supplies this display against purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. A ministry or school ordering several 75-inch units should send the room list and quantities with the request so the quotation covers every site. Quotations usually follow within one working day.
