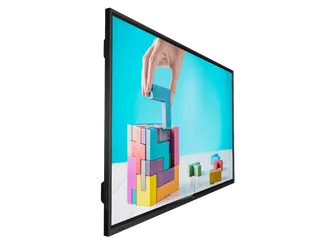

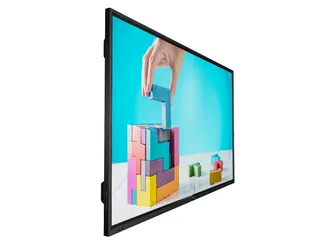

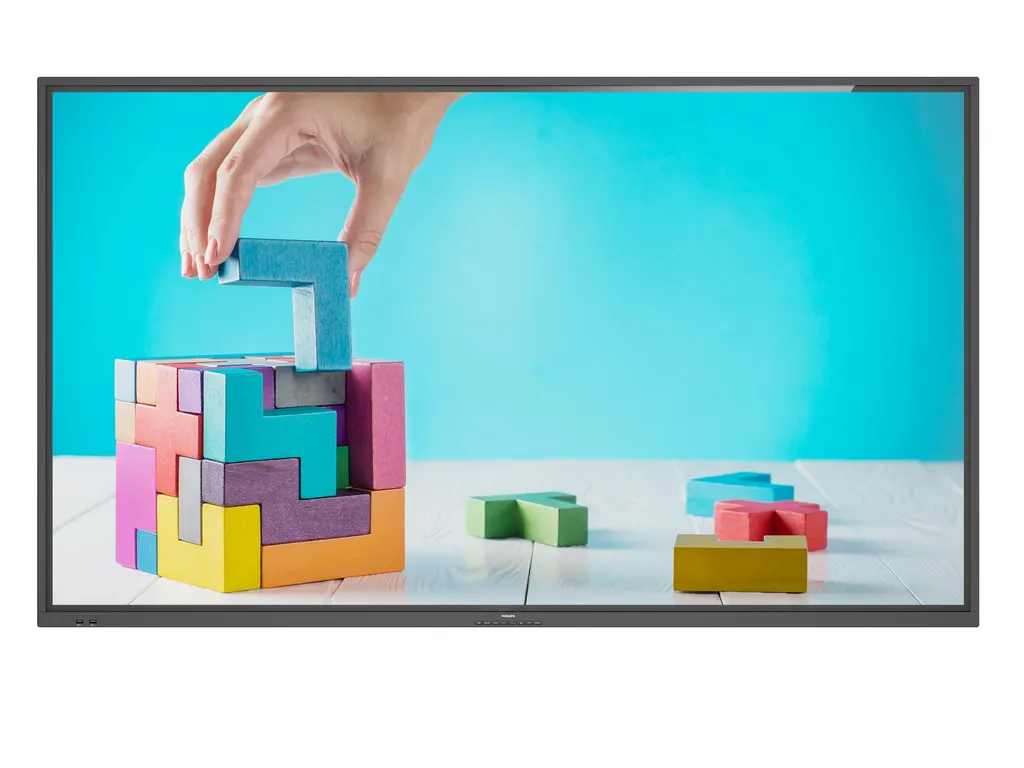

Philips 86BDL3052E 86-inch E-Line Interactive Display

Name: Philips 86BDL3052E 86-inch E-Line Interactive Display
Brand: Philips
SKU: philips-86bdl3052e-00
Availability: InStock

Overview

The Philips 86BDL3052E is an 86-inch interactive display with a 3,840 x 2,160 panel, running Android 8.0 with up to 20 simultaneous touch points. Its anti-glare tempered glass, 380 cd/m² brightness and built-in OPS slot suit lecture halls and boardrooms in Doha, Lusail and Education City. Request a quote for supply, delivery and installation across Qatar.

An 86-inch 4K touch display for shared rooms

The Philips 86BDL3052E is an 86-inch interactive display from the Collaboration 3000 series in the E-Line family. Its 3,840 x 2,160 VA panel runs at a 16:9 aspect ratio, and its 0-gap infrared touch layer supports 20 simultaneous touch points. That combination suits groups who annotate, write and share content on one large surface rather than passing a laptop around the table.

The specifications that matter in daily use

Picture: 380 cd/m² brightness after the glass and a typical contrast ratio of 4,000:1, with a 178-degree viewing angle both horizontally and vertically.
Glass: anti-glare tempered safety glass rated 7 on the Mohs scale.
Processing: Android 8.0 on a 2 x A53 + 2 x A73 CPU, with 3 GB DDR3 memory and 16 GB eMMC storage.
Inputs: three HDMI 2.0 ports, one DVI-D, one VGA, four USB 2.0 ports and a USB-C port rated up to 65 W.
Expansion and control: an OPS slot, micro SD, three USB-B, RJ45, RS232C and IR connections with loop-through.
Audio: two 15 W built-in speakers, plus a 3.5 mm audio input and output.
Power: 100 to 240 VAC at 50/60 Hz, 250 W typical and 507 W maximum draw, below 0.5 W on standby.

Where it fits in Qatar

In a lecture hall at Education City or on a university campus, an 86-inch screen keeps the back row reading slides and diagrams, and the touch layer lets a lecturer mark up a document without returning to a laptop. In a boardroom in West Bay or Msheireb, the HDMI and USB-C inputs let a visiting delegation connect a laptop in seconds while the table stays tidy. For a government authority or company running meetings with teams abroad, the RJ45 and RS232C connections allow the display to be managed from the room control system, and the on-screen menus are available in 18 languages, including Arabic and English.

What to plan before installation

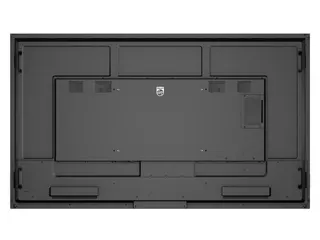

The set weighs 74.38 kg without its stand and measures 1,960.8 mm wide by 1,145.7 mm high. The wall mount pattern is 600 x 400 mm with M8 fixings, and the depth is 79.0 mm when wall mounted. Confirm that the wall or trolley can carry the load, and plan the route for the power cable and the IR and RS232 control cables before the unit is lifted. A free site survey from SmartRooms Qatar checks the wall construction, access routes and cable paths before installation.

Qatar summer temperatures can pass 45 °C, while this model is rated for operation between 0 and 40 °C and 20 to 80% humidity without condensation. Install it in an air-conditioned room, away from direct afternoon sun and dusty entrances. Its operating altitude range is 0 to 3,000 m, and the stated storage range is -20 to 60 °C.

Plan the electrical load around a typical draw of 250 W and a maximum of 507 W per panel, with an energy label of G. The included items are a remote control with AAA batteries, two touch pens, a 3 m HDMI cable, a 3 m USB A to B cable and an IR sensor cable. The manufacturer's 5-year warranty applies.

To request a quote covering this panel, mounting and delivery to any of Qatar's eight municipalities, contact SmartRooms Qatar. Quotations are usually issued within one working day, and purchase orders and government tenders are accepted.

Highlights

86-inch 3,840 x 2,160 VA panel at 16:9
Up to 20 simultaneous touch points with 0-gap infrared
Anti-glare tempered glass rated 7 on Mohs scale
Android 8.0 with 16 GB eMMC storage and OPS slot
Three HDMI 2.0 inputs and USB-C up to 65 W
Manufacturer's 5-year warranty

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

74 specifications · Source: manufacturer · checked Oct 2026

Operating conditions6

Temperature range (storage): -20~60 °C
MTBF: 50,000 hour(s)
Altitude: 0 ~ 3000 m
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% (without condensation)
Humidity range (operation)[RH]: 20–80% (without condensation)

Miscellaneous3

Warranty: 5-year warranty
Regulatory approvals: CE; FCC, Class A; RoHS; CB; EAC; EMF; ETL
On-Screen Display Languages: Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese

Picture/Display17

Diagonal screen size (inch): 86 inch
Viewing angle (vertical): 178 degree
Contrast ratio (typical): 4000:1
Optimum resolution: 3840 x 2160 @ 60 Hz
Diagonal screen size (metric): 218.44 cm
Pixel pitch: 0.4935 (H) x 0.4935 (V) [mm]
Panel resolution: 3840 x 2160
Viewing angle (horizontal): 178 degree
Aspect ratio: 16:9
Brightness (after glass): 380 cd/m²
Display colours: 1.07 B
OS UI resolution: 1920 x 1080 @ 60 Hz
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; Progressive scan; 3D MA deinterlacing; Dynamic contrast enhancement
Brightness (before glass): 410 cd/m²
Response time (typical): 8 ms
Operating system: Android 8.0
Panel technology: VA

Weight4

Product without stand (lb): 163.98 lb
Product with packaging (lb): 199.96 lb
Product without stand (kg): 74.38 kg
Product with packaging (kg): 90.7 kg

Supported Display Resolution2

Video formats: 480i, 60 Hz; 480p, 60 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 2160p, 30, 60 Hz; 576i, 50 Hz; 576p, 50 Hz
Computer formats: 720 x 400, 70 Hz; 832 x 624, 75 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 1024 x 768, 60 Hz; 1152 x 870, 75 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60, 67, 75 Hz; 800 x 600, 60 Hz

Interactivity4

Touchpoints: 20 simultaneous touch points
Multi-touch technology: 0-gap Infrared touch
Protection glass: Anti-Glare; Tempered safety glass 7 MOHS
Plug and play: HID compliant

Connectivity5

Other connections: OPS; micro SD; USB-B (x 3)
Video input: DVI-D (x 1); HDMI 2.0 (x 3); VGA (Analogue D-Sub) (x 1); USB 2.0 (x4); USB-C (up to 65 W)
Audio output: 3.5 mm Mini Jack (x 1)
External control: IR (in/out) 3.5 mm jack; RJ45; RS232C (in/out) 2.5 mm jack
Audio input: 3.5 mm mini jack (x 1)

Convenience8

Signal loop through: RS232; IR Loop through

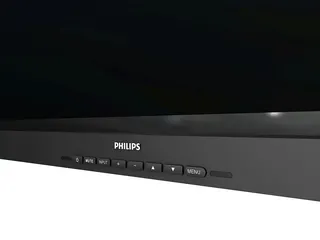

Keyboard control: Lockable
Screen-saving functions: Pixel Shift, Low Brightness
Ease of installation: AC Out; Smart Insert
Remote control signal: Lockable
Network controllable: RS232; RJ45
Placement: Landscape (18/7)

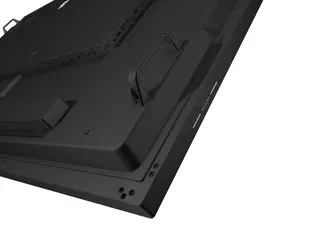

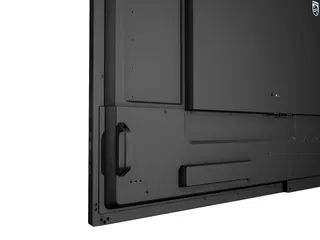

Other convenience: Carrying handles

Accessories2

Optional accessories: Interact dongles
Included Accessories: Cleaning cloth (x 1); HDMI Cable (3 m) (x 1); IR sensor cable (1.8 m) (x 1); Philips logo (x 1); Quick start guide (x 1); Remote control and AAA batteries; RS232 daisy chain cable (x 1); Touch Pen (x 2); USB A to B cable (3 m) (x 1); RS232 cable; AC Power Cord; Cable clip (x 3); AC switch cover and Screw x 1; DVI-D cable; USB cover and screws

Internal Player4

CPU: 2 x A53 + 2 x A73
Storage: 16 GB EMMC
GPU: ARM Mali G51
Memory: 3 GB DDR3

Dimensions10

Set Width (inch): 77.19 inch
Smart Insert mount: 100 x 100 mm, 6xM4L6
Set Height (inch): 45.11 inch
Set Height: 1145.7 mm

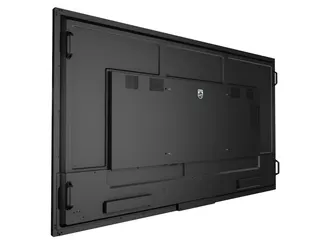

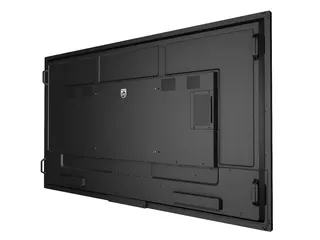

Wall Mount: 600 x 400 mm, M8
Set Depth: 101.3 mm(D_Max)/79.0 mm(D_Wallmount) mm
Set Width: 1960.8 mm
Bezel width: 17.8 mm(T/R/L) x 31.7 mm(B)
Set Depth (inch): 3.98(D_Max)/3.11(D_Wallmount) inch
Weight: 74.38 kg

Sound1

Built-in speakers: 2 x 15 W

Power5

Power Saving Features: Smart Power
Consumption (Typical): 250 W
Consumption (Max): 507 W
Energy Label Class: G
Mains power: 100 ~ 240 VAC, 50/60 Hz

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: H.263; H.264; H.265; MPEG1/2; MPEG4; VP9
USB Playback Audio: AAC; MPEG; HEAAC

Downloads

5 files from the manufacturer

PDF Datasheets 86BDL3052E_00_2022-05-05_10h22m34s.pdf 396 KB PDF Manuals & guides · Opens on manufacturer site 1726685179-65_75_86bdl3052e_dfu_v1-00_ara-pdf.pdf PDF Manuals & guides · Opens on manufacturer site 65_75_86BDL3052E_DFU_V1_00_eng.pdf 13.8 MB PDF Drawings & CAD Outline_Drawing_Philips_86BDL3052E_V0_1_20211105.pdf 1.1 MB PDF Certificates & compliance 86BDL3052E_Label_1205549.pdf 70 KB

Questions about 86BDL3052E/00

Who is the Philips 86BDL3052E designed for?

It suits rooms where several people write, annotate and share content on one large screen, such as classrooms, lecture halls and boardrooms. The 86-inch panel with 3,840 x 2,160 resolution lets a back row read slides from a distance, and up to 20 touch points let several presenters work at once. In Qatar, it fits a secondary school in Al Wakrah or a corporate meeting room in West Bay.

How many people can use the touch surface at once?

The display supports up to 20 simultaneous touch points through a 0-gap infrared touch system. Two touch pens are included, so teachers and presenters can annotate with a pen when they prefer. The data lists the touch function as HID compliant with plug and play, so it is designed to be connected and used without custom driver setup.

Does the panel run its own software, or does it need a computer?

The display runs Android 8.0 on an internal player with a 2 x A53 + 2 x A73 CPU, an ARM Mali G51 GPU, 3 GB DDR3 memory and 16 GB eMMC storage. Its on-screen interface resolution is 1,920 x 1,080 at 60 Hz. If your environment depends on a PC, the OPS slot is the route for a plug-in computer module, which should be specified with your quotation.

Is an OPS computer included with this model?

No OPS module is listed among the included accessories. The panel has an OPS slot for a plug-in computer module, so any module must be specified separately. Your quotation from SmartRooms Qatar should state which OPS module, if any, is included and confirm that it matches your software and connectivity plan for the room.

Can it go in a lobby or outdoor area with heat and dust?

Only in an air-conditioned indoor room. The operating range is 0 to 40 °C with 20 to 80% humidity without condensation, while summer temperatures in Doha can exceed 45 °C. Keep the screen out of direct afternoon sun and away from entrances where dust collects. If the space is partly open to the outdoors, ask the SmartRooms Qatar team to confirm the environment before ordering.

How much wall space and depth does it need?

The set measures 1,960.8 mm wide and 1,145.7 mm high. It is 79.0 mm deep when wall mounted and up to 101.3 mm at its maximum depth. The wall mount pattern is 600 x 400 mm with M8 fixings, and the bezel is 17.8 mm on the top and sides and 31.7 mm at the bottom. Check that the wall section can take both the width and the mounting pattern before ordering.

How heavy is it, and does it need a site survey before wall mounting?

The panel weighs 74.38 kg without its stand and 90.7 kg with packaging, so it needs a team with proper lifting equipment and a wall structure rated for that load. A free site survey from SmartRooms Qatar checks the wall construction, fixing points and cable routes before installation. This is especially useful for older school or office walls where the structure is unknown.

What power does it need, and will it work on Qatar's 240 V supply?

The power input is 100 to 240 VAC at 50/60 Hz, which covers the 240 V, 50 Hz mains used in Qatar. Typical consumption is 250 W, with a maximum of 507 W and standby below 0.5 W, and the energy label is G. Budget the circuit for the maximum figure, and confirm with the SmartRooms Qatar team that the included AC power cord suits the BS 1363 sockets in your building.

Can the on-screen menus be shown in Arabic?

Yes. The on-screen display languages include Arabic and English among 18 languages in total. This suits offices that work in Arabic and English side by side, such as government departments, bilingual schools and companies whose staff move between both languages during the same meeting.

Which connections are available for a boardroom with laptops and conferencing equipment?

The inputs include three HDMI 2.0 ports, one DVI-D, one VGA, four USB 2.0 ports and a USB-C port rated up to 65 W. Audio can come through a 3.5 mm input, and RJ45, RS232C and IR ports allow control from a room system. In a boardroom in West Bay or Msheireb, a laptop can use one HDMI port while conferencing equipment uses another, and the USB-C port can supply up to 65 W.

What warranty applies to this model?

The manufacturer provides a 5-year warranty for the Philips 86BDL3052E, and the manufacturer rates its MTBF at 50,000 hours. Warranty terms, coverage and claim steps are set by the manufacturer, so review them before placing an order. SmartRooms Qatar supplies the product with that manufacturer warranty.

How can a government entity or school buy several units through an LPO or tender?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those issued through Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A school fitting out several classrooms with 86-inch panels should send the quantity, room list and mounting plan with the request, so the quotation lists each unit, its mounting and delivery to the relevant municipality. Quotations are usually issued within one working day.
