Name: Philips 86BDL4052E/02 86-inch E-Line Interactive Touch Display
Brand: Philips
SKU: philips-86bdl4052e-02
Availability: InStock

Overview

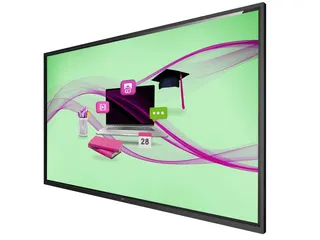

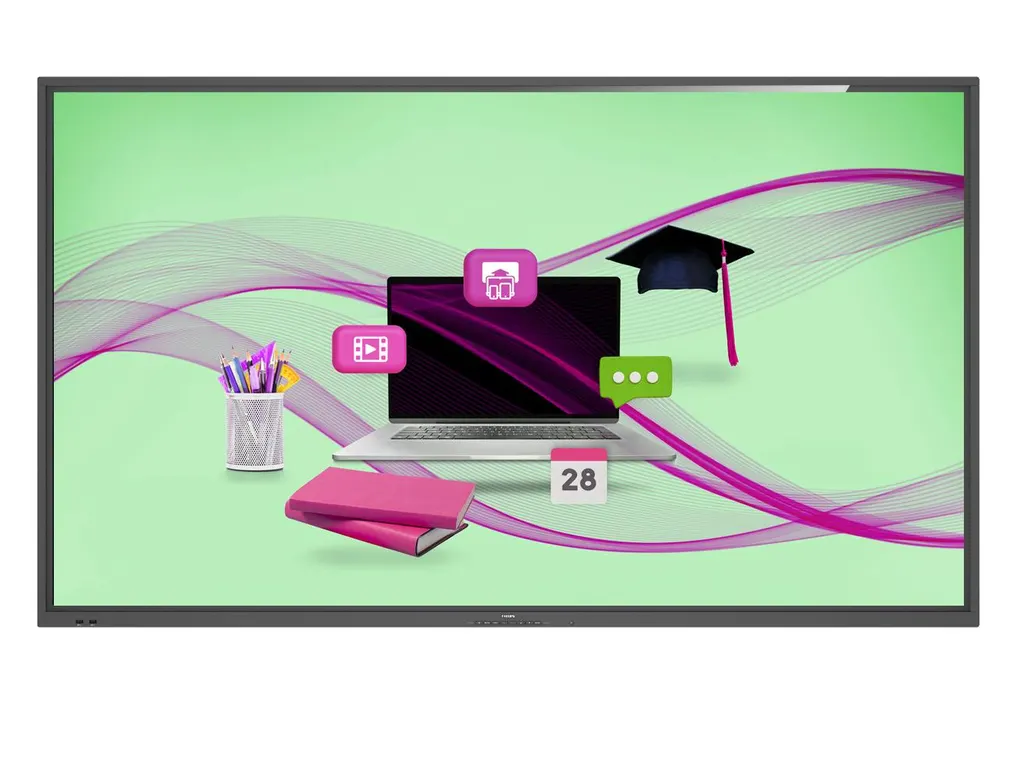

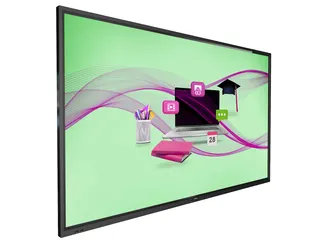

The Philips 86BDL4052E/02 is an 86-inch interactive touch display from the E-Line Collaboration 4000 Series, built for large classrooms, lecture halls and boardrooms. It pairs a 4K VA panel with 20 simultaneous touch points, tempered anti-glare glass, Android 11 and a built-in OPS slot. It suits Qatar organisations that need a shared screen for teaching or group meetings. Request a quote for supply and installation in Qatar.

What the 86-inch E-Line display offers

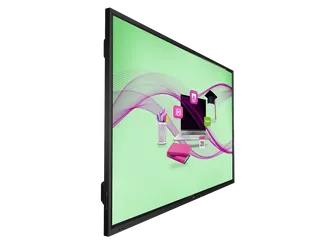

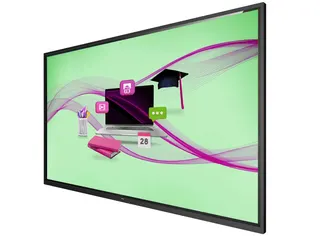

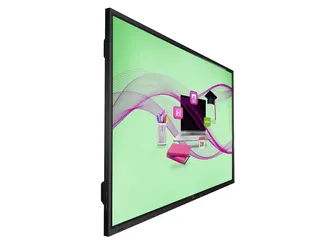

The Philips 86BDL4052E/02 is an 86-inch interactive touch display from the Collaboration 4000 Series, known as E-Line. Its 85.6-inch VA panel shows 3840 x 2160 pixels in a 16:9 format, giving 4K detail for slides, spreadsheets, engineering drawings and video calls. Android 11 runs on the built-in player, so teaching apps and meeting software can open directly on the screen without a separate computer.

Touch performance and the screen front

The touch layer uses 0-gap infrared technology and recognises 20 simultaneous touch points, so several students or presenters can write, annotate or move objects at the same time. The front is tempered safety glass rated 7 on the Mohs scale, with an anti-glare finish and a blue light filter. Brightness is 400 cd/m² after the glass and the typical contrast ratio is 4,000:1, so content stays readable in rooms with daylight through windows.

Connections and expansion

Video inputs: three HDMI 2.0, one DVI-D and one USB-C input rated up to 65 W.
USB: three USB 3.0 and three USB 2.0 inputs, plus three USB-B ports.
Expansion: an OPS slot and a micro SD slot.
Control and network: RJ45, RS232C and IR connections, with Wi-Fi 2G/5G/6G in a 2T2R configuration.
Audio: two 15 W built-in speakers and 3.5 mm audio input and output jacks.

Where it fits in Qatar

Consider a lecture hall in Education City, where a panel this size shows a lecturer's slides and reaches students in the back rows. In a boardroom in West Bay, the same screen can host a video call with colleagues abroad while the team annotates a shared document. A bilingual office in Msheireb can set the on-screen menus to Arabic or English, which suits staff who work in both languages side by side.

Planning the room and the installation

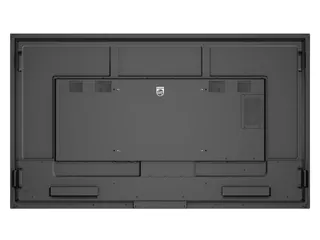

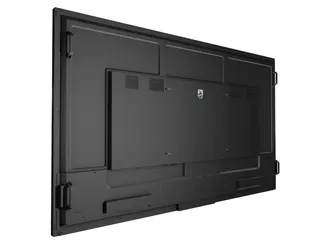

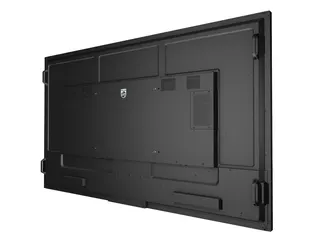

The panel weighs 74.49 kg without its stand and 90.6 kg in packaging, so a structural check of the wall and a site survey come before mounting. The wall-mount pattern is 600 x 400 mm with M8 fixings, and the set measures 1960.8 mm wide by 1145.7 mm high. Typical power draw is 450 W and the maximum is 670 W on a 100 to 240 V, 50 to 60 Hz supply, so confirm circuit and socket arrangements in advance. Standby power is below 0.5 W.

The rated operating temperature is 0 to 40 °C, with humidity of 20 to 80 percent without condensation and use up to 3000 m altitude. Summer temperatures outside in Qatar regularly exceed 45 °C, so plan for an air-conditioned room and keep vents clear. Confirm the location with the SmartRooms Qatar team before fixing.

What is included and how to order

The box includes a 3 m HDMI cable, a 3 m USB A to B cable, a DVI-I cable, an IR sensor cable, RS232 cables, two touch pens, a remote control with AAA batteries, a cleaning cloth and cable clips. Interact dongles are available as an optional accessory. SmartRooms Qatar supplies the panel, delivers to all eight municipalities of Qatar, provides professional installation and offers free site surveys. Quotations are usually issued within one working day, and we accept purchase orders, government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. The product carries the manufacturer's five-year warranty. Request a quote today and tell us the room size, the wall type and the number of units.

Highlights

85.6-inch 3840 x 2160 VA panel in 16:9 format
20 simultaneous touch points with 0-gap infrared touch
Tempered anti-glare glass rated 7 on the Mohs scale
Android 11 with 8 GB memory and 32 GB eMMC storage
OPS slot, three HDMI 2.0 inputs and USB-C up to 65 W
Five-year manufacturer's warranty

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

76 specifications · Source: manufacturer · checked Oct 2026

Operating conditions6

Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Temperature range (operation): 0 ~ 40 °C
Humidity range (operation)[RH]: 20–80% (without condensation)
Humidity range (storage) [RH]: 5–95% (without condensation)
Altitude: 0 ~ 3000 m

Picture/Display18

Viewing angle (vertical): 178 degree
Contrast ratio (typical): 4000:1
Diagonal screen size (inch): 85.6 inch
Pixel pitch: 0.4935 x 0.4935 mm
Panel resolution: 3840 x 2160
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Brightness (before glass): 430 cd/m²
Display colours: 1.07 billion
Brightness (after glass): 400 cd/m²
OS UI resolution: 3840 x 2160 @ 60 Hz
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; Progressive scan; 3D MA deinterlacing; Dynamic contrast enhancement
Optimum resolution: 3840 x 2160 @ 60 Hz
Diagonal screen size (metric): 217.4 cm
Panel technology: VA
Response time (typical): 8 ms
Operating system: Android 11

Miscellaneous3

Regulatory approvals: CE; FCC, Class A; RoHS; CB; EAC; EMF; ETL
Warranty: 5-year warranty
On-Screen Display Languages: Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese

Weight4

Product with packaging (lb): 199.74 lb
Product without stand (kg): 74.49 kg
Product without stand (lb): 164.22 lb
Product with packaging (kg): 90.6 kg

Supported Display Resolution2

Video formats: 480p, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 2160p, 50, 60 Hz; 480i, 60 Hz; 720p, 50, 60 Hz
Computer formats: 640 x 350, 70 Hz; 640 x 480, 60, 67, 72, 75 Hz; 800 x 600, 56, 60, 72, 75 Hz; 832 x 624, 75 Hz; 848 x 480, 60 Hz; 960 x 720, 75 Hz; 1024 x 768, 60, 70 Hz; 1152 x 864, 60, 70, 75 Hz; 1152 x 900, 66 Hz; 1280 x 720, 60, 70 Hz; 1280 x 768, 60 Hz, 75 Hz; 1280 x 800, 60, 75 Hz; 1280 x 960, 60 Hz; 1280 x 1024, 60, 67, 75 Hz; 1360 x 768, 60 Hz; 1366 x 768, 60 Hz; 1400 x 1050, 60, 75 Hz; 1600 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 1920 x 1200, 60 Hz; 3840 x 2160, 24, 25, 30, 60 Hz; 1440 x 900, 60 Hz; 720 x 400, 70 Hz

Interactivity4

Multi-touch technology: 0-gap Infrared touch
Touchpoints: 20 simultaneous touch points
Plug and play: HID compliant
Protection glass: Anti-Glare; Blue light filter; Tempered safety glass 7 MOHS

Connectivity6

Other connections: OPS; micro SD; USB-B (x 3)
Video output: HDMI 2.0 (x 1)
Audio output: 3.5 mm Mini Jack (x 1)
Video input: HDMI 2.0 (x 3); USB 2.0 (x 3); DVI-D (x 1); USB 3.0 (x 3); USB-C (up to 65 W)
Audio input: 3.5 mm mini jack (x 1)
External control: IR (in/out) 3.5 mm jack; RJ45; RS232C (in/out) 2.5 mm jack

Convenience8

Placement: Landscape (18/7)
Signal loop through: RS232; IR Loop through

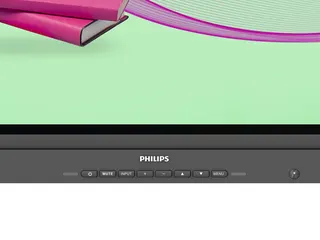

Keyboard control: Lockable
Remote control signal: Lockable
Network controllable: RS232; RJ45
Screen-saving functions: Pixel Shift, Low Brightness
Ease of installation: AC Out; Smart Insert

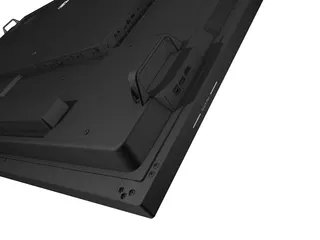

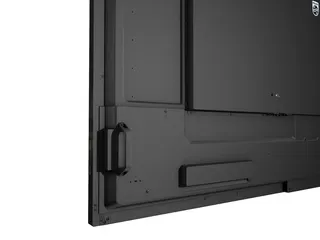

Other convenience: Carrying handles

Accessories2

Included Accessories: Cleaning cloth (x 1); HDMI Cable (3 m) (x 1); Remote control and AAA batteries; USB A to B cable (3 m) (x 1); AC Power Cord; AC Switch Cover; Cable clip (x 3); DVI-I Cable (1.8 m) (x 1); IR sensor cable (1.8 m) (x 1); Philips logo (x 1); Quick start guide (x 1); RS232 cable; RS232 daisy chain cable (x 1); Touch Pen (x 2); USB cover and screws
Optional accessories: Interact dongles

Internal Player4

Storage: 32 GB eMMc
Memory: 8 GB
CPU: MTK 9970A
Wi-Fi: 2G/5G/6G 2T2R

Dimensions10

Smart Insert mount: 100 x 100 mm, 6xM4L6
Set Height (inch): 45.11 inch
Set Depth: 101.3 mm(D_Max)/79.0 mm(D_Wallmount) mm
Set Width: 1960.8 mm
Set Depth (inch): 3.98(D_Max)/3.11(D_Wallmount) inch
Set Width (inch): 77.19 inch
Wall Mount: 600 x 400 mm, M8
Set Height: 1145.7 mm
Bezel width: 17.8 mm(T/R/L) x 31.7 mm(B)
Weight: 74.49 kg

Power5

Consumption (Typical): 450 W
Energy Label Class: G
Power Saving Features: Smart Power
Mains power: 100 - 240 V~, 50 - 60 Hz, 7.5 A
Consumption (Max): 670 W

Sound1

Built-in speakers: 2 x 15 W

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: H.263; H.264; H.265; MPEG1/2; MPEG4; VP8; VP9
USB Playback Audio: AAC; HEAAC; MPEG

Downloads

1 file from the manufacturer

PDF Datasheets 86BDL4052E_02_2023-05-08_04h50m22s.pdf 401 KB

Questions about 86BDL4052E/02

Which rooms in Qatar suit an 86-inch E-Line display?

This size suits larger spaces where people sit some distance from the screen, such as lecture halls in Education City, boardrooms in West Bay and training rooms at industrial sites in Mesaieed. The 85.6-inch diagonal and 3840 x 2160 resolution keep small text readable from the back row. Before choosing, measure the viewing distance and the room width so the screen size matches how people will use it.

How many people can write on the screen at the same time?

The touch layer uses 0-gap infrared technology and recognises 20 simultaneous touch points, so up to twenty contacts can register together. This lets a group of students or a project team annotate the same slide without taking turns. The touch is HID compliant, so it is listed as plug and play. The anti-glare glass also reduces reflections when writing under strong lighting.

Can it be used in a hot area or near windows in Qatar?

The rated operating temperature is 0 to 40 °C, with humidity of 20 to 80 percent and no condensation, and it can operate up to 3000 m altitude. Outdoor temperatures in Qatar often exceed 45 °C in summer, so this panel belongs in an air-conditioned room rather than an open lobby or an uncooled site cabin. Keep it out of direct sunlight through glass and confirm room conditions with the SmartRooms Qatar team before installation.

Will it run on Qatar's 240 V mains supply?

The mains input is rated 100 to 240 V at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 450 W and the maximum is 670 W, with standby below 0.5 W. Before ordering several units, ask your electrician to check the socket and circuit capacity. The manufacturer data does not describe the plug type, so confirm the power cord arrangement with the SmartRooms Qatar team when you request a quote.

Which connections do I need for a laptop and a video conferencing system?

Use one of the three HDMI 2.0 inputs for a laptop or conferencing codec, or the USB-C input, which can supply up to 65 W to compatible laptops. The three USB 3.0 and three USB 2.0 inputs handle additional peripherals. The RJ45 and RS232C ports let a room control system manage the display. Check your conferencing equipment's connection requirements against these inputs before you order.

Can a classroom in Al Wakrah safely wall-mount this panel?

The wall-mount pattern is 600 x 400 mm with M8 fixings, and the panel weighs 74.49 kg without its stand. A qualified installer should confirm that the wall or frame can carry that load before drilling. A private school in Al Wakrah fitting out new classrooms should also plan cable routes to the HDMI and USB inputs in advance. SmartRooms Qatar offers professional installation and free site surveys.

Can the on-screen menus be set to Arabic for a bilingual office?

Yes. The on-screen display supports Arabic alongside English, French, German, Spanish and other languages listed in the manufacturer data. In a Doha office where staff work in Arabic and English side by side, each user can choose the menu language they prefer. This keeps the screen easy to use in meetings where both languages are spoken.

What operating system, memory and storage does it have?

The panel runs Android 11 on an internal player with an MTK 9970A processor, 8 GB of memory and 32 GB of eMMC storage. It can play JPEG, PNG and BMP images, and video formats such as H.264, H.265 and VP9 from USB. Check the requirements of your teaching apps, whiteboard software and meeting applications against these figures before ordering.

What is included in the box?

The box includes a 3 m HDMI cable, a 3 m USB A to B cable, a 1.8 m DVI-I cable, a 1.8 m IR sensor cable, RS232 and daisy chain cables, two touch pens, a remote control with AAA batteries, a cleaning cloth, three cable clips and an AC power cord. Interact dongles are sold as an optional accessory. Confirm the full package list with SmartRooms Qatar when you request your quotation.

How does a school in Al Rayyan order several units on a purchase order?

Send the school's LPO with the quantity, the model code 86BDL4052E/02 and the delivery address, and SmartRooms Qatar will match the quotation to it. Quotations are usually issued within one working day, and delivery covers all eight municipalities of Qatar. Lead times are estimates confirmed in the quotation, based on stock. Payment can be made by bank transfer, cheque or purchase order. Request a site survey for each classroom before installation.

Does it support Wi-Fi and network control?

Yes. The internal player includes Wi-Fi 2G/5G/6G in a 2T2R configuration. Network control is possible through the RJ45 port and RS232, and the screen-saving functions include pixel shift and low brightness mode. Your IT team should plan IP addressing and security settings before connecting the display to the network.

What warranty applies, and how quickly will I get a quote?

The panel carries the manufacturer's five-year warranty. SmartRooms Qatar usually issues quotations within one working day, because every product is supplied by quotation rather than a fixed price list. Send your room size, wall type and number of units, and the quotation can cover supply, delivery and professional installation. Government tenders, including Monaqasat, are welcome.
