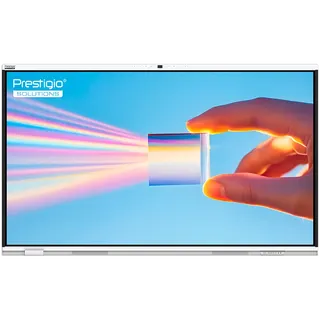

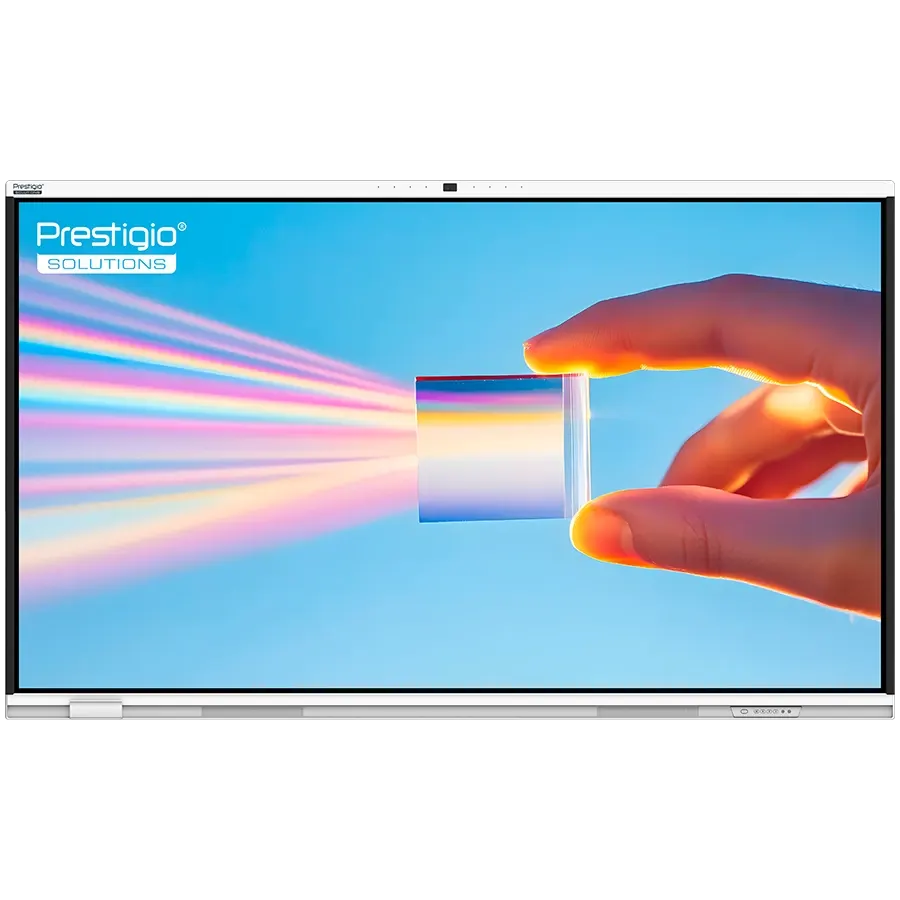

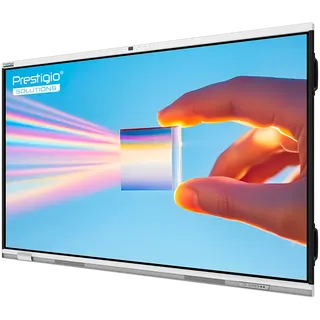

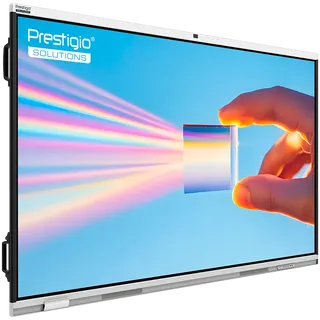

Prestigio MultiBoard PSMB018R750 75-inch Interactive Display

Screen size: 75"
Resolution: 3840x2160@60Hz
System: Android 14
Memory: 128 GB

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Prestigio PSMB018R750 is a 75-inch MultiBoard from the Prism series, combining a 4K UHD LCD panel rated at 520 cd/m² with a 50-point touch layer and Android 14. It supports Google Classroom and Microsoft 365, includes an 8-microphone array and a 48 Mpixel camera with subject tracking, and offers dual Wi-Fi. It suits schools, training centres and corporate meeting rooms across Qatar that need one large shared display. Request a quote.

A 75-inch Prism panel for rooms that need a large shared surface

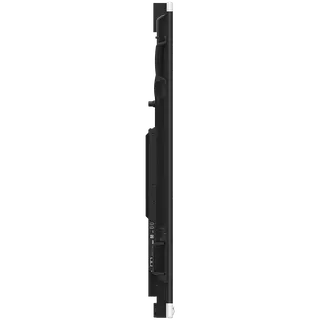

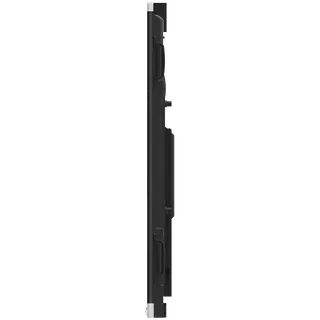

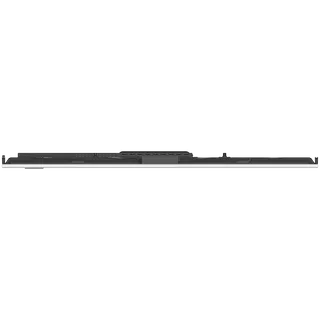

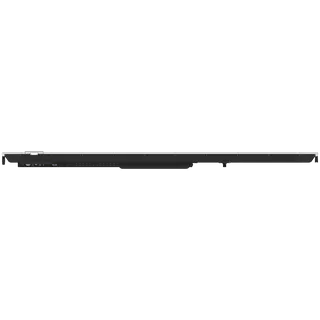

The Prestigio PSMB018R750 is a 75-inch MultiBoard from the Prism series: a touch-enabled LCD panel with a 16:9 3840x2160 display, built for teaching and meetings in one unit. Its 1711.8 mm width and 1048.8 mm height give a writing and presenting area large enough for group work, while the 102.7 mm depth keeps the unit slim against the wall.

Display, touch and audio facts that matter

The VA panel is rated at 520 cd/m² brightness and 5,000:1 contrast, with a 6.5 ms response time and 178° viewing angles both horizontally and vertically. A 50-point touch layer behind tempered glass lets several people write or annotate at the same time. The audio is a 2.1 stereo arrangement with two 20 W speakers and a 20 W subwoofer, and an 8-microphone array has a sound capture radius of 8 m.

Backlight: D-LED with a rated life of 50,000 hours
Included: remote control, 6 writing pens, HDMI and USB cables

Software, connectivity and the optional PC module

The display runs Android 14 on an ARM processor with 8 GB RAM and 128 GB internal storage. The manufacturer states it is Google EDLA certified, so it works with Google Classroom, Gmail, Drive and Meet, and it also supports Microsoft 365 and the mozaBook platform from Mozaik Education. Connectivity includes dual Wi-Fi (Wi-Fi 5 and Wi-Fi 6), Bluetooth 5.2 and two RJ-45 LAN ports. For Windows-based work, an optional PC module with an Intel processor and Windows 11 Pro can be added; confirm whether it is included in your quotation.

Ports include one HDMI out, three HDMI in, five USB 3.2 Type-A, two USB 2.0 Type-B and two USB 3.2 Type-C. A mobile device can charge while it is connected through a 65W Power Delivery USB-C cable.

Where it fits in Qatar

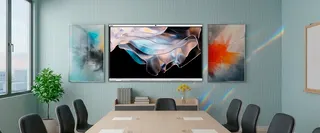

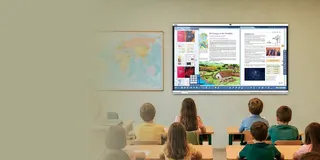

In a private school in Al Rayyan or an international school in Education City, the 75-inch format suits a classroom where students at the back must read worked examples, while split-screen mode lets a teacher run a lesson and monitor student work. In a West Bay or Msheireb boardroom, the camera tracks subjects by movement and speech, which helps hybrid meetings with teams abroad. In a reception area or showroom in Lusail, the panel can display product details to visitors, provided the room is checked for glare from windows.

What to plan before you order

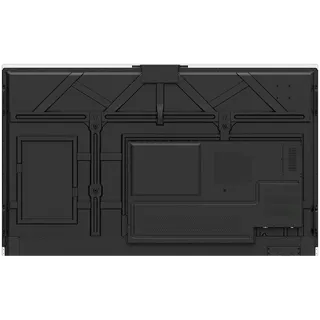

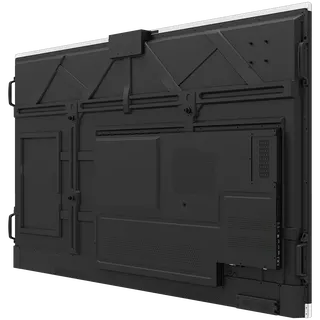

Wall structure: the panel weighs 45.3 kg, so confirm the wall or mounting frame can carry it.
Space: allow for 1711.8 mm width and 1048.8 mm height, plus clearance for ventilation and cable access.
Power: input is AC 100-240 V, 50/60 Hz, rated 500 W; the package includes an EU/UK power cable, so confirm the plug for BS 1363 sockets.
Environment: the source data gives no operating temperature range, so confirm room conditions, including summer heat and window glare, with the SmartRooms Qatar team.

SmartRooms Qatar offers free site surveys before wall mounting, professional installation across Qatar, and quotations usually within one working day. The panel carries a 36-month manufacturer warranty. Request a quote for the PSMB018R750 and the team will confirm availability, estimated lead time and installation options.

Highlights

3840x2160 4K UHD LCD with 520 cd/m² brightness
50-point touch on tempered glass
Android 14 with Google EDLA certification and Microsoft 365 support
Dual Wi-Fi 5 and Wi-Fi 6, Bluetooth 5.2, two RJ-45 LAN ports
8-microphone array and 48 Mpixel camera with subject tracking
36-month manufacturer warranty; 45.3 kg, 1711.8 mm wide

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

Display13

Display Type: LCD
Display Diagonal: 75"
Maximum Resolution: 3840x2160@60Hz
Image Aspect Ratio: 16:9
Image Brightness: 520 cd/m²
Image Contrast: 5 000 : 1
Maximum Response Time: 6.5 ms
Display Features: Multi-Touch Tempered Glass 50 Point Touch-Screen 4K UHD
Image Max. V-View Angle: 178 °
Image Max. H-View Angle: 178 °
Life Time: 50000 hr
Type of Matrix: VA
Backlight Technology: D-LED

Speaker2

Audio Output Mode: Stereo 2.1
Output Power: 2.1 (2 x 20 W + 20 W subwoofer)

Power4

Power Device Type: Power Supply
Input Voltage: AC 100-240 V
Input Frequency: 50/60 Hz
Rated input power, W: 500 W

Miscellaneous3

Included Accessories: Quick Start Guide Warranty card Remote Control 6 Writing Pens
Cable Included: USB Cable HDMI Cable Power Cable (EU/UK)
External Color: White

Networking Specifications2

Wi-Fi: Dual Wi-Fi Wi-Fi 5: 802.11a/b/g/n/ac Wi-Fi 6: 802.11/a/b/g/n/ac/ax
Bluetooth: ВТ 5.2

Dimensions & Weight Device4

Height (mm): 1048.8
Depth (mm): 102.7
Width (mm): 1711.8
Nominal Weight: 45.3 kg

Warranty1

Warranty Term (month): 36 month(s)

Android System5

CPU: ARM Cortex-A72 2.2 GHz (*4) + ARM Cortex-A53 2.0 GHz (*4)
GPU: Mali G52 1000 MHz
Installed RAM Storage Capacity: 8 GB
Internal Memory Size: 128 GB
Operating System Version: Android 14

Display Connectors6

HDMI Out: 1
HDMI In: 3
LAN: 2 (RJ-45)
USB (A): 5 (USB 3.2 (type A))
USB (B): 2 (USB 2.0 (type B))
USB (C): 2 (USB 3.2 (type C))

Built-in Microphone2

Microphone elements: 8-microphone array
Sound capture radius: 8 m

Built-in Camera3

Resolution: 48 Mpixel
AI: YES
Face or voice tracking support: Yes. Subject framing and tracking by movement and speech

Downloads

9 files from the manufacturer

PDF Datasheets Datasheet (EN) - datasheet_multiboard_prism_psmb018r.pdf 6.4 MB PDF Datasheets Full Specification (EN) - full_specification_multiboard_prism_psmb018r.pdf 6.0 MB PDF Manuals & guides Quick Start Guide (Multilingual) - multiboard_prism_qsg_multi.pdf 8.3 MB PDF Manuals & guides User Manual (EN) - psmb018r650_psmb018r750_psmb018r860_psmb018l657_psmb018l757_psmb018l867_user_manual_en.pdf 15.7 MB URL Manuals & guides · Opens on manufacturer site User Manual (RU) URL Manuals & guides · Opens on manufacturer site User Manual (UK) PDF Certificates & compliance Energy Star Certification PSMB018R750 - psmb018r750_energy_star_certification.pdf 40 KB PDF Certificates & compliance PSMB018R CE Declaration - psmb018r_ce.pdf 6.7 MB 3735 Software & firmware · Opens on manufacturer site Note3 For Windows OS 3.1.4.3735

Questions about PSMB018R750

Who is the 75-inch PSMB018R750 best suited to?

It suits rooms where a large shared display is the main teaching or meeting tool, such as a classroom, training room or mid-sized boardroom. A private school in Al Rayyan, for example, could place it at the front of a classroom so students at the back can read worked examples. Its 4K UHD screen and 50-point touch layer support lessons and group work, and Android 14 suits teachers who already use Google Classroom or Microsoft 365.

What resolution and brightness does the panel deliver?

The panel shows 3840x2160 resolution at 60Hz on a 16:9 aspect ratio, with brightness of 520 cd/m² and a contrast ratio of 5,000:1. Its VA matrix is rated at 178° horizontal and vertical viewing angles, so people seated to the side of a boardroom table can still follow slides clearly. The backlight is D-LED with a rated life of 50,000 hours, and the response time is 6.5 ms.

How does the touch function work?

The screen uses a 50-point touch layer protected by tempered glass, which allows several users to write or annotate at the same time. The package includes six writing pens and a remote control, so presenters can move through content without returning to the front of the room. Split-screen mode lets you view apps, documents or videos side by side, such as playing a video while taking notes.

Does it work with Google Classroom and Microsoft 365?

Yes, according to the manufacturer. The display runs Android 14, is stated to be Google EDLA certified, and is compatible with Gmail, Drive and Meet. It also supports Microsoft 365 applications, Microsoft for Education and the mozaBook platform from Mozaik Education. Before installation, the SmartRooms Qatar team can help you check that school or company accounts and sign-in are ready.

Can it run Windows applications?

The built-in system is Android 14. For Windows software, the manufacturer describes an optional PC module with an Intel processor running Windows 11 Pro, which extends the display to business applications and productivity tools. The module is optional, so ask whether it is included in your quotation. Finance or planning teams that depend on Windows-only software should confirm this before ordering several units.

What wireless connectivity is included?

The panel has dual Wi-Fi, supporting Wi-Fi 5 (802.11a/b/g/n/ac) and Wi-Fi 6, plus Bluetooth 5.2 and two RJ-45 LAN ports for wired networks. Participants can share content from laptops and tablets wirelessly, so a meeting does not stop for cable swaps. Mobile devices can also connect through a 65W Power Delivery USB-C cable, charging while they are controlled from the display.

Which ports are on the display?

The panel has one HDMI out, three HDMI in, five USB 3.2 Type-A ports, two USB 2.0 Type-B ports, two USB 3.2 Type-C ports and two RJ-45 LAN ports. HDMI and USB cables are included in the package. Count the sources you need before installation: a lecture hall may use a laptop, a document camera and a classroom PC at the same time, and that affects cable routing and wall box placement.

How does the audio and microphone array perform?

The built-in 8-microphone array has a sound capture radius of 8 m, which can cover a typical meeting table or the front of a classroom. The 2.1 stereo system uses two 20 W speakers and a 20 W subwoofer. In a hybrid meeting in a West Bay boardroom with participants joining from abroad, remote colleagues can hear speakers in the room more clearly.

What does the 48 Mpixel camera do?

The built-in 48 Mpixel camera includes AI-based subject framing and tracking, following people by movement and speech. This helps hybrid meetings in Doha offices where teams join from other cities or countries, because a presenter moving in front of the panel can stay in frame. Test the framing in the actual room during the site survey, since lighting and room size affect how well tracking performs.

What are the power requirements?

The power supply is rated for AC 100-240 V at 50/60 Hz, with a rated input power of 500 W and standby consumption below 0.5 W. Qatar mains at 240 V and 50 Hz falls within that input range. The package includes an EU/UK power cable, so confirm the plug arrangement for BS 1363 (Type G) sockets with the SmartRooms Qatar team before installation.

How much space and wall support does it need?

The display measures 1711.8 mm wide, 1048.8 mm high and 102.7 mm deep, and weighs 45.3 kg. Confirm the wall or mounting frame can carry this weight and leave clearance for ventilation and cables. SmartRooms Qatar offers free site surveys before wall mounting, which is useful in a Lusail office or a Msheireb meeting room where the wall type is not yet known. The source data gives no operating temperature range, so review summer heat and window glare with the team.

Can a school order several units through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A school in Al Wakrah fitting out several classrooms can request one quotation covering the panels, delivery to any of Qatar's eight municipalities and professional installation. The panel carries a 36-month manufacturer warranty, and quotations are usually provided within one working day.
