PSMB068P860

An 86-inch collaboration panel built around one screen

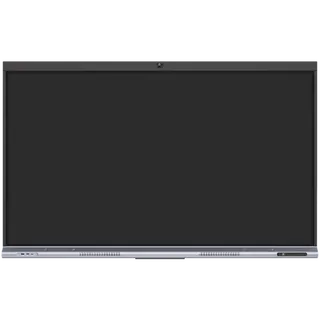

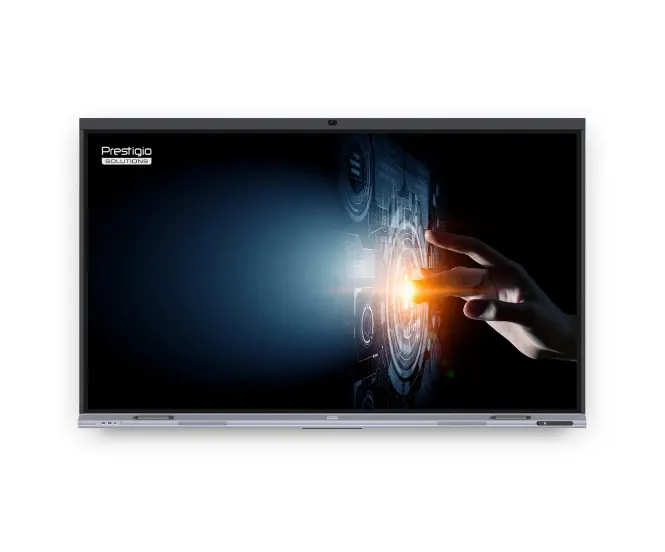

The Prestigio PSMB068P860 is part of the MultiBoard Light+ series, an interactive display that brings a touch screen, camera, microphone, speakers and computing module into a single black enclosure. Its 86-inch IPS panel delivers 3840x2160 resolution at 60Hz in a 16:9 format, with 400 cd/m² brightness and a 5,000:1 contrast ratio. Viewing angles are rated at 178 degrees both horizontally and vertically, which keeps the picture readable for people sitting at the edges of a long table.

Touch, writing and the specifications that matter in use

The front is tempered glass with a 9H hardness rating and an anti-glare finish, and the touch layer accepts 40 simultaneous touch and writing points. Two people can write in different colours at once, and the included active pen lets a presenter turn slides or adjust line thickness without swapping tools. Response time is listed at 8 ms, and the manufacturer rates the panel for 50,000 hours of life.

• Display: 86-inch, 3840x2160, IPS TFT, 400 cd/m²
• Touch: 40 points, multi-touch, two writing colours at once
• Audio: two 16 W speakers and a 16 W subwoofer output
• Camera: 8 MP built in, with a light sensor

Ports, computing and wireless features

Connections include two HDMI inputs, one HDMI output, one DisplayPort, one VGA, two USB Type-C ports, four USB 3.0 Type-A ports, one USB 2.0 port, two RJ-45 LAN ports, an RS-232 serial port, S/PDIF output and 3.5 mm audio and microphone jacks. The internal PC module uses an ARM Cortex-A73 and Cortex-A53 processor with 8GB DDR4 memory and 64GB eMMC storage, and the software is preinstalled. Dual-band Wi-Fi (2.4/5 GHz), Bluetooth and NFC round out the wireless options. Presenters can share screens from Android, Windows, Mac and iOS devices, and the NFC reader supports personal access cards, so access can be limited to authorised staff.

Where this 86-inch model fits in Qatar

• Boardroom in Lusail or West Bay: a leadership team reviews figures on a full-width screen while colleagues in Doha and abroad join through the built-in camera and microphone, without a separate conference unit.
• Government meeting room in Msheireb: officials share documents wirelessly from their own laptops and phones, and access to the panel is limited with personal cards.

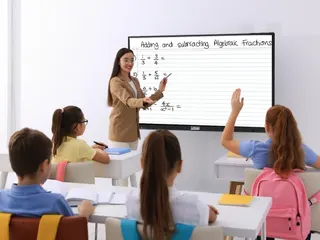

• Large classroom or lecture hall in Education City or Al Wakrah: teachers run group tasks at the board, and several learners can write on the glass at the same time thanks to the 40-point touch layer.

Planning the installation

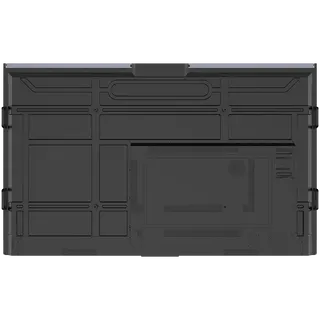

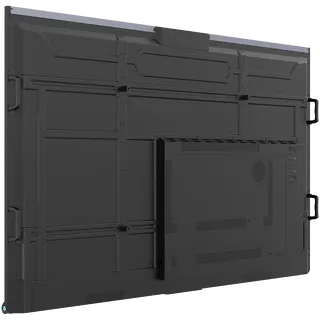

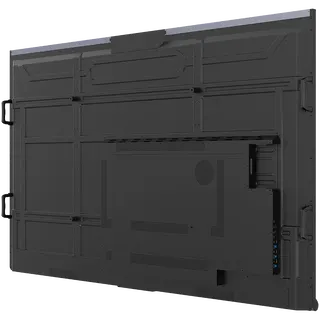

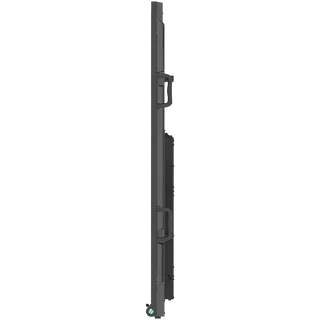

At 66.7 kg and 1961.8 mm wide, the panel needs a wall or mobile structure rated for its weight, and it uses a VESA pattern of 800x600 mm. A free site survey from SmartRooms Qatar checks wall construction, sightlines, window glare and the location of power and data points before any fixing is done. The source data does not list an operating temperature range, so the SmartRooms Qatar team will confirm the room environment with you before the installation position is agreed. The internal power supply has a 460 W maximum output and 0.5 W standby draw, and the supplied power cable is listed as EU/UK, so the plug arrangement should be checked for Qatar sockets at the survey stage. The box includes a remote control, six writing pens, a multi pen, HDMI and USB touch cables, a quick start guide and a warranty card. The manufacturer lists a 36-month warranty term, with an optional extension of up to 24 months.

Ordering for your organisation

Send us your room size, wall type and number of units, and we will usually respond with a quotation within one working day. We supply and deliver to all eight municipalities of Qatar, install professionally, and accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. Lead times are estimates confirmed with your quotation, based on stock. Request a quote today.
