Promethean AP10-A75 · Price in Qatar

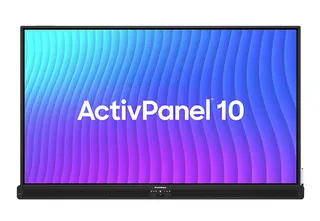

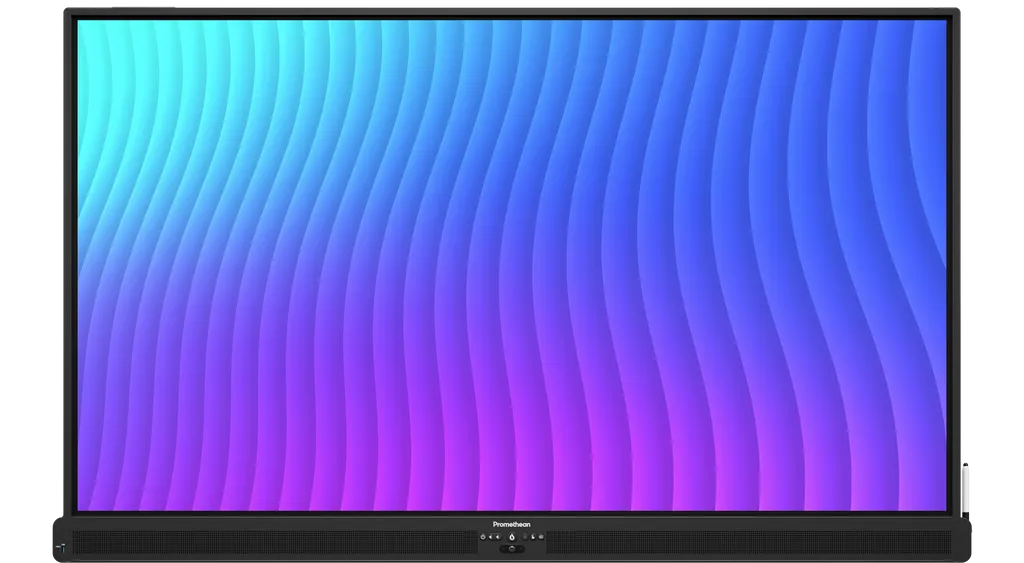

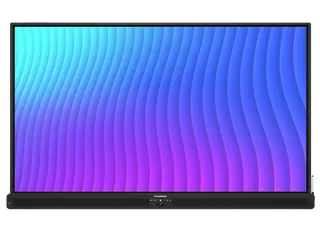

Name: Promethean ActivPanel 10 AP10-A75 75-inch Interactive Display
Brand: Promethean
SKU: promethean-ap10-a75
Availability: InStock

Overview

The Promethean ActivPanel 10 AP10-A75 is a 75-inch 4K UHD interactive display with 40 continuous touch points, 3 ms touch response and a 500 Hz scan rate. It offers 500 cd/m² typical brightness, an OPS slot for a plug-in computing module, a 100 W USB-C port and two 20 W speakers. The panel is fanless and suits meeting rooms, classrooms and training rooms across Qatar that need a large, touch-ready screen. Request a quote from SmartRooms Qatar.

A 75-inch 4K touch panel for mid-sized rooms

The ActivPanel 10 AP10-A75 is a 75-inch interactive flat panel built around a 16:9 TFT LCD with direct LED backlight. Its 3840 x 2160 resolution delivers 4K UHD across a 1653 x 931 mm display area. Typical maximum brightness is 500 cd/m², with 5000:1 dynamic contrast and a 178° viewing angle, so content stays readable from side seats in a meeting room or classroom.

The screen uses 3.2 mm heat-tempered bonded glass with anti-glare, anti-fingerprint and anti-smudge coating, rated 9H pencil hardness. The LED backlight is rated for 50,000 hours. The panel has no operating system of its own. It takes a computer through its OPS slot, an OPS-A or OPS-M module, or a Promethean Chromebox, so your IT team chooses the platform.

Touch and pen performance in daily use

The panel supports 40 continuous touch points, a touch resolution of 32768 x 32768 px, a 3 ms touch response time, a 500 Hz scan rate and touch accuracy below 1 mm. Palm rejection, palm erase and writing-hand palm rejection let a presenter rest a hand on the glass while writing. Two passive, battery-less pens come with the panel, with a 3 mm tip and 7 mm eraser diameter, kept in a full-length tray. Three unique pen IDs and pen-and-touch differentiation are included.

Connections for laptops, conferencing and control

Rear inputs are two HDMI 2.1 ports, one DisplayPort 1.4 and a USB-C port with 100 W Power Delivery, with a front USB-C and a front USB-A port for quick connections. Three USB-B touch links, LAN in and out with Wake-on-LAN, RS232 and optical S/PDIF support network management, room control and audio. The touch function is listed as compatible with Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14.

Where the AP10-A75 fits across Qatar

Boardrooms and meeting rooms in West Bay or Msheireb: a 75-inch screen lets a team annotate a shared document, while a conferencing module in the OPS slot connects the room to colleagues in other cities.
Classrooms in Al Wakrah or Education City: a school fitting out several teaching rooms can use the included ActivInspire licence and ActivSuite seats for lesson content, with pens kept at the board.
Training rooms in Lusail or the Industrial Area: the panel suits induction and safety sessions where a group needs to see the same content and mark it up together.

Planning the installation and power

The panel weighs 50.7 kg net and 61 kg packed, and measures 1705 x 107 x 1056 mm. It mounts on an 800 x 400 mm wall pattern with four M8 VESA screws supplied. Plan for at least two people to lift it, and have the wall checked before fixing. Installation should be carried out by a qualified installer, because components not supplied by Promethean may affect performance and warranty. SmartRooms Qatar offers a free site survey before wall-mounting a panel this size.

Operating range is 0 to 40 °C with 20% to 80% non-condensing humidity, and storage is -15 to 55 °C. Qatar summers can pass 45 °C, so install the panel in an air-conditioned room away from direct sunlight through windows. The power input is 100 V to 240 V AC, standby draw is 0.5 W or less, and the 75-inch model is rated at 147 W at 450 cd/m².

The panel is covered by the manufacturer's warranty, and warranty terms vary by region, so ask for the terms that apply in Qatar. Send the room layout, wall type and planned computing module with your request, and the SmartRooms Qatar team will return a quotation, usually within one working day. Request a quote for the AP10-A75 today.

Highlights

75-inch 4K UHD panel at 3840 x 2160 resolution
40 continuous touch points and 3 ms touch response
One OPS slot plus a 100 W USB-C Power Delivery port
500 cd/m² typical brightness and 5000:1 dynamic contrast
Two 20 W speakers and two passive pens included
Operating range 0 to 40 °C, so indoor air-conditioned rooms

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

83 specifications · Source: manufacturer · checked Oct 2026

Display19

Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: Direct LED Backlight
Screen Type: TFT LCD
Blue Light Reduction: Yes
Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 65": 1431 x 807 mm (56.3 x 31.8 in) 75": 1653 x 931 mm (65.1 x 36.7 in) 86": 1898 x 1069 mm (74.7 x 42.1 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Contrast Ratio: 5000:1 Dynamic 1200:1 Static
Typical Max. Brightness: 65": 520 cd/m² 75": 500 cd/m² 86": 565 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil) , 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3.2 mm
Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge

Computing2

Operating System: No OS - Secure by Design
Compatible Promethean Devices: OPS-M, OPS-A, Chromebox

Audio1

Dual Front-facing Speakers: 2 x 20 W

Interactivity18

Vellum Touch Technology: Yes
Continuous Touch Points: 40
Touch Resolution: 32768 x 32768 px
Touch Response Time: 3 ms
Scan Rate: 500 Hz
Gestures and Edge Swipes: Windows ® supported
Unique Pen IDs: 3
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: 2 x Passive battery-less pens
Pen Holder: Integrated full-length pen tray and side pockets
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 7 mm
Integrated Active Pen Charging: Active Pen Ready
Touch-enabled PiP: Yes
Compatibility: Windows ® 10 and 11; macOS ® Ventura 13 and Sonoma 14; Linux ® Ubuntu 22.04 to 24.04 LTS; ChromeOS ™ ; Android 14

Connectivity15

OPS Slot: 1
HDMI In (Rear): 2 x 2.1
Display Port: 1 x 1.4
USB-A (Rear): 3 x 3.2 Gen 1 1 x 2.0
USB-B (Touch, Rear): 3 x 3.0
USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
USB-A (Front): 1 x 3.2 Gen 1
USB-C (Front): 1 x 3.2 Gen 1
HDMI Out: 1 x 2.0
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
S/PDIF: Optical
Audio Out (3.5 mm): 1
Serial (RS232): 1 Page 1

Power5

Power Requirements: 100 V - 240 V AC
Max. Energy Star Reported: 65": 122 W
Luminance 450 cd/m²: 75": 147 W 86": 176 W
Proximity Sensor: Yes
Ultra-quiet Fanless Design: Yes

Environmental4

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity: 20% to 80% non-condensing humidity
Storage Humidity: 20% to 90% non-condensing humidity

Compliance & Certification3

Regulatory Certifications: CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified: Yes
Trade Agreements Act (TAA): Yes

Sustainability5

% Recyclable Packaging: Minimum of 98%
Energy Usage at 400 cd/m²: 65": Min: 333 Max: 340 75": Min: 380 Max: 393
Per Year (kWh): 86": Min: 463 Max: 472
Carbon Footprint (KgCO2/yr): 65": 266 75": 308 86": 355
DNSH Certifications: REACH, RoHS, POPs, Eco Design, WEEE

Physical Specifications5

Panel Dimensions: 65": 1484 x 107 x 931 mm (58.4 x 4.2 x 36.7 in) 75": 1705 x 107 x 1056 mm (67.1 x 4.2 x 41.6 in) 86": 1950 x 107 x 1194 mm (76.8 x 4.2 x 47 in)
Packed Dimensions: 65'': 1640 x 185 x 1030 mm (64.6 x 7.3 x 40.6 in) 75'': 1860 x 185 x 1155 mm (73.2 x 7.3 x 45.5 in) 86'': 2095 x 185 x 1290 mm (82.5 x 7.3 x 50.8 in)
Panel Net Weight: 65": 37.8 kg (83.3 lbs) 75": 50.7 kg (111.8 lbs) 86': 62.9 kg (138.7 lbs)
Packed Weight: 65": 46.6 kg (102.7 lbs) 75": 61 kg (134.5 lbs) 86": 75.3 kg (166 lbs)
Wall Mount Dimensions: 65": 600 x 400 mm (23.6 x 15.8 in) 75": 800 x 400 mm (31.5 x 15.8 in) 86": 800 x 600 mm (31.5 x 23.6 in)

Packed Contents1

What’s in the Box: 1x ActivPanel 10 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 3 m Length USB-C Cable 1x Remote Control 2x Batteries for Remote Control 2x Passive Pens 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M8) 1x Mini PC Bracket with Screws 1x Quick Install Guide 1x Promethean ActivSuite Activation Hangtag

Installation1

The installation of this product should be completed not supplied by Promethean or not meeting minimum safety and warranty. For more information, visit Support.PrometheanWorld.com.: by a qualified installer. Use of components specifications may impact performance,

Warranty1

Warranty term and upgrade options vary by region. information and visit PrometheanWorld.com/Warranty.: Contact your local reseller or distributor for

Education Software Licence2

ActivInspire ® Professional 1 x Single: User Licence Included
Promethean ActivSuite ™ 2 x Seats: Included Page 2

AP10-A751

size_inch: 75

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about AP10-A75

What is the Promethean AP10-A75 used for?

The AP10-A75 is a 75-inch interactive display for meeting rooms, classrooms and training rooms where a group needs to view, annotate and share content on one screen. Its 40 touch points and pen support suit teaching and collaboration, and its OPS slot accepts a compatible computing module for presentations or video conferencing. A larger 86-inch panel may be more than a mid-sized room needs.

How large is the screen, and how heavy is the panel to mount?

The display area measures 1653 x 931 mm, and the panel measures 1705 x 107 x 1056 mm. The net weight is 50.7 kg and the packed weight is 61 kg. Because the panel is heavy, plan for at least two people to lift it and check the wall structure before mounting in your Doha office. SmartRooms Qatar offers a free site survey for wall-mounted panels of this size.

Does the AP10-A75 have a built-in computer or operating system?

No. The panel has no operating system of its own. To run applications, connect a computer through its single OPS slot using an OPS-A or OPS-M module, or a Promethean Chromebox. A mini PC bracket with screws is included in the box. Your IT team can then match the computing platform to your existing software and security policy.

Which computing modules work with the AP10-A75?

The source data lists compatibility with the Promethean OPS-M, OPS-A and Chromebox. The panel has one OPS slot, so only one module can be connected at a time. Check the module against your software and video conferencing requirements before ordering. SmartRooms Qatar can confirm which module suits your setup when you request a quote.

How many touch points and pens does it support?

It supports 40 continuous touch points with a 3 ms touch response time and a 500 Hz scan rate. Three unique pen IDs are supported, and pen and touch can be differentiated. Two passive battery-less pens are included, with a 3 mm pen tip and a 7 mm eraser diameter. Palm rejection and palm erase help when a presenter rests a hand on the glass while writing.

Is a 75-inch panel the right size for a classroom in Qatar?

For a classroom or training room of moderate depth, a 75-inch screen gives students at the back a readable display, and the 178° viewing angle helps those seated at the sides. Measure the distance to the furthest seat before deciding. For a large lecture hall or boardroom, an 86-inch model may suit better. SmartRooms Qatar can advise on sizing during the site survey.

Will the AP10-A75 cope with Qatar's summer heat?

Its operating range is 0 to 40 °C with 20% to 80% non-condensing humidity, and storage is -15 to 55 °C. Qatar summers can exceed 45 °C, so install the panel in an air-conditioned room, away from direct sunlight through windows. The panel has no cooling fan, but the room itself must stay within the operating range for reliable use.

Does it work with Qatar's 240 V mains supply?

The power input is 100 V to 240 V AC, which covers Qatar's 240 V, 50 Hz mains supply. A 3 m regional power cable is included in the box. Standby consumption is 0.5 W or less, and the 75-inch model is rated at 147 W at 450 cd/m² brightness. Confirm the plug type of the supplied cable with SmartRooms Qatar before installation.

Which ports are there for laptops, video conferencing and control?

The rear panel has two HDMI 2.1 inputs, one DisplayPort 1.4 input, one HDMI 2.0 output and a USB-C port with 100 W Power Delivery. A front USB-A 3.2 Gen 1 port and a front USB-C 3.2 Gen 1 port handle quick laptop connections. Three USB-B touch connections, LAN in and out, RS232 and optical S/PDIF complete the set for touch, networking, control and audio.

What software and accessories are included?

The package includes one single-user ActivInspire Professional licence and two seats of Promethean ActivSuite, with an activation hangtag. It also includes a 3 m HDMI cable, a 3 m USB A-B cable, a 3 m USB-C cable, a remote control with batteries, two passive pens and four M8 VESA mounting screws. A mini PC bracket with screws is supplied for an OPS-style computing setup.

Can a government ministry or school buy the AP10-A75 through an LPO or tender?

Yes. SmartRooms Qatar supplies on purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. The panel carries CE, FCC, IC, UL, CUL, CB and RCM certifications, along with Energy Star certification and TAA compliance, which your tender team may need to reference. Send the tender specification with your request and we will return a quotation.

What warranty applies to the AP10-A75 in Qatar?

The AP10-A75 is covered by the manufacturer's warranty. The source data notes that warranty term and upgrade options vary by region, so ask for the terms that apply in Qatar when you request your quotation. Get the warranty terms in writing before you place a purchase order, especially if the panel will be installed by a contractor.
