Promethean AP10-A86 · Price in Qatar

Name: Promethean ActivPanel 10 AP10-A86 86-inch Interactive Display
Brand: Promethean
SKU: promethean-ap10-a86
Availability: InStock

Overview

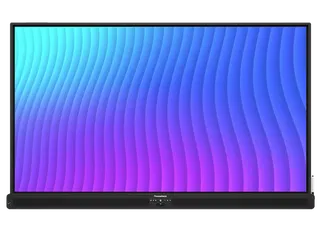

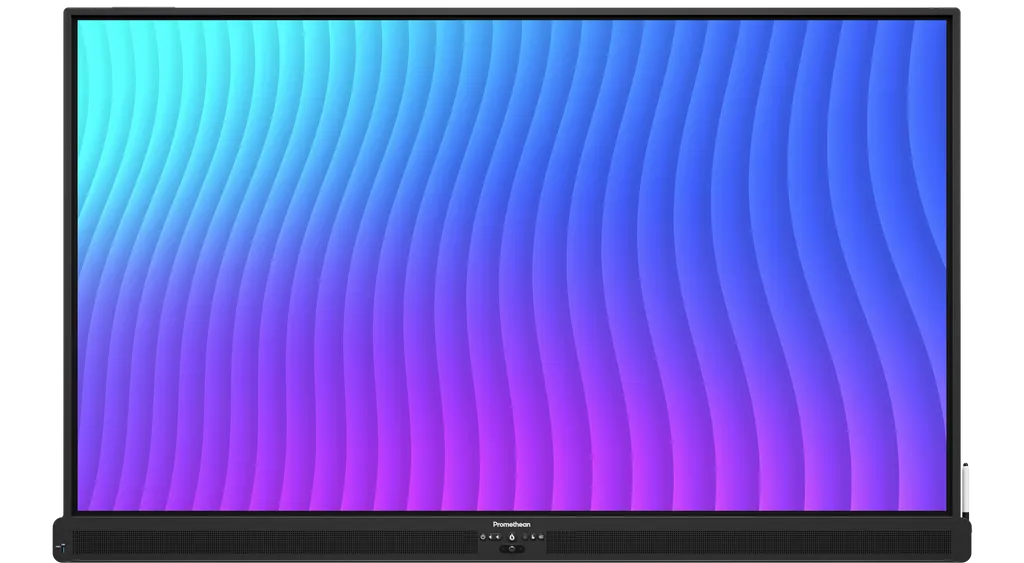

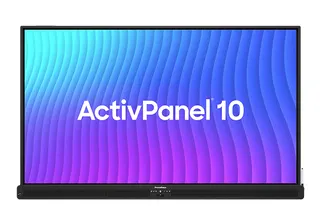

The Promethean AP10-A86 is an 86-inch 4K UHD interactive display with a 40-point touch surface, an OPS slot for a computer module and two passive pens. Its 565 cd/m² typical brightness and 2 x 20 W speakers suit boardrooms and lecture halls in Doha, Lusail and Education City. Check panel depth and weight before wall mounting. Request a quote from SmartRooms Qatar.

What the AP10-A86 is and where it fits

The Promethean AP10-A86 is the largest model in the ActivPanel 10 family, with an 86-inch 16:9 screen running at 3840 x 2160 (4K UHD) and 60 Hz. The display area measures 1898 x 1069 mm, a generous working surface for presentations, annotation and shared content. The size suits rooms where many people must read the screen from a distance, such as lecture theatres, executive boardrooms and training halls.

Because it is a single unit, one panel, one wall mount and the devices already in use can fit out a room. For a buyer, that simplicity matters as much as the screen itself, especially when a project covers several rooms at once.

Touch, pens and palm rejection

The touch layer supports 40 continuous touch points, with a 3 ms response time, a 500 Hz scan rate and accuracy below 1 mm. Two passive pens with no batteries come in the box. The panel reads three unique pen IDs and separates pen input from finger touch, which helps when a presenter writes while someone else gestures on the glass.

Palm erase, palm rejection and writing-hand palm rejection help keep the surface usable when a hand rests on the glass during writing. An integrated pen tray runs the full length of the frame, with side pockets, so pens stay with the panel.

Pen tip: 3 mm, with a 7 mm eraser
Full-length pen tray and side pockets keep pens within reach

Computing, OPS and connections

The AP10-A86 has no operating system built in and is described as secure by design. One OPS slot accepts a compatible OPS-M or OPS-A module, and the panel also works with the Promethean Chromebox. This lets IT teams choose the computing platform that matches their policy. Touch compatibility is listed for Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14.

The rear panel offers two HDMI 2.1 inputs, one DisplayPort 1.4 input, one HDMI 2.0 output and a USB-C port with 100 W Power Delivery. Touch data uses USB-B, and front USB-A and USB-C ports give quick access for a laptop. LAN in and out ports with Wake-on-LAN, RS232, optical S/PDIF and a 3.5 mm audio output complete the list.

Picture, sound and energy

Typical maximum brightness is 565 cd/m² on this model, with 5000:1 dynamic and 1200:1 static contrast, 1.07 billion colours at 10-bit and a 178° viewing angle. An ambient light sensor adjusts the picture to room light, and the direct LED backlight is rated for 50,000 hours. Two 20 W front-facing speakers provide the sound.

The power supply accepts 100 V to 240 V AC. Standby draw is at or below 0.5 W, and the panel is rated at 176 W at 450 cd/m². The design is fanless, which keeps the room quiet during lectures, and the model carries Energy Star certification.

Planning the installation in Qatar

Panel size 1950 x 107 x 1194 mm, net weight 62.9 kg
Wall mount pattern 800 x 600 mm with four M8 VESA screws supplied
Operating range 0 to 40 °C, 20 to 80% humidity, non-condensing

A panel of this size and weight needs a wall that can carry it. SmartRooms Qatar offers a free site survey before installation, covering wall construction, sightlines, power outlets and cable routes. The source recommends installation by a qualified installer, and SmartRooms Qatar provides professional installation.

Summer temperatures outside in Qatar can pass 45 °C, so keep the panel in an air-conditioned room and away from direct sun through unshaded windows. If a space is not fully air-conditioned, confirm the conditions with the SmartRooms Qatar team before choosing the wall position.

To receive a quotation for the AP10-A86, request a quote from SmartRooms Qatar with your room size, mounting plan and number of units. Quotations usually follow within one working day.

Highlights

86-inch 4K UHD panel at 3840 x 2160 and 60 Hz
40 continuous touch points with 3 ms touch response
Two passive battery-less pens and palm rejection included
One OPS slot for OPS-M, OPS-A or Chromebox
565 cd/m² typical brightness and 1.07 billion colours
Fanless design, 100 V to 240 V AC, standby at or below 0.5 W

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

83 specifications · Source: manufacturer · checked Oct 2026

Display19

Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: Direct LED Backlight
Screen Type: TFT LCD
Blue Light Reduction: Yes
Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 65": 1431 x 807 mm (56.3 x 31.8 in) 75": 1653 x 931 mm (65.1 x 36.7 in) 86": 1898 x 1069 mm (74.7 x 42.1 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Contrast Ratio: 5000:1 Dynamic 1200:1 Static
Typical Max. Brightness: 65": 520 cd/m² 75": 500 cd/m² 86": 565 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil) , 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3.2 mm
Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge

Computing2

Operating System: No OS - Secure by Design
Compatible Promethean Devices: OPS-M, OPS-A, Chromebox

Audio1

Dual Front-facing Speakers: 2 x 20 W

Interactivity18

Vellum Touch Technology: Yes
Continuous Touch Points: 40
Touch Resolution: 32768 x 32768 px
Touch Response Time: 3 ms
Scan Rate: 500 Hz
Gestures and Edge Swipes: Windows ® supported
Unique Pen IDs: 3
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: 2 x Passive battery-less pens
Pen Holder: Integrated full-length pen tray and side pockets
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 7 mm
Integrated Active Pen Charging: Active Pen Ready
Touch-enabled PiP: Yes
Compatibility: Windows ® 10 and 11; macOS ® Ventura 13 and Sonoma 14; Linux ® Ubuntu 22.04 to 24.04 LTS; ChromeOS ™ ; Android 14

Connectivity15

OPS Slot: 1
HDMI In (Rear): 2 x 2.1
Display Port: 1 x 1.4
USB-A (Rear): 3 x 3.2 Gen 1 1 x 2.0
USB-B (Touch, Rear): 3 x 3.0
USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
USB-A (Front): 1 x 3.2 Gen 1
USB-C (Front): 1 x 3.2 Gen 1
HDMI Out: 1 x 2.0
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
S/PDIF: Optical
Audio Out (3.5 mm): 1
Serial (RS232): 1 Page 1

Power5

Power Requirements: 100 V - 240 V AC
Max. Energy Star Reported: 65": 122 W
Luminance 450 cd/m²: 75": 147 W 86": 176 W
Proximity Sensor: Yes
Ultra-quiet Fanless Design: Yes

Environmental4

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity: 20% to 80% non-condensing humidity
Storage Humidity: 20% to 90% non-condensing humidity

Compliance & Certification3

Regulatory Certifications: CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified: Yes
Trade Agreements Act (TAA): Yes

Sustainability5

% Recyclable Packaging: Minimum of 98%
Energy Usage at 400 cd/m²: 65": Min: 333 Max: 340 75": Min: 380 Max: 393
Per Year (kWh): 86": Min: 463 Max: 472
Carbon Footprint (KgCO2/yr): 65": 266 75": 308 86": 355
DNSH Certifications: REACH, RoHS, POPs, Eco Design, WEEE

Physical Specifications5

Panel Dimensions: 65": 1484 x 107 x 931 mm (58.4 x 4.2 x 36.7 in) 75": 1705 x 107 x 1056 mm (67.1 x 4.2 x 41.6 in) 86": 1950 x 107 x 1194 mm (76.8 x 4.2 x 47 in)
Packed Dimensions: 65'': 1640 x 185 x 1030 mm (64.6 x 7.3 x 40.6 in) 75'': 1860 x 185 x 1155 mm (73.2 x 7.3 x 45.5 in) 86'': 2095 x 185 x 1290 mm (82.5 x 7.3 x 50.8 in)
Panel Net Weight: 65": 37.8 kg (83.3 lbs) 75": 50.7 kg (111.8 lbs) 86': 62.9 kg (138.7 lbs)
Packed Weight: 65": 46.6 kg (102.7 lbs) 75": 61 kg (134.5 lbs) 86": 75.3 kg (166 lbs)
Wall Mount Dimensions: 65": 600 x 400 mm (23.6 x 15.8 in) 75": 800 x 400 mm (31.5 x 15.8 in) 86": 800 x 600 mm (31.5 x 23.6 in)

Packed Contents1

What’s in the Box: 1x ActivPanel 10 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 3 m Length USB-C Cable 1x Remote Control 2x Batteries for Remote Control 2x Passive Pens 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M8) 1x Mini PC Bracket with Screws 1x Quick Install Guide 1x Promethean ActivSuite Activation Hangtag

Installation1

The installation of this product should be completed not supplied by Promethean or not meeting minimum safety and warranty. For more information, visit Support.PrometheanWorld.com.: by a qualified installer. Use of components specifications may impact performance,

Warranty1

Warranty term and upgrade options vary by region. information and visit PrometheanWorld.com/Warranty.: Contact your local reseller or distributor for

Education Software Licence2

ActivInspire ® Professional 1 x Single: User Licence Included
Promethean ActivSuite ™ 2 x Seats: Included Page 2

AP10-A861

size_inch: 86

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about AP10-A86

Is the AP10-A86 suited to a lecture hall at a university in Education City?

Yes. The 86-inch size is built for large rooms where students sit far from the front. The 4K UHD screen at 3840 x 2160 shows detailed slides and spreadsheets, and the 565 cd/m² typical brightness helps when lecture rooms are partly lit. Two 20 W front speakers are built in. Ask SmartRooms Qatar for a site survey to check sightlines and seating distance before you order.

How large is the screen and what resolution does it use?

The AP10-A86 has an 86-inch 16:9 screen with 4K UHD resolution of 3840 x 2160 at 60 Hz. The display area measures 1898 x 1069 mm, or 74.7 x 42.1 inches. The panel is a TFT LCD with a direct LED backlight, bonded heat-tempered glass 3.2 mm thick and anti-glare, anti-fingerprint and anti-smudge coatings that keep the surface easier to read and clean during long sessions.

Does the panel need a separate computer?

The panel needs a content source, but it has no operating system built in. It provides one OPS slot where a compatible OPS-M or OPS-A module can be installed, and it also works with the Promethean Chromebox as an external computing option. Choose the computing platform that matches your IT policy before ordering, and confirm the module you need with the SmartRooms Qatar team when you request your quote.

Which computing devices work with the AP10-A86?

The panel is compatible with OPS-M, OPS-A and the Promethean Chromebox. Touch compatibility is listed for Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14, and gestures and edge swipes are supported on Windows. Buyers with a mixed fleet of laptops should check which operating systems their staff use before standardising on one setup.

How do the touch and pen features work?

The AP10-A86 supports 40 continuous touch points, a 3 ms touch response time, a 500 Hz scan rate and accuracy below 1 mm. Two passive pens come with the panel and need no batteries or charging. The panel reads three unique pen IDs, separates pen input from touch, and includes palm rejection and palm erase. A full-length pen tray keeps pens with the panel in classrooms and meeting rooms.

Can it suit a boardroom in West Bay where people sit at a long table?

For a long table in West Bay, the 86-inch screen gives people at the far end a readable view of documents, dashboards and video calls. The 16:9 format suits widescreen content, and the 1200:1 static contrast helps text stay clear with the lights on. Before ordering, measure the distance from the screen to the furthest seat and check the wall. SmartRooms Qatar can confirm whether the panel and mount suit the room.

What does the wall mount need?

The panel measures 1950 x 107 x 1194 mm and weighs 62.9 kg net, or 75.3 kg packed. It uses an 800 x 600 mm VESA mount pattern, and four M8 VESA screws are included. Because of its weight, the wall must be able to carry the load, and the source states installation should be carried out by a qualified installer. SmartRooms Qatar offers a free site survey and professional installation to check the wall before drilling.

Can it be installed near a window in a Doha office with summer heat?

Qatar summers can push outdoor temperatures above 45 °C, so placement matters. The AP10-A86 has an operating range of 0 to 40 °C and 20 to 80% non-condensing humidity. Keep it in an air-conditioned room, away from direct sun through unshaded windows. If a room runs warm, confirm the conditions with the SmartRooms Qatar team during the site survey before you choose the wall position.

Which ports help with laptops and video conferencing kit in a meeting room in Msheireb?

The rear panel has two HDMI 2.1 inputs, a DisplayPort 1.4 input and an HDMI 2.0 output for a second screen. A rear USB-C port provides 100 W Power Delivery, which can power a compatible laptop while it connects. Touch data uses USB-B, and front USB-A and USB-C ports suit quick connections. LAN ports with Wake-on-LAN support network management, and RS232 supports external control.

How much power does it draw and does it run on Qatar mains?

The power requirement is 100 V to 240 V AC, which covers Qatar's 240 V mains supply, and a 3 m regional power cable is included. Standby consumption is at or below 0.5 W, and the panel is rated at 176 W at 450 cd/m² luminance. Annual energy use is listed at 463 to 472 kWh, with a carbon footprint of 355 kg CO2 per year. The panel is Energy Star certified and has a fanless design.

What is in the box and what software comes with it?

The box includes the ActivPanel 10, a remote control with batteries, two passive pens, a 3 m HDMI cable, a 3 m USB A-B cable, a 3 m USB-C cable, a 3 m regional power cable, four M8 VESA screws, a mini PC bracket with screws and a quick install guide. The software list includes one ActivInspire Professional single user licence, two Promethean ActivSuite seats and an ActivSuite activation hangtag.

Can an LPO cover several units for a school in Al Khor?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and delivers to all eight municipalities of Qatar, including Al Khor. A school fitting out several classrooms with the AP10-A86 can have each unit, any wall mounts and the installation quoted as separate lines in one quotation. Plan each room's wall, power outlet and OPS module needs first, then request a quote so the order matches the site survey. Payment can be made by bank transfer, cheque or purchase order.
