Promethean AP10-B55 · Price in Qatar

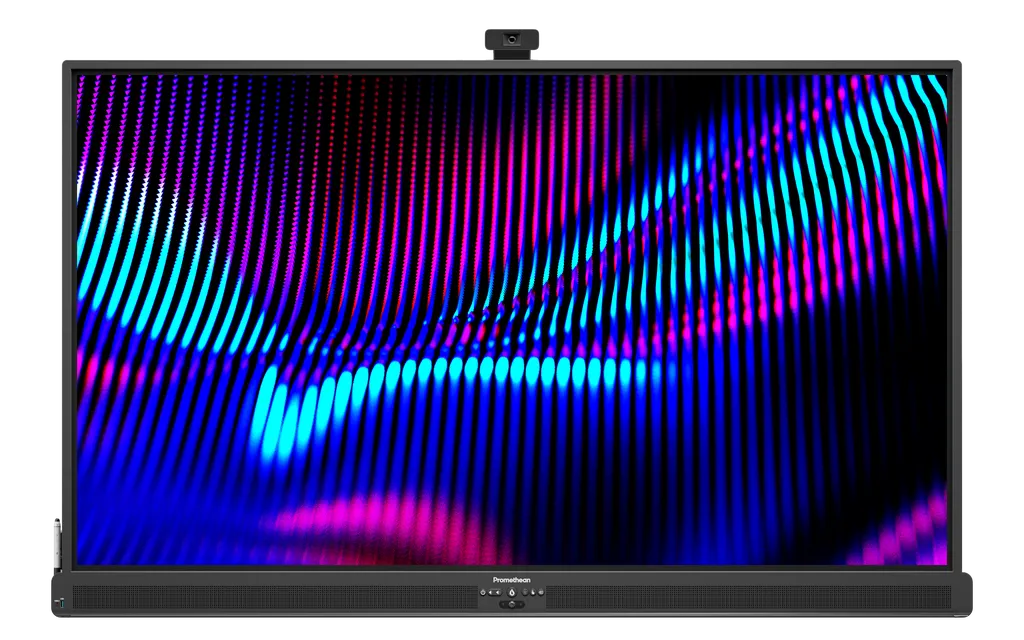

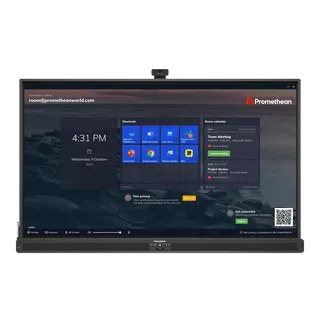

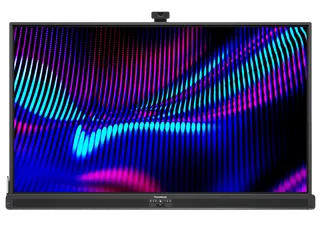

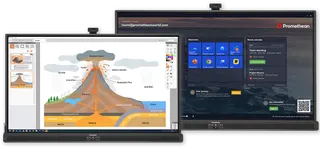

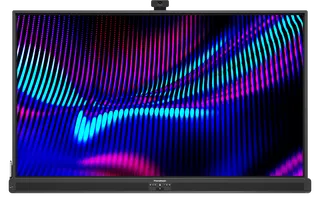

Name: Promethean ActivPanel 10 Premium AP10-B55 55-inch Interactive Display
Brand: Promethean
SKU: promethean-ap10-b55
Availability: InStock

Overview

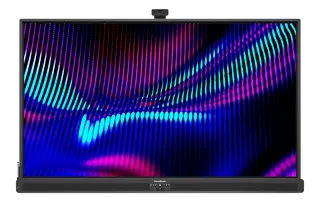

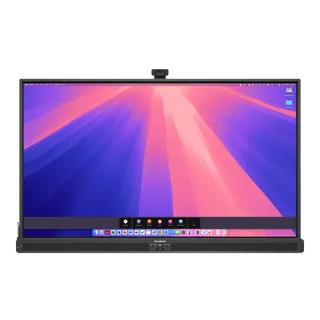

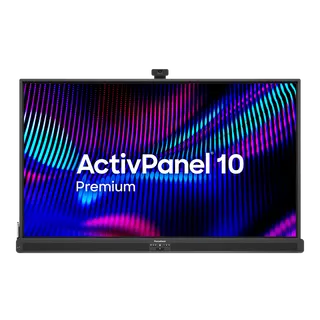

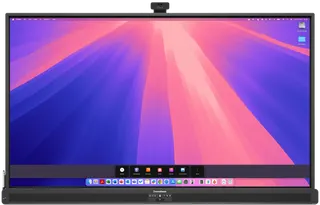

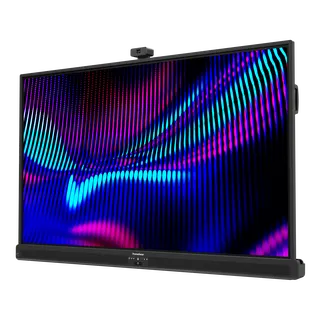

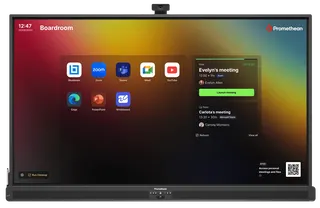

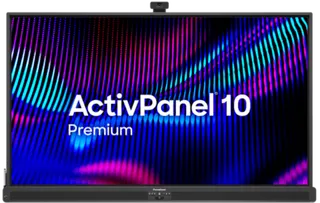

The Promethean AP10-B55 is a 55-inch 4K UHD interactive display from the ActivPanel 10 Premium range, with a 1.07 billion colour panel, 50 continuous touch points and an OPS slot for a plug-in computer module. Its built-in 8-microphone array and soundbar suit small meeting rooms, huddle spaces and classrooms across Qatar. Request a quote for one unit or a multi-room rollout.

What the AP10-B55 is and who it suits

The Promethean AP10-B55 is the smallest screen in the ActivPanel 10 Premium family. It uses a 4K UHD TFT LCD (3840 x 2160) with a QLED direct LED backlight and full-array local dimming. Typical maximum brightness is 977 cd/m², and static contrast reaches up to 16,500:1, so detail holds in a lit room. Its size suits small meeting rooms, huddle spaces, classroom teaching walls and reception areas where a 75 or 86-inch panel would overwhelm the space.

Touch, pens and writing performance

The touch layer recognises up to 50 continuous touch points with a 3 ms response time, a 500 Hz scan rate and touch accuracy below 1 mm. Palm rejection and pen-and-touch differentiation let a presenter rest a hand on the glass while writing. The panel supports three unique pen IDs. The package includes two passive battery-less pens and one active pen, which offers air mouse control, pressure-sensitive handwriting, a red-dot highlighter and pagination control. A wireless charger sits in the integrated full-length pen tray. Pen tip diameter is 3 mm and eraser diameter is 7 mm.

Connectivity, OPS slot and software

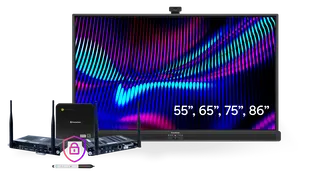

The panel has no operating system of its own, following a secure by design approach. Its single OPS slot takes an OPS-M or OPS-A module, and the Promethean Chromebox is also listed as compatible, so you choose the computer that matches your software. Ports include:

Two HDMI 2.1 inputs and one DisplayPort 1.4 input
Rear USB-C with 100 W Power Delivery and front USB-C with 65 W Power Delivery
Rear USB-A, USB-B touch and top USB-C ports, plus USB-C output
LAN in and out with Wake-on-LAN, RS232 and optical S/PDIF

Compatibility is listed for Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14. The bundle includes one single-user ActivInspire Professional licence and two ActivSuite seats.

Sound, power and operating limits

The integrated soundbar is rated 2 x 25 W. The 20 W subwoofer used on larger models is not included with the 55-inch, so plan audio around the soundbar and its 8-microphone array for speech. Power input is 100 V to 240 V AC, the reported maximum Energy Star figure is 68 W, and standby draw is 0.5 W or less. The fanless design keeps the room quiet. Operating temperature is 0 °C to 40 °C at 20% to 80% non-condensing humidity, and storage runs from -15 °C to 55 °C.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can place one 55-inch panel per room for teaching and annotating lessons directly on the screen. A training centre in Msheireb running short staff briefings in Arabic and English can share laptop content through the HDMI inputs while pen tools mark up slides. Summer temperatures in Doha regularly pass 45 °C, so keep the panel in an air-conditioned room away from direct sun through glass, since its rated operating ceiling is 40 °C.

Planning the installation: the panel measures 1266 x 103 x 809 mm and weighs 29.2 kg net, 37.2 kg packed. Its VESA wall pattern is 400 x 400 mm, and the box includes four M8 VESA screws and a mini PC bracket. A qualified installer should fit it onto a wall that can carry the load. SmartRooms Qatar offers free site surveys to check wall type, height, socket position and cable routes before you order, plus professional installation across all eight municipalities.

Ready to plan an AP10-B55 for your room? Request a quote from SmartRooms Qatar and we will confirm the configuration, mounting and installation scope in your quotation.

Highlights

55-inch 4K UHD panel at 3840 x 2160 resolution
50 continuous touch points with 3 ms touch response
Single OPS slot for OPS-M, OPS-A or Chromebox
Two HDMI 2.1 inputs and one DisplayPort 1.4 input
Integrated soundbar; 55-inch model excludes subwoofer
Operating range 0 °C to 40 °C with fanless design

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

90 specifications · Source: manufacturer · checked Oct 2026

Display21

Screen Size and Resolution: 55" 4K; UHD (3840 x 2160 @ 60 Hz) 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: QLED - High Density Direct LED Backlight
Full-Array Local Dimming: Yes
Screen Type: TFT LCD
Blue Light Reduction: Yes
Optical Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 55": 1212 x 682 mm (47.7 x 26.9 in) 65": 1430 x 806 mm (56.3 x 31.7 in) 75": 1652 x 930 mm (65 x 36.6 in) 86": 1895 x 1066 mm (74.6 x 42 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Static Contrast Ratio (up to): 16,500:1
Dynamic Contrast Ratio (up to): 900,000:1
Typical Max. Brightness: 55": 977 cd/m² 65": 942 cd/m² 75": 880 cd/m² 86": 1034 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil), 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3.2 mm
Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge

Computing2

Operating System: No OS - Secure by Design
Compatible Promethean Devices: OPS-M, OPS-A, Chromebox

Audio2

Integrated Soundbar: 2 x 25 W + 20 W Subwoofer* *Subwoofer not included on 55"
Integrated Microphone: 8 Mic Array

Interactivity19

Vellum Touch Technology: Yes
Continuous Touch Points: 50
Touch Resolution: 32768 x 32768 px
Touch Response Time: 3 ms
Scan Rate: 500 Hz
Gesture and Edge Swipes: Windows ® supported
Unique Pen IDs: 3
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: 2 x Passive battery-less pens, 1 x Active pen
Integrated Wireless Active Pen Charger: Yes
Active Pen Features: Air Mouse, Pressure Sensitive Hand Writing, Red Dot Highlighter, Pagination Control
Pen Holder: Integrated full-length pen tray and side pockets
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 7 mm
Touch-enabled PiP: Yes
Compatibility: Windows ® 10 and 11; macOS ® Ventura 13 and Sonoma 14; Linux ® Ubuntu 22.04 to 24.04 LTS; ChromeOS ™ ; Android 14

Connectivity18

OPS Slot: 1
HDMI In (Rear): 2 x 2.1
Display Port: 1 x 1.4
USB-A (Rear): 3 x 3.2 Gen 1 1 x 2.0
USB-B (Touch, Rear): 3 x 3.0
USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
USB-A (Front): 1 x 3.2 Gen 1
USB-C (Front): 1 x 3.2 Gen 1 (65 W Power Delivery)
USB-A (Top): 1 x 3.0
USB-C (Top): 1 x 3.0
USB-C Out: 1 x 3.0
HDMI Out: 1 x 2.0
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
S/PDIF: Optical
Audio Out (3.5 mm): 1
Serial (RS232): 1 Page 1

Power5

Power Requirements: 100 V - 240 V AC
Max. Energy Star Reported: 55": 68 W
Luminance 500 cd/m²: 65": 89 W 75": 106 W 86": 117W
Proximity Sensor: Yes
Ultra-quiet Fanless Design: Yes

Environmental4

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity: 20% to 80% non-condensing humidity
Storage Humidity: 20% to 90% non-condensing humidity

Compliance & Certification3

Regulatory Certifications: CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified: Yes
Trade Agreements Act (TAA): Yes

Sustainability5

% Recyclable Packaging: Minimum of 97%
Energy Usage at 400 cd/m²: 55": Min: 185 Max: 192 65": Min: 241 Max: 247
Per Year (kWh): 75": Min: 282 Max: 289 86": Min: 319 Max: 325
Carbon Footprint (KgCO2/yr): 55": 255 65": 297 75": 338 86": 409
DNSH Certifications: REACH, RoHS, POPs, Eco Design, WEEE

Physical Specifications5

Panel Dimensions: 55": 1266 x 103 x 809 mm (49.8 x 4.1 x 31.9 in) 65": 1489 x 107 x 935 mm (58.6 x 4.2 x 36.8 in) 75": 1710 x 107 x 1060 mm (67.3 x 4.2 x 41.7 in) 86": 1955 x 107 x 1197 mm (77 x 4.2 x 47.1 in)
Packed Dimensions: 55": 1407 x 170 x 895 mm (55.3 x 6.7 x 35.2 in) 65": 1639 x 185 x 1019 mm (64.5 x 7.3 x 40.1 in) 75": 1860 x 185 x 1143 mm (73.2 x 7.3 x 45 in) 86": 2105 x 185 x 1280 mm (82.9 x 7.3 x 50.4 in)
Panel Net Weight: 55": 29.2 kg (64.4 lbs) 65": 39.4 kg (86.9 lbs) 75": 51.4 kg (113.3 lbs) 86": 67.9 kg (149.7 lbs)
Packed Weight: 55": 37.2 kg (82 lbs) 65": 49.6 kg (109.4 lbs) 75": 63.2 kg (139.3 lbs) 86": 81.6 kg (179.9 lbs)
Wall Mount Dimensions: 55": 400 x 400 mm (15.8 x 15.8 in) 65": 600 x 400 mm (23.6 x 15.8 in) 75": 800 x 400 mm (31.5 x 15.8 in) 86": 800 x 600 mm (31.5 x 23.6 in)

Packed Contents1

What’s in the Box: 1x ActivPanel 10 Premium 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 3 m Length USB-C Cable 1 x Remote Control 2x Batteries for Remote Control 2x Passive Pens 1x ActivPen 2 1x ActivPen 2 Charger and BT module 1x USB-C ActivPen 2 Charging Cable 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M8) 1x Mini PC Bracket with Screws 1x Quick Install Guide 1x Promethean ActivSuite Activation Hangtag

Installation1

The installation of this product should be completed not supplied by Promethean or not meeting minimum safety and warranty. For more information, visit Support.PrometheanWorld.com.: by a qualified installer. Use of components specifications may impact performance,

Warranty1

Warranty term and upgrade options vary by region. information and visit PrometheanWorld.com/Warranty.: Contact your local reseller or distributor for

Education Software Licence2

ActivInspire ® Professional 1 x Single: User Licence Included
Promethean ActivSuite ™ 2 x Seats: Included Page 2

AP10-B551

size_inch: 55

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about AP10-B55

What is the Promethean AP10-B55 used for?

The AP10-B55 is a 55-inch interactive flat panel for teaching, meetings and presentations where people write, annotate and share from one screen. It suits small and mid-sized rooms such as school classrooms in Al Rayyan, boardrooms in Lusail and training rooms at Education City. The 4K resolution keeps text sharp at close viewing distance, and the 50-point touch layer lets several people work on the glass at once.

How large is the display area and what resolution does it run at?

The screen is 55 inches with a 16:9 aspect ratio and a display area of 1212 x 682 mm (47.7 x 26.9 in). It runs at 4K UHD, 3840 x 2160 pixels, with a 60 Hz panel refresh rate. The TFT LCD has a 178 degree viewing angle, so people seated at the sides of a meeting room still see a clear image. The overall panel measures 1266 x 103 x 809 mm.

Will the screen be readable in a bright room with windows?

Typical maximum brightness is 977 cd/m², and the panel includes an ambient light sensor that helps adjust output to room lighting. The glass is anti-glare and anti-fingerprint, which reduces reflections from windows and daylight. In rooms with direct afternoon sun, position the panel away from the window line and test sightlines during the free site survey before mounting.

Can the AP10-B55 go in a non-air-conditioned area or near a window in summer?

The rated operating temperature is 0 °C to 40 °C at 20% to 80% non-condensing humidity, and storage ranges from -15 °C to 55 °C. Summer temperatures in Doha and Al Khor can exceed 45 °C, so install the panel in an air-conditioned room rather than an unchilled glass-fronted lobby, an open terrace or an outdoor kiosk. If your environment is unusual, ask the SmartRooms Qatar team to review it before you order.

Which computers can I connect to the panel?

The panel has no operating system of its own. Its single OPS slot accepts an OPS-M or OPS-A module, and the Promethean Chromebox is listed as a compatible device. If you prefer to use a laptop, the two HDMI 2.1 inputs and the DisplayPort 1.4 input take a direct feed. Tell the SmartRooms Qatar team which devices you already use so the configuration can be matched in your quotation.

Does it work with Mac, Linux and Chromebook devices?

The compatibility list covers Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14. Gesture and edge swipe support is listed for Windows. In offices and schools that work in Arabic and English side by side, laptops from different platforms can share one panel, provided the connected computer runs one of these systems.

What pens come in the box and how are they charged?

Each unit includes two passive battery-less pens and one active pen. The panel has an integrated wireless active pen charger and a full-length pen tray with side pockets. The active pen supports air mouse control, pressure-sensitive handwriting, a red-dot highlighter and pagination control. Pen tip diameter is 3 mm and the eraser diameter is 7 mm, which suits marking up documents and diagrams.

Does the 55-inch come with a subwoofer?

No. The integrated soundbar is rated at 2 x 25 W, while the 20 W subwoofer used on larger sizes is not included with the 55-inch. For speech-led use in a classroom or small meeting room, the built-in soundbar and 8-microphone array are the default option. For music or larger spaces, ask the SmartRooms Qatar team to quote external speakers alongside the panel.

What power does it need and how much does it draw?

The power input is 100 V to 240 V AC, which covers Qatar's 240 V mains supply. The maximum Energy Star reported figure for the 55-inch is 68 W, and standby power is 0.5 W or less. The fanless design keeps noise low in quiet rooms. A 3 m regional power cable is included. Check the wall socket type near the mounting point and plan cable routing before installation.

Can it be wall-mounted, and how much does it weigh?

Yes. The panel weighs 29.2 kg net and 37.2 kg packed, with a VESA wall mount pattern of 400 x 400 mm. Four M8 VESA screws and a mini PC bracket are included. Because a 55-inch panel is heavy, a qualified installer should fit it into a wall that can take the load. SmartRooms Qatar offers a free site survey to confirm wall type, height and cable routes before any order.

Which software comes with the panel?

The package includes one single-user licence for ActivInspire Professional and two seats of Promethean ActivSuite. These licences are listed as included, so you do not need to purchase them separately for those seats. Check the ActivSuite activation hangtag in the box. If you plan to use the panel in several rooms, state the number of licences needed for each room in your quotation request.

Is it covered by warranty, and how do I request a quote?

Products are covered by the manufacturer's warranty. Warranty term and upgrade options vary by region, so the terms applicable in Qatar are confirmed in your quotation. To request a quote, send the number of units, the room sizes and whether you need installation. Quotations are usually issued within one working day. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order.
