Promethean AP10-B86 · Price in Qatar

Name: Promethean ActivPanel 10 Premium AP10-B86 86-inch Interactive Display
Brand: Promethean
SKU: promethean-ap10-b86
Availability: InStock

Overview

The Promethean AP10-B86 is an 86-inch 4K interactive display with 50 continuous touch points, 1,034 cd/m² typical brightness and an OPS slot for a plug-in computer module. It ships with two passive pens and one active pen, a wireless pen charger, an ActivInspire Professional single-user licence and two ActivSuite seats. It suits large boardrooms, lecture halls and training rooms in Qatar that need a shared screen for writing and presenting.

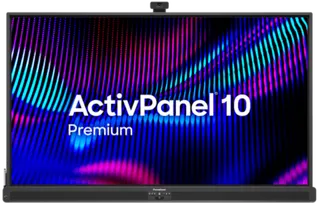

What the 86-inch ActivPanel 10 Premium is

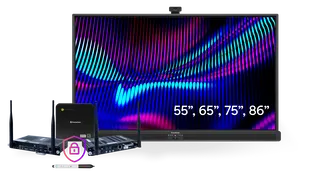

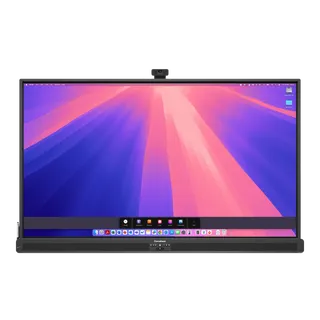

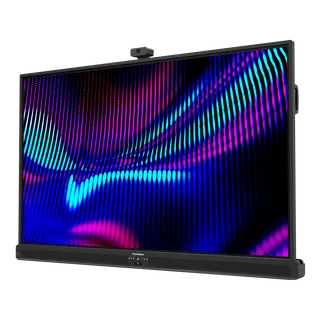

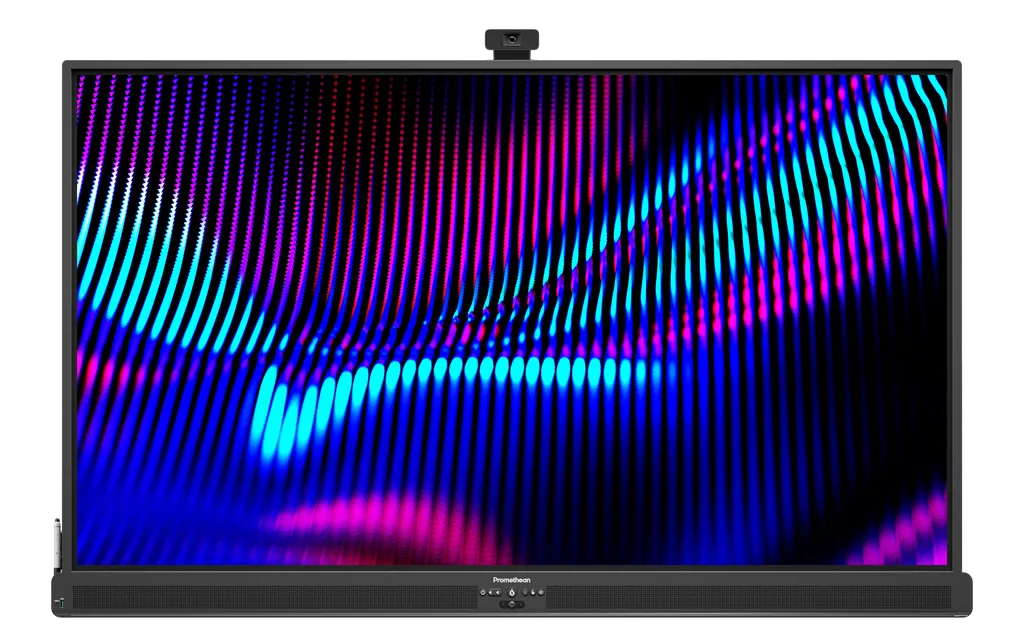

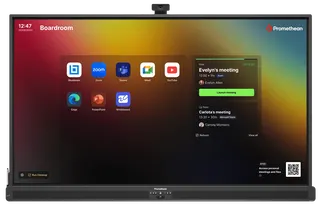

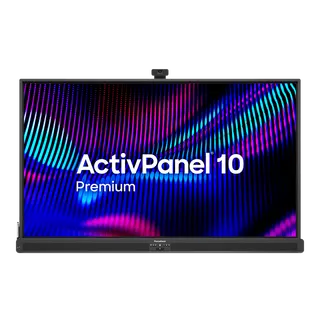

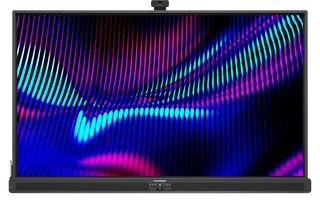

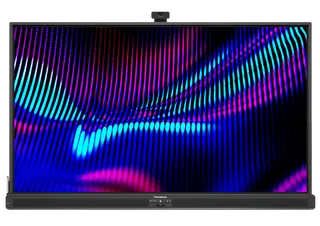

The Promethean AP10-B86 is the largest size in the ActivPanel 10 Premium line, with an 86-inch TFT LCD screen at 4K UHD resolution (3840 x 2160) and a display area of 1895 x 1066 mm. It is built for rooms where a larger group needs to read documents, write on the screen and follow detail from the back of the room. The 16:9 aspect ratio suits widescreen presentations and shared documents.

Display and touch figures that matter in a large room

Brightness: 1,034 cd/m² typical maximum, with full-array local dimming and a QLED direct LED backlight.
Touch: 50 continuous touch points, 3 ms response and accuracy better than 1 mm.
Glass: 3.2 mm heat-tempered, optically bonded glass with anti-glare and anti-fingerprint coating.
Audio: two 25 W speakers and a 20 W subwoofer, plus an 8-mic array for the room.

These figures matter because a large panel is only useful if content stays readable in a lit room and touch stays accurate when several people write on it. The contrast ratings of 16,500:1 static and 900,000:1 dynamic help images and text keep their definition across the screen.

Connectivity and expansion for a working room

Two HDMI 2.1 inputs, one DisplayPort 1.4 input and an HDMI 2.0 output cover laptops and room computers. A single OPS slot takes a Promethean OPS-M or OPS-A computer module, and the panel is also compatible with the Promethean Chromebox. The front USB-C port provides 65 W Power Delivery and the rear port 100 W, so a laptop can charge while it presents. Three rear USB 3.2 Gen 1 ports, a USB 2.0 port and three USB 3.0 touch connections handle peripherals and touch data. RJ45 LAN in and out with Wake-on-LAN, RS232 and optical S/PDIF complete the connections.

Where it fits in Qatar

A lecture hall at Education City or a training centre in Msheireb needs a screen that students in the back row can read without straining. In a government boardroom in Doha, where agendas often run in Arabic and English side by side, presenters can mark up documents directly on the glass, whatever the language. A meeting space in West Bay that links to teams abroad can use the panel as the main screen alongside a separate video conferencing system, so remote colleagues see the same slides as the room.

Planning the wall, power and cooling

The panel weighs 67.9 kg, or 81.6 kg in its packed box, so the wall structure and mounting position need checking before fitting. The VESA pattern is 800 x 600 mm and the box includes four M8 mounting screws. Installation should be carried out by a qualified installer. The rated operating range is 0 to 40 °C with 20 to 80% non-condensing humidity. In Qatar's summer, when outdoor temperatures can pass 45 °C, keep the room air-conditioned and place the panel out of direct sunlight. Power input is 100 to 240 V AC, with 117 W consumption at 500 cd/m² and standby below 0.5 W. The model is Energy Star certified, and the manufacturer lists a carbon footprint of 409 kg CO2 per year.

To get a quotation for the AP10-B86, including delivery to any of Qatar's 8 municipalities, professional installation and a free site survey, request a quote from SmartRooms Qatar. Quotations are usually issued within one working day, and we accept LPOs, government tenders and payment by bank transfer, cheque or purchase order.

Highlights

86-inch 4K UHD panel at 3840 x 2160 and 60 Hz
Typical maximum brightness of 1,034 cd/m²
50 continuous touch points with 3 ms response
Built-in 2 x 25 W speakers and 20 W subwoofer
One OPS slot for OPS-M, OPS-A or Chromebox
Operating range 0 to 40 °C; power input 100 to 240 V AC

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

90 specifications · Source: manufacturer · checked Oct 2026

Display21

Screen Size and Resolution: 55" 4K; UHD (3840 x 2160 @ 60 Hz) 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: QLED - High Density Direct LED Backlight
Full-Array Local Dimming: Yes
Screen Type: TFT LCD
Blue Light Reduction: Yes
Optical Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 55": 1212 x 682 mm (47.7 x 26.9 in) 65": 1430 x 806 mm (56.3 x 31.7 in) 75": 1652 x 930 mm (65 x 36.6 in) 86": 1895 x 1066 mm (74.6 x 42 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: 8 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Static Contrast Ratio (up to): 16,500:1
Dynamic Contrast Ratio (up to): 900,000:1
Typical Max. Brightness: 55": 977 cd/m² 65": 942 cd/m² 75": 880 cd/m² 86": 1034 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil), 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3.2 mm
Glass Coating: Anti-Glare, Anti-Fingerprint, Anti-Smudge

Computing2

Operating System: No OS - Secure by Design
Compatible Promethean Devices: OPS-M, OPS-A, Chromebox

Audio2

Integrated Soundbar: 2 x 25 W + 20 W Subwoofer* *Subwoofer not included on 55"
Integrated Microphone: 8 Mic Array

Interactivity19

Vellum Touch Technology: Yes
Continuous Touch Points: 50
Touch Resolution: 32768 x 32768 px
Touch Response Time: 3 ms
Scan Rate: 500 Hz
Gesture and Edge Swipes: Windows ® supported
Unique Pen IDs: 3
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: 2 x Passive battery-less pens, 1 x Active pen
Integrated Wireless Active Pen Charger: Yes
Active Pen Features: Air Mouse, Pressure Sensitive Hand Writing, Red Dot Highlighter, Pagination Control
Pen Holder: Integrated full-length pen tray and side pockets
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 7 mm
Touch-enabled PiP: Yes
Compatibility: Windows ® 10 and 11; macOS ® Ventura 13 and Sonoma 14; Linux ® Ubuntu 22.04 to 24.04 LTS; ChromeOS ™ ; Android 14

Connectivity18

OPS Slot: 1
HDMI In (Rear): 2 x 2.1
Display Port: 1 x 1.4
USB-A (Rear): 3 x 3.2 Gen 1 1 x 2.0
USB-B (Touch, Rear): 3 x 3.0
USB-C (Rear): 1 x 3.2 Gen 1 (100 W Power Delivery)
USB-A (Front): 1 x 3.2 Gen 1
USB-C (Front): 1 x 3.2 Gen 1 (65 W Power Delivery)
USB-A (Top): 1 x 3.0
USB-C (Top): 1 x 3.0
USB-C Out: 1 x 3.0
HDMI Out: 1 x 2.0
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
S/PDIF: Optical
Audio Out (3.5 mm): 1
Serial (RS232): 1 Page 1

Power5

Power Requirements: 100 V - 240 V AC
Max. Energy Star Reported: 55": 68 W
Luminance 500 cd/m²: 65": 89 W 75": 106 W 86": 117W
Proximity Sensor: Yes
Ultra-quiet Fanless Design: Yes

Environmental4

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -15 °C to 55 °C (-5 °F to 131 °F)
Operating Humidity: 20% to 80% non-condensing humidity
Storage Humidity: 20% to 90% non-condensing humidity

Compliance & Certification3

Regulatory Certifications: CE, FCC, IC, UL, CUL, CB, RCM
Energy Star Certified: Yes
Trade Agreements Act (TAA): Yes

Sustainability5

% Recyclable Packaging: Minimum of 97%
Energy Usage at 400 cd/m²: 55": Min: 185 Max: 192 65": Min: 241 Max: 247
Per Year (kWh): 75": Min: 282 Max: 289 86": Min: 319 Max: 325
Carbon Footprint (KgCO2/yr): 55": 255 65": 297 75": 338 86": 409
DNSH Certifications: REACH, RoHS, POPs, Eco Design, WEEE

Physical Specifications5

Panel Dimensions: 55": 1266 x 103 x 809 mm (49.8 x 4.1 x 31.9 in) 65": 1489 x 107 x 935 mm (58.6 x 4.2 x 36.8 in) 75": 1710 x 107 x 1060 mm (67.3 x 4.2 x 41.7 in) 86": 1955 x 107 x 1197 mm (77 x 4.2 x 47.1 in)
Packed Dimensions: 55": 1407 x 170 x 895 mm (55.3 x 6.7 x 35.2 in) 65": 1639 x 185 x 1019 mm (64.5 x 7.3 x 40.1 in) 75": 1860 x 185 x 1143 mm (73.2 x 7.3 x 45 in) 86": 2105 x 185 x 1280 mm (82.9 x 7.3 x 50.4 in)
Panel Net Weight: 55": 29.2 kg (64.4 lbs) 65": 39.4 kg (86.9 lbs) 75": 51.4 kg (113.3 lbs) 86": 67.9 kg (149.7 lbs)
Packed Weight: 55": 37.2 kg (82 lbs) 65": 49.6 kg (109.4 lbs) 75": 63.2 kg (139.3 lbs) 86": 81.6 kg (179.9 lbs)
Wall Mount Dimensions: 55": 400 x 400 mm (15.8 x 15.8 in) 65": 600 x 400 mm (23.6 x 15.8 in) 75": 800 x 400 mm (31.5 x 15.8 in) 86": 800 x 600 mm (31.5 x 23.6 in)

Packed Contents1

What’s in the Box: 1x ActivPanel 10 Premium 1x 3 m Length HDMI Cable 1x 3 m Length USB Cable (A-B) 1x 3 m Regional Power Cable 1x 3 m Length USB-C Cable 1 x Remote Control 2x Batteries for Remote Control 2x Passive Pens 1x ActivPen 2 1x ActivPen 2 Charger and BT module 1x USB-C ActivPen 2 Charging Cable 1x Sealed Antistatic Bag 8x Desiccant 4x VESA Mount Screws (M8) 1x Mini PC Bracket with Screws 1x Quick Install Guide 1x Promethean ActivSuite Activation Hangtag

Installation1

The installation of this product should be completed not supplied by Promethean or not meeting minimum safety and warranty. For more information, visit Support.PrometheanWorld.com.: by a qualified installer. Use of components specifications may impact performance,

Warranty1

Warranty term and upgrade options vary by region. information and visit PrometheanWorld.com/Warranty.: Contact your local reseller or distributor for

Education Software Licence2

ActivInspire ® Professional 1 x Single: User Licence Included
Promethean ActivSuite ™ 2 x Seats: Included Page 2

AP10-B861

size_inch: 86

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about AP10-B86

What is the AP10-B86 and who is it for?

The AP10-B86 is an 86-inch interactive flat panel with 4K UHD resolution and 50 continuous touch points, built for larger groups. It suits boardrooms, lecture halls and training rooms in Doha, West Bay or Lusail, where presenters need to be read from the back of the room. Its 1,895 x 1,066 mm display area and 1,034 cd/m² typical maximum brightness set it apart from the smaller models in the range.

How does touch and pen writing work in a meeting?

The panel supports 50 continuous touch points, a 3 ms touch response, touch accuracy below 1 mm and a 500 Hz scan rate. Palm rejection and palm erase let a presenter rest a hand on the glass while writing. Pen and touch differentiation lets the panel tell a pen from a finger, and three unique pen IDs let it recognise three separate pens, which helps when several people write in one meeting.

Which pens and accessories come in the box?

The box includes two passive battery-less pens and one ActivPen 2 active pen, with a charger and Bluetooth module, a USB-C charging cable and a remote control with batteries. The active pen offers air mouse, pressure-sensitive handwriting, a red dot highlighter and pagination control. The panel also has an integrated wireless active pen charger and a full-length pen tray, with a 3 mm pen tip diameter and a 7 mm eraser diameter.

Does the panel have its own operating system, and what can I connect?

The panel has no built-in operating system, so you connect a computer through HDMI, DisplayPort or USB-C. Its single OPS slot takes a Promethean OPS-M or OPS-A module, and the panel is also compatible with the Promethean Chromebox. Compatibility is listed for Windows 10 and 11, macOS Ventura 13 and Sonoma 14, Linux Ubuntu 22.04 to 24.04 LTS, ChromeOS and Android 14.

Are there enough ports for a meeting room with a laptop and a video system?

Two HDMI 2.1 inputs, a DisplayPort 1.4 input and an HDMI 2.0 output give a meeting room several routing options. The front USB-C port supplies 65 W Power Delivery, and the rear USB-C port supplies 100 W, so a laptop can charge while presenting. RJ45 LAN in and out, RS232 and Wake-on-LAN support network and room control. For a separate video conferencing system, confirm the ports it needs during the quotation.

Can the panel cope with Qatar's summer heat and rooms with windows?

The operating range is 0 to 40 °C with 20 to 80% non-condensing humidity, and storage is rated from -15 to 55 °C. Summer temperatures in Qatar can pass 45 °C, so the room needs reliable air conditioning, and the panel should sit away from direct sunlight through a window. Confirm the room conditions with the SmartRooms Qatar team before installation so the panel works within its rated range.

Is the 86-inch panel too heavy for a standard wall?

The panel weighs 67.9 kg, or 81.6 kg in its packed form, and uses an 800 x 600 mm wall mount pattern. A qualified installer should check the wall structure and mounting hardware before fitting, and the route to the room must be clear for the packed box. SmartRooms Qatar offers free site surveys, so a surveyor can check a Lusail meeting room or a Doha office wall before the mounting plan is fixed.

How large an image does the 86-inch panel give, and where should people sit?

The active display area measures 1,895 x 1,066 mm (74.6 x 42 in), giving a large, clear image for groups seated at a distance from the screen. The best viewing distance depends on content and seat count, so plan seating around the screen once the room layout is known. The 178° viewing angle means people seated to the side can still read the content clearly.

Does it include speakers and microphones for lessons or meetings?

Yes. The 86-inch model includes two 25 W speakers and a 20 W subwoofer, and an 8-mic array captures voices in the room. These components suit small and medium rooms for lessons and meetings. In a large lecture hall or hall with a crowd, you may still need a dedicated sound system and microphones to cover the whole space, which can be discussed in the quotation.

Which software licences are included?

The package includes one single-user ActivInspire Professional licence and two seats of Promethean ActivSuite, with an ActivSuite activation hangtag in the box. The panel has no operating system, so the software runs on the computer or module connected to it. If a school plans several classrooms, count the licences needed per room and per teacher before requesting a quote.

Can a school or government office buy several panels on one order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those posted on Monaqasat, so a school or government office can raise one order for several panels. Each quotation can list the quantity, wall mounts, cables and installation for each room. Delivery covers all 8 municipalities of Qatar, and quotations are usually issued within one working day.

Is the AP10-B86 covered by a warranty?

The AP10-B86 is covered by the manufacturer's warranty, and Promethean notes that warranty term and upgrade options vary by region. SmartRooms Qatar will confirm the warranty terms that apply to this model in the quotation. Installation should follow the manufacturer's safety requirements, as installation that does not meet them can affect warranty cover.
