OPS-A-4R32S
Promethean OPS-A-4R32S Android 14 OPS Computing Module
- Resolution
- 1920 x 1080 @ 60 Hz
- System
- Android 14
- Memory
- 4 GB LPDDR4
- Storage
- 32 GB eMMC PCIe M.2
The Promethean OPS-A-4R32S is an Android 14 computing module for the OPS slot of a compatible ActivPanel, letting the display run Google Workspace and annotation tools. It pairs a quad-core ARM Cortex A55 processor with 4 GB memory, 32 GB storage, dual-band Wi-Fi and a gigabit RJ45 port. It suits classrooms and meeting rooms across Qatar that need interactive presenting and Google Meet calls without an extra PC.

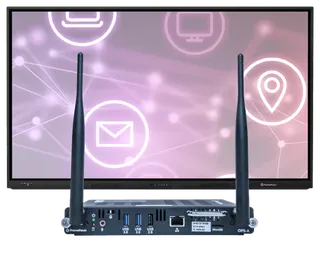

What the OPS-A-4R32S adds to an ActivPanel
The OPS-A-4R32S is an Open Pluggable Specification computing module running Android 14. It is built for use with the Promethean ActivPanel, so the display can run Google Workspace apps and interactive tools without a separate computer on the desk. With 4 GB of LPDDR4 memory and 32 GB of eMMC storage, it is the lower-capacity option in the OPS-A range, a good match for classrooms and meeting rooms where presenting, annotating, browsing and video calls are the main tasks rather than heavy multitasking.
Specifications that matter for planning
The module runs a quad-core ARM Cortex A55 processor at 1.6 GHz with an ARM Mali-G52 MP1 graphics unit, and it outputs 1920 x 1080 at 60 Hz. A TPM 2.0 security chip is included, and the box contains two antennas for its dual-band Wi-Fi. Wireless support covers IEEE 802.11 a/b/g/n/ac/ax on 2.4 GHz and 5 GHz, alongside Bluetooth 5.2 and a wired 10/100/1000 Mbps RJ45 port.

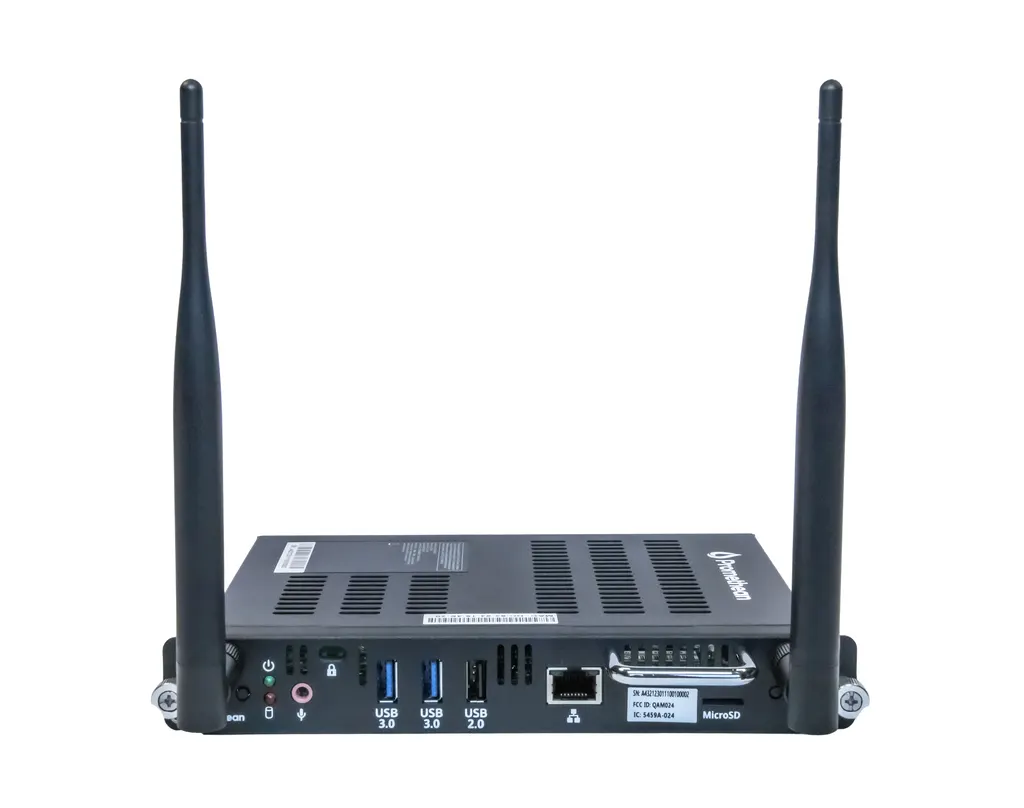

- Ports: two USB-A 3.0, one USB-A 2.0 OTG, one microSD slot and one 3.5 mm microphone input
- Power: 12-19 V DC input, 90 W maximum, 0.5 W or less on standby
- Size and weight: 200 x 120 x 30 mm, 0.7 kg net
Where it fits in Qatar
Consider a private school in Al Wakrah fitting out new classrooms. One module per panel lets a teacher open Google Meet, Drive and YouTube lessons from the screen itself, with Explain Everything Whiteboard and the Annotate tool for marking up work. In a government office in Msheireb, a meeting room can run Chrome and Google Meet for calls with colleagues abroad, using Screen Share to show documents to the room. In a boardroom in West Bay, the same setup covers scheduled video calls between Doha and overseas teams without bringing in a laptop.

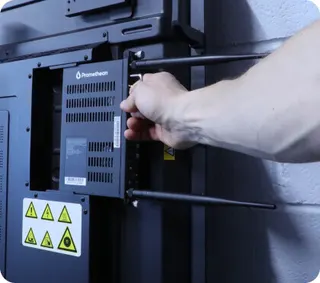

Planning the installation
Installation should be completed by a qualified installer. Promethean's documentation notes that components not supplied by Promethean may affect performance, safety and warranty, so use the correct parts for the job. The module operates between 0°C and 40°C, while outdoor temperatures in Qatar regularly pass 45°C in summer. Install the panel in an air-conditioned room rather than a hot corridor or a window-facing space, and confirm the room's cooling before the order is placed. SmartRooms Qatar offers a free site survey to check the panel, the cabling, Wi-Fi coverage and power arrangements before installation.
For a school ordering several units, we accept purchase orders (LPOs) and government tenders, including Monaqasat. Supply and delivery cover all eight municipalities of Qatar, and payment can be made by bank transfer, cheque or purchase order. The module carries a 3-year manufacturer warranty. Request a quote for the OPS-A-4R32S and our team will usually respond within one working day, with delivery timing confirmed on the quotation.
Highlights
- Quad-core ARM Cortex A55 at 1.6 GHz running Android 14
- 4 GB LPDDR4 memory and 32 GB eMMC internal storage
- Dual-band Wi-Fi 802.11ax, Bluetooth 5.2 and gigabit-rated RJ45
- Two USB-A 3.0 ports, USB-A OTG, microSD and 3.5 mm microphone
- Built for Promethean ActivPanel and Google EDLA certified
- 3-year manufacturer warranty and 0°C to 40°C operating range
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General Specifications10
- Device Type
- Open Pluggable Specification (OPS)
- Operating System
- Android 14
- CPU
- ARM Cortex A55 x 4 (1.6 GHz)
- GPU
- ARM Mali-G52 MP1
- RAM
- 4 GB LPDDR4
- Internal Storage
- 32 GB eMMC PCIe M.2
- Touchscreen Compatibility
- Yes
- TPM
- 2.0
- Architecture
- 64 bit
- Display Resolution
- 1920 x 1080 @ 60 Hz
Connectivity7
- USB-A 3.0
- x2
- USB-A 2.0 (OTG)
- x1
- Expandable Storage (MicroSD)
- x1
- Microphone (3.5 mm)
- x1
- Network (RJ45)
- 10/100/1000 Mbps
- Wi-Fi
- IEEE 802.11 a/b/g/n/ac/ax (dual band 2.4 GHz and 5 GHz)
- Bluetooth
- 5.2
Power2
- Power Requirements
- 12-19 V DC
- Power Consumption Maximum
- 90 W
Environmental4
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Storage Temperature
- -20°C to 60°C (-4°F to 140°F)
- Operating Humidity
- 10% to 95%
- Storage Humidity
- 10% to 90%
Physical Specifications4
- Product Dimensions
- 200 x 120 x 30 mm (7.9 x 4.7 x 1.2 in)
- Packed Dimensions
- 265 x 212 x 50 mm (10.4 x 8.4 x 2 in)
- Net Weight
- 0.7 kg (1.5 lbs)
- Packed Weight
- 0.84 kg (1.85 lb)
Usability2
- Promethean Essential Apps
- Including Explain Everything Whiteboard, Screen Share, Screen Capture, Annotate, Spinner, and Timer
- Google Apps
- Including Play Store, Chrome, Drive, Meet, and YouTube
Packed Contents1
- What's in the Box
- OPS-A x1, Antenna x2, Installation Guide x1
Compliance & Certification2
- Regulatory Certification
- CB, CE, FCC, RCM, UL, RoHS
- EDLA Certification
- Yes
Warranty1
- Standard Warranty
- 3-Year Warranty. For more information, visit PrometheanWorld.com/Warranty.
Installation1
- The installation of this product should be components not supplied by Promethean may impact performance, safety and warranty.
- completed by a qualified installer. Use of or not meeting minimum specifications For more information, visit
Support1
- For all Promethean products, visit Support.PrometheanWorld.com.
