OPS Slot-in PC Midrange (ADL)

What the Sharp OPS Midrange (ADL) is

The Sharp OPS Slot-in PC Midrange (ADL) is a computing module that fits the OPS slot of compatible Sharp large format and interactive displays, so the screen can run its own signage, information or kiosk software without a separate PC on site. Order code L50OPS-ADL-16583 identifies this Midrange build, which is aimed at organisations that want a capable embedded computer while keeping project budgets under control.

Processor, memory and graphics

The module uses an Intel Core i3-1215U processor with six cores, made up of two performance cores and four efficient cores, with a maximum clock speed of 4.4 GHz. Memory is 8GB of DDR4 in dual-channel configuration, and storage is a 128GB M.2 NVMe SSD. Graphics come from Intel UHD Graphics for 12th Gen processors, which decode H.265/HEVC, VP8, VP9, MPEG2, JPEG, VC1, AVC and AV1 in hardware and support Direct3D 12.1, OpenGL 4.6 and OpenCL 3.0.

Connectivity and software

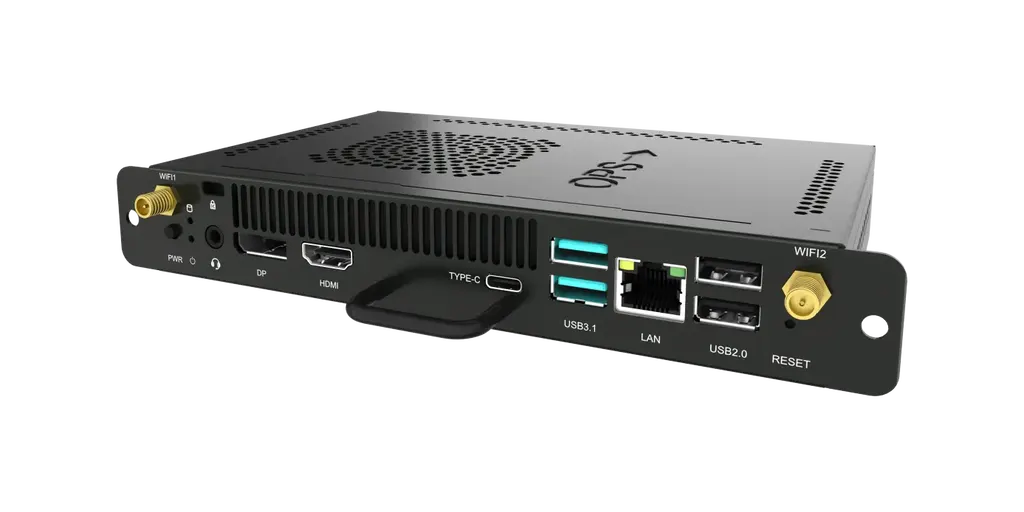

Five USB ports, HDMI, DisplayPort, Gigabit Ethernet, RS-232 and audio are built into the module, so most display projects do not need adapters or signal splitters. Windows 11 IoT LTSC 2024 comes pre-installed, and the LTSC servicing channel suits deployments that must stay stable over many years rather than receive frequent feature updates.

Where it fits in Qatar

Three situations suit this module well:

• A flight information display in a terminal near Hamad International Airport, where reliable operation in FIDS environments matters.
• A retail directory or promotional screen in a West Bay or Lusail shopping centre, playing moving content from the module's own storage.
• An interactive kiosk in a training centre or university lobby in Education City, where the RS-232 and Gigabit Ethernet ports provide control and network connections.

Planning compatibility and installation

Before ordering, match your display to the compatibility list: PN-L752B, PN-L862B, PN-L652B, PN-LC652, PN-LC752, PN-LC862, PN-LM551, PN-LB863, PN-LB653, PN-LB753, PN-LB653-WIFI, PN-LB863-WIFI and PN-LB753-WIFI. The module is a fully embedded form factor, so power, video, audio and RS-232 signals pass through the OPS connection. The source data does not publish an operating temperature range for this module, so for summer heat above 45°C or dust-exposed locations, ask the SmartRooms Qatar team to confirm the display's environment before it is fixed in place. A free site survey helps check mounting height, ventilation and network access.

Request a quote

Send us your display model, quantity and location, and the SmartRooms Qatar team will return a quotation, usually within one working day. We deliver to all 8 municipalities of Qatar, offer professional installation, and accept purchase orders (LPOs) and government tenders, including Monaqasat. Request a quote today.
