PN-LB863-WIFI

What the PN-LB863-WIFI is built to do

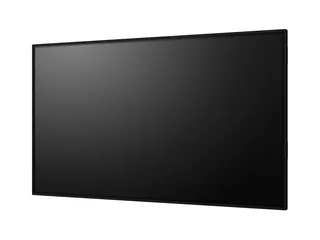

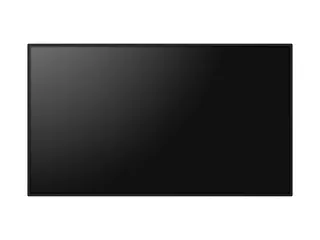

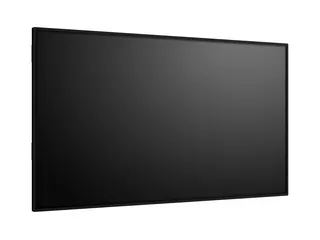

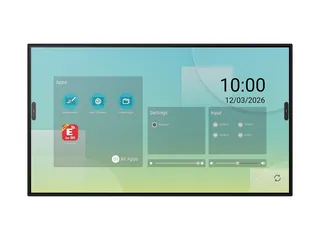

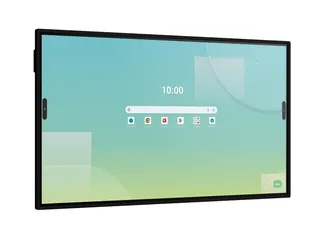

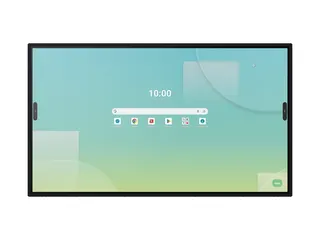

The Sharp PN-LB863-WIFI is an 86-inch member of the PN-LB Series, a midrange range aimed at meeting rooms, classrooms and interactive signage. Its 3840 x 2160 IPS panel uses Direct LED backlights, and an infrared touch layer recognises up to 40 touches at once, which suits group work on a screen this size. The glass is thermal-tempered with an anti-glare coating and sits less than 1 mm from the panel, which reduces reflections from windows and ceiling lights.

Touch works with fingers, gloves and styluses, including two passive dual-tip pens with 2.6 mm and 6.8 mm tips. Accuracy is rated at ±1 mm, palm rejection is included, and Windows Ink is supported for handwriting in Windows applications.

Display figures that shape the buying decision

• Resolution: native 4K at 60 Hz, with lower modes down to 640 x 480.
• Brightness: 500 cd/m² without glass, with a typical contrast ratio of 1500:1.
• Viewing angle: 178 degrees horizontal and vertical at typical 10:1 contrast.
• Glass: 3.2 mm thick, hardness 9H.
• Audio: two integrated 15 W speakers and a 3.5 mm line output.

Android 14, connections and room control

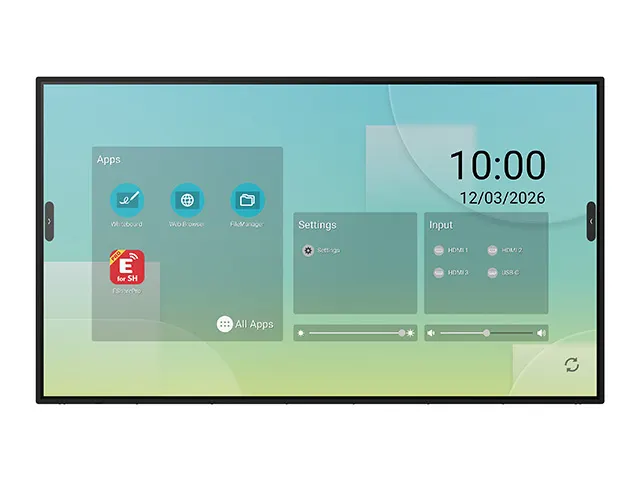

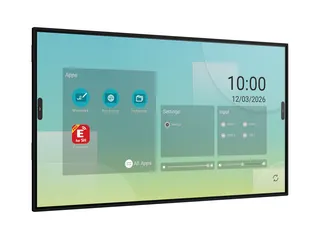

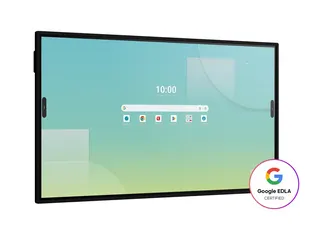

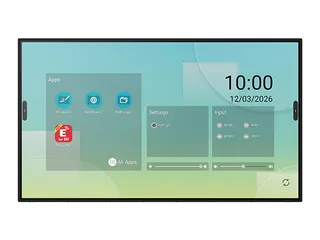

The built-in system runs Android 14 with 8 GB RAM and 64 GB storage, and carries Google EDLA certification for Google Play and Google Workspace apps. Included tools cover a whiteboard, a PDF viewer and EShare wireless screen sharing. Three HDMI inputs, an HDMI output with loop-through, and a USB-C port that carries video, touch and up to 100 W of power give most meeting setups a single-cable route for a laptop. An OPS slot takes a plug-in computing module. A wireless adapter is in the box, and the wireless LAN supports 802.11 a/b/g/n/ac/ax with WPA3 Enterprise and IEEE 802.1X for managed networks. Wired LAN runs at 100 Mbit/s, and RS-232C control is available.

Where it fits in Qatar

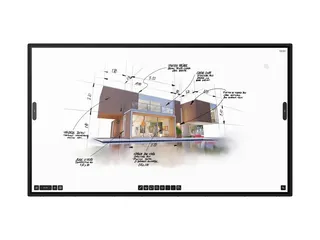

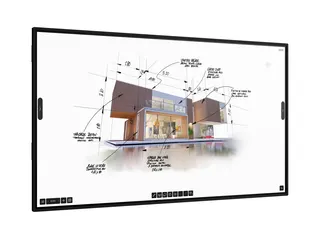

In a boardroom in West Bay or Msheireb, presenters can connect a laptop over USB-C or share wirelessly through EShare, without hunting for cables, while the meeting runs with colleagues abroad. In a university training room in Education City, the built-in whiteboard and annotation overlay let an instructor mark up slides during a session. In a private school in Al Wakrah fitting out a new classroom, the panel gives teachers one display for lessons, with USB-C and HDMI inputs for their own devices. The 86-inch size suits larger teaching spaces; a smaller room may need a smaller panel, and the site survey will confirm the right size.

What to plan for before installation

At 60 kg, with a 73 kg packed weight, the panel needs a wall or trolley rated for that load. It uses VESA 800 x 600 with M8 fixings, and listed options include the SF680P wall mount and the EVER 350 Mobile Motor trolley. The operating range is +5 to +35 °C at 20 to 80% humidity, so the room's air conditioning must hold that range, especially in summer when outside temperatures can pass 45 °C. Mains input is 100 to 240 V AC at 50/60 Hz, and typical draw is 245 W. SmartRooms Qatar offers a free site survey to check wall structure, sightlines and power points before the quotation is finalised.

Request a quote for the Sharp PN-LB863-WIFI and tell us the room size, wall type and any soundbar, trolley or Eco Sensor you need. Our team usually returns quotations within one working day.
