PN-LC652

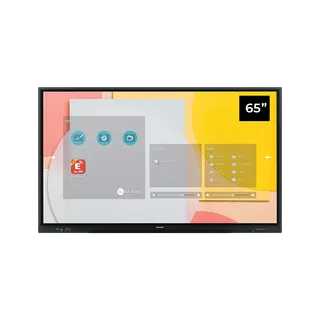

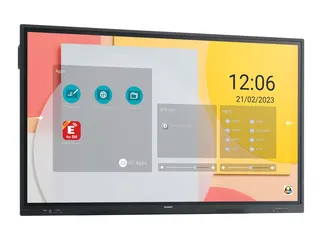

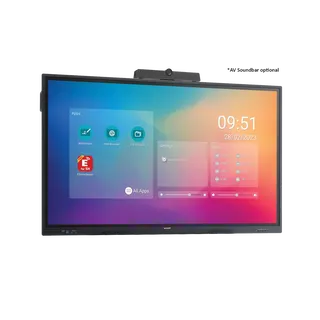

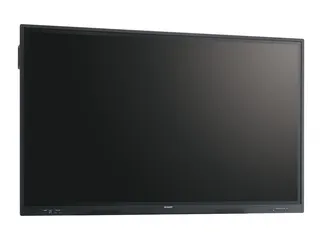

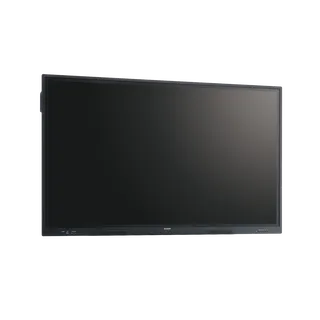

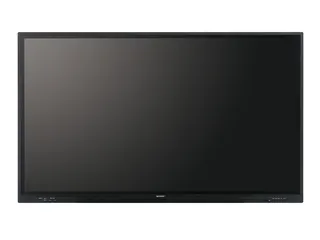

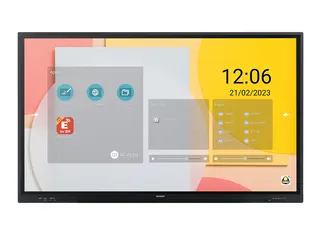

Sharp PN-LC652 65-inch Infrared Touch Display

Screen size: 65 / 163.9
Resolution: 3840 x 2160
Touch: Infrared
System: Native Multi-Touch: Windows…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sharp PN-LC652 is a 65-inch interactive display with a 3840 x 2160 IPS panel, 20-point infrared touch and zero bonding glass with a 0.8 mm gap. A single USB-C cable carries video, touch and a 65 W power input, and the built-in OPS slot accepts a pluggable PC. It suits classrooms, tutorial rooms and small meeting groups across Qatar. Request a quote from SmartRooms Qatar.

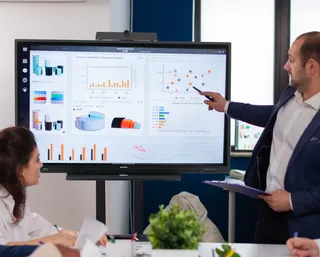

What the Sharp PN-LC652 does in a room

The Sharp PN-LC652 is a 65-inch interactive display built for teaching and small group work. Its 3840 x 2160 IPS panel shows fine text and detailed diagrams, while an infrared touch layer lets a teacher or team write, annotate and navigate directly on the glass. Android 11 software is built in, so lessons and meetings can start without an external computer.

Specifications that shape the buying decision

Picture: 450 cd/m² brightness, 1200:1 typical contrast and 178-degree viewing angles horizontally and vertically.
Touch: up to 20 simultaneous touches, operated by finger, glove or the dual-tip stylus with 3 mm and 9 mm tips.
Glass: 3.2 mm thermal-tempered layer with zero bonding, a 0.8 mm bonding gap, anti-glare coating and hardness of 8H or more.
Connections: three HDMI inputs, one DisplayPort, VGA, a 65 W USB-C input, four USB 3.0 Type-A ports and an HDMI output for a second screen or projector.
Expansion: an OPS slot for a pluggable PC, with OPS Enterprise Pro or OPS Enterprise Ultra recommended by the manufacturer.

Where it fits in Qatar

In a university tutorial room in Education City, a lecturer can connect a laptop with one USB-C cable, mark up a problem set and let students share work from their phones through E-Share, the built-in wireless sharing feature. In a corporate team room in West Bay, the 65-inch panel suits a table of eight to ten people reviewing a shared document. A training centre in Msheireb can use the built-in whiteboard, timer and voting tools to run short assessments without bringing extra equipment into the room.

Planning the installation

The panel weighs 38.5 kg and measures 1,511.6 x 917.9 x 85.9 mm, so two people should handle it and the wall must be checked before fixing. The VESA pattern is 600 x 400 mm with M8 holes. The manufacturer lists wall mount and trolley options, and SmartRooms Qatar includes a free site survey to confirm wall construction, sightlines and cable routing.

Environmental limits matter in Qatar. The operating range is +5 to +35 °C with 20 to 80% humidity, and summer temperatures can exceed 45 °C, so the room needs reliable air conditioning and the display should not sit in direct sunlight from a window. Power is rated 100 to 240 V AC at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz supply. The eco setting draws about 180 W, with standby under 0.5 W.

Before ordering, note two limits: Windows Ink and palm rejection are not supported, so teams using pen-based note apps should test their workflow first. The manufacturer provides a three-year warranty that includes the backlight, with optional fourth and fifth year extensions.

Request a quote from SmartRooms Qatar with your room sizes, mounting wall and number of units. The team will confirm accessories, wall mount options and an estimated lead time with the quotation, which is usually issued within one working day.

Highlights

65-inch IPS panel with 3840 x 2160 UHD 4K resolution
Infrared touch with up to 20 simultaneous touches
Zero bonding glass with 0.8 mm gap and anti-glare coating
USB-C input rated 65 W for single-cable laptop connection
Built-in OPS slot and Android 11 software
Three-year manufacturer warranty including the backlight

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

72 specifications · Source: manufacturer · checked Oct 2026

Display11

Panel Technology: IPS with Direct LED backlights
Active Screen Area (W x H) [mm]: 1,428.5 x 803.5
Screen Size [inch/cm]: 65 / 163.9
Aspect Ratio: 16:9
Pixel Pitch [mm]: 0.372
Brightness (without glass) [cd/m²]: 450
Contrast Ratio (typ.): 1200:1
Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.07 (8bit + FRC)
Response Time (typ.) [ms]: 8 (grey-to-grey)
Supported Orientation: Landscape

Touch8

Touch Technology: Infrared
Number of Touches: Real multi-touch up to 20 touches
Touch Method: Finger; Gloves; Stylus dual pen tip (3mm/9mm)
Data Interface: USB 2.0 (full speed) HID; USB powered, plug & play
Accuracy [mm]: +/- 1
Windows Ink: No
Palm Rejection: No
Operating System: Native Multi-Touch: Windows 8.1/10/11, Linux, Android 9.0 or higher, Chrome OS 87 or higher; Single Touch (Default Mouse): Mac OS 10.15/11/12

Protective Glass5

Type: Thermal-tempered, anti-glare coating; Zero Bonding
Bonding Gap [mm]: 0.8
Thickness [mm]: 3.2
Haze Level [%]: 3 ~ 8
Hardness [H]: ≥ 8

Resolution2

Native Resolution: 3840 x 2160
Supported Resolutions: 1024 x 768;; 1280 x 1024;; 1280 x 960;; 1360 x 768;; 1440 x 900;; 1680 x 1050;; 1920 x 1080;; 1920 x 720;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 480;; 720 x 576;; 800 x 600

Connectivity10

Input Video Analogue: 1 x VGA
Input Video Digital: 1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 3 x HDMI (with HDCP)
Input Audio Analogue: 1 x 3,5 mm jack
Input Control: 1 x RS232; LAN 10Base-T/100Base-TX/1000Base-T
Input Data: 4 x USB 3.0 (Type-A)
Input Touch: 1x USB Type-C (shared with video input); 2 x USB 3 (Type-B)
Output Video Digital: 1 x HDMI (loop through: HDMI, DP, OPS slot-in PC, Android SoC)
Output Audio Analogue: 1 x 3,5 mm jack
Output Audio Digital: 1 x SPDIF
Input Detect: Last

Open Modular Intelligence2

OPS Slot: Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]: 4.74 / 90

Electrical3

Power Consumption [W]: 180 Eco (shipment setting)
Power Savings Mode [W]: < 0.5 (ECO Standby); < 2 (Networked Standby)
Power Supply: 100-240 V AC; 50/60 Hz

Environmental Conditions2

Operating Temperature [°C]: +5 to +35
Operating Humidity [%]: 20 to 80

Mechanical7

Dimensions (W x H x D) [mm]: 1,511.6 x 917.9 x 85.9
Weight [kg]: 38.5
Bezel Width [mm]: 21.9 (left/right/top); 53.2 (bottom)
VESA Mounting [mm]: 4 holes; 600 x 400 (FDMI); M8
Packaging Dimensions (W x H x D) [mm]: 1,660 x 1,010 x 225
Packaging Weight [kg]: 49
Material: Aluminum alloy (front side); metal (back side)

Embedded Computing7

System Version: Android 11
CPU: Arm Cortex-A55 (Quad-Core)
System Memory: 4G RAM
Internal Storage: 16GB ROM
Android Features: Hide compass and side bar
Built-in Applications: File Manager; Input Select; Setting; Web Browser; Whiteboard; Wireless Screen Sharing - E-Share
Built-in Tools: Annotation overlay mode; Calculator; Calender; Compass for shortcut button; Screen recorder; Timer; Voting Kit

Bluetooth1

Bluetooth: 4.2 compliant, supported protocols: A2DP, AVRCP, GATT, HID, HSP, HFP

Wireless Lan1

WLAN: IEEE802.11 ac/n/a/g/b compliant

Available Options2

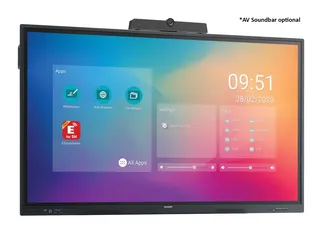

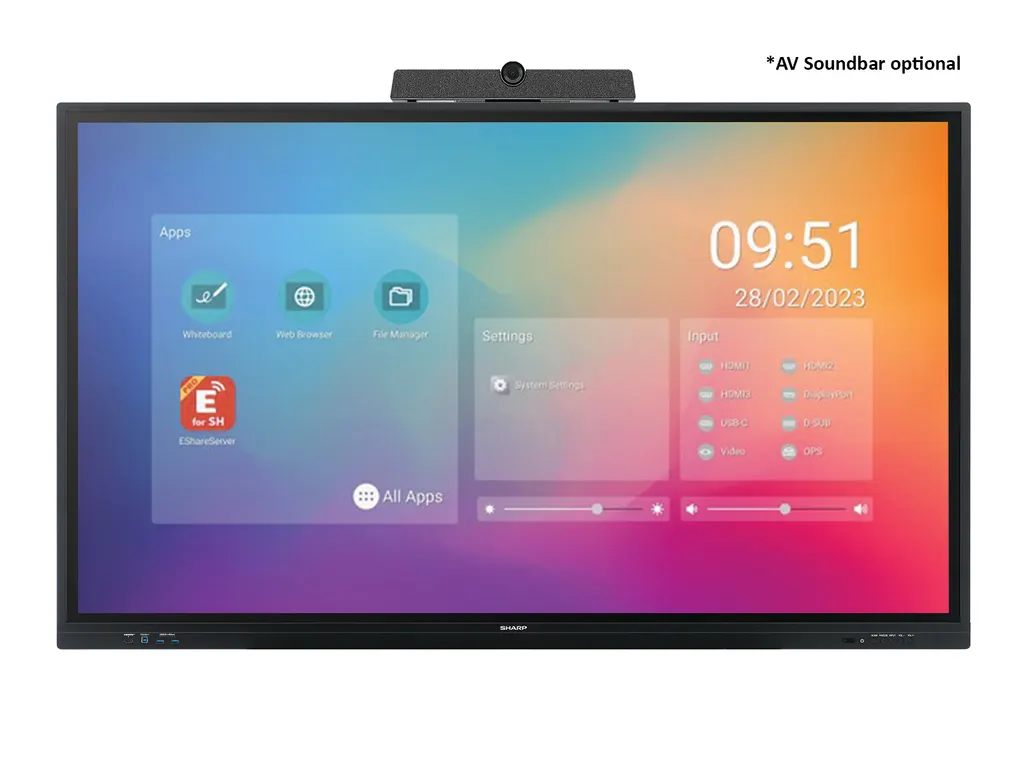

Accessories: Pen software license extension PN-SU01; Soundbar (PN-ZCMS1); Trolley (PD02MHA, PD03MHA, L20PNSR780MEU); USB-C cable (USB-C 5M); Wall mount (SF680P, L20PNWALL90EU)
OPS Slot: Recommended: OPS Enterprise Pro, OPS Enterprise Ultra

Regulatory1

Safety and Ergonomics: CE; FCC; RCM; REACH; RoHS; UKCA; UL/C-UL

Green Features1

Energy Efficiency: ECOMode; LED Backlight

3Rd Party Certifications2

Barco ClickShare: Tested compatible for Barco ClickShare (Conference)
Q-Sys: Q-Sys Plug-in

Additional Features7

Special Characteristics: CEC Support; HDMI ARC; NaViSet Administrator 2 - free download; Powered USB Port (65 W)
Audio: Integrated Speakers (15 W + 15 W)
Shipping Content: 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Cable Clamps; Display; Pen Tray; Power Cable; Remote Control; User Manual; Wireless Adapter
Warranty: 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours: 16/7
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports

Downloads

19 files from the manufacturer

Questions about PN-LC652

Who is the Sharp PN-LC652 designed for?

It suits classrooms, tutorial rooms and small work groups where a teacher or team needs an interactive screen without a separate computer. A university tutorial room in Education City or a training room in Msheireb are typical settings. Its 65-inch size fits rooms seating roughly eight to twelve people, and the built-in whiteboard, timer and voting tools support lessons directly on the screen.

Can a laptop connect with just one cable?

Yes. The USB-C input carries video and touch on one cable and is rated at 65 W, which can also power a connected laptop. Lecturers in a Doha tutorial room can plug in and start annotating straight away. Confirm that your laptop supports USB-C video output before ordering, so the connection works the first time in your room.

How many people can write on the screen at once?

Up to 20 simultaneous touches are supported on Windows 8.1, 10 and 11, Linux, Android 9 or higher and Chrome OS 87 or higher. On macOS 10.15 to 12 the screen works as a single-touch mouse, so groups using Macs should plan for one writer at a time. Touch works with a finger, a glove or the dual-tip stylus.

Does it support Windows Ink or palm rejection?

No. The manufacturer data lists both as not supported. Touch works with fingers, gloves and the stylus with 3 mm and 9 mm tips. Teams that rely on pen-based note apps and want to rest their hand while writing should test that workflow in the actual room before committing to a full set of units.

Can I show the picture on a projector or a second display?

Yes. The HDMI output sends the picture to an additional display or projector, so a larger audience can see the same content. A school hall in Al Khor, for example, could project the lesson from the panel to a bigger screen at the back of the room while the teacher keeps writing on the 65-inch display.

What is the OPS slot used for?

The OPS slot takes a pluggable computer module that follows the NEC and Intel OPS standard, so the display can run PC software without a separate computer on the desk. The slot is rated at 4.74 A and 90 W maximum. The manufacturer recommends OPS Enterprise Pro or OPS Enterprise Ultra, so choose a module that matches the software your team runs.

Will it cope with Qatar's summer heat?

The operating range is +5 to +35 °C with 20 to 80% humidity. Summer temperatures above 45 °C mean the room must be properly air-conditioned, and the panel should be placed away from direct sun coming through windows. Confirm the room temperature during the site survey, before installation.

Does it work with Qatar's mains power?

The power supply is rated 100 to 240 V AC at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz mains. The power cable is included in the box. Typical consumption is 180 W in the eco shipment setting, and standby drops below 0.5 W in ECO standby mode, which helps reduce running costs across a school campus.

How heavy is it, and what should I plan for wall mounting?

The display weighs 38.5 kg and measures 1,511.6 x 917.9 x 85.9 mm. It uses a 600 x 400 mm VESA pattern with M8 holes. Two people should lift it, and the wall structure should be checked first. The manufacturer lists wall mount options SF680P and L20PNWALL90EU, and SmartRooms Qatar offers a free site survey to plan the fixing.

Can a school manage several units from one place?

The manufacturer lists NaViSet Administrator 2 for remote management, a free download. The display can also disable hardware buttons, infrared functionality and USB and LAN ports. For a private school in Al Wakrah fitting out several classrooms, this keeps settings consistent across units and stops students changing configuration. Ask the team to confirm the setup for your network.

Can a school buy several units under a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Send the quantity, the rooms and the mounting wall type when you request a quote, so the quotation covers mounts, cables and installation for each classroom.

What warranty applies to the PN-LC652?

The manufacturer provides a three-year warranty that includes the backlight. An optional fourth and fifth year warranty extension is available from the manufacturer. Products supplied by SmartRooms Qatar are covered by this manufacturer warranty, and the team can confirm the extension options when you request a quote.
