Sharp PN-VC864H 86-inch Intelligent Touch Board

Name: Sharp PN-VC864H 86-inch Intelligent Touch Board
Brand: Sharp
SKU: sharp-pn-vc864h
Availability: InStock

Overview

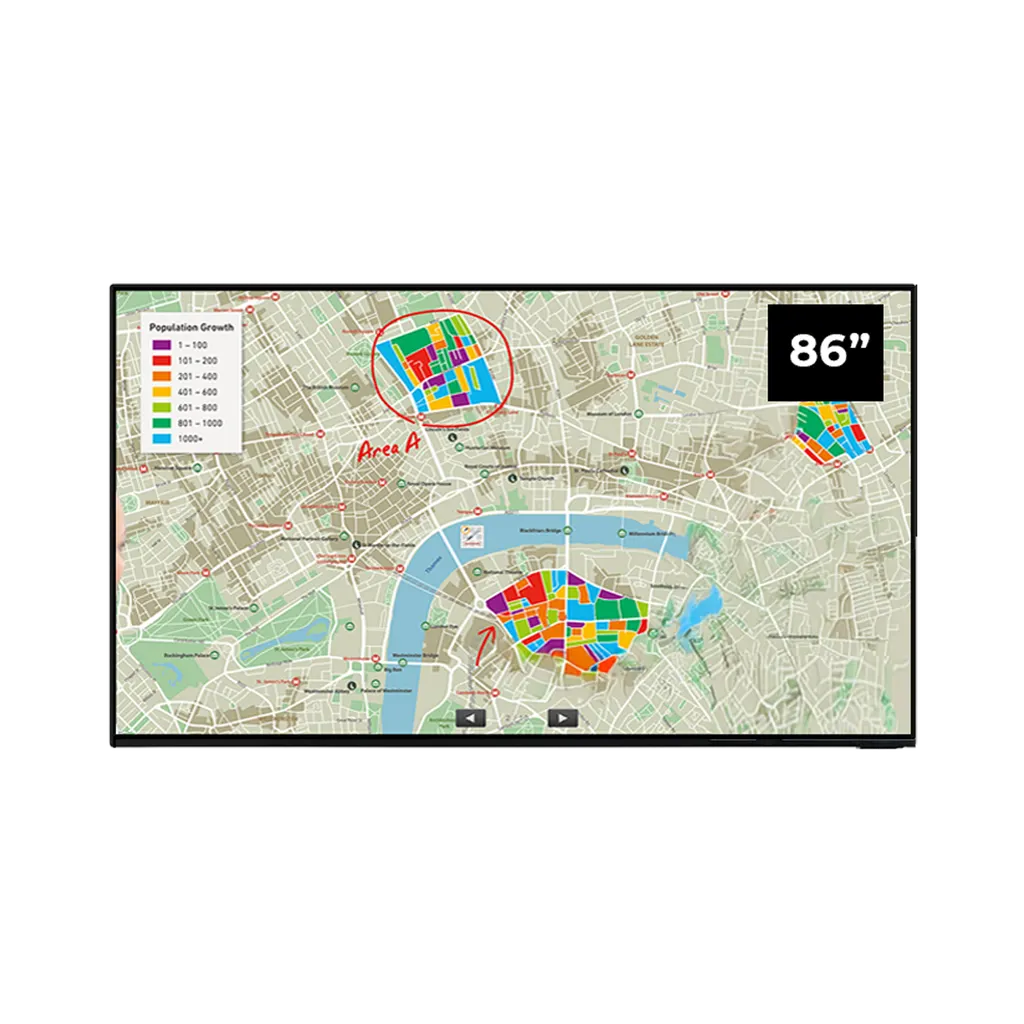

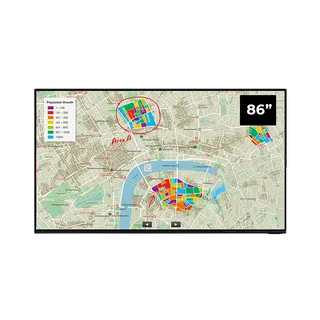

The Sharp PN-VC864H is an 86-inch-class interactive display with a 3840 x 2160 IPS panel, 20-point zero-bonded IR touch and a built-in controller that runs embedded whiteboarding and screen sharing without a PC. Its 15W + 15W speakers and OPS-compatible slot suit boardrooms and lecture halls in Doha and Education City. Ask SmartRooms Qatar for a quotation.

What the PN-VC864H is built to do

The PN-VC864H is an 86-inch-class interactive display with an IPS panel and a 3840 x 2160 pixel grid. It is specified for landscape installation, which suits teaching walls, boardrooms and collaboration rooms where one surface carries writing, annotation and shared content. The panel uses direct LED backlighting, reaches a maximum of 400 cd/m2 brightness and lists a 1200:1 contrast ratio, with a dynamic contrast figure of 40000:1 given separately.

Zero-bonded touch for groups of up to 20

Touch runs on zero-bonded infrared technology, which removes the gap between the screen and the touch layer. The display recognises 20 touch points, so several people can write, drag and gesture at the same time during a brainstorming session or a classroom activity. The 3 mm tempered glass front is rated 8 on the Mohs hardness scale, and the brochure gives touch accuracy within 1 mm across 90% of the active area, which helps with precise annotation.

A built-in controller for PC-less meetings

An internal 64-bit quad-core processor, 8GB of memory and 64GB of storage run the embedded apps, so a meeting can start from the panel itself. The embedded set includes whiteboarding and screen sharing. When a laptop is needed, the unit offers three HDMI 2.0 inputs, a USB Type-C input, two USB 3.0 ports, a LAN port and an optical SPDIF connection. It also has an OPS-compatible slot for users who prefer a full computing module inside the panel.

Where it fits in Qatar

Three situations show how the PN-VC864H is typically used in Qatar.

Executive boardroom in West Bay: a panel of this size fills the wall for a board meeting where a presenter shares a slide deck from a laptop over HDMI and the team marks up the screen during discussion.
University lecture hall in Education City: the 3840 x 2160 resolution keeps equations, diagrams and small labels readable for students seated at the back. The built-in 15W + 15W speakers suit a modest teaching room, and larger halls can route audio through the HDMI or SPDIF output.
Ministry meeting room in Msheireb: Arabic and English slides can sit in the same presentation on one large surface, and the touch screen lets the chair annotate proposals without switching to a separate whiteboard.

What to plan before ordering

At 62 kg, the panel needs a wall that can carry its weight and a professional installation team. The brochure lists a VESA mounting pattern of 800 x 600 mm with M8 screws, which should be checked against the wall or mount before ordering. The display measures about 1959 mm wide, 1140 mm high and 87 mm deep, so confirm the wall space and viewing distance early. SmartRooms Qatar offers free site surveys, and we recommend one before any wall-mounting so the structure and cable routes are checked.

Power draw is up to 400 W, with a supply rating of 110V-240V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. The operating range is 0 to +40 °C with 10% to 90% humidity. Qatar summers can exceed 45 °C, so the display must sit in an air-conditioned room, away from windows that receive direct sun and from entrances that open onto heat and dust.

The manufacturer's brochure labels its specifications as tentative. Request a quote from SmartRooms Qatar and we will confirm the final specification for the unit supplied, along with delivery timing based on stock and the installation plan for your site. Delivery covers all eight municipalities of Qatar.

Highlights

86-inch-class IPS panel at 3840 x 2160 resolution
Zero-bonded IR touch with 20 simultaneous touch points
400 cd/m2 maximum brightness and 1200:1 contrast ratio
Built-in controller with embedded whiteboarding and screen sharing
Three HDMI 2.0 inputs, USB Type-C input and OPS-compatible slot
15W + 15W speakers and 0 to +40 °C operating range

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

Source: manufacturer · checked Oct 2026

The full specification and datasheet for this model are available on request; we send them with your quotation.

Downloads

1 file from the manufacturer

PDF Brochures Sharp PN-VCxx4H Brochure03.pdf 2.3 MB

Questions about PN-VC864H

What is the Sharp PN-VC864H best suited for?

It suits rooms where a group needs to write, annotate and share from one large surface. The 86-inch-class IPS panel at 3840 x 2160 keeps small text readable from the back of the room, which makes it a fit for an executive boardroom in West Bay or a university lecture hall in Education City. Buyers who need a smaller screen should compare the 65-inch and 75-inch models in the same series.

Do I need a computer to run it?

Not for basic use. The built-in controller, a 64-bit quad-core processor with 8GB memory and 64GB storage, runs embedded whiteboarding and screen sharing, so a presenter can start a session from the panel. If a full computer is needed, the unit has an OPS-compatible slot for a suitable computing module. Confirm the module requirements with the quotation.

How many people can write on the screen at the same time?

The display supports 20 touch points using zero-bonded infrared touch, so up to 20 contacts can register at once. In a staff training session at an office in Lusail, this lets several people sketch on the same board during a workshop. The brochure rates touch accuracy within 1 mm across 90% of the active area, which is useful for precise annotation.

Can I place it in a lobby with direct sunlight or near a window?

Not without climate control. The operating range is 0 to +40 °C with 10% to 90% humidity, while Qatar summer temperatures can exceed 45 °C. Keep the PN-VC864H in an air-conditioned room, away from windows that receive direct sun and from entrances that open onto dust and heat. Talk to the SmartRooms Qatar team about your exact space before ordering.

Will it work on Qatar's electricity supply?

The data lists a supply of 110V-240V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains, and maximum power consumption is 400 W. The source does not give a plug type, so the quotation will confirm the power cable for BS 1363 (Type G) sockets. Ask your electrician to plan a dedicated outlet near the mounting point before installation day.

How heavy is it, and what wall does it need?

The display weighs 62 kg and measures about 1959 mm wide, 1140 mm high and 87 mm deep, excluding any mount. It uses VESA 800 x 600 mm mounting holes with M8 screws. A meeting room in Msheireb or a school hall should have a wall structure rated for this load, so book a free site survey before the wall is prepared.

What connections does it offer for laptops and other sources?

Inputs include three HDMI 2.0 ports, one USB Type-C port, two USB 3.0 ports, two USB Type-B touch connections, a LAN RJ45 port and an optical SPDIF input. Outputs include one HDMI port, an SPDIF output and a 3.5mm headphone jack. Wireless connectivity is listed on 2.4GHz and 5GHz, along with Bluetooth, and an RS232 control terminal is included.

Are the built-in speakers enough for a large hall?

The display has 15W + 15W built-in speakers, which suit a small to medium teaching room or meeting room. For a larger lecture hall, the HDMI and SPDIF outputs and the 3.5mm headphone jack allow audio to be routed to an external sound system. A university hall in Education City should plan this during the site survey, before the order is placed.

How does it compare with the 65-inch and 75-inch models in the same series?

The brochure lists the PN-VC654H at 65-inch class and the PN-VC754H at 75-inch class. This 86-inch-class model is the largest of the three, with a 1895 x 1066 mm active area, up to 400 W power consumption and a weight of 62 kg. Its 400 cd/m2 brightness matches the 75-inch model and exceeds the 350 cd/m2 of the 65-inch model.

Are the specifications final?

The manufacturer's brochure labels its specification table as tentative. Before you buy, request a quote and ask SmartRooms Qatar to confirm the final specification of the unit supplied, along with the mounting and power details for your site. This avoids surprises during wall preparation and electrical planning.

How can a school or government body order this display?

Schools, ministries and government bodies can order with a purchase order or LPO, and government tenders, including Monaqasat, are handled as well. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the lead time is confirmed on the quotation based on stock. Delivery covers all eight municipalities of Qatar.

Is the PN-VC864H covered by a warranty?

Yes, products are covered by the manufacturer's warranty. The source data does not list the warranty period or terms for this model, so the quotation will state them before you commit to the order. Ask for the warranty details in writing alongside the quote.
