SDM Slot-In PC Enterprise (RPL)

What this slot-in PC adds to a compatible display

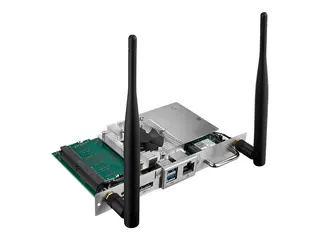

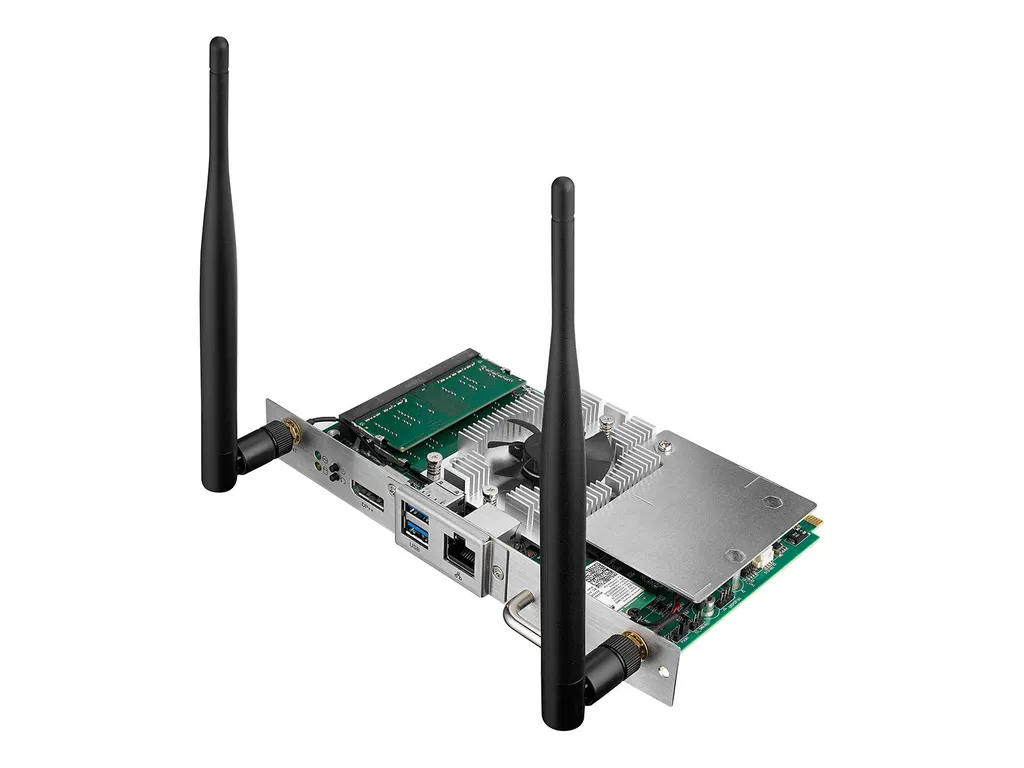

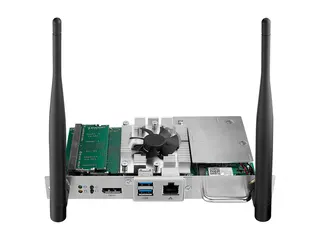

The SDM Slot-In PC Enterprise (RPL) is a computing module that fits into the SDM slot of a supported large format display, giving the screen its own Windows 11 Professional computer. It is listed for Sharp PN-LA752, PN-LA652 and PN-LA862 panels, and the manufacturer also names supported NEC large format displays. The order code is L50SDM-RPL-16473, so use it when you request a quote.

Processing, memory and storage for meeting work

Inside the module is an Intel Core i5-1335U processor with 10 cores, split into 2 performance cores and 8 efficient cores, with a maximum clock speed of 4.6 GHz. It has 16GB of dual channel RAM and 256GB of storage. Intel Iris Xe Graphics are eligible for the module, and hardware decoding covers H.265/HEVC, VP8, VP9, MPEG2, JPEG, VC1 and AVC, which is useful when a room plays back recorded lectures or high-resolution video. The graphics stack supports Direct3D 12.1, OpenGL 4.6 and OpenCL 3.0.

Where it fits in Qatar

A boardroom in West Bay running hybrid meetings with a team in Europe or Asia can keep conferencing software, whiteboard files and shared documents on the module itself, so the display is the main piece of equipment the room needs to run. A procurement office in Msheireb standardising meeting rooms across several floors can specify the same module and display pairing in every room, which keeps the setup consistent. A university in Education City setting up collaboration rooms can give students a familiar Windows environment for group projects, and the manufacturer describes the module as silent in operation, a useful point for quiet study spaces.

What to plan before ordering

Confirm first that your display model supports the SDM slot, because the module only works with supported Sharp and NEC large format displays. A free site survey from SmartRooms Qatar can check the room layout, mounting position, power and network access before anything is installed. Qatar's summer heat is a planning factor, with temperatures above 45°C common outdoors and in poorly cooled rooms. The source data does not state an operating temperature range for this module, so confirm the installation environment with the SmartRooms Qatar team before placing it in a space without air conditioning.

• Check the display model and SDM slot compatibility
• Plan room cooling and ventilation around the display
• Allow for professional installation and an LPO for multiple rooms

SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, offers professional installation, and usually issues quotations within one working day. For multi-room projects, a purchase order or a government tender route can be used. To confirm compatibility with your display and request a quote, send the display model and the number of rooms to the SmartRooms Qatar team.
