GX165G-V4

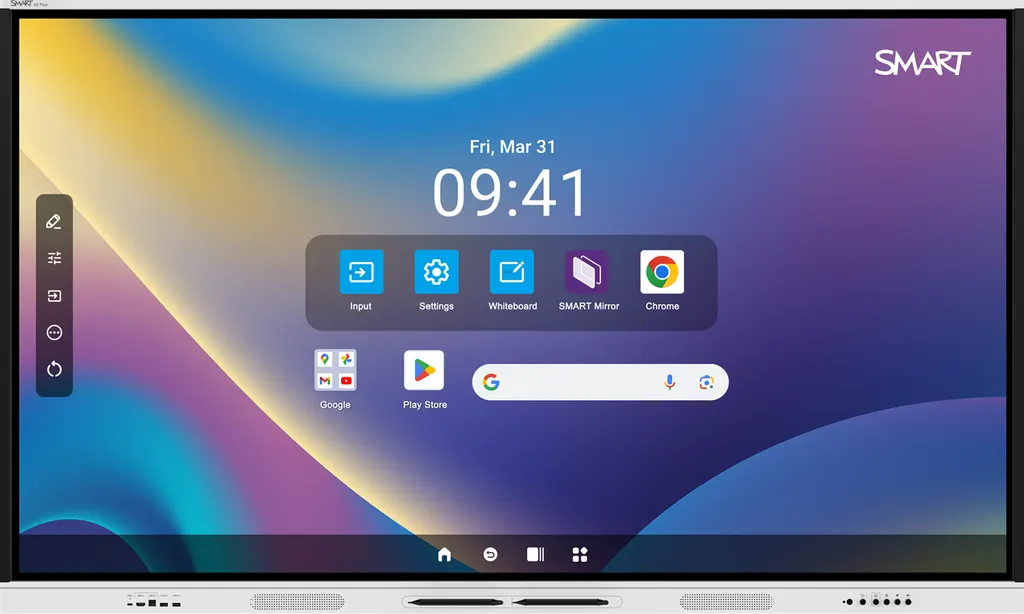

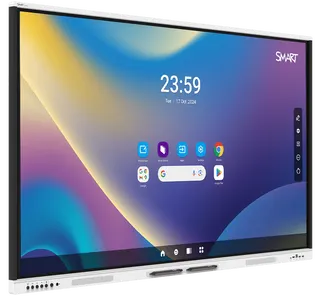

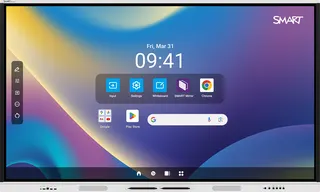

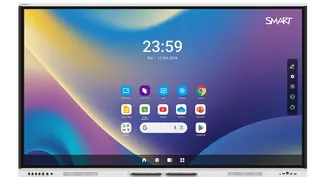

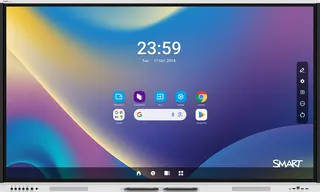

SMART Board GX165G-V4 65-inch Interactive Display with Embedded OS

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: Advanced infrared
System: Android version 14.0 (forward…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART Board GX165G-V4 is a 65-inch 4K UHD interactive display with embedded Android 14, up to 50 points of touch and SMART Ink annotation included. Teachers and trainers can start a session without a laptop, while meeting rooms can annotate over other sources. Its 100V to 240V power input suits Qatar's 240V supply. Request a quote from SmartRooms Qatar for delivery and installation across the country.

An interactive display with its own computer

The SMART Board GX165G-V4 combines a 65-inch LED panel with an embedded Android 14 computer, so lessons, web pages and video calls can open on the screen without a separate PC beside it. The panel runs at 4K UHD resolution (3840 × 2160) with 400 cd/m² brightness and a 178° viewing angle, which keeps text readable from the back of a room. Two 20W speakers are built in, and the embedded system gives access to Google Play apps alongside the whiteboard.

Touch, connectivity and power facts that matter

Touch: advanced infrared touch with up to 50 touch points depending on the operating system, 1 mm accuracy and a 2 mm minimum object size.

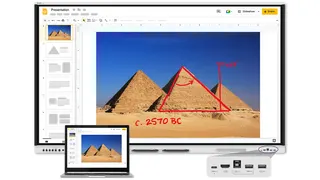

Ports: a front USB-C port with up to 65 W power delivery, touch and video, plus three HDMI 2.1 inputs split between the front and back.
Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2 and two external dual-band antennas in the box.
Power: 100V to 240V AC at 50 Hz to 60 Hz, with a typical draw of 81 W and 0.2 W on standby.

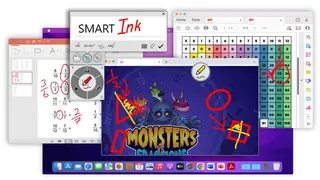

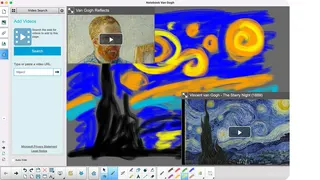

Software: SMART Notebook, SMART Ink and SMART Mirror are included with no subscription required.

Where it fits across Qatar

A private school in Al Wakrah fitting out new classrooms needs a panel one teacher can run from the front of the room, and 65 inches suits a room of that size. A training centre in Msheireb running staff induction sessions can use the built-in Android apps and browser-based screen sharing, so trainees connect from their own laptops. In a Lusail sales office or a small West Bay meeting room, the same panel shows a video call and a shared document side by side.

What to plan before ordering

At 79 lb (36 kg) the panel needs a wall and bracket rated for that load, using an M8 VESA pattern of 600 × 400 mm. The screen measures 58 3/8 inches wide, 35 1/8 inches high and 3 1/2 inches deep. It ships upright, two handles help installers lift it, and the shipping weight is 101 lb (45.8 kg), so check the delivery route through the building. The operating range is 0°C to 40°C, while outdoor summer temperatures in Qatar can exceed 45°C, so keep the display in an air-conditioned room away from direct sun through glass. SmartRooms Qatar offers a free site survey before wall mounting.

Request a quote from SmartRooms Qatar for the GX165G-V4 and we will confirm the configuration, mounting options and professional installation, with delivery to all eight municipalities of Qatar.

Highlights

65-inch 4K UHD (3840 × 2160) LED display, 400 cd/m² brightness
Embedded Android 14 with 8 GB DDR4 memory and 64 GB storage
Up to 50 touch points, 1 mm accuracy, 2 mm minimum object
Front USB-C port with up to 65 W power delivery and touch
Power input 100V to 240V AC, 50 Hz to 60 Hz
SMART Notebook and SMART Ink included, no subscription required

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

104 specifications · Source: manufacturer · checked Oct 2026

Display14

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Lifespan: ≥ 50,000 hours
Brightness: 400 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Freeze frame
Sensors: Ambient light, Infrared
Audio: 2 integrated 20W speakers with high fidelity audio

Interactive experience9

Touch technology: Advanced infrared
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch
Typical touch response time: ≤ 5 ms
Frame rate: ≥ 200 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: Embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink
Optional: SMART Notebook Plus; Lumio; SMART Meeting Pro; SMART TeamWorks; SMART Remote Management

Embedded Android OS9

Operating system: Android version 14.0 (forward compatible)
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Input select; File manager; Overlay; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; App library
Languages supported: Albanian, Arabic, Bengali, Bulgarian, Chinese (simplified), Chinese (traditional), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Gujarati, Hindi, Hungarian, Indonesian, Italian, Kannada, Kazakh, Latvian, Lithuanian, Marathi, Norwegian, Polish, Portuguese, Punjabi, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Updates: Over‑the‑air ( OTA )

OPS computing3

SMART OPS modules: SMART PCM modules
OPS power: 90 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot: Front: –; Back: 1
HDMI 2.1 4K@ 60Hz with HDCP 1.4, HDCP 2.2/2.3, and ARC support: Front: 1; Back: 2
Display Port 1.4a with HDCP 1.4 and HDCP 2.2/2.3 support: Front: –; Back: 1
VGA video: Front: –; Back: 1
Stereo 3.5 mm: Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery: Front: 1; Back: –
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 15 W power delivery: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 3
USB 3.0 Type-B: Front: 1; Back: 1

Outputs4

HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories9

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 and PSK authentication protocols; Wi-Fi access point
Bluetooth: 5.2

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 32–104°F ( 0–40°C )
Storage temperature: 14–140°F ( -10–60°C )
Humidity: 20–80% relative humidity, non‑condensing

Power consumption2

Typical: 65": 81 W; 75": 90 W; 86": 119 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDGX65‑4, IDGX75‑4, IDGX86‑4
US / Canada: UL, cUL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, TÜV: Low Blue Light (75″ only)

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

GX165G‑V4: SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)
GX175G‑V4: SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)
GX186G‑V4: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)

Purchasing information – Optional accessories1

Optional accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 58 3/8ʺ (148.4 cm); Height: 35 1/8ʺ (89.1 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 79 lb. ( 36 kg )
Shipping dimensions: 63" × 40 1/2" × 5 3/4" ( 160 cm × 103 cm × 14.5 cm )
Shipping weight: 101 lb. ( 45.8 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 67 1/8ʺ (170.5 cm); Height: 40ʺ (101.6 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 115 lb. ( 52 kg )
Shipping dimensions: 70 7/8" × 45" × 5 3/4" ( 180 cm × 114.5 cm × 14.5 cm )
Shipping weight: 128 lb. ( 58.1 kg )
VESA mount: M8, 800 × 400 mm
Handles: 4

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 76 3/4ʺ (195 cm); Height: 45 3/8ʺ (115.4 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 141 lb. ( 64 kg )
Shipping dimensions: 84 1/4" × 51 3/4" × 5 3/4" ( 214 cm × 131.5 cm × 14.5 cm )
Shipping weight: 170 lb. ( 77.3 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

GX165G-V42

description: SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)
spec_page: SMART Board GX (V4) Plus series specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about GX165G-V4

Who is the SMART Board GX165G-V4 built for?

It suits organisations that want a 65-inch interactive display for a classroom, training room or small meeting room in Qatar without buying a separate computer. The panel runs at 4K UHD resolution with 400 cd/m² brightness, which keeps text legible in a room with daytime light. Teachers, trainers and project leads can write, annotate and browse from the front of the room. Request a quote for a configuration that matches your room size and use.

Does it need a separate computer or laptop to run lessons?

No. The display has embedded Android 14 with an octa-core CPU, 8 GB DDR4 memory and 64 GB storage, so it can browse the web, run apps and open the whiteboard without a laptop. Google Play gives access to a wide range of Android apps. A laptop can still be connected through its HDMI, USB-C or DisplayPort inputs when you need a Windows or Mac application. The manufacturer lists storage expandable up to 576 GB.

Can the display be used in Arabic for mixed Arabic and English sessions?

The embedded Android language list includes Arabic alongside English and more than 40 other languages, so the interface can be set for Arabic-speaking users. This suits offices and training centres in Education City or West Bay that work in Arabic and English side by side. SMART Ink annotation works over the files and applications your team already uses. Confirm the language set-up with the SmartRooms Qatar team before installation so it matches your staff.

How many people can touch the screen at the same time?

The display supports up to 50 touch points, although the exact number depends on the operating system connected. Object awareness means pens write, fingers move and a palm acts as an eraser, which helps when several people work at the board. The touch layer has 1 mm accuracy, a 2 mm minimum object size and a typical touch response of 5 ms or less. Two pens are included in the box for group activities in a 65-inch classroom.

Will it work with Qatar's 240 V mains supply?

The power input is rated 100V to 240V AC at 50 Hz to 60 Hz, which covers Qatar's 240V, 50 Hz supply. Typical power draw is 81 W and standby draw is 0.2 W, which helps schools and offices running several units. A country-specific power cable is included. Before ordering, confirm the plug and socket type with the SmartRooms Qatar team so the cable matches the BS 1363 outlets used across Qatar.

Can it be placed in a site office or hall during summer heat at Mesaieed or Ras Laffan?

The operating temperature range is 0°C to 40°C with 20 to 80% non-condensing humidity, so the display should sit in an air-conditioned room. Summer temperatures in Mesaieed and Ras Laffan can exceed 45°C outdoors, so avoid unconditioned cabins, hot halls and spots with direct sun through glass. Share your room layout and cooling details with the SmartRooms Qatar team so we can advise before quoting.

What wall and mounting preparation does a 65-inch panel need in a West Bay office?

The panel weighs 79 lb (36 kg) and ships at 101 lb (45.8 kg), so the wall and bracket must be rated for that load. It uses an M8 VESA pattern of 600 × 400 mm and measures 58 3/8 inches wide, 35 1/8 inches high and 3 1/2 inches deep. Leave space around the panel for ventilation. SmartRooms Qatar offers a free site survey before wall mounting, which checks the wall, the viewing height and the cable route.

Can I share my laptop or phone screen to the display without cables?

Yes. SMART Mirror lets people share content through a web browser or dedicated app, and it also supports Google Cast, AirPlay and Miracast. Unlimited devices can join the sharing lobby, and a teacher can view and interact with up to nine live devices at once. Remote control options let the lead presenter decide who shares. The display also supports Wi-Fi 6 with WPA3 PSK and 802.1X EAP authentication.

What do the front and back ports on the display do?

The front has one USB-C port with up to 65 W power delivery, video, touch, audio and USB 3.2 Gen 1 data for peripherals, plus two USB 3.2 Gen 1 Type-A ports and a USB 3.0 Type-B port. The back has a second USB-C port rated up to 15 W, one DisplayPort 1.4a input, VGA, RS-232, LAN in and out, a microSD slot, HDMI and optical audio outputs, and an OPS slot rated at 90 W for an optional PC module.

What software is included, and what is optional?

SMART Notebook lesson software, SMART Ink annotation, SMART Mirror screen sharing and the Android whiteboard come included, with no subscription required. The manufacturer also lists optional items such as SMART Notebook Plus, Lumio, SMART Meeting Pro, SMART TeamWorks and SMART Remote Management, which are not part of the base package. Ask SmartRooms Qatar to add any of these to your quotation if you need remote administration or meeting tools.

What is included in the box?

The box includes two pens, a remote control with two AAA batteries, two external dual-band Wi-Fi and Bluetooth antennas, and a country-specific power cable. Cables supplied are a 5 m USB 2.0 A to B cable and a 1.8 m USB 3.2 Gen 1 Type-C cable rated 5A. Illustrated installation instructions and an important information document are also included, so your installer has the details they need on site.

How do we order several units for a school through an LPO or government tender?

SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and one quote can cover several GX165G-V4 units with mounts and installation. Delivery reaches all eight municipalities of Qatar. Because each unit weighs 79 lb, include a site survey for wall mounting in your planning before the purchase order is raised.
