GX165N-V4

A 65-inch interactive display that starts without a computer

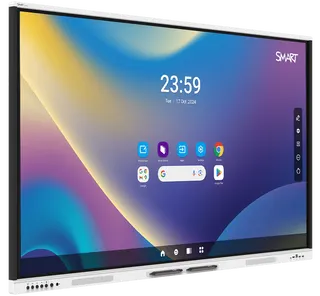

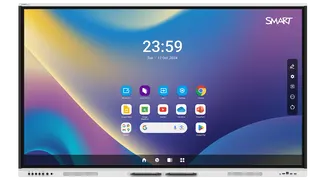

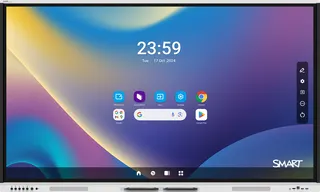

The SMART Board GX165N-V4 is a 65-inch interactive display built around a 4K UHD LED panel with a 16:9 aspect ratio and 400 cd/m² brightness. It runs an embedded Android 14 system with an octa-core processor, 8 GB of DDR4 memory and 64 GB of storage, so a lesson or meeting can begin straight from the screen. Its infrared touch layer is rated to 1 mm accuracy and detects objects as small as 2 mm.

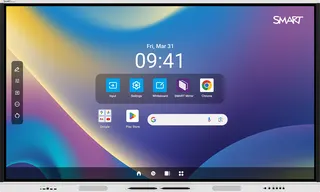

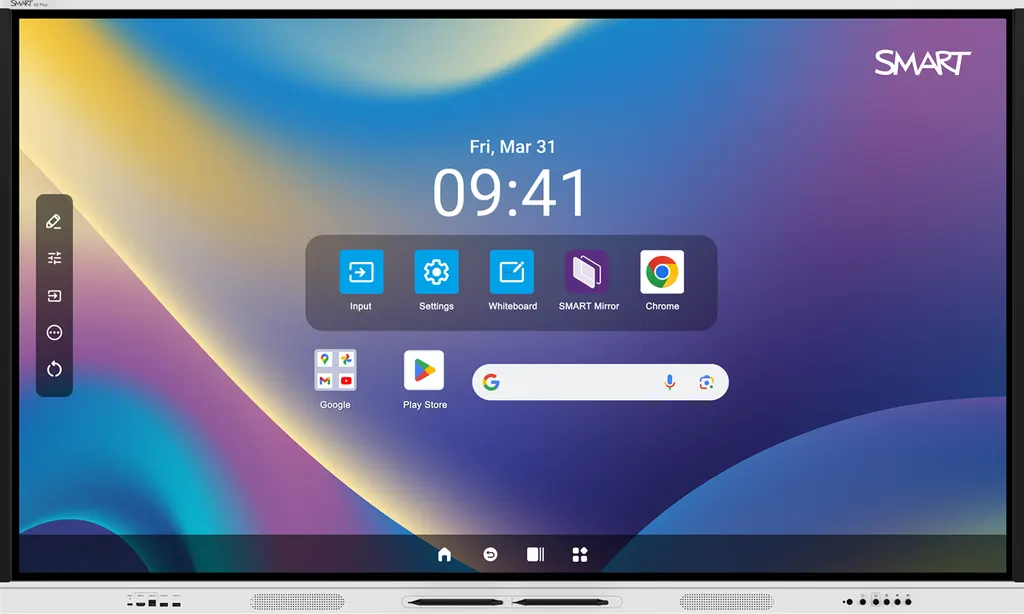

Compared with a panel that depends on a laptop for every session, the embedded platform keeps the room simple to run. Staff can open web pages, use the built-in whiteboard and launch apps from the Android interface, while the front and back ports handle a connected computer when one is needed.

Touch, annotation and sharing features for daily use

• Touch: up to 50 points on Windows and 20 on Mac, depending on the operating system, with two pens included.

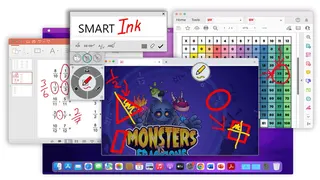

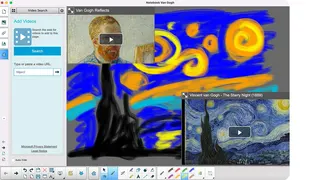

• Annotation: SMART Ink writes over files and applications on Windows and Mac, and SMART Notebook is included without a subscription.

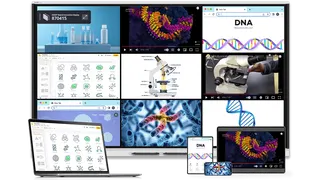

• Screen sharing: SMART Mirror accepts content through a browser, a dedicated app, Google Cast, AirPlay and Miracast, and a presenter can view up to nine live devices at once.
• Audio: two integrated 20 W speakers.

Connectivity: the ports you will actually use

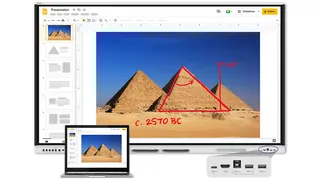

The front panel has one USB-C port that carries video, touch and up to 65 W of power on one cable, two USB 3.2 Gen 1 Type-A ports, a USB 3.0 Type-B port and an HDMI input. On the back, the display offers two HDMI 2.1 inputs, a DisplayPort 1.4a input, a VGA input, an RS-232 port, two RJ45 LAN connections, an OPS slot rated at 65 W and an S/PDIF optical output. Wi-Fi 6 (802.11ax) and Bluetooth 5.2 are built in, with two external antennas in the box.

Where a 65-inch panel fits in Qatar

This size suits a room where the audience sits close enough to appreciate 4K detail. Typical settings include:

• Classrooms and tutor rooms in private schools and training centres, where one display covers presentation, writing and web resources.
• Meeting rooms in Doha offices where teams work in Arabic and English and join calls with colleagues abroad.
• Reception and client rooms in Msheireb or Lusail, where a wall-mounted screen presents proposals clearly.

The Android interface lists English, French and Spanish as supported languages for this model, so teams that need Arabic menus on the panel itself should confirm this with the SmartRooms Qatar team before ordering. Arabic documents shown from a connected computer and annotated with SMART Ink are a different matter, because the panel displays whatever the source device sends.

Planning the installation: weight, power and environment

The 65-inch model weighs 69 lb (31 kg) and ships at 84 lb (38 kg). It uses a VESA pattern of 600 × 400 mm and has two handles, so plan for at least two people to lift it and for a wall or stand rated for its load. Overall size is 58 5/8 in (148.8 cm) wide, 35 1/4 in (89.6 cm) high and 3 7/8 in (9.9 cm) deep. Typical power consumption is 82 W, with 0.2 W in standby.

The listed operating range is 0 to 40°C with 20 to 80% relative humidity, non-condensing. Summer temperatures in Doha exceed 45°C, so place the panel in an air-conditioned indoor space away from direct sun and glazed walls, and leave room for ventilation as the manufacturer advises.

The listed power requirement for this N-suffix model is 115 V AC at 60 Hz, which differs from Qatar's 240 V, 50 Hz mains supply. Before you order, ask the SmartRooms Qatar team to confirm the power arrangement and the included power cable for your site.

SmartRooms Qatar offers free site surveys before wall mounting, and accepts purchase orders (LPOs) and government tenders. The display is covered by the manufacturer's warranty, and the warranty terms for your region should be confirmed with your quotation. Quotations are usually issued within one working day.

To receive a quotation for the SMART Board GX165N-V4, request a quote from SmartRooms Qatar with your room size, quantity and site details.
