GX175G-V4

SMART Board GX075-V4 Plus 75-inch Interactive Display (GX175G-V4)

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: Advanced infrared
System: Android version 14.0 (forward…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

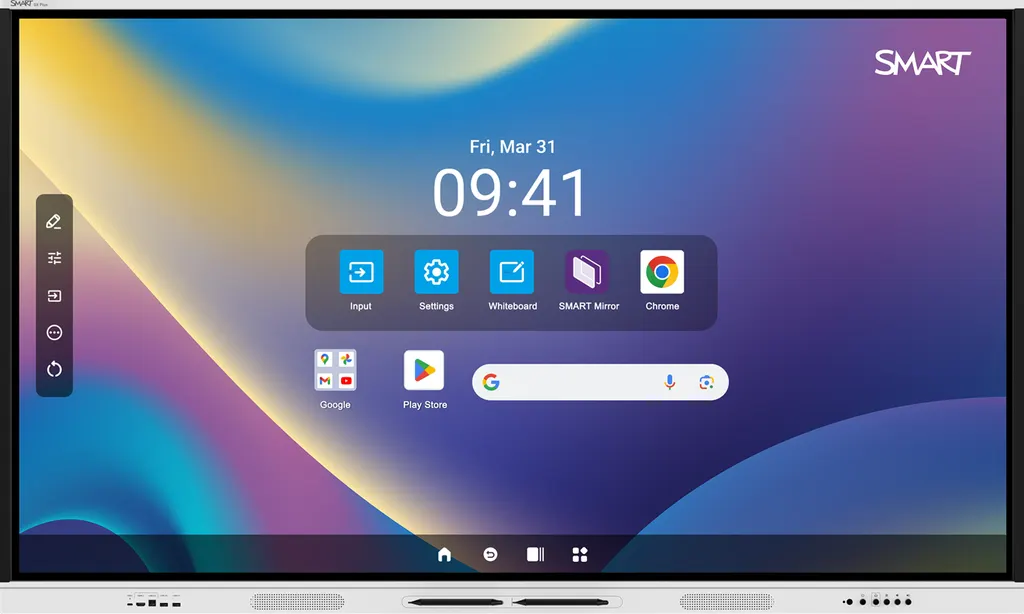

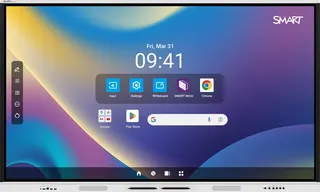

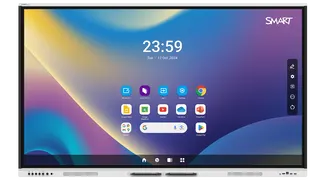

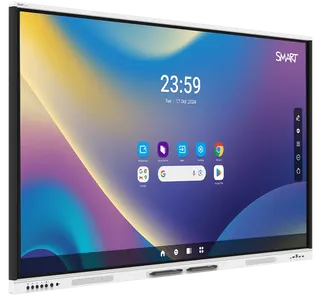

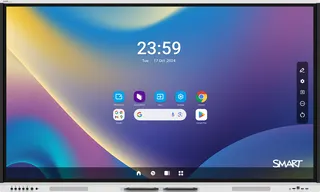

The SMART Board GX075-V4 Plus, model GX175G-V4, is a 75-inch 4K UHD interactive display with embedded Android 14, so a session can start without a connected laptop. It supports up to 50 touch points on Windows, includes two pens and SMART Ink, and typically draws 90 W. Suited to mid-size classrooms, training rooms and boardrooms across Qatar. Request a quote.

What the GX175G-V4 is and how it runs

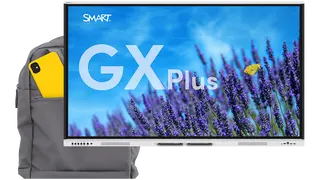

The GX175G-V4 is the 75-inch member of the SMART Board GX (V4) Plus range, a 16:9 LED interactive display with a 4K UHD (3840 × 2160) panel and a 60 Hz refresh rate. It runs embedded Android 14 on an octa-core processor with 8 GB DDR4 memory and 64 GB of storage, so a lesson or meeting can begin from the glass without a laptop being connected. Android also supports Arabic alongside English, which helps offices and schools that work in both languages.

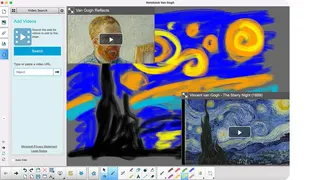

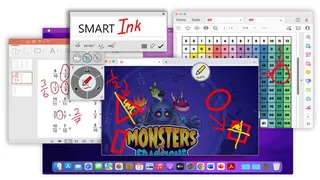

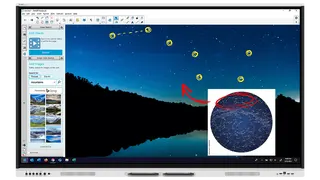

Built-in tools include SMART Ink annotation, SMART Mirror screen sharing and SMART Notebook lesson software, all listed as included with the display. Two integrated 20 W speakers and a 400 cd/m² brightness rating give the panel the audio and light output to fill a mid-size room.

Touch, glass and sensors

Touch: advanced infrared, up to 50 touch points on Windows and 20 on Mac OS, with 1 mm accuracy
Glass: fully heat-tempered, bonded, anti-glare and anti-fingerprint
Sensors: ambient light and infrared
Viewing and response: 178° viewing angle and display response of 8 ms or less
In the box: two pens, a remote control and magnetic and frame-mounted tool holders

Object Awareness distinguishes pens, fingers and palms, so a pen writes, a finger moves objects and a palm resting on the glass erases rather than leaving marks on the slide.

Ports and connectivity for a 75-inch room

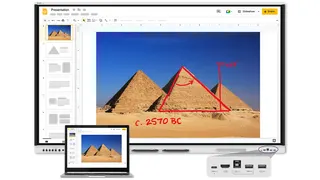

The front panel offers one HDMI 2.1 input, one USB-C port with up to 65 W power delivery for a laptop, two USB 3.2 Gen 1 Type-A ports and one USB 3.0 Type-B port. The rear adds two more HDMI 2.1 inputs, DisplayPort 1.4a, VGA, a 15 W USB-C port, three USB 3.2 Gen 1 Type-A ports, RS-232, an HDMI output and S/PDIF optical audio. A single OPS slot rated at 90 W accepts SMART PCM modules. Wi-Fi 6 (802.11ax) and Bluetooth 5.2 are built in, and two RJ45 ports (1000BASE-T) provide wired networking.

Where a 75-inch display fits in Qatar

Classrooms: a mid-size science or language room at a private school in Al Wakrah, where students share their work from their own devices through SMART Mirror.
Meeting rooms: a boardroom in West Bay or Msheireb where a Doha team connects with colleagues abroad, bringing in a laptop over USB-C or sharing wirelessly.
Training rooms: an onboarding room at a logistics or energy company in the Industrial Area, with Arabic and English material shown on the same display.

Summer needs planning. The rated operating range is 0 to 40°C, so the room must stay air-conditioned, and the panel should not sit where direct sun or window glare reaches the glass. Outdoor temperatures in Qatar can exceed 45°C in summer.

Planning the wall, power and handling

Screen: 75 inches diagonal, 67 1/8 in (170.5 cm) wide, 40 in (101.6 cm) high and 3 1/2 in (8.8 cm) deep
Weight 115 lb (52 kg), shipping weight 128 lb (58.1 kg), with four handles for lifting
VESA mount M8, 800 × 400 mm
Power 100 to 240 V AC at 50 to 60 Hz, typical draw 90 W, standby 0.2 W
Storage from -10 to 60°C, humidity 20 to 80% non-condensing

A panel this heavy needs a wall or stand rated for its weight. SmartRooms Qatar offers a free site survey to check wall structure, cable routes and access before delivery, and quotations are usually issued within one working day. We deliver to all eight municipalities of Qatar. Request a quote for the GX175G-V4 and we will confirm the mounting option and power cable for your site.

Highlights

75-inch 4K UHD (3840 × 2160) LED panel with 16:9 aspect ratio
Embedded Android 14 with 8 GB memory and 64 GB storage
Up to 50 touch points on Windows and 20 on Mac OS
Front USB-C port with up to 65 W power delivery
OPS slot rated at 90 W for SMART PCM modules
Operating range 0 to 40°C, so plan an air-conditioned room

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

104 specifications · Source: manufacturer · checked Oct 2026

Display14

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Lifespan: ≥ 50,000 hours
Brightness: 400 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Freeze frame
Sensors: Ambient light, Infrared
Audio: 2 integrated 20W speakers with high fidelity audio

Interactive experience9

Touch technology: Advanced infrared
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch
Typical touch response time: ≤ 5 ms
Frame rate: ≥ 200 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: Embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink
Optional: SMART Notebook Plus; Lumio; SMART Meeting Pro; SMART TeamWorks; SMART Remote Management

Embedded Android OS9

Operating system: Android version 14.0 (forward compatible)
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Input select; File manager; Overlay; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; App library
Languages supported: Albanian, Arabic, Bengali, Bulgarian, Chinese (simplified), Chinese (traditional), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Gujarati, Hindi, Hungarian, Indonesian, Italian, Kannada, Kazakh, Latvian, Lithuanian, Marathi, Norwegian, Polish, Portuguese, Punjabi, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Updates: Over‑the‑air ( OTA )

OPS computing3

SMART OPS modules: SMART PCM modules
OPS power: 90 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot: Front: –; Back: 1
HDMI 2.1 4K@ 60Hz with HDCP 1.4, HDCP 2.2/2.3, and ARC support: Front: 1; Back: 2
Display Port 1.4a with HDCP 1.4 and HDCP 2.2/2.3 support: Front: –; Back: 1
VGA video: Front: –; Back: 1
Stereo 3.5 mm: Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery: Front: 1; Back: –
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 15 W power delivery: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 3
USB 3.0 Type-B: Front: 1; Back: 1

Outputs4

HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories9

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 and PSK authentication protocols; Wi-Fi access point
Bluetooth: 5.2

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 32–104°F ( 0–40°C )
Storage temperature: 14–140°F ( -10–60°C )
Humidity: 20–80% relative humidity, non‑condensing

Power consumption2

Typical: 65": 81 W; 75": 90 W; 86": 119 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDGX65‑4, IDGX75‑4, IDGX86‑4
US / Canada: UL, cUL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, TÜV: Low Blue Light (75″ only)

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

GX165G‑V4: SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)
GX175G‑V4: SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)
GX186G‑V4: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)

Purchasing information – Optional accessories1

Optional accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 58 3/8ʺ (148.4 cm); Height: 35 1/8ʺ (89.1 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 79 lb. ( 36 kg )
Shipping dimensions: 63" × 40 1/2" × 5 3/4" ( 160 cm × 103 cm × 14.5 cm )
Shipping weight: 101 lb. ( 45.8 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 67 1/8ʺ (170.5 cm); Height: 40ʺ (101.6 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 115 lb. ( 52 kg )
Shipping dimensions: 70 7/8" × 45" × 5 3/4" ( 180 cm × 114.5 cm × 14.5 cm )
Shipping weight: 128 lb. ( 58.1 kg )
VESA mount: M8, 800 × 400 mm
Handles: 4

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 76 3/4ʺ (195 cm); Height: 45 3/8ʺ (115.4 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 141 lb. ( 64 kg )
Shipping dimensions: 84 1/4" × 51 3/4" × 5 3/4" ( 214 cm × 131.5 cm × 14.5 cm )
Shipping weight: 170 lb. ( 77.3 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

GX175G-V42

description: SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)
spec_page: SMART Board GX (V4) Plus series specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about GX175G-V4

Who is the GX175G-V4 best suited to?

The 75-inch size suits mid-size classrooms, meeting rooms and training rooms where a group needs to see the same content clearly. The 4K UHD panel and 400 cd/m² brightness rating support sharp text and video in a room of this size. For larger halls, compare screen sizes with the SmartRooms Qatar team before ordering.

Do I need a separate computer to use it?

No. The display runs embedded Android 14 with an octa-core processor, 8 GB DDR4 memory and 64 GB storage, so teachers can open the whiteboard, browser and apps straight away. A laptop can still be connected through HDMI or USB-C, or shared wirelessly with SMART Mirror when you need to present a file from your own computer.

Does the display support Arabic?

Yes. Arabic is among the languages listed for the embedded Android OS, alongside English and many others. Arabic and English can therefore be used in the same room, although how each app handles Arabic depends on that app. This matters for schools and offices in Doha that run both languages side by side.

How many people can write on it at the same time?

The display supports up to 50 simultaneous touch points on Windows and 20 on Mac OS, with the operating system affecting the exact count. Simultaneous tool differentiation lets one person erase while another writes or moves an object, and Object Awareness stops a resting palm from drawing. Two pens are included with the unit.

Which ports are on the front of the panel?

The front has one HDMI 2.1 input, one USB-C port with up to 65 W power delivery for a laptop, two USB 3.2 Gen 1 Type-A ports and one USB 3.0 Type-B port. These let a presenter plug in a laptop, a memory stick or a keyboard without reaching behind the panel. The rear holds the remaining HDMI, DisplayPort, VGA and LAN connections.

Can phones and tablets share to it without cables?

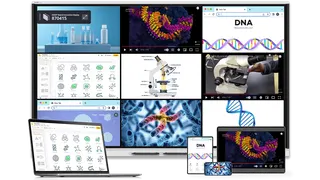

Yes. SMART Mirror lets students or presenters share through a web browser, a dedicated app, Google Cast, AirPlay or Miracast. Up to nine live devices can be viewed at the same time, and the presenter can decide who shares. The unit also has built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for connecting to your network.

Can it be wall-mounted in a meeting room?

Yes, with a suitable wall or stand. The 75-inch model weighs 115 lb (52 kg), has four handles and uses an M8 VESA pattern of 800 × 400 mm. Confirm the wall construction before the unit arrives. SmartRooms Qatar offers a free site survey and professional installation to check structure, cable routes and access.

How does it cope with summer heat and dust in Qatar?

The rated operating range is 0 to 40°C at 20 to 80% non-condensing humidity, and storage is rated from -10 to 60°C. With summer outdoor temperatures above 45°C, the room must stay air-conditioned and the panel should be kept away from direct sun or window glare. If the site is dusty, confirm the environment with the SmartRooms Qatar team before choosing the location.

Is it compatible with Qatar's power supply?

The display accepts 100 to 240 V AC at 50 to 60 Hz, so it operates on Qatar's 240 V, 50 Hz mains supply. The included power cable is country-specific, so confirm the plug type when you request your quotation. Typical draw for this size is 90 W and standby is 0.2 W, which helps with running cost planning.

What software comes with the display?

Included are the embedded Android OS, SMART Mirror, SMART Notebook, SMART Ink and SMART Product Drivers. SMART Notebook needs no subscription. Optional add-ons include SMART Notebook Plus, Lumio, SMART Meeting Pro, SMART TeamWorks and SMART Remote Management, which lets IT teams push updates and run diagnostics across several displays.

What warranty applies to this model?

The unit is covered by the manufacturer's warranty. SMART's standard warranty includes real-time technical support and advanced replacement with 2-way shipping. Extended cover, including SMART Assure, is available up to 7 years, and terms vary by region, so we will confirm the terms that apply to your order in the quotation.

Can a school or government body order several units?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and delivery covers all eight municipalities. For a multi-room order, list each room's size and wall type so the quotation is accurate.
