SMART Interactive Flat Panels Current

GX186G-V4

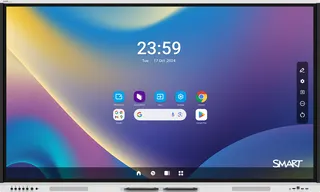

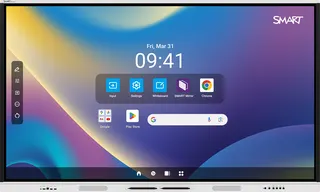

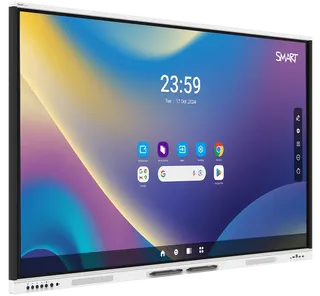

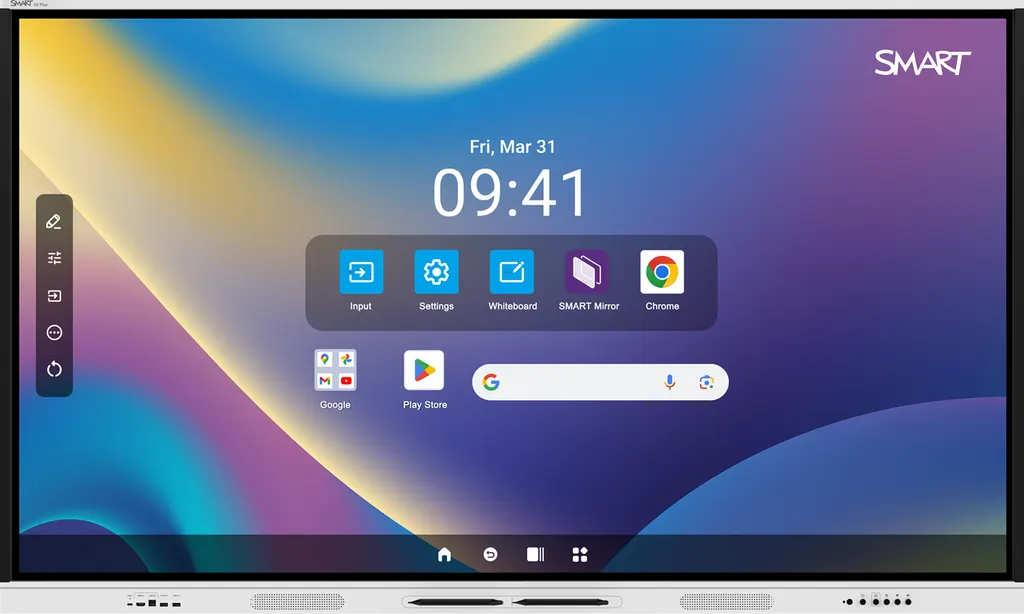

SMART GX186G-V4 86-inch Interactive Display with Embedded Android

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: Advanced infrared
System: Android version 14.0 (forward…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART GX186G-V4 is an 86-inch 4K UHD interactive display with embedded Android 14, so teams can start a session without a laptop. It supports up to 50 touch points on Windows, offers 400 cd/m² brightness, two integrated 20 W speakers and a 100 V to 240 V power input. It suits boardrooms, lecture halls and training rooms in Doha and beyond, where a large touch surface and built-in Wi-Fi 6 simplify daily use.

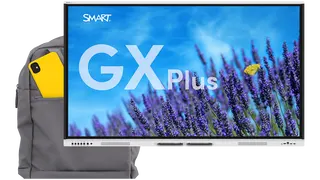

The SMART GX186G-V4 is an 86-inch member of the SMART Board GX (V4) Plus series, a 4K UHD LED interactive display with infrared touch and an embedded Android 14 computer. A presenter can switch the panel on and start a lesson or meeting from the screen itself, without bringing a laptop. The 86-inch size is the largest in the series, which also includes 65-inch and 75-inch models.

Specifications that shape the buying decision

Display: 4K UHD (3840 × 2160) LED panel with 400 cd/m² brightness, a 178° viewing angle and a rated lifespan of at least 50,000 hours.
Touch: up to 50 touch points on Windows and 20 on Mac OS, with 1 mm accuracy and a 2 mm minimum object size.
Audio: two integrated 20 W speakers.
Power: 100 V to 240 V AC at 50 Hz to 60 Hz, with a typical draw of 119 W and 0.2 W on standby.

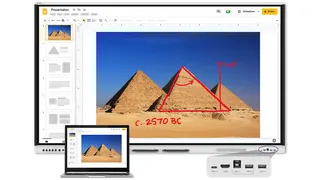

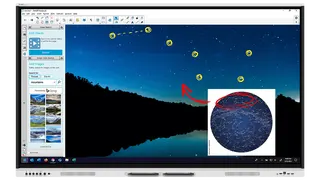

Writing and annotating across a large surface

At 195 cm wide, the panel gives a group room to work side by side on the same content. The touch layer separates input types: a pen writes while a finger moves an object, and a palm erases, so the presenter does not have to switch modes. Simultaneous tool differentiation allows two people to use different tools at the same time. SMART Ink annotates files and applications on Windows and Mac, and two pens sit in magnetic holders mounted on the frame.

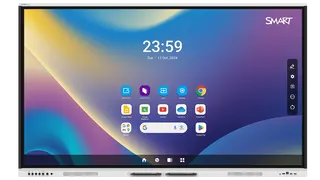

Embedded Android 14 and connecting other devices

The built-in computer runs Android 14 on an octa-core processor with 8 GB of DDR4 memory and 64 GB of storage. The embedded OS lists Arabic among its supported languages, alongside English, so bilingual teams can use one panel. Split-screen and picture-in-picture modes are available. For connections, the panel has one HDMI 2.1 input on the front and two on the back, a front USB-C port that carries video, touch, audio and up to 65 W of power delivery, and two RJ45 gigabit ports, Wi-Fi 6 and Bluetooth 5.2. SMART Mirror lets people share to the screen from a browser, an app, Google Cast, AirPlay or Miracast. A rear OPS slot rated at 90 W accepts SMART PCM modules when a Windows PC is needed.

Where it fits in Qatar

An executive boardroom in West Bay or Lusail, where a team in Doha joins a call with colleagues abroad and marks up a shared document on the screen.
A lecture hall or seminar room at a university or training centre in Education City, where the 86-inch size suits groups larger than a standard classroom.
A bilingual office or training centre in Msheireb or the Industrial Area, presenting Arabic and English content on one display.

Planning the installation before delivery

The panel weighs 64 kg and ships upright with four handles, so plan for several people to lift it. It mounts on an M8 VESA pattern of 800 × 600 mm, and the wall structure and bracket must be checked first. Leave clearance around the display for ventilation, as the manufacturer advises. The operating range is 0 to 40°C, so install it in an air-conditioned room rather than beside a sunlit glazed wall, because summer temperatures in Qatar can exceed 45°C outdoors. The box includes one country-specific power cable; confirm its plug against the socket before installation. A free site survey from SmartRooms Qatar can check the wall, power and cable routes before you order.

Request a quote from SmartRooms Qatar for the SMART GX186G-V4. We will confirm the lead time, which depends on stock, along with mounting options and the survey, in your quotation, usually within one working day.

Highlights

86-inch 4K UHD LED panel with 400 cd/m² brightness
Infrared touch: up to 50 points on Windows, 20 on Mac
Embedded Android 14 with 8 GB DDR4 memory
Front HDMI 2.1 and USB-C with up to 65 W power delivery
Wi-Fi 6, Bluetooth 5.2 and two RJ45 gigabit ports
100 V to 240 V AC input at 50 to 60 Hz

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

104 specifications · Source: manufacturer · checked Oct 2026

Display14

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Lifespan: ≥ 50,000 hours
Brightness: 400 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Freeze frame
Sensors: Ambient light, Infrared
Audio: 2 integrated 20W speakers with high fidelity audio

Interactive experience9

Touch technology: Advanced infrared
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch
Typical touch response time: ≤ 5 ms
Frame rate: ≥ 200 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

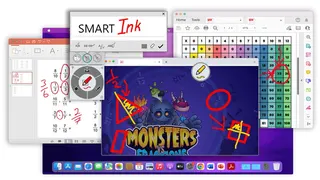

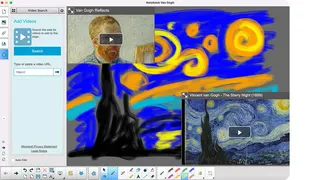

Included: Embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink
Optional: SMART Notebook Plus; Lumio; SMART Meeting Pro; SMART TeamWorks; SMART Remote Management

Embedded Android OS9

Operating system: Android version 14.0 (forward compatible)
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Input select; File manager; Overlay; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; App library
Languages supported: Albanian, Arabic, Bengali, Bulgarian, Chinese (simplified), Chinese (traditional), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Gujarati, Hindi, Hungarian, Indonesian, Italian, Kannada, Kazakh, Latvian, Lithuanian, Marathi, Norwegian, Polish, Portuguese, Punjabi, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Updates: Over‑the‑air ( OTA )

OPS computing3

SMART OPS modules: SMART PCM modules
OPS power: 90 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot: Front: –; Back: 1
HDMI 2.1 4K@ 60Hz with HDCP 1.4, HDCP 2.2/2.3, and ARC support: Front: 1; Back: 2
Display Port 1.4a with HDCP 1.4 and HDCP 2.2/2.3 support: Front: –; Back: 1
VGA video: Front: –; Back: 1
Stereo 3.5 mm: Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery: Front: 1; Back: –
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 15 W power delivery: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 3
USB 3.0 Type-B: Front: 1; Back: 1

Outputs4

HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories9

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 and PSK authentication protocols; Wi-Fi access point
Bluetooth: 5.2

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 32–104°F ( 0–40°C )
Storage temperature: 14–140°F ( -10–60°C )
Humidity: 20–80% relative humidity, non‑condensing

Power consumption2

Typical: 65": 81 W; 75": 90 W; 86": 119 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDGX65‑4, IDGX75‑4, IDGX86‑4
US / Canada: UL, cUL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, TÜV: Low Blue Light (75″ only)

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

GX165G‑V4: SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)
GX175G‑V4: SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)
GX186G‑V4: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)

Purchasing information – Optional accessories1

Optional accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 58 3/8ʺ (148.4 cm); Height: 35 1/8ʺ (89.1 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 79 lb. ( 36 kg )
Shipping dimensions: 63" × 40 1/2" × 5 3/4" ( 160 cm × 103 cm × 14.5 cm )
Shipping weight: 101 lb. ( 45.8 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 67 1/8ʺ (170.5 cm); Height: 40ʺ (101.6 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 115 lb. ( 52 kg )
Shipping dimensions: 70 7/8" × 45" × 5 3/4" ( 180 cm × 114.5 cm × 14.5 cm )
Shipping weight: 128 lb. ( 58.1 kg )
VESA mount: M8, 800 × 400 mm
Handles: 4

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 76 3/4ʺ (195 cm); Height: 45 3/8ʺ (115.4 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 141 lb. ( 64 kg )
Shipping dimensions: 84 1/4" × 51 3/4" × 5 3/4" ( 214 cm × 131.5 cm × 14.5 cm )
Shipping weight: 170 lb. ( 77.3 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

GX186G-V42

description: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)
spec_page: SMART Board GX (V4) Plus series specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about GX186G-V4

Who is the 86-inch GX186G-V4 best suited for?

It suits rooms where a larger group needs to see and touch the same content, such as an executive boardroom in West Bay or a seminar room in Education City. The panel is 195 cm wide with a 4K UHD resolution and a 178° viewing angle, so people seated off-centre can follow the same material. For smaller meeting rooms, the 75-inch or 65-inch models in the same series are a better fit.

Does the GX186G-V4 need a separate computer to run?

No. The display runs Android 14 on an embedded octa-core CPU with 8 GB DDR4 memory and 64 GB of storage, so a presenter can open the whiteboard, web browser and apps directly on the screen. A laptop can still be connected through the front HDMI or USB-C inputs when needed. For a Windows-based workflow, the rear OPS slot rated at 90 W accepts SMART PCM modules, which are listed as optional accessories.

How many touch points does it support, and does it work with Mac?

The panel supports up to 50 simultaneous touch points on Windows and up to 20 on Mac OS. The manufacturer notes that the exact count depends on the operating system. Touch accuracy is rated at 1 mm with a minimum object size of 2 mm, and the touch technology is infrared. If your Windows and Mac users will share the screen, state the expected number of users in your request so the setup matches your workflow.

Can the embedded system be used in Arabic and English?

Yes. The embedded Android OS lists Arabic among its supported languages, alongside English, French, Spanish and many others. This suits offices and training centres in Doha that work in both languages side by side, since content in either language can run on one panel. Before placing an order, review your own Arabic files and apps on the panel to confirm they display as you expect.

Will it run on Qatar's 240 V mains power?

The specification lists an input of 100 V to 240 V AC at 50 Hz to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical power draw for the 86-inch model is 119 W, and standby draw is 0.2 W. One country-specific power cable is included in the box. Confirm the plug type against the socket in your room with the SmartRooms Qatar team before installation.

Can it be installed in a hot lobby or a room with large windows?

Install it indoors in an air-conditioned space. The rated operating range is 0 to 40°C with 20 to 80% non-condensing humidity, while summer temperatures in Qatar can exceed 45°C outdoors. A glazed lobby in Al Sadd could push the room past that range if the air conditioning fails or direct sunlight falls on the screen. Leave the ventilation space the manufacturer specifies, and discuss the room layout with us before ordering.

How heavy is it, and what does it need on the wall?

The panel weighs 64 kg and ships upright at 77.3 kg with four handles, so plan for several people to lift it. It uses an M8 VESA pattern of 800 × 600 mm, and the screen measures 195 cm wide, 115.4 cm high and 8.8 cm deep. Before a wall mount is fixed, our free site survey can check the wall structure, bracket fit and mounting height for your room.

How does it compare with the 75-inch GX175G-V4?

The 86-inch model is wider at 195 cm against 170.5 cm, weighs 64 kg against 52 kg, and draws 119 W typical against 90 W. Both models use 4K UHD, 400 cd/m² brightness and embedded Android 14. Choose the 86-inch for a lecture hall or boardroom with more viewers, and the 75-inch where wall space or room size is tighter.

How do guests and students share content to the screen?

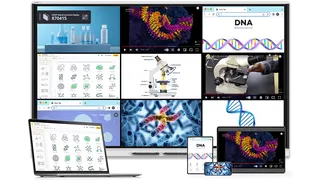

SMART Mirror is included and lets people share to the display from a browser, a dedicated app, Google Cast, AirPlay or Miracast. Users can connect from outside the local network through the browser or app. For direct cable connections, the panel has HDMI 2.1 inputs on the front and back, and a front USB-C port that carries video, touch and audio with up to 65 W power delivery. Two RJ45 ports, Wi-Fi 6 and Bluetooth 5.2 are also available.

What is included in the box, and is there a software subscription?

The box includes two pens, a remote control, two AAA batteries, a 5 m USB 2.0 A to B cable, a 1.8 m USB 3.2 Gen 1 Type-C cable, two external dual-band Wi-Fi antennas, and a country-specific power cable. SMART Notebook, SMART Ink and SMART Mirror are included, and SMART Notebook requires no subscription. Lumio, SMART Notebook Plus and SMART Remote Management are optional. The unit is covered by the manufacturer's warranty, and extended cover options vary by region.

Can a ministry or school order several units on a purchase order or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those listed on Monaqasat, and payment can be made by bank transfer, cheque or purchase order. A school in Al Wakrah fitting out a multipurpose hall could order one or more GX186G-V4 units under a single LPO. Quotations usually come within one working day, and lead times are estimates confirmed with the quotation based on stock.
