SMART Interactive Flat Panels Current

GX186N-V4

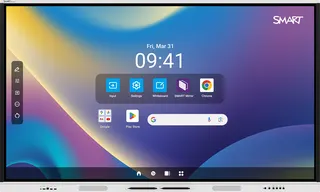

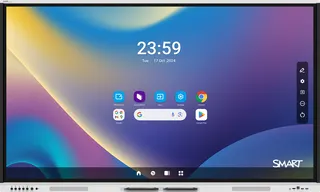

SMART Board GX186N-V4 86-inch Interactive Display with Embedded Android

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: Advanced infrared
System: Android version 14.0 (forward…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART Board GX186N-V4 is an 86-inch interactive display with a 4K UHD LED panel, 400 cd/m² brightness, and embedded Android 14 so it runs without a laptop. Its infrared touch supports up to 50 points depending on the operating system, and the included pens and SMART Ink annotation suit teaching and presentations. It suits lecture halls and boardrooms in Doha and Lusail. Request a quote for supply, installation and a free site survey.

What the 86-inch GX186N-V4 delivers in a room

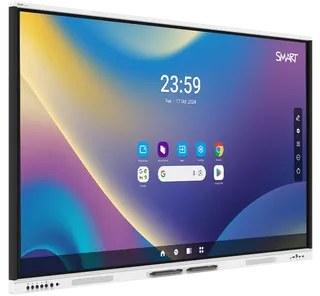

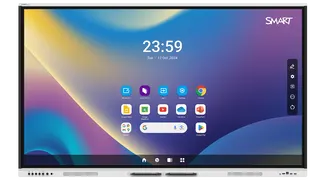

The GX186N-V4 is an 86-inch interactive display built around a 4K UHD (3840 × 2160) LED panel with a 16:9 aspect ratio, a brightness rating of 400 cd/m² and a 178° viewing angle. The glass is fully heat-tempered, bonded, anti-glare and anti-fingerprint, which helps the screen stay readable in rooms with bright overhead lighting.

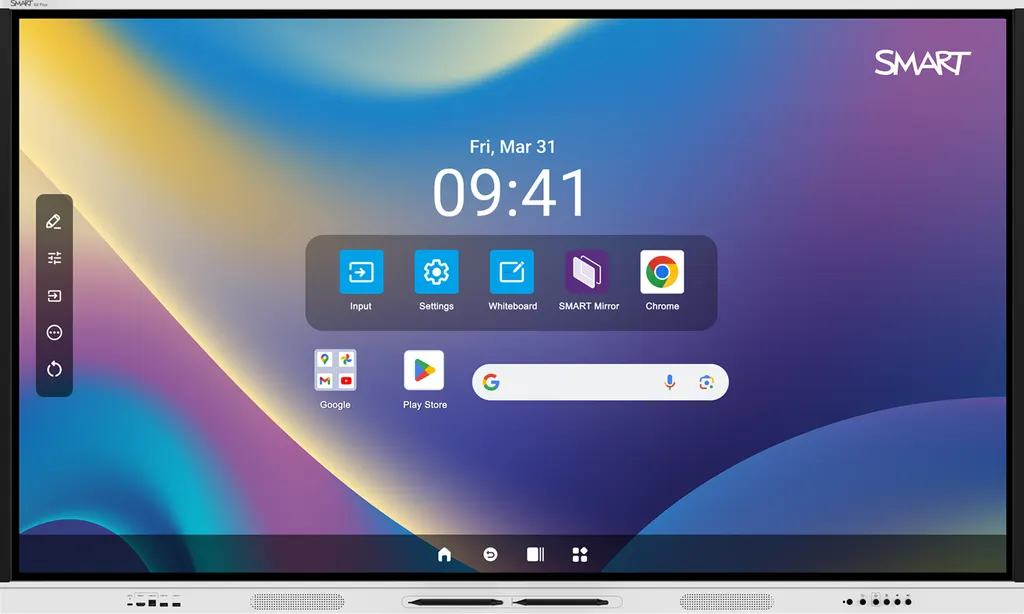

The unit runs embedded Android 14 on an octa-core processor with 8 GB of DDR4 memory and 64 GB of storage, so presenters can open the whiteboard, browse the web and launch apps without connecting a computer. Over-the-air updates are supported, and the manufacturer rates the panel lifespan at 50,000 hours or more.

Touch, annotation and sharing

Advanced infrared touch offers up to 50 touch points, depending on the operating system, with 1 mm accuracy and a 2 mm minimum object size. Typical touch response is 2.5 ms or less and the frame rate is 400 Hz or more. Simultaneous tool differentiation means a pen can write while an eraser or a finger works in the same area, which matters when several people share one board.

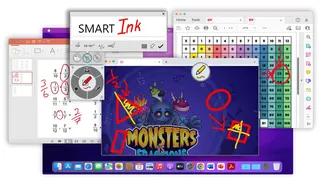

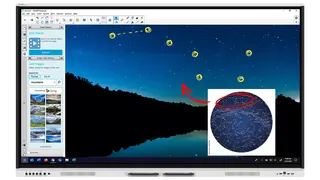

SMART Ink annotates over Windows and Mac applications.

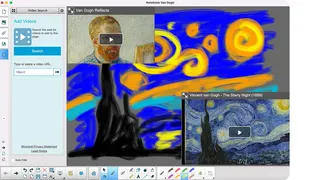

SMART Notebook lesson software is included, with no subscription required.

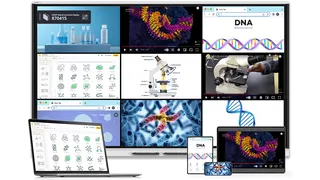

SMART Mirror lets up to 9 live devices be viewed and interacted with at once, from a browser, app, Google Cast, AirPlay or Miracast.

Ports, power and language settings to check

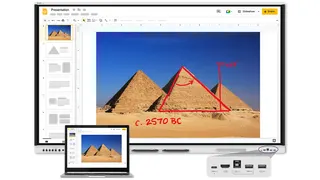

The front panel has a USB-C port with up to 65 W power delivery, carrying touch and video on one cable, a front HDMI input, two USB 3.2 Gen 1 Type-A ports and a USB 3.0 Type-B port. The rear adds two HDMI 2.1 inputs, a DisplayPort 1.4a input, VGA, an RS-232 connector, a 3.5 mm audio output, S/PDIF optical output and two RJ45 Ethernet ports. A rear OPS slot rated for 65 W is provided, and Wi-Fi 6 with dual-band antennas and Bluetooth 5.2 are built in.

Two points need confirming before you order. The manufacturer lists the power requirement for this model as 115 V AC at 60 Hz, while Qatar supplies 240 V at 50 Hz. The interface languages listed for this model are English, French and Spanish. The SmartRooms Qatar team will confirm both against your site and your language needs as part of the quotation.

Where it fits across Qatar

Lecture hall or seminar room: a university or training centre in Education City or Al Sadd, where the lecturer annotates slides and students share from their own devices through SMART Mirror.
Boardroom: a government office or authority meeting room in Msheireb, where the Ethernet ports suit a fixed network and the USB-C port takes a presenter's laptop on a single cable.
Hotel or event conference room: a venue in West Bay or Lusail, where the screen carries presentations for a large audience inside an air-conditioned room.

Heat is a real constraint. This model's operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Qatar summer temperatures outdoors can exceed 45 °C, so keep the display in an air-conditioned indoor room and away from windows that receive direct sun.

What to plan before installation

Weight: 113 lb (51 kg), or 146 lb (66 kg) shipped, so plan for a team to lift it.
Dimensions: 77 in (195.7 cm) wide, 45 5/8 in (116 cm) high and 3 3/4 in (9.6 cm) deep.
Mounting: VESA M8 pattern of 800 × 600 mm, with two handles.
Ventilation: leave space around the display as the manufacturer specifies.

SmartRooms Qatar offers a free site survey to check wall structure, fixing points, power and cable routes before mounting. The manufacturer warranty covers this model. SMART also offers extended warranty options of up to 7 years, with terms that vary by region.

Request a quote for the GX186N-V4. Tell us your room size, mounting wall and number of units, and we will send a quotation, usually within one working day.

Highlights

86-inch 4K UHD (3840 × 2160) LED display, 16:9 aspect ratio
Embedded Android 14 with 8 GB DDR4 memory and 64 GB storage
Advanced infrared touch with up to 50 points, depending on OS
Typical touch response of 2.5 ms or less
Two integrated 20 W speakers and two pens included
Rated 130 W typical power draw at 86 inches

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

104 specifications · Source: manufacturer · checked Oct 2026

Display14

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Lifespan: ≥ 50,000 hours
Brightness: 400 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Freeze frame
Sensors: Ambient light, Infrared
Audio: 2 integrated 20W speakers with high fidelity audio

Interactive experience9

Touch technology: Advanced infrared
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch
Typical touch response time: ≤ 5 ms
Frame rate: ≥ 200 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: Embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink
Optional: SMART Notebook Plus; Lumio; SMART Meeting Pro; SMART TeamWorks; SMART Remote Management

Embedded Android OS9

Operating system: Android version 14.0 (forward compatible)
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Input select; File manager; Overlay; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; App library
Languages supported: Albanian, Arabic, Bengali, Bulgarian, Chinese (simplified), Chinese (traditional), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Gujarati, Hindi, Hungarian, Indonesian, Italian, Kannada, Kazakh, Latvian, Lithuanian, Marathi, Norwegian, Polish, Portuguese, Punjabi, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Updates: Over‑the‑air ( OTA )

OPS computing3

SMART OPS modules: SMART PCM modules
OPS power: 90 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot: Front: –; Back: 1
HDMI 2.1 4K@ 60Hz with HDCP 1.4, HDCP 2.2/2.3, and ARC support: Front: 1; Back: 2
Display Port 1.4a with HDCP 1.4 and HDCP 2.2/2.3 support: Front: –; Back: 1
VGA video: Front: –; Back: 1
Stereo 3.5 mm: Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery: Front: 1; Back: –
USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 15 W power delivery: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 3
USB 3.0 Type-B: Front: 1; Back: 1

Outputs4

HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories9

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 and PSK authentication protocols; Wi-Fi access point
Bluetooth: 5.2

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 32–104°F ( 0–40°C )
Storage temperature: 14–140°F ( -10–60°C )
Humidity: 20–80% relative humidity, non‑condensing

Power consumption2

Typical: 65": 81 W; 75": 90 W; 86": 119 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDGX65‑4, IDGX75‑4, IDGX86‑4
US / Canada: UL, cUL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, TÜV: Low Blue Light (75″ only)

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

GX165G‑V4: SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)
GX175G‑V4: SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)
GX186G‑V4: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)

Purchasing information – Optional accessories1

Optional accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 58 3/8ʺ (148.4 cm); Height: 35 1/8ʺ (89.1 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 79 lb. ( 36 kg )
Shipping dimensions: 63" × 40 1/2" × 5 3/4" ( 160 cm × 103 cm × 14.5 cm )
Shipping weight: 101 lb. ( 45.8 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 67 1/8ʺ (170.5 cm); Height: 40ʺ (101.6 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 115 lb. ( 52 kg )
Shipping dimensions: 70 7/8" × 45" × 5 3/4" ( 180 cm × 114.5 cm × 14.5 cm )
Shipping weight: 128 lb. ( 58.1 kg )
VESA mount: M8, 800 × 400 mm
Handles: 4

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 76 3/4ʺ (195 cm); Height: 45 3/8ʺ (115.4 cm); Depth: 3 1/2ʺ (8.8 cm)
Weight: 141 lb. ( 64 kg )
Shipping dimensions: 84 1/4" × 51 3/4" × 5 3/4" ( 214 cm × 131.5 cm × 14.5 cm )
Shipping weight: 170 lb. ( 77.3 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

GX186N-V42

description: SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)
spec_page: SMART Board GX (V4) Plus series specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about GX186N-V4

Who is the 86-inch GX186N-V4 best suited for?

The GX186N-V4 suits large rooms that seat many people, such as a university lecture hall, a training room or a boardroom. Its 86-inch 4K UHD panel lets a group read detailed slides from the back of the room, and the 400 cd/m² brightness rating is a useful baseline for rooms with overhead lighting. If your room is smaller, a smaller model in the same range may be a better fit, and we can advise when you request a quote.

Does this display need a separate computer?

No. It runs embedded Android 14 with an octa-core CPU, 8 GB DDR4 memory and 64 GB storage, so the whiteboard, web browsing and apps work without a laptop. For a built-in Windows PC, the rear OPS slot takes compatible SMART PCM modules rated for 65 W. Confirm the module choice with SmartRooms Qatar when you request a quote.

Can this model be connected directly to Qatar's 240 V, 50 Hz power supply?

The manufacturer lists the power requirement for the GX186N-V4 as 115 V AC at 60 Hz. Qatar mains supply is 240 V at 50 Hz, so do not assume the display will connect directly. Before you order, ask SmartRooms Qatar to confirm the correct power arrangement for your site so the installation is planned safely.

Which languages does the on-screen interface support?

The manufacturer data for this model lists English, French and Spanish as supported interface languages. Arabic is not in that list. Offices that work in Arabic and English side by side should confirm how the menus and the embedded Android interface will be used, and raise this in your quotation request before ordering.

Can it be placed in a majlis, a covered outdoor area or a hot storeroom?

No. The operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Qatar summer temperatures outdoors can exceed 45 °C, so keep the display indoors in an air-conditioned room, away from direct sun through windows. The listed storage range is -10 to 60 °C, which is for storage only, not for running the display.

How many people can write on the board at the same time?

Advanced infrared touch supports up to 50 touch points, depending on the operating system. Simultaneous tool differentiation means one person can write with a pen while another erases or moves an object at the same time. The unit includes two pens and both magnetic and frame-mounted pen holders, which helps groups of students or project teams work together.

What should we plan before wall-mounting a unit this size?

The display weighs 113 lb (51 kg) and measures 77 inches wide and 45 5/8 inches high. It uses a VESA M8 pattern of 800 × 600 mm and has two handles, so plan for a team to lift it. SmartRooms Qatar offers a free site survey to check the wall structure, fixing points, and where cables and power outlets will run before the unit is mounted.

How can teachers or presenters share from their own laptops and phones?

SMART Mirror lets people share through a browser, a dedicated app, Google Cast, AirPlay or Miracast, and up to 9 live devices can be viewed and interacted with at once. For a laptop, one USB-C cable into the front port carries video, touch and audio and can deliver up to 65 W of power. Two RJ45 ports support wired network connections.

What software is included, and what is optional?

SMART Notebook, SMART Ink, SMART Mirror and the Android whiteboard are included, and SMART Notebook needs no subscription. Lumio, SMART Meeting Pro, SMART TeamWorks and SMART Remote Management are listed as optional. Remote Management lets IT teams push updates, run diagnostics and manage displays from any web browser. Tell us which options you need so they can be included in your quotation.

What warranty applies to this model?

The GX186N-V4 is covered by SMART's standard warranty, which includes real-time technical support and advanced replacement with two-way shipping. Extended warranty and SMART Assure options are available up to 7 years, and warranty terms and upgrade options vary by region. SmartRooms Qatar will confirm the exact cover and any upgrade in your quotation.

Can a government entity or school order this display through a purchase order or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a school or ministry buying one 86-inch unit for a lecture or meeting room, send the room details, quantity and your LPO reference, and we will issue a quotation usually within one working day.
