MX055-V5-PW

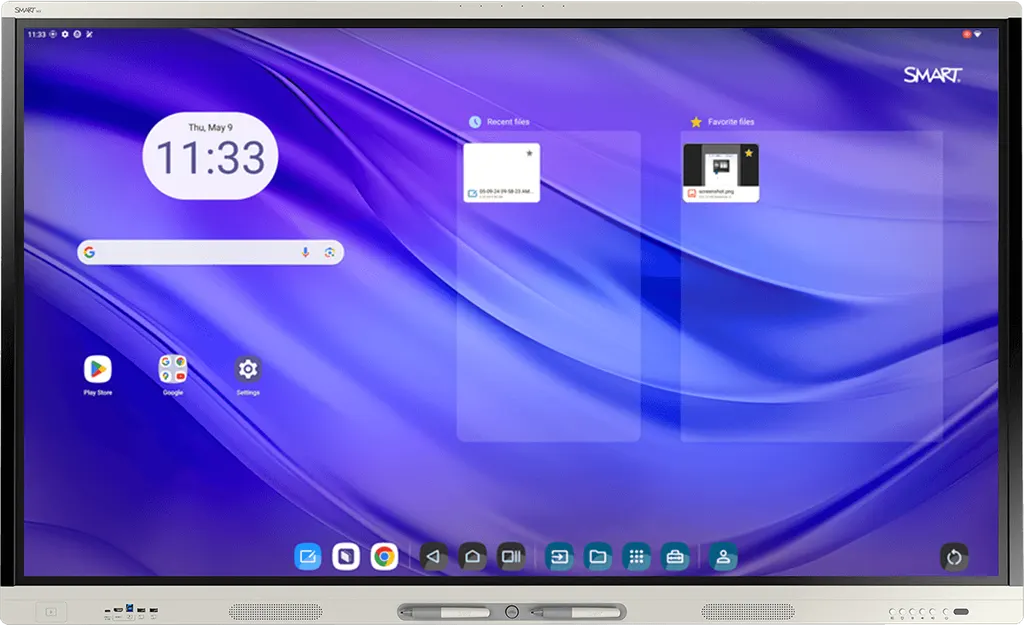

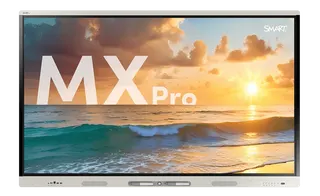

SMART Board MX055-V5-PW 55-inch Pro Interactive Display
- Screen size
- 55"
- Resolution
- 4K UHD (3840 × 2160)
- Touch
- HyPr Touch with Advanced IR
- System
- Android version 15; Supports an…
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

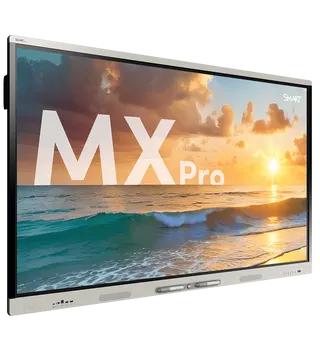

The SMART Board MX055-V5-PW is a 55-inch interactive display with a 4K UHD panel, up to 50 touch points and two integrated 15 W speakers. Its 300 cd/m² brightness suits small meeting rooms and classrooms away from strong daylight. Two pens come in the box, and a six-microphone array helps remote participants hear the room. Unlike the iQ edition, it lacks the embedded Android OS.
What the SMART Board MX055-V5-PW does
The SMART Board MX055-V5-PW is a 55-inch interactive display for small teams that need to write, annotate and share on one screen. It uses a 16:9 LED panel with 4K UHD (3840 × 2160) resolution and a 60 Hz refresh rate, and the manufacturer rates its minimum lifespan at 50,000 hours. The frame is white, and the front carries buttons for power, home, volume, input select, screen shade and freeze frame.
This order number is the non-iQ edition of the MX055-V5 Pro. Buyers who need the embedded Android OS should compare it with the MX255-V5-PW before they request a quote. The source data for this model lists OPS support but no embedded operating system, so plan for a connected laptop or an OPS computing module.
Display, touch and audio facts that matter
Brightness is rated at 300 cd/m². The 65-, 75- and 86-inch models in this series are rated at 400 cd/m², so the 55-inch panel suits rooms with controlled light rather than large sunlit walls. The glass is fully heat-tempered with anti-glare and anti-fingerprint treatment, and the viewing angle is 178°.
Touch uses HyPr Touch with Advanced IR. Typical response time is 5 ms or less, accuracy is 1 mm, and the minimum detectable object is 2 mm. Up to 50 touch points are supported, depending on the operating system, and simultaneous tool differentiation lets two people write at once without confusing inputs. Two pens are included, with magnetic and frame-mounted holders.
Two integrated 15 W speakers and a six-microphone array with onboard acoustic echo cancellation are intended to help remote participants hear the people in the room.
Ports and connections
- Front: one HDMI 2.1 input, one USB-C port with DisplayPort 1.2, touch and 27 W power delivery, two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-B port.
- Back: three HDMI 2.1 inputs with ARC and eARC, a USB-C port with 65 W power delivery, an OPS slot rated for 85 W modules, VGA, RS-232, a microSD slot with security cover, RJ45 LAN in, HDMI 2.1 out, USB-C DisplayPort 1.4a out, optical S/PDIF out and RJ45 LAN out.
- Network: two RJ45 ports rated 1000BASE-T.
Where it fits in Qatar
A meeting room in an office in Msheireb or Lusail, where a team joins calls with colleagues abroad and writes on the same canvas as them.
A classroom or science room in a private school in Al Wakrah, where a teacher works through examples with the pen and students solve problems at the board.
A training room in Education City or a consultation room in a clinic, where a trainer or doctor annotates diagrams and shares files from a laptop.
What to plan before you order
- Size and weight: 130.1 cm wide, 81.8 cm high and 9.6 cm deep, weighing 32 kg (shipping weight 47 kg). Plan for more than one person to handle it.
- Wall mounting: M8 VESA pattern of 400 × 400 mm. SmartRooms Qatar offers a free site survey to check the wall, power and cable routes. The optional WM-SBID-200 wall mount is listed for MX series displays.
- Environment: operating range 5–35°C (41–95°F) at 5–80% humidity, non-condensing; storage range -20 to 60°C. Install it in an air-conditioned room away from windows, entrances and dust, and leave space for ventilation.
- Power: 100–240V AC, 50–60 Hz input; typical consumption 72 W and 0.2 W on standby. A country-specific power cable is included.
- Software: a room license and ten personal licenses are included. SMART TeamWorks is optional.
Certifications and warranty
The source data lists CE, UKCA, UL, FCC, ENERGY STAR and EPEAT among the certifications and standards for this series. The product carries the manufacturer's equipment warranty. Extension options and warranty terms vary by region, and SmartRooms Qatar will state the coverage that applies to your order in the quotation.
Send us your room dimensions, mounting plan and quantity, and the SmartRooms Qatar team will return a quotation, usually within one working day. Request a quote today for supply, delivery to all 8 municipalities of Qatar and professional installation.
Highlights
- 55-inch 16:9 LED panel with 4K UHD (3840 × 2160) resolution
- 300 cd/m² brightness with anti-glare, fully tempered glass
- Up to 50 touch points, 1 mm accuracy, 2 mm minimum object
- Two integrated 15 W speakers and six-microphone array
- Front and back HDMI 2.1, USB-C with 27 W or 65 W power delivery
- Operating range 5–35°C; 100–240V AC, 50–60 Hz input
Classroom fit
At 55″ the farthest student should sit within about 4.1 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
115 specifications · Source: manufacturer · checked Oct 2026
Display13
- Screen sizes (diagonal)
- 55", 65", 75", 86"
- Backlight
- LED
- Aspect ratio
- 16:9
- Maximum display resolution
- 4K UHD (3840 × 2160)
- Refresh rate
- 60 Hz
- Minimum lifespan
- 50,000 hours
- Brightness
- 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
- Viewing angle
- 178°
- Glass
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Frame color
- White
- Convenience buttons
- Power, Home, Volume, Input select, Screen shade, Freeze frame
- Sensors
- Proximity, Ambient light, Infrared
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
Interactive experience8
- Touch technology
- HyPr Touch with Advanced IR
- Touch features
- Simultaneous tool differentiation; Object Awareness
- Typical touch response time
- ≤ 5 ms
- Accuracy
- 1 mm
- Minimum object size
- 2 mm
- Multitouch capabilities
- Up to 50 touch points (OS dependent)
- Tools included
- Pens (×2)
- Tool holders
- Magnetic, Frame‑mounted
Software2
- Included
- Room license, Personal licenses (×10)
- Optional
- SMART TeamWorks; SMART Control Signage
iQ embedded Android OS9
- Operating system
- Android version 15; Supports an automatic update to Android 17
- CPU
- Octa-core
- Memory
- 8 GB DDR4
- OS architecture
- 64-bit
- Storage
- 64 GB (up to 576 GB)
- User interface
- 4K UHD (3840 × 2160)
- Other features
- Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; File and app libraries
- Languages supported
- Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
- Updates
- Automatic over‑the‑air ( OTA )
PC computing3
- OPS support
- SMART PCM modules
- PC module power supported OPS
- 85 W
- Optional computing module
- See smarttech.com/accessories
Inputs12
- OPS PC accessory slot
- Front: –; Back: 1
- microSD slot with security cover
- Front: –; Back: 1
- HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support
- Front: 1; Back: 3
- VGA video
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- RS-232 (DB-9 connector)
- Front: –; Back: 1
- RJ45 (LAN In)
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery
- Front: 1; Back: –
- USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery
- Front: –; Back: 1
- USB 2.0 Type-A
- Front: –; Back: 1
- USB 3.2 Gen 1 Type‑A
- Front: 2; Back: 2
- USB 3.2 Gen 1 Type‑B
- Front: 1; Back: 3
Outputs5
- HDMI 2.1 4K @ 60Hz with HDCP 2.3 support
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- S/PDIF optical (fixed)
- Front: –; Back: 1
- RJ45 (LAN Out)
- Front: –; Back: 1
Included cables and accessories9
- Country-specific power cable
- 1
- 16' 5" ( 5 m ) USB 2.0 A to B cable
- 1
- 6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A
- 1
- Pens
- 2
- External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas
- 2
- Remote control
- 1
- AAA batteries
- 2
- Illustrated installation instructions
- 1
- Important information document
- 1
Connectivity3
- Wired
- RJ45 (×2) 1000BASE-T
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
- Bluetooth
- 5.2 dual mode
Storage and operating requirements4
- Power requirements
- 100V to 240V AC, 50 Hz to 60 Hz
- Operating temperature
- 41–95°F ( 5–35°C )
- Storage temperature
- -4–140°F ( -20–60°C )
- Humidity
- 5–80% relative humidity, non‑condensing
Power consumption2
- Typical
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby
- 0.2 W
Certification and compliance6
- Notes
- Product availability may vary by region. This product has received additional certifications not listed here.
- Regulatory models
- IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
- US / Canada
- UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
- EU / EEA / EFTA / UK
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
- Australia / New Zealand
- RCM, RSM
- Performance standards
- ENERGY STAR, HDMI, HDCP, EPEAT
Purchasing information1
- _text
- Note; Order numbers may vary by region.
Purchasing information – Order numbers4
- MX255-V5-PW
- SMART Board MX055-V5 Pro interactive display with iQ
- MX265-V5-PW
- SMART Board MX065-V5 Pro interactive display with iQ
- MX275-V5-PW
- SMART Board MX075-V5 Pro interactive display with iQ
- MX286-V5-PW
- SMART Board MX086-V5 Pro interactive display with iQ
Purchasing information – Optional accessories6
- WM-SBID-200
- SMART Wall Mount for SMART MX series interactive displays
- SWC-120UHD
- SMART Ultra HD Camera 120
- SMS-TE-IQ4
- SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
- SND-FL
- SMART SoundFlow audio broadcasting system
- SND-LK
- SMART SoundLift voice amplification solution
- Other accessories
- See smarttech.com/accessories
SMART Warranty1
- _text
- Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.
Installation, dimensions, and weights1
- Notes
- All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.
Installation, dimensions, and weights – 55" models6
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions (including pallet)
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- Shipping weight
- 103 lb. ( 47 kg )
- VESA mount
- M8, 400 × 400 mm
- Handles
- –
Installation, dimensions, and weights – 65" models6
- Dimensions
- Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 89 lb. ( 40 kg )
- Shipping dimensions (including pallet)
- 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
- Shipping weight
- 124 lb. ( 56 kg )
- VESA mount
- M8, 600 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 75" models6
- Dimensions
- Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 119 lb. ( 54 kg )
- Shipping dimensions (including pallet)
- 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
- Shipping weight
- 159 lb. ( 72 kg )
- VESA mount
- M8, 800 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 86" models6
- Dimensions
- Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 150 lb. ( 68 kg )
- Shipping dimensions (including pallet)
- 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
- Shipping weight
- 207 lb. ( 94 kg )
- VESA mount
- M8, 800 × 600 mm
- Handles
- 4
MX055-V5-PW2
- description
- SMART Board MX055-V5 Pro interactive display
- spec_page
- SMART Board MX (V5) Pro series specifications
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about MX055-V5-PW
Who is the SMART Board MX055-V5-PW best suited for?
It suits a small meeting room, huddle space or classroom in an air-conditioned building where a 55-inch panel fits the wall. Its 4K UHD panel, two pens and six-microphone array cover writing, presentations and video calls for a small team. Larger rooms, such as a boardroom or lecture hall, are usually better served by the 65-, 75- or 86-inch models in the same series.
What is the difference between the MX055-V5-PW and the MX255-V5-PW with iQ?
The MX255-V5-PW is the iQ edition, which adds an embedded Android OS with 8 GB memory and 64 GB storage (up to 576 GB). The MX055-V5-PW data does not list that operating system, so this model relies on a connected laptop or an OPS computing module for software. Confirm the order number on your quotation before you buy, because the software setup changes how the room is built.
Is 300 cd/m² bright enough for a room with windows?
Brightness is 300 cd/m² on the 55-inch model, lower than the 400 cd/m² rating of the 65-, 75- and 86-inch panels. It works well in rooms with blinds or no direct sun. For a glass-walled meeting room in West Bay with afternoon sun, ask SmartRooms Qatar for a free site survey to check the panel position before you order.
Can the display be used in a hot room or outdoors?
No. The operating temperature range is 5–35°C (41–95°F) with 5–80% humidity, non-condensing. Summer temperatures in Qatar exceed 45°C outdoors, so install the display in an air-conditioned room, away from direct sun, dust-heavy entrances and lobbies. The storage range is -20 to 60°C.
How do I connect a laptop with one cable?
Use the front USB-C port, which provides a DisplayPort 1.2 connection, touch and 27 W power delivery for the laptop. The back USB-C port provides 65 W power delivery. A front HDMI 2.1 input and two front USB 3.2 Gen 1 Type-A ports cover other devices, so presenters can plug in without going behind the panel.
Will the display work with Qatar's mains power?
The power input is rated 100V to 240V AC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 72 W for the 55-inch model and 0.2 W on standby. A country-specific power cable is included. Confirm the plug and socket type with the SmartRooms Qatar team when you request a quote.
How many people can write at the same time in a classroom?
The display supports up to 50 touch points, depending on the operating system, and simultaneous tool differentiation with Object Awareness. Two pens are included. In a classroom in Al Wakrah, two students can work on different parts of the board at the same time, and the teacher can annotate a worked example without the inputs interfering with each other.
Does the display support Arabic and English menus?
Language support for the on-screen interface is listed for the iQ edition, not for this order number. Because the MX055-V5-PW data does not confirm an interface language list, check the language options with the SmartRooms Qatar team before you buy, especially if your school or office works in Arabic and English side by side.
What do I need to plan before wall mounting the 55-inch panel?
The panel measures 130.1 cm wide, 81.8 cm high and 9.6 cm deep, and weighs 32 kg. It uses an M8 VESA pattern of 400 × 400 mm. The optional WM-SBID-200 wall mount is listed for MX series displays. Book a free site survey so the wall structure, power outlet and cable routes are checked before installation.
Which software is included with the display?
The source data lists a room license and ten personal licenses as included. SMART TeamWorks is listed as an optional add-on for scheduling and running video meetings. Ask SmartRooms Qatar which additional software suits your IT setup when you request a quote, so the room is ready on the day it is installed.
What warranty applies to the MX055-V5-PW?
The display is covered by the manufacturer's equipment warranty. Options to extend that warranty are available, and terms and upgrade options vary by region. SmartRooms Qatar will state the coverage that applies to your order in the quotation, so you can compare it with other displays on your shortlist.
Can a school or government office buy this under an LPO?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a school fitting out several classrooms, send the quantity and room list with your LPO request, and the team will return a quotation, usually within one working day.
