MX055-V5
SMART Board MX055-V5 55-inch Interactive Display
- Screen size
- 55"
- Resolution
- 4K UHD (3840 × 2160)
- Touch
- HyPr Touch with Advanced IR
- System
- Android version 15; Supports an…
The SMART Board MX055-V5 is a 55-inch interactive display with a 4K UHD panel, HyPr Touch infrared input accurate to 1 mm, and two pens for simultaneous writing. It ships with SMART Notebook and offers a back-panel OPS slot and 65W USB-C for laptops. It suits Qatari primary and secondary classrooms and small meeting rooms that need a dependable touch display. Request a quote.
What the MX055-V5 is

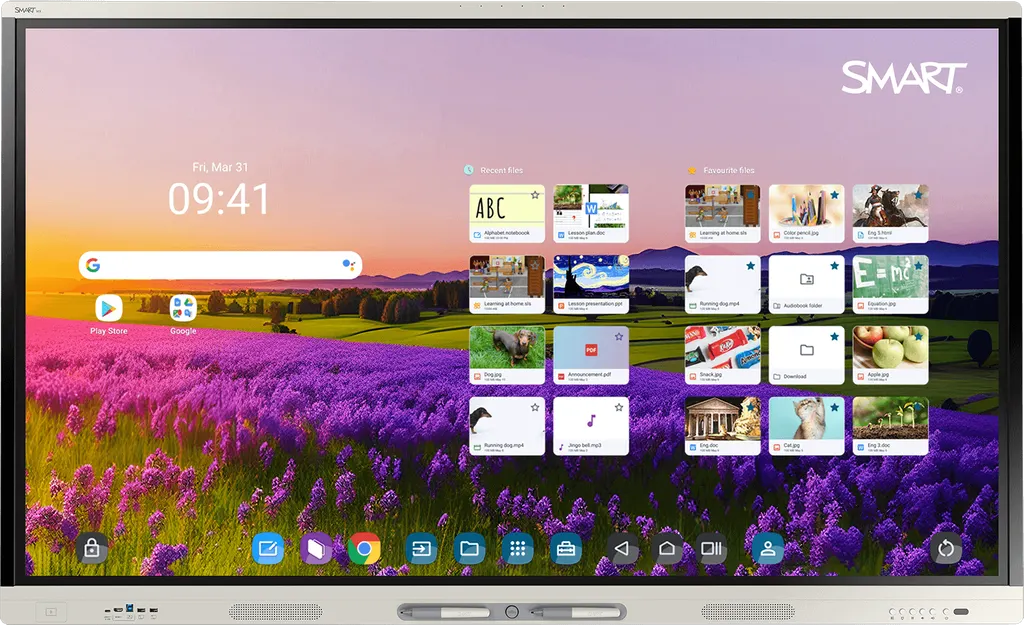

The SMART Board MX055-V5 is a 55-inch interactive display built around a 16:9 LED panel with 4K UHD resolution (3840 × 2160), a 60 Hz refresh rate and a brightness rating of 300 cd/m². It is the version of the 55-inch MX (V5) range without the iQ operating system. The specification for this model lists SMART Notebook as included software, with SMART Notebook Plus and Lumio as optional extras. If your room needs a touch display for presenting, annotating and lessons rather than a built-in Android environment, this is the model to compare, and the iQ-equipped MX255-V5 is the sibling to weigh it against.
The front glass is full heat-tempered, anti-glare and anti-fingerprint, and the panel is rated for a minimum lifespan of 50,000 hours. The display includes two integrated 15 W speakers and a six-microphone array with onboard acoustic echo cancellation, which helps when it is used for lessons or calls in a room with hard surfaces.
Touch, pens and shared writing on a 55-inch panel
Touch is provided by HyPr Touch with advanced infrared. The specification gives 1 mm accuracy, a minimum object size of 2 mm and a typical touch response of 5 ms or less. Simultaneous tool differentiation allows several people to write, erase and touch at the same time without clashing, and Object Awareness helps the display tell a pen from a hand. Two pens are included, and they can be stored in magnetic or frame-mounted holders. Multitouch is listed as up to 40 touch points, depending on the operating system in use.
Connecting laptops, PCs and room equipment
The inputs are arranged so that a teacher's laptop or a meeting room PC can be connected quickly:
- Front: one HDMI 2.1 input, one USB-C port with 27 W power delivery, two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-B port
- Back: three HDMI 2.1 inputs, one USB-C port with 65 W power delivery, an OPS slot for SMART PCM computing modules supplied at 85 W, VGA, RS-232, 3.5 mm stereo audio, a microSD slot with security cover and two RJ45 LAN connections
- Outputs: HDMI 2.1, USB-C with DisplayPort 1.4a, S/PDIF optical, 3.5 mm stereo and a second LAN output
A computing module is an optional accessory, so a room that already has a laptop can run without one.
Where it fits in Qatar

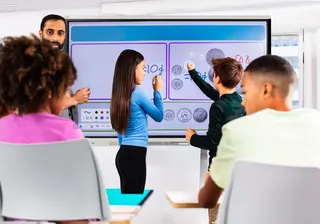

A primary or secondary classroom in Al Sadd or Al Rayyan suits a 55-inch panel: it is large enough for pupils seated at tables to read clearly, and the front HDMI and USB-C inputs let a teacher connect a tablet or laptop without moving furniture. In a Doha office meeting room for six to ten people, the same size works for presenting and marking up shared files on screen with the pens. A training room in Lusail or the Industrial Area, where staff rotate through short courses, benefits from a display that can be set up quickly at the start of each session. Because the operating range is 5 to 35 °C, install it inside air-conditioned rooms, away from direct sun through windows, and confirm the room conditions with the SMART Qatar team before fixing it.
Planning the installation
Plan the mounting and the space before the display arrives. The 55-inch unit weighs 32 kg (71 lb) and ships at 47 kg, so a wall mount and at least two people are needed. The VESA pattern is M8, 400 × 400 mm, and the SMART wall mount WM-SBID-200 is listed as an accessory for MX series displays. Overall size is 130.1 cm wide, 81.8 cm high and 9.6 cm deep. The display ships upright and needs space around it for ventilation. Power is 100 to 240 V AC at 50 to 60 Hz, with a typical draw of 72 W and 0.2 W on standby. SMART Qatar offers free site surveys, the simplest way to check the wall, cable route and power point before installation day.
- Confirm wall construction and bracket rating for 32 kg
- Allow ventilation space around the sides and top
- Plan cable routes for HDMI, USB-C and LAN
If you are choosing between the 55-inch MX055-V5 and a larger or iQ-equipped model, send SMART Qatar your room size, number of users and the inputs you need. Request a quote, and the team will confirm availability, the estimated lead time and the installation plan with your quotation.
Highlights
- 55-inch 16:9 LED panel with 4K UHD resolution
- HyPr Touch advanced infrared with 1 mm accuracy
- Simultaneous writing and erasing with two included pens
- Three back HDMI 2.1 inputs and a 65W USB-C port
- Back OPS slot for SMART PCM modules rated at 85 W
- Typical power 72 W; operating range 5 to 35 °C
Classroom fit
At 55″ the farthest student should sit within about 4.1 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display13
- Screen sizes (diagonal)
- 55", 65", 75", 86"
- Backlight
- LED
- Aspect ratio
- 16:9
- Maximum display resolution
- 4K UHD (3840 × 2160)
- Refresh rate
- 60 Hz
- Minimum lifespan
- 50,000 hours
- Brightness
- 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
- Viewing angle
- 178°
- Glass
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Frame color
- White
- Convenience buttons
- Power, Home, Volume, Input select, Screen shade, Freeze frame
- Sensors
- Proximity, Ambient light, Infrared
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
Interactive experience8
- Touch technology
- HyPr Touch with Advanced IR
- Touch features
- Simultaneous tool differentiation; Object Awareness
- Typical touch response time
- ≤ 5 ms
- Accuracy
- 1 mm
- Minimum object size
- 2 mm
- Multitouch capabilities
- 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
- Tools included
- Pens (×2)
- Tool holders
- Magnetic, Frame‑mounted
Software2
- Included
- iQ embedded Android OS; SMART Notebook; SMART Control
- Optional
- SMART Notebook Plus; Lumio; SMART Control Signage
iQ embedded Android OS9
- Operating system
- Android version 15; Supports an automatic update to Android 17
- CPU
- Octa-core
- Memory
- 8 GB DDR4
- OS architecture
- 64-bit
- Storage
- 64 GB (up to 576 GB)
- User interface
- 4K UHD (3840 × 2160)
- Other features
- Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; Templates, graphic organizers, and manipulatives; File and app libraries
- Languages supported
- Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
- Updates
- Automatic over‑the‑air ( OTA )
PC computing3
- OPS support
- SMART PCM modules
- PC module power supported OPS
- 85 W
- Optional computing module
- See smarttech.com/accessories
Inputs12
- OPS PC accessory slot
- Front: –; Back: 1
- microSD slot with security cover
- Front: –; Back: 1
- HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support
- Front: 1; Back: 3
- VGA video
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- RS-232 (DB-9 connector)
- Front: –; Back: 1
- RJ45 (LAN In)
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery
- Front: 1; Back: –
- USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery
- Front: –; Back: 1
- USB 2.0 Type-A
- Front: –; Back: 1
- USB 3.2 Gen 1 Type‑A
- Front: 2; Back: 2
- USB 3.2 Gen 1 Type‑B
- Front: 1; Back: 3
Outputs5
- HDMI 2.1 4K @ 60Hz with HDCP 2.3 support
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- S/PDIF optical (fixed)
- Front: –; Back: 1
- RJ45 (LAN Out)
- Front: –; Back: 1
Included cables and accessories10
- Country-specific power cable
- 1
- 16' 5" ( 5 m ) USB 2.0 A to B cable
- 1
- 6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A
- 1
- Pens
- 2
- External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas
- 2
- Remote control
- 1
- AAA batteries
- 2
- SMART ID cards (for NFC sign in to a SMART Account)
- 2
- Illustrated installation instructions
- 1
- Important information document
- 1
Connectivity3
- Wired
- RJ45 (×2) 1000BASE-T
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
- Bluetooth
- 5.2 dual mode
Storage and operating requirements4
- Power requirements
- 100V to 240V AC, 50 Hz to 60 Hz
- Operating temperature
- 41–95°F ( 5–35°C )
- Storage temperature
- -4–140°F ( -20–60°C )
- Humidity
- 5–80% relative humidity, non‑condensing
Power consumption2
- Typical
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby
- 0.2 W
Certification and compliance6
- Notes
- Product availability may vary by region. This product has received additional certifications not listed here.
- Regulatory models
- IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
- US / Canada
- UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
- EU / EEA / EFTA / UK
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
- Australia / New Zealand
- RCM, RSM
- Performance standards
- ENERGY STAR, HDMI, HDCP, EPEAT
Purchasing information1
- _text
- Note; Order numbers may vary by region.
Purchasing information – Order numbers4
- MX255-V5
- SMART Board MX055-V5 interactive display with iQ
- MX265-V5
- SMART Board MX065-V5 interactive display with iQ
- MX275-V5
- SMART Board MX075-V5 interactive display with iQ
- MX286-V5
- SMART Board MX086-V5 interactive display with iQ
Purchasing information – Optional accessories6
- WM-SBID-200
- SMART Wall Mount for SMART MX series interactive displays
- SWC-120UHD
- SMART Ultra HD Camera 120
- SMS-TE-IQ4
- SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
- SND-FL
- SMART SoundFlow audio broadcasting system
- SND-LK
- SMART SoundLift voice amplification solution
- Other accessories
- See smarttech.com/accessories
SMART Warranty1
- _text
- Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.
Installation, dimensions, and weights1
- Notes
- All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.
Installation, dimensions, and weights – 55" models6
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions (including pallet)
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- Shipping weight
- 103 lb. ( 47 kg )
- VESA mount
- M8, 400 × 400 mm
- Handles
- –
Installation, dimensions, and weights – 65" models6
- Dimensions
- Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 89 lb. ( 40 kg )
- Shipping dimensions (including pallet)
- 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
- Shipping weight
- 124 lb. ( 56 kg )
- VESA mount
- M8, 600 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 75" models6
- Dimensions
- Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 119 lb. ( 54 kg )
- Shipping dimensions (including pallet)
- 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
- Shipping weight
- 159 lb. ( 72 kg )
- VESA mount
- M8, 800 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 86" models6
- Dimensions
- Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 150 lb. ( 68 kg )
- Shipping dimensions (including pallet)
- 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
- Shipping weight
- 207 lb. ( 94 kg )
- VESA mount
- M8, 800 × 600 mm
- Handles
- 4
MX055-V52
- description
- SMART Board MX055-V5 interactive display
- spec_page
- SMART Board MX (V5) series specifications
