MX065-V5-PW

What the SMART Board MX065-V5 Pro does in a meeting room

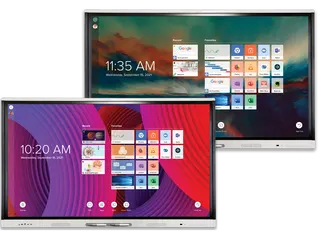

The MX065-V5 Pro is a 65-inch interactive display with a 4K UHD panel at 3840 × 2160 and a 16:9 aspect ratio. It is sold without the iQ embedded Android platform, which is offered as a separate order number, so computing comes from a laptop, a PC or an optional OPS module. The LED backlight is rated at 400 cd/m², and the 178° viewing angle lets people seated across a room read the same content. The manufacturer rates the panel for a minimum lifespan of 50,000 hours.

Touch, pens and simultaneous writing

HyPr Touch with Advanced IR offers a typical response time of 5 ms or less, 1 mm accuracy and a minimum detectable object size of 2 mm. Up to 50 touch points are supported, depending on the operating system. Simultaneous tool differentiation means two people can write, erase or move objects at the same time without the display confusing their inputs, which is useful when several people mark up one document. Two pens are included, and magnetic and frame-mounted tool holders keep them within reach. The package includes one room licence and ten personal licences, while SMART TeamWorks is available as an optional extra.

Ports, wireless and computing options

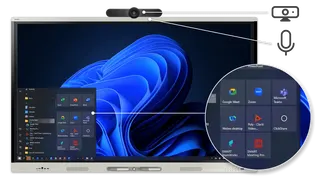

The front panel has one HDMI 2.1 input, one USB-C port rated at 27 W power delivery, one USB-B port and two USB 3.2 Gen 1 Type-A ports. The back adds three more HDMI 2.1 inputs, a USB-C port with 65 W power delivery, VGA, RS-232, RJ45 LAN, a microSD slot, a 3.5 mm audio port and a USB 2.0 Type-A port. Outputs include HDMI 2.1, USB-C DisplayPort 1.4a, S/PDIF optical audio and an RJ45 LAN output. Wired networking uses two RJ45 ports at 1000BASE-T. Wireless uses 802.11ax (Wi-Fi 6E) with WPA3 and 802.1X EAP support, and Bluetooth 5.2 dual mode through two external tri-band antennas. One OPS slot on the back accepts SMART PCM modules, supplied with 85 W.

Where it fits in Qatar

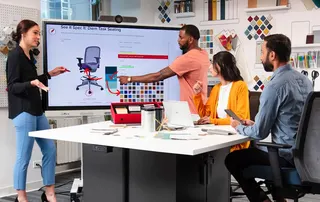

A 65-inch panel suits rooms where a group sits within a few metres of the screen. A management team in a West Bay office can review contracts together, then join a call with colleagues in Europe or Asia without moving equipment. A private school in Al Wakrah can equip a classroom where lessons combine slides, video and hand-written notes. A training room at a hotel near The Pearl or in Lusail can run role-play sessions where two presenters annotate the same content. The six-microphone array with onboard acoustic echo cancellation helps remote participants hear people in the room clearly.

Summer heat is the main site condition to plan for. The operating range is 5–35°C (41–95°F) with 5–80% humidity, non-condensing. Outdoor temperatures in Qatar can exceed 45°C, so install the display in an air-conditioned room, away from direct sun through glass and out of lobbies exposed to dust. Leave space around the display for ventilation, as the manufacturer recommends.

Planning the installation

The panel measures 150.7 cm wide, 92.8 cm high and 8.9 cm deep, and weighs 40 kg (89 lb). Shipping weight is 56 kg. The VESA pattern is 600 × 400 mm with M8 fixings, and two handles help during lifting. The wall mount accessory WM-SBID-200 is listed for SMART MX series displays. Because the panel is heavy, SmartRooms Qatar offers a free site survey to check the wall, the mounting height and the cable routes before installation. Typical power draw is 90 W, with 0.2 W on standby, and the input range of 100–240 V AC at 50–60 Hz covers Qatar's 240 V, 50 Hz supply. Confirm that the included country-specific power cable suits the socket on site. The display is covered by the manufacturer's warranty; warranty extension options vary by region.

To check mounting, cabling and room conditions for your MX065-V5 Pro, request a quote from SmartRooms Qatar. Quotations usually follow within one working day, and we deliver to all eight municipalities of Qatar with professional installation.
