MX065-V5

What the MX065-V5 is and who it suits

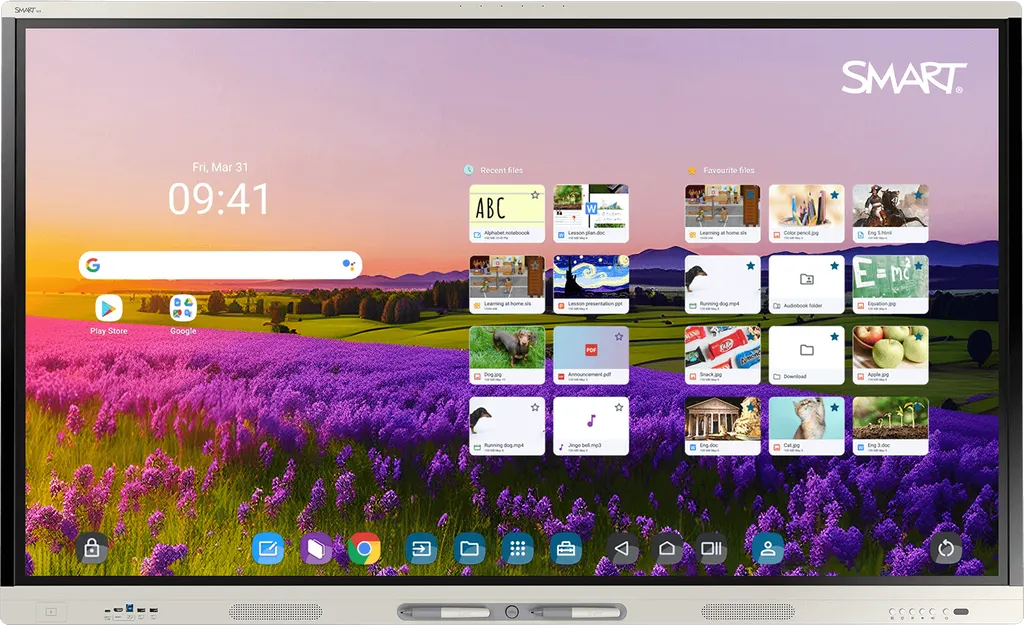

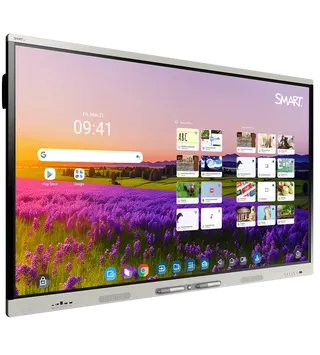

The MX065-V5 is a 65-inch interactive display built around a 4K (3840 × 2160) LED panel with a 16:9 aspect ratio and a 60 Hz refresh rate. It is made for rooms where one large touch surface takes the place of a whiteboard and projector, and where several people need to write, annotate or move content at the same time. The screen is anti-glare and anti-fingerprint, and the 65-inch size uses bonded glass.

Touch, display and audio facts that matter

Touch is handled by HyPr Touch with Advanced IR. The listed accuracy is 1 mm, the minimum object size is 2 mm and the typical touch response time is 5 ms or less. Multitouch is listed at up to 40 touch points, depending on the operating system, and the display supports simultaneous tool differentiation. Brightness is rated at 400 cd/m² for the 65-inch size, and the listed lifespan is at least 50,000 hours.

• Brightness: 400 cd/m² rated for the 65-inch size
• Touch: 1 mm accuracy and 2 mm minimum object size
• Audio: two integrated 20 W speakers plus a six-microphone linear array with onboard echo cancellation
• Lifespan: at least 50,000 hours

The microphone array helps when the room is used for recorded lessons or for remote discussions, because echo cancellation is built in.

Ports, expansion and connectivity

The front panel offers one HDMI 2.1 input, one USB-C port with 27 W power delivery, two USB 3.2 Gen 1 Type-A ports and one USB Type-B port for touch. The back panel adds three HDMI 2.1 inputs, a USB-C port with 65 W power delivery, VGA, a 3.5 mm audio connection, two RJ45 network ports and an OPS PC accessory slot that supports SMART PCM modules at up to 85 W. Outputs include HDMI, USB-C DisplayPort, optical S/PDIF audio and a LAN output. Two external tri-band Wi-Fi antennas are included in the box.

Where it fits in Qatar

Three situations suit a 65-inch panel well:

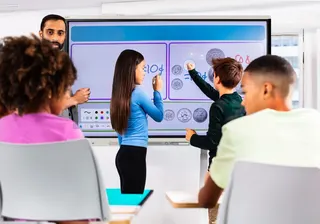

• A classroom at a private school in Al Wakrah, where a 65-inch screen gives students at the back a readable view of the board and lets small groups take turns at the front.
• A meeting room in West Bay or Msheireb, where a Doha team joins colleagues abroad and needs to annotate shared documents directly on the screen.
• A training room in Education City or the Industrial Area, where an instructor runs sessions from a laptop or a computing module fitted to the OPS slot.

Summer heat is a planning point for any display in Qatar. The listed operating range is 5 to 35°C with 5 to 80% relative humidity, non-condensing, so the MX065-V5 belongs in an air-conditioned room, away from direct sun and hot glazed frontages. If a room is unusual, ask the SmartRooms Qatar team to review the conditions before you confirm an order.

What to plan before installation

The 65-inch unit weighs 89 lb (40 kg), and its shipping weight is 124 lb (56 kg). It has two handles, which help during lifting. The VESA pattern is 600 × 400 mm with M8 fixings, so any wall bracket must match that pattern and carry the load. SMART lists the WM-SBID-200 wall mount for MX series displays. Overall dimensions are 150.7 cm wide, 92.8 cm high and 8.9 cm deep, and the manufacturer asks for space around the display for ventilation. Power is listed at 100 to 240 V AC, 50 to 60 Hz, and one country-specific power cable is included. Our free site survey checks wall construction, cable routes and outlet positions before installation.

For schools and public bodies ordering several units, we issue a quotation usually within one working day, accept purchase orders (LPOs) and government tenders including Monaqasat, and take payment by bank transfer, cheque or purchase order. Request a quote from SmartRooms Qatar with your room sizes, mounting plans and quantities, and we will respond with a quotation for the MX065-V5.
