MX075-V5

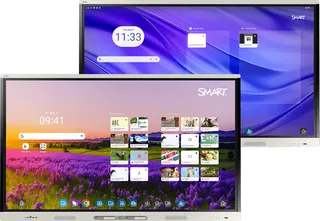

What the MX075-V5 is and where it stands in the MX V5 range

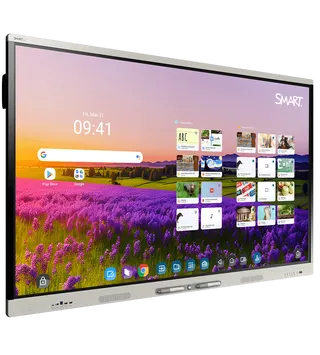

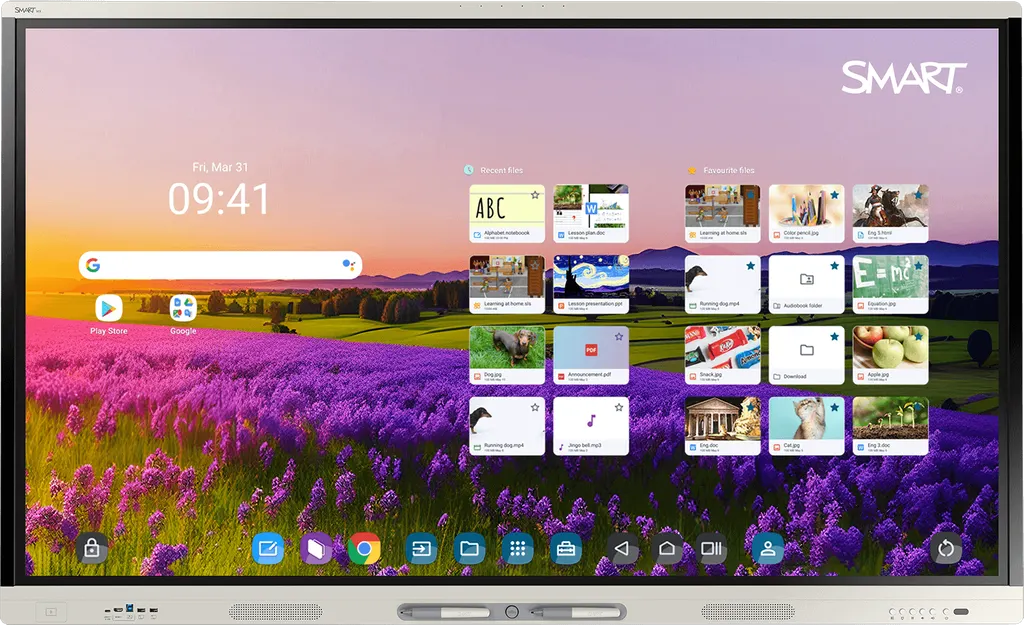

The SMART Board MX075-V5 is a 75-inch interactive display with a 16:9 4K UHD panel (3840 × 2160), an LED backlight and a rated brightness of 400 cd/m². It is the version of the MX V5 family listed without iQ 4, so its feature set is the hardware, touch system, ports and included software described on this page. Buyers who need the iQ 4 classroom operating system should compare the MX275-V5 before requesting a quote.

Touch, pens and group work at the board

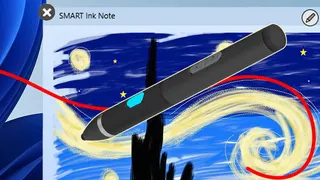

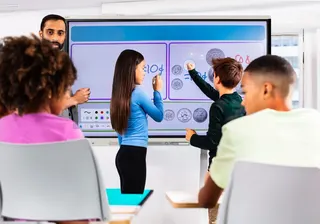

The panel uses HyPr Touch with Advanced IR, with a typical touch response of 5 ms or less, 1 mm accuracy and a minimum detectable object size of 2 mm. Simultaneous tool differentiation lets several people write, erase and touch at the same time, so one person's ink does not block another's. Multitouch reaches up to 40 points, depending on the operating system. Two pens come in the box, and magnetic and frame-mounted holders keep them within reach of the board.

Connections for laptops, PCs and room equipment

Presenters use the front panel, which offers one HDMI 2.1 input, one USB-C port with 27 W power delivery, two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-B port for touch and peripherals. The rear adds three HDMI 2.1 inputs with ARC and eARC support, a 65 W USB-C port, a VGA input, an RS-232 port, two wired LAN ports, a 3.5 mm stereo connection, a microSD slot behind a security cover and an OPS slot that supports SMART PCM modules at up to 85 W. Outputs include HDMI, USB-C with DisplayPort 1.4a, optical audio and LAN.

Where it fits in Qatar

• A secondary classroom in Al Wakrah: a private school fitting out a science or maths room, where the 75-inch screen stays readable from the back row and a teacher laptop connects to the front USB-C port with one cable for video, touch and charging.
• A boardroom in West Bay: a company meeting room where 400 cd/m² brightness and anti-glare glass help the image stay clear when daylight enters, and the six-microphone array with echo cancellation picks up speakers around the table during calls with teams abroad.
• A training room in Education City: a university workshop where the lecturer shares a laptop through the front HDMI input while other sources feed the rear inputs.

Heat matters here. The rated operating range is 5 to 35°C with 5 to 80 percent humidity, non-condensing, so the display belongs in an air-conditioned room away from windows that take direct sun. Qatar summers often exceed 45°C, which makes a sun-facing lobby an unsuitable location for this model.

What to plan before the quotation

At 119 lb (54 kg), the panel needs a lifting team and a wall or stand rated for its weight. The 75-inch model measures 68 3/8 inch (173.7 cm) wide, 41 3/4 inch (106.1 cm) high and 3 1/2 inch (8.9 cm) deep, with a VESA pattern of M8, 800 × 400 mm and two handles. SMART lists an optional wall mount, WM-SBID-200, for the MX series. Allow clear space around the panel for ventilation, as the manufacturer advises. SmartRooms Qatar offers a free site survey to check the wall, cable routes and room conditions before mounting.

The power input accepts 100 to 240 V AC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. The manufacturer publishes typical power draw for the 55, 65 and 86-inch sizes, but not for the 75-inch, so the quotation should confirm that figure for electrical planning. The box includes a country-specific power cable, a remote control and two AAA batteries.

The panel carries certifications including CE, UKCA, UL, FCC, ENERGY STAR and EPEAT, and it is covered by the manufacturer's warranty. Warranty terms vary by region, so the quotation will state the terms that apply. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order, and quotations usually follow within one working day. Request a quote for the MX075-V5 with your room size, wall type and number of units, and the team will reply with a detailed proposal.
