MX086-V5-PW
SMART Board MX086-V5 Pro 86-inch Interactive Display
- Screen size
- 55"
- Resolution
- 4K UHD (3840 × 2160)
- Touch
- HyPr Touch with Advanced IR
- System
- Android version 15; Supports an…
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

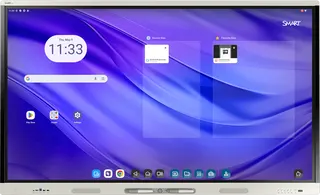

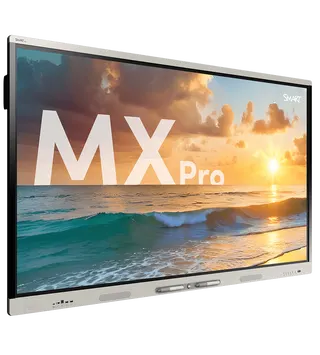

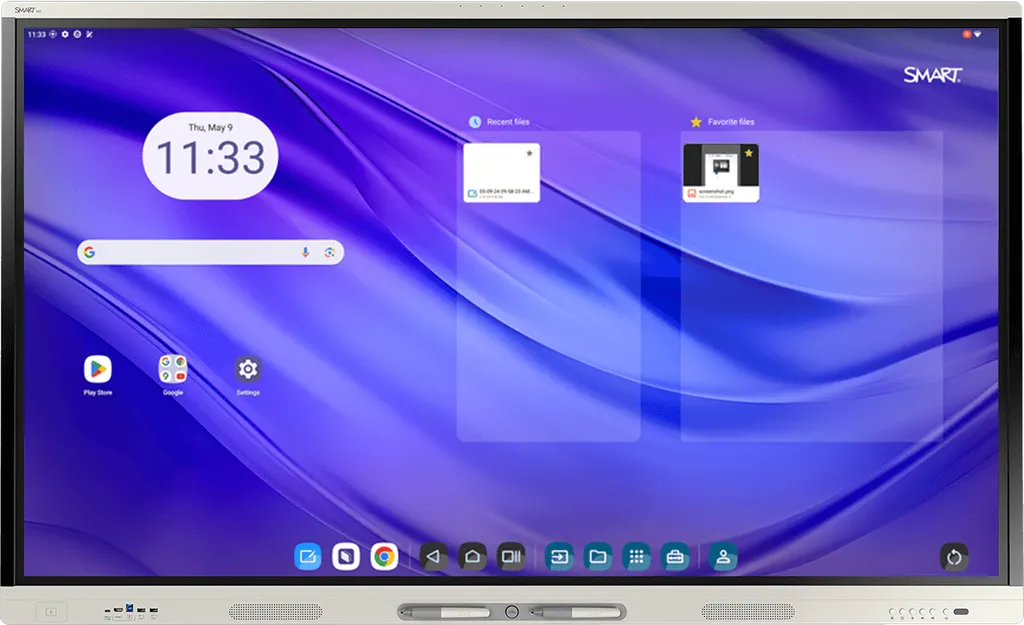

The SMART Board MX086-V5 Pro is an 86-inch interactive display with a 4K UHD panel, 400 cd/m² brightness, up to 50 touch points and two 20 W speakers. It includes a six-microphone array for remote calls, an OPS slot for a computing module and two pens. It suits boardrooms, lecture halls and large training rooms in Doha, Lusail and Education City. Request a quote from SmartRooms Qatar.
An 86-inch display for rooms that need a shared canvas
The SMART Board MX086-V5 Pro is an 86-inch interactive display from the MX (V5) Pro series, with a 4K UHD panel running at 60 Hz in a 16:9 format. Brightness is rated at 400 cd/m² and the viewing angle is 178 degrees, so people seated at the back of a large room can read slides, spreadsheets and annotated drawings. The glass is fully heat-tempered, anti-glare and anti-fingerprint, and it is bonded to the panel. The minimum rated lifespan is 50,000 hours.
This model does not include the embedded iQ Android system. That configuration is ordered under a separate model number. Instead, the MX086-V5 Pro works with a connected laptop or a computing module fitted to its OPS slot, which suits teams that already standardize on their own PCs.
Touch, pens and simultaneous writing
Touch runs on HyPr Touch with Advanced IR technology. Typical touch response is 5 ms or less, accuracy is 1 mm, and the smallest object detected is 2 mm. Up to 50 touch points are supported, depending on the operating system in use. Simultaneous tool differentiation lets one person erase while another writes or moves an object, and the display keeps those inputs separate. Two pens are supplied, along with a magnetic tool holder and a frame-mounted holder, so pens stay within reach during long sessions.
Connections for laptops, PCs and conference systems
- Front: one HDMI 2.1 input, one USB-C port with 27 W power delivery, two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-B port.
- Back: three HDMI 2.1 inputs, VGA, a USB-C port with 65 W power delivery, an OPS accessory slot, a microSD slot with a security cover, RS-232, RJ45 LAN in, 3.5 mm audio and additional USB ports.
- Outputs: HDMI 2.1, USB-C DisplayPort 1.4a with 4.5 W power delivery, 3.5 mm audio, S/PDIF optical and RJ45 LAN out.
Audio, power and planning for Qatar's climate
Two 20 W speakers and a six-microphone array with onboard acoustic echo cancellation help remote participants hear the room clearly. Typical power draw is 149 W, falling to 0.2 W on standby. The unit accepts 100 to 240 V AC at 50 to 60 Hz, which covers Qatar's 240 V supply. It carries ENERGY STAR and EPEAT listings. Operating temperature is 5 to 35 °C (41 to 95 °F) at 5 to 80% relative humidity, non-condensing. Because summer temperatures in Qatar regularly exceed 45 °C outdoors, plan an air-conditioned room with clear space around the panel, since the display ships upright and needs room for ventilation.
Where it fits in Qatar

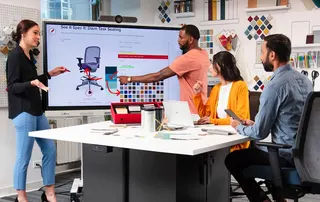

- Boardroom in West Bay: a leadership team reviews figures with colleagues joining from abroad, using the microphone array and a laptop connected over USB-C.
- Lecture hall in Education City: an instructor writes over PDF and Office files during a live session, with the screen readable from the back rows.
- Training centre in the Industrial Area: a trainer presents large drawings and runs interactive exercises for a group of staff.
Mounting, delivery and quotation
The panel weighs 68 kg (150 lb) and ships at 94 kg on a pallet measuring 216.5 × 144.5 × 16 cm, so check doorways, lifts and access routes before delivery. It has four handles and a VESA pattern of M8, 800 × 600 mm. The optional WM-SBID-200 wall mount is listed for SMART MX series displays. Before wall-mounting, we recommend a free site survey from SmartRooms Qatar to confirm the wall structure and cable routing. Delivery covers all 8 municipalities of Qatar, professional installation can be arranged, and quotations are usually issued within one working day. Send us your room plan and request a quote.
Highlights
- 86-inch 4K UHD panel with 400 cd/m² brightness
- Up to 50 touch points, 1 mm accuracy, 5 ms response
- Two 20 W speakers and a six-microphone array
- Four HDMI 2.1 inputs plus two USB-C ports
- OPS slot for computing modules drawing up to 85 W
- Operating range 5 to 35 °C, so use an air-conditioned room
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
115 specifications · Source: manufacturer · checked Oct 2026
Display13
- Screen sizes (diagonal)
- 55", 65", 75", 86"
- Backlight
- LED
- Aspect ratio
- 16:9
- Maximum display resolution
- 4K UHD (3840 × 2160)
- Refresh rate
- 60 Hz
- Minimum lifespan
- 50,000 hours
- Brightness
- 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
- Viewing angle
- 178°
- Glass
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Frame color
- White
- Convenience buttons
- Power, Home, Volume, Input select, Screen shade, Freeze frame
- Sensors
- Proximity, Ambient light, Infrared
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
Interactive experience8
- Touch technology
- HyPr Touch with Advanced IR
- Touch features
- Simultaneous tool differentiation; Object Awareness
- Typical touch response time
- ≤ 5 ms
- Accuracy
- 1 mm
- Minimum object size
- 2 mm
- Multitouch capabilities
- Up to 50 touch points (OS dependent)
- Tools included
- Pens (×2)
- Tool holders
- Magnetic, Frame‑mounted
Software2
- Included
- Room license, Personal licenses (×10)
- Optional
- SMART TeamWorks; SMART Control Signage
iQ embedded Android OS9
- Operating system
- Android version 15; Supports an automatic update to Android 17
- CPU
- Octa-core
- Memory
- 8 GB DDR4
- OS architecture
- 64-bit
- Storage
- 64 GB (up to 576 GB)
- User interface
- 4K UHD (3840 × 2160)
- Other features
- Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; File and app libraries
- Languages supported
- Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
- Updates
- Automatic over‑the‑air ( OTA )
PC computing3
- OPS support
- SMART PCM modules
- PC module power supported OPS
- 85 W
- Optional computing module
- See smarttech.com/accessories
Inputs12
- OPS PC accessory slot
- Front: –; Back: 1
- microSD slot with security cover
- Front: –; Back: 1
- HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support
- Front: 1; Back: 3
- VGA video
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- RS-232 (DB-9 connector)
- Front: –; Back: 1
- RJ45 (LAN In)
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery
- Front: 1; Back: –
- USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery
- Front: –; Back: 1
- USB 2.0 Type-A
- Front: –; Back: 1
- USB 3.2 Gen 1 Type‑A
- Front: 2; Back: 2
- USB 3.2 Gen 1 Type‑B
- Front: 1; Back: 3
Outputs5
- HDMI 2.1 4K @ 60Hz with HDCP 2.3 support
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- S/PDIF optical (fixed)
- Front: –; Back: 1
- RJ45 (LAN Out)
- Front: –; Back: 1
Included cables and accessories9
- Country-specific power cable
- 1
- 16' 5" ( 5 m ) USB 2.0 A to B cable
- 1
- 6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A
- 1
- Pens
- 2
- External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas
- 2
- Remote control
- 1
- AAA batteries
- 2
- Illustrated installation instructions
- 1
- Important information document
- 1
Connectivity3
- Wired
- RJ45 (×2) 1000BASE-T
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
- Bluetooth
- 5.2 dual mode
Storage and operating requirements4
- Power requirements
- 100V to 240V AC, 50 Hz to 60 Hz
- Operating temperature
- 41–95°F ( 5–35°C )
- Storage temperature
- -4–140°F ( -20–60°C )
- Humidity
- 5–80% relative humidity, non‑condensing
Power consumption2
- Typical
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby
- 0.2 W
Certification and compliance6
- Notes
- Product availability may vary by region. This product has received additional certifications not listed here.
- Regulatory models
- IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
- US / Canada
- UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
- EU / EEA / EFTA / UK
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
- Australia / New Zealand
- RCM, RSM
- Performance standards
- ENERGY STAR, HDMI, HDCP, EPEAT
Purchasing information1
- _text
- Note; Order numbers may vary by region.
Purchasing information – Order numbers4
- MX255-V5-PW
- SMART Board MX055-V5 Pro interactive display with iQ
- MX265-V5-PW
- SMART Board MX065-V5 Pro interactive display with iQ
- MX275-V5-PW
- SMART Board MX075-V5 Pro interactive display with iQ
- MX286-V5-PW
- SMART Board MX086-V5 Pro interactive display with iQ
Purchasing information – Optional accessories6
- WM-SBID-200
- SMART Wall Mount for SMART MX series interactive displays
- SWC-120UHD
- SMART Ultra HD Camera 120
- SMS-TE-IQ4
- SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
- SND-FL
- SMART SoundFlow audio broadcasting system
- SND-LK
- SMART SoundLift voice amplification solution
- Other accessories
- See smarttech.com/accessories
SMART Warranty1
- _text
- Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.
Installation, dimensions, and weights1
- Notes
- All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.
Installation, dimensions, and weights – 55" models6
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions (including pallet)
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- Shipping weight
- 103 lb. ( 47 kg )
- VESA mount
- M8, 400 × 400 mm
- Handles
- –
Installation, dimensions, and weights – 65" models6
- Dimensions
- Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 89 lb. ( 40 kg )
- Shipping dimensions (including pallet)
- 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
- Shipping weight
- 124 lb. ( 56 kg )
- VESA mount
- M8, 600 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 75" models6
- Dimensions
- Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 119 lb. ( 54 kg )
- Shipping dimensions (including pallet)
- 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
- Shipping weight
- 159 lb. ( 72 kg )
- VESA mount
- M8, 800 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 86" models6
- Dimensions
- Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 150 lb. ( 68 kg )
- Shipping dimensions (including pallet)
- 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
- Shipping weight
- 207 lb. ( 94 kg )
- VESA mount
- M8, 800 × 600 mm
- Handles
- 4
MX086-V5-PW2
- description
- SMART Board MX086-V5 Pro interactive display
- spec_page
- SMART Board MX (V5) Pro series specifications
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about MX086-V5-PW
Who is the SMART Board MX086-V5 Pro for?
It suits boardrooms, lecture halls and large training rooms where a group needs to view the same content from a distance. The 86-inch 4K UHD panel, 400 cd/m² brightness and 178-degree viewing angle keep slides and spreadsheets readable from the back of the room. Typical buyers include ministries, universities and corporate offices in West Bay and Lusail that run hybrid meetings.
Does this model include the iQ Android system?
No. The iQ version is ordered under model MX286-V5-PW, so this page covers the display without the embedded iQ Android system. To run software, connect a laptop by USB-C or HDMI, or fit a SMART computing module into the rear OPS slot, which supports modules drawing up to 85 W. Ask the SmartRooms Qatar team which setup fits your room before you request a quote.
Can it run in a room that gets hot in summer?
The operating temperature is 5 to 35 °C (41 to 95 °F), with 5 to 80% relative humidity, non-condensing. Outdoor summer temperatures in Qatar often exceed 45 °C, so install the display in an air-conditioned room away from direct sunlight and windows. Keep clear space around the panel for ventilation, and confirm your room conditions with the SmartRooms Qatar team when you request a quote.
Does it work with Qatar's 240 V power supply?
Yes. The power requirement is 100 to 240 V AC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Typical consumption for the 86-inch model is 149 W, and standby draw is 0.2 W. The package includes one country-specific power cable. Plan a dedicated outlet close to the mounting position, with the cable route concealed in the wall.
How many people can write on the screen at once?
The display supports up to 50 touch points, depending on the operating system. Simultaneous tool differentiation means one person can erase while another writes or moves an object, without the display mixing up the inputs. Response time is 5 ms or less, accuracy is 1 mm, and it detects objects as small as 2 mm. Two pens are included in the package.
What software comes with the display?
The package includes one room license and ten personal licenses. SMART TeamWorks is available as an optional add-on. For a school in Al Wakrah or an office in Al Rayyan, the room license covers shared use of the display, while personal licenses support individual users. Confirm the exact license split in your quotation before ordering.
How do laptops and video calls connect to the display?
Connect a laptop through one of the four HDMI 2.1 inputs or a USB-C port, which is rated at 27 W on the front and 65 W on the back. The USB-C connection also carries touch and digital audio back to the computer. The six-microphone array picks up speakers in the room for remote participants, and two RJ45 ports provide wired network access.
Can it be wall-mounted, and which bracket is needed?
The VESA pattern is M8 at 800 × 600 mm, and the panel has four handles for lifting. SMART lists the WM-SBID-200 wall mount as an optional accessory for MX series displays. Because the panel weighs 68 kg, we recommend a free site survey to check the wall structure, fixings and cable route before installation.
Will it fit through our lift and doorway?
Check the pallet dimensions first. The unit ships at 94 kg in a pallet measuring 216.5 × 144.5 × 16 cm, and the screen itself measures 196.2 cm wide, 119.9 cm high and 8.9 cm deep. Measure the lift car, corridor and doorway in your Doha office block or school before delivery, and ask SmartRooms Qatar to plan the delivery route when you request a quote.
Is it suitable for a lecture hall in Education City?
Yes, provided the hall is air-conditioned. The 86-inch screen and two 20 W speakers suit a room with rows of seats, and the six-microphone array lets an instructor be heard by students joining remotely. Lecturers can annotate PDF and Office files directly on the screen. Send your seating layout with your quote request so the screen size and viewing distance can be confirmed.
Can a school or government office buy it through an LPO or tender?
Yes. SmartRooms Qatar supplies by quotation, accepts purchase orders (LPOs) and works with government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. For several units across different classrooms or meeting rooms, request one quotation that covers every unit and the wall mounts you plan to use.
What warranty applies to this display?
The display is covered by the manufacturer's warranty. SMART notes that warranty extension options are available and that terms and upgrade options vary by region, so confirm the exact coverage for Qatar in your quotation. SmartRooms Qatar can advise which options apply to the configuration you are considering before you place a purchase order.
