MX255-V5

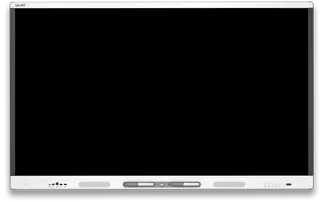

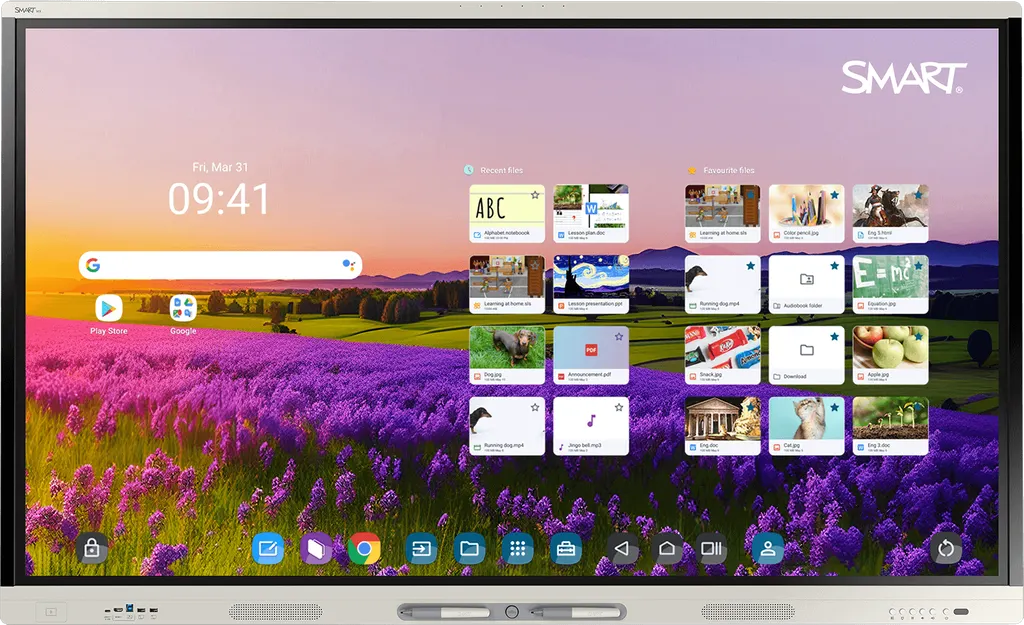

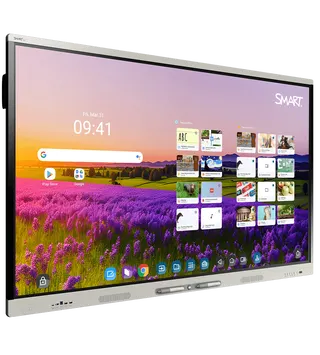

SMART Board MX055-V5 55-inch Interactive Display with iQ

Screen size: 55"
Resolution: 4K UHD (3840 × 2160)
Touch: HyPr Touch with Advanced IR
System: Android version 15; Supports an…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART Board MX055-V5 is a 55-inch interactive display with 4K UHD resolution, 300 cd/m² brightness and built-in iQ 4 software running Android 15. Its two pens and multi-user touch let several people write at once, with Wi-Fi 6E and an OPS slot for a computing module. It suits a small classroom, huddle room or training room in Doha, Education City or Lusail. Request a quote from our team.

What the SMART Board MX055-V5 is

The SMART Board MX055-V5 is the 55-inch model in the SMART Board MX (V5) series, supplied with the iQ 4 operating system built in. The order code MX255-V5 identifies this configuration. It is a 16:9 LED interactive display with a 4K UHD panel (3840 × 2160), a 60 Hz refresh rate and a rated minimum lifespan of 50,000 hours. The manufacturer positions the series for K–12 classrooms, and the same hardware suits meeting rooms and training spaces that need a large touch-enabled screen.

Touch, brightness and glass for a 55-inch panel

The touch system uses HyPr Touch with Advanced IR, with a typical response time of 5 ms or less, 1 mm accuracy and a minimum touch object size of 2 mm. Multi-touch capacity is 50 points on Windows and Mac, 32 on Android and 16 on Chrome OS. Simultaneous tool differentiation lets several users write, erase and touch at the same time without getting in each other's way. Two pens come in the box, with magnetic and frame-mounted holders.

This model is rated at 300 cd/m², while the 65-inch, 75-inch and 86-inch versions are rated at 400 cd/m². The 178° viewing angle keeps content readable from the side of a room. The glass is fully heat-tempered, anti-glare and anti-fingerprint. Zero-bonded glass is listed only for the larger sizes and is not available on the 55-inch model.

Ports, iQ 4 software and connectivity

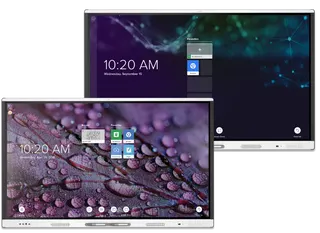

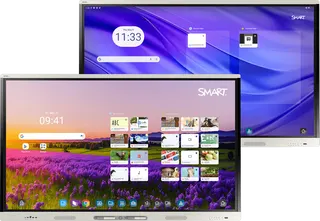

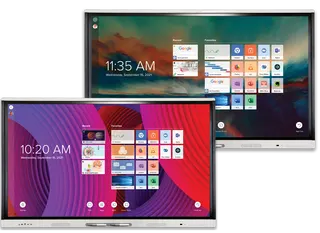

Operating system: iQ 4 embedded on Android 15, with automatic over-the-air updates and a supported path to Android 17.
Video inputs: one front HDMI 2.1 port and three back HDMI 2.1 ports, plus VGA and USB-C inputs supporting 4K at 60 Hz.
USB-C power delivery: 27 W on the front port and 65 W on the back port.
Computing: one back OPS slot supporting SMART PCM modules with 85 W of power.
Network: Wi-Fi 6E (802.11ax), Bluetooth 5.2 and two RJ45 ports rated 1000BASE-T.
Languages: the operating system supports Arabic and English (UK), among many others.

Where it fits in Qatar

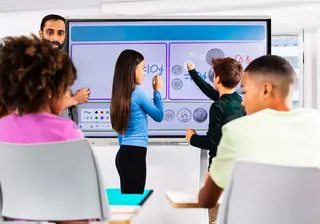

A private school in Al Wakrah fitting out a small support or language room suits the 55-inch size, where students sit close to the screen. A consultancy in West Bay with a meeting room used for Arabic and English client sessions can use split screen or picture-in-picture to show two sources side by side. A training centre in Msheireb with a compact training room can keep presentations and lesson material on one panel without needing a larger display.

Planning the installation and requesting a quote

Dimensions: 130.1 cm wide, 81.8 cm high and 9.6 cm deep, weighing 32 kg (71 lb).
VESA mount: M8, 400 × 400 mm. The optional SMART wall mount WM-SBID-200 is listed for the MX series.
Power: 100–240 V AC at 50–60 Hz, typical consumption 72 W and standby 0.2 W. A country-specific power cable is included.
Environment: operating range 5–35°C and 5–80% humidity, non-condensing. Outdoor summer heat in Qatar can exceed 45°C, so keep the room air-conditioned and leave space around the display for ventilation.

Book a free site survey before mounting a 32 kg panel on a wall, so the wall type and fixing points are checked first. Quotations are usually provided within one working day, and we deliver to all eight municipalities of Qatar with professional installation available. We accept purchase orders, LPOs and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Warranty terms vary by region, so they are confirmed in your quotation. Request a quote today for one or several SMART Board MX055-V5 displays.

Highlights

55-inch 16:9 LED panel with 4K UHD (3840 × 2160) resolution
300 cd/m² brightness and 178° viewing angle
Up to 50 touch points on Windows and Mac
Two integrated 15 W speakers and a six-microphone array
iQ 4 on Android 15, with a supported path to Android 17
Wi-Fi 6E, Bluetooth 5.2 and two RJ45 ports
Operating range 5–35°C; power 100–240 V AC

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

116 specifications · Source: manufacturer · checked Oct 2026

Display13

Screen sizes (diagonal): 55", 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Minimum lifespan: 50,000 hours
Brightness: 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
Viewing angle: 178°
Glass: 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Input select, Screen shade, Freeze frame
Sensors: Proximity, Ambient light, Infrared
Audio: 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation

Interactive experience8

Touch technology: HyPr Touch with Advanced IR
Touch features: Simultaneous tool differentiation; Object Awareness
Typical touch response time: ≤ 5 ms
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: iQ embedded Android OS; SMART Notebook; SMART Control
Optional: SMART Notebook Plus; Lumio; SMART Control Signage

iQ embedded Android OS9

Operating system: Android version 15; Supports an automatic update to Android 17
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; Templates, graphic organizers, and manipulatives; File and app libraries
Languages supported: Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
Updates: Automatic over‑the‑air ( OTA )

PC computing3

OPS support: SMART PCM modules
PC module power supported OPS: 85 W
Optional computing module: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot with security cover: Front: –; Back: 1
HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support: Front: 1; Back: 3
VGA video: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery: Front: 1; Back: –
USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery: Front: –; Back: 1
USB 2.0 Type-A: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 2
USB 3.2 Gen 1 Type‑B: Front: 1; Back: 3

Outputs5

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support: Front: –; Back: 1
USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories10

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
SMART ID cards (for NFC sign in to a SMART Account): 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Bluetooth: 5.2 dual mode

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 5–80% relative humidity, non‑condensing

Power consumption2

Typical: 55": 72 W; 65": 90 W; 86": 149 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
US / Canada: UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, EPEAT

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers4

MX255-V5: SMART Board MX055-V5 interactive display with iQ
MX265-V5: SMART Board MX065-V5 interactive display with iQ
MX275-V5: SMART Board MX075-V5 interactive display with iQ
MX286-V5: SMART Board MX086-V5 interactive display with iQ

Purchasing information – Optional accessories6

WM-SBID-200: SMART Wall Mount for SMART MX series interactive displays
SWC-120UHD: SMART Ultra HD Camera 120
SMS-TE-IQ4: SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
SND-FL: SMART SoundFlow audio broadcasting system
SND-LK: SMART SoundLift voice amplification solution
Other accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 55" models6

Dimensions: Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
Weight: 71 lb. ( 32 kg )
Shipping dimensions (including pallet): 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
Shipping weight: 103 lb. ( 47 kg )
VESA mount: M8, 400 × 400 mm
Handles: –

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 89 lb. ( 40 kg )
Shipping dimensions (including pallet): 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
Shipping weight: 124 lb. ( 56 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 119 lb. ( 54 kg )
Shipping dimensions (including pallet): 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
Shipping weight: 159 lb. ( 72 kg )
VESA mount: M8, 800 × 400 mm
Handles: 2

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 150 lb. ( 68 kg )
Shipping dimensions (including pallet): 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
Shipping weight: 207 lb. ( 94 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

MX255-V52

description: SMART Board MX055-V5 interactive display with iQ
spec_page: SMART Board MX (V5) series with iQ specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about MX255-V5

Who is the SMART Board MX055-V5 best suited for?

It suits organisations that need a 55-inch touch display for a smaller space: a classroom, huddle room, training room or small meeting room. The panel is 4K UHD with 300 cd/m² brightness, and iQ 4 includes built-in teaching tools such as graphic organisers and digital manipulatives. It is a practical choice for a school in Education City or an office in Lusail where a small team needs to share one screen.

What does the order code MX255-V5 mean?

MX255-V5 is the order number the manufacturer lists for the SMART Board MX055-V5 interactive display with iQ. Order numbers can vary by region, so SmartRooms Qatar confirms the exact code and iQ configuration in your quotation before you issue a purchase order. Quote this code on your LPO so the delivered model matches the 55-inch iQ version described on this page.

How bright is the 55-inch model in a room with large windows?

The MX055-V5 is rated at 300 cd/m², lower than the 400 cd/m² of the 65-inch, 75-inch and 86-inch models. In a West Bay meeting room with large windows or afternoon sun, that difference can matter. Position the screen away from direct sunlight, reduce glare with blinds, or ask for a quotation on a larger model if the room is very bright. The glass is anti-glare and anti-fingerprint.

How many people can touch the screen at once?

The panel supports up to 50 touch points on Windows and Mac, 32 on Android and 16 on Chrome OS. Simultaneous tool differentiation lets several people write, erase and touch at the same time. Two pens are included, with magnetic and frame-mounted holders. The number of usable touch points depends on the operating system connected, so confirm the platform your team uses before ordering.

Does iQ 4 support Arabic for bilingual offices and schools?

The iQ embedded Android operating system lists Arabic among its supported languages, alongside English (UK). That suits bilingual teams working in Arabic and English side by side. Confirm the language setup with the SmartRooms Qatar team when you request a quote, especially if your school follows an Arabic curriculum with specific materials.

Which ports do I need to connect a laptop and a wired network?

The back USB-C port provides 65 W power delivery and carries video, touch and data over one cable for compatible laptops. The front has an HDMI 2.1 port and a 27 W USB-C port for quick presentations. Two RJ45 ports support 1000BASE-T network connections, and Wi-Fi 6E and Bluetooth 5.2 are built in for wireless setups.

Can I add a computing module instead of using a separate PC?

Yes. The MX055-V5 has one back OPS accessory slot that supports SMART PCM modules, with 85 W of power available for the module. Modules are sold separately, so ask for a quotation that includes the exact module you need. Check compatibility before ordering and plan cable routing at the back of the panel during installation.

How should I plan for heat and dust in Doha?

The operating range is 5–35°C with 5–80% non-condensing humidity, so the display belongs in an air-conditioned room, not a corridor or entrance exposed to outdoor heat. Outdoor summer temperatures in Qatar can exceed 45°C. Keep the room cooled, leave space around the panel for ventilation as the manufacturer advises, and confirm the environment with the SmartRooms Qatar team if the location is near dust or a lobby entrance.

What power supply does it need in Qatar?

The display accepts 100–240 V AC at 50–60 Hz, a range that covers Qatar's 240 V, 50 Hz mains. The source data lists a country-specific power cable in the box. Typical consumption is 72 W for the 55-inch size and standby is 0.2 W. Confirm the supplied cable and plug type with the SmartRooms Qatar team when you request a quote, and plan a socket within reach of the mounting position.

What wall mount and site survey does a 55-inch panel in a school need?

The panel weighs 32 kg (71 lb) and uses an M8 VESA pattern of 400 × 400 mm. The optional SMART wall mount WM-SBID-200 is listed for MX series displays. Before fixing a panel to a wall in an Al Wakrah school or any other building, request a free site survey so the wall type, load and cable route are checked. Ask for the wall mount in the same quotation.

Will this model keep receiving software updates?

The display runs iQ 4 on Android 15 and receives automatic over-the-air updates. The manufacturer states that it supports an update to Android 17 and rates its hardware for seven years or more. Warranty terms vary by region, so confirm the current update path and warranty terms with your quotation before you commit.

Can a government body or school buy this through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders, LPOs and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. For a school ordering several 55-inch units, send the quantity, delivery sites and tender reference. A quotation is usually provided within one working day, and delivery covers all eight municipalities of Qatar.
