SMART Interactive Flat Panels Current

MX265-V5

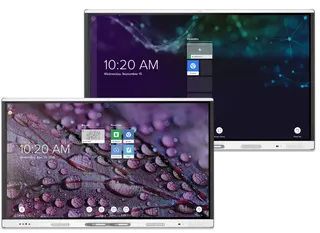

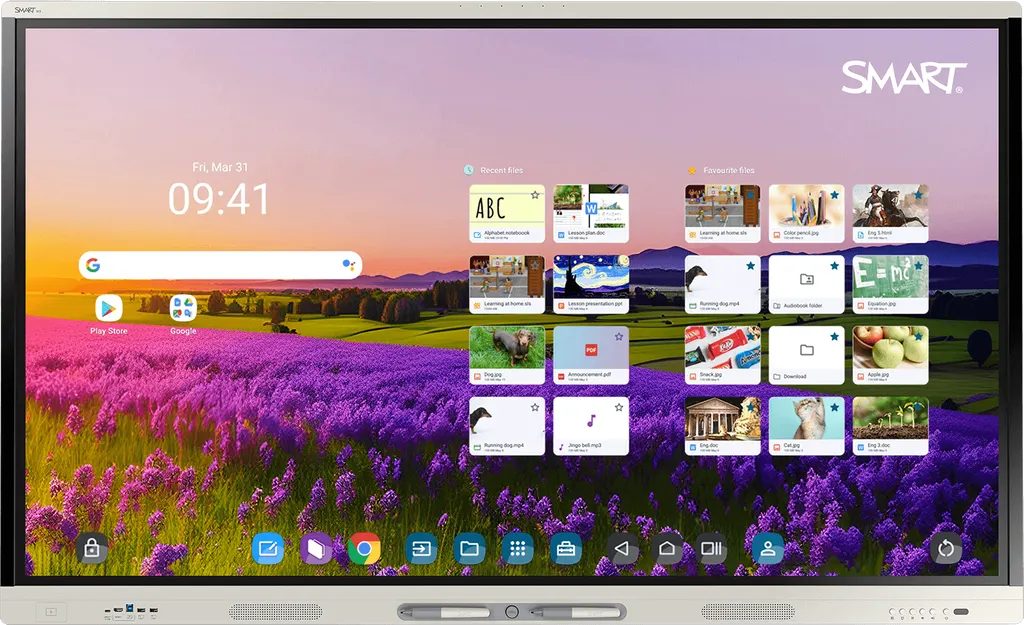

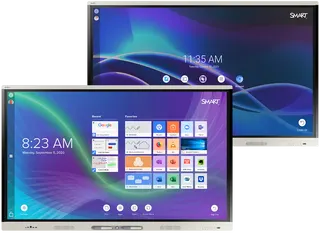

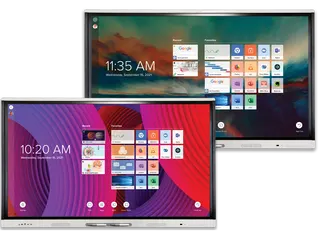

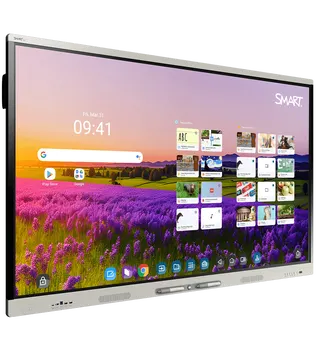

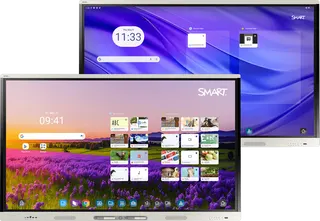

SMART Board MX065-V5 65-inch Interactive Display with iQ

Screen size: 55"
Resolution: 4K UHD (3840 × 2160)
Touch: HyPr Touch with Advanced IR
System: Android version 15; Supports an…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART Board MX065-V5 is a 65-inch interactive display running iQ 4 on Android 15, with a 4K UHD LED panel rated at 400 cd/m² and two 20 W speakers. One 65 W USB-C port carries video, touch and data from a connected laptop over a single cable. It suits classrooms, training rooms and meeting rooms in Doha, West Bay and Lusail. Request a quote from SmartRooms Qatar.

What the MX065-V5 is and which order code it carries

The SMART Board MX065-V5 is a 65-inch interactive display from the MX (V5) series with iQ 4 built in. The manufacturer lists it under order number MX265-V5, so purchase records and quotations should use that code. The unit combines a 4K UHD LED panel, multi-point touch and an embedded Android computer, letting a teacher or presenter write, annotate, show media and run classroom apps from the screen itself.

Display and touch figures that matter in a room

The panel shows 3840 × 2160 pixels at 60 Hz on a 16:9 screen with a 178° viewing angle. Brightness is 400 cd/m², which is higher than the 300 cd/m² rating of the 55-inch model in the same series, so text and video stay readable in rooms with daylight or large windows. The glass is fully heat-tempered, bonded, anti-glare and anti-fingerprint, and the manufacturer rates the panel for a minimum of 50,000 hours.

Touch uses HyPr Touch with Advanced IR. Typical response time is 5 ms or less, accuracy is 1 mm and the smallest detectable object is 2 mm. Simultaneous tool differentiation lets several people write or erase at the same time, and multitouch is rated at 50 points on Windows and Mac, 32 on Android and 16 on Chrome OS. Two pens come in the box, with magnetic and frame-mounted holders to keep them close to the board.

Connections, operating system and sound

iQ 4 runs Android 15 on an octa-core processor with 8 GB DDR4 memory and 64 GB of storage, listed as expandable to 576 GB. The manufacturer states the system supports an automatic update to Android 17 over the air. Interface languages include Arabic and English (UK), which suits offices and schools that work in both languages side by side. Split screen and picture-in-picture with touch pass-through let one lesson draw on two sources.

The rear panel offers three HDMI 2.1 inputs, a 65 W USB-C port and an OPS slot for an 85 W computing module, plus VGA, RS-232, LAN and microSD. The front adds one HDMI 2.1 input, a 27 W USB-C port, two USB 3.2 Gen 1 Type-A ports and a USB Type-B port. Two integrated 20 W speakers and a six-microphone array with onboard acoustic echo cancellation handle room sound. Built-in Wi-Fi 6E and Bluetooth 5.2 are supported by two external antennas.

Where the 65-inch size fits in Qatar

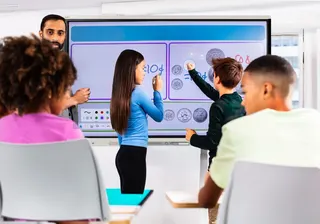

A private school in Al Wakrah fitting out a mid-sized classroom can use one 65-inch panel to serve students seated across several rows, with the teacher annotating in Arabic and English. A training centre in Msheireb running staff workshops in a meeting room can rely on the built-in speakers and microphone array for group discussions. In a West Bay office where a Doha team joins a meeting with colleagues abroad, the echo-cancelling array and the optional SMART Ultra HD Camera 120 (SWC-120UHD), listed by the manufacturer, support a clearer call.

Planning the installation before you order

Each panel weighs 89 lb (40 kg) and ships at 124 lb (56 kg) with packaging, so the wall must carry the load. The VESA pattern is 600 × 400 mm, the unit has two handles, and SMART lists the WM-SBID-200 wall mount for MX series displays. The panel ships upright and needs space around it for ventilation. SmartRooms Qatar offers free site surveys to check the wall, mounting height and cable route before installation.

The rated operating range is 5 to 35°C (41 to 95°F) at 5 to 80% relative humidity, non-condensing. Outdoor summer temperatures above 45°C mean the display should sit in an air-conditioned room, away from direct sun and open loading doors. Typical power draw is 90 W and standby is 0.2 W, with a supply rated for 100 to 240 V AC at 50 to 60 Hz.

Request a quote for the MX265-V5

Tell us the room, the number of panels and whether you need the wall mount, an OPS module or a camera. The SmartRooms Qatar team will return a quotation, usually within one working day. We supply and deliver to all 8 municipalities of Qatar, arrange professional installation, and accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. Request a quote today.

Highlights

65-inch 4K UHD LED panel, 16:9, rated at 400 cd/m²
iQ 4 embedded computing on Android 15, upgradeable to Android 17
Two integrated 20 W speakers and a six-microphone array
65 W USB-C port for video, touch, data and power
Two pens with magnetic and frame-mounted tool holders
Operating range 5–35°C; 100–240 V AC, 50–60 Hz supply

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

116 specifications · Source: manufacturer · checked Oct 2026

Display13

Screen sizes (diagonal): 55", 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Minimum lifespan: 50,000 hours
Brightness: 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
Viewing angle: 178°
Glass: 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Input select, Screen shade, Freeze frame
Sensors: Proximity, Ambient light, Infrared
Audio: 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation

Interactive experience8

Touch technology: HyPr Touch with Advanced IR
Touch features: Simultaneous tool differentiation; Object Awareness
Typical touch response time: ≤ 5 ms
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: iQ embedded Android OS; SMART Notebook; SMART Control
Optional: SMART Notebook Plus; Lumio; SMART Control Signage

iQ embedded Android OS9

Operating system: Android version 15; Supports an automatic update to Android 17
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; Templates, graphic organizers, and manipulatives; File and app libraries
Languages supported: Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
Updates: Automatic over‑the‑air ( OTA )

PC computing3

OPS support: SMART PCM modules
PC module power supported OPS: 85 W
Optional computing module: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot with security cover: Front: –; Back: 1
HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support: Front: 1; Back: 3
VGA video: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery: Front: 1; Back: –
USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery: Front: –; Back: 1
USB 2.0 Type-A: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 2
USB 3.2 Gen 1 Type‑B: Front: 1; Back: 3

Outputs5

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support: Front: –; Back: 1
USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories10

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
SMART ID cards (for NFC sign in to a SMART Account): 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Bluetooth: 5.2 dual mode

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 5–80% relative humidity, non‑condensing

Power consumption2

Typical: 55": 72 W; 65": 90 W; 86": 149 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
US / Canada: UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, EPEAT

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers4

MX255-V5: SMART Board MX055-V5 interactive display with iQ
MX265-V5: SMART Board MX065-V5 interactive display with iQ
MX275-V5: SMART Board MX075-V5 interactive display with iQ
MX286-V5: SMART Board MX086-V5 interactive display with iQ

Purchasing information – Optional accessories6

WM-SBID-200: SMART Wall Mount for SMART MX series interactive displays
SWC-120UHD: SMART Ultra HD Camera 120
SMS-TE-IQ4: SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
SND-FL: SMART SoundFlow audio broadcasting system
SND-LK: SMART SoundLift voice amplification solution
Other accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 55" models6

Dimensions: Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
Weight: 71 lb. ( 32 kg )
Shipping dimensions (including pallet): 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
Shipping weight: 103 lb. ( 47 kg )
VESA mount: M8, 400 × 400 mm
Handles: –

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 89 lb. ( 40 kg )
Shipping dimensions (including pallet): 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
Shipping weight: 124 lb. ( 56 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 119 lb. ( 54 kg )
Shipping dimensions (including pallet): 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
Shipping weight: 159 lb. ( 72 kg )
VESA mount: M8, 800 × 400 mm
Handles: 2

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 150 lb. ( 68 kg )
Shipping dimensions (including pallet): 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
Shipping weight: 207 lb. ( 94 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

MX265-V52

description: SMART Board MX065-V5 interactive display with iQ
spec_page: SMART Board MX (V5) series with iQ specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about MX265-V5

Who is the SMART Board MX065-V5 designed for?

It suits classrooms, training rooms and meeting rooms where a 65-inch panel fills the wall without needing a larger room. Schools use it for lessons with built-in iQ tools, and offices use it for presentations and annotated reviews. The 4K UHD panel and 400 cd/m² brightness keep text sharp for a group seated several metres away, and the iQ 4 system runs classroom apps directly.

How does the MX065-V5 differ from the 55-inch MX055-V5?

The 65-inch model is rated at 400 cd/m² against 300 cd/m² on the 55-inch, and it uses 90 W typical against 72 W. Its speakers are 20 W each against 15 W. The VESA pattern is 600 × 400 mm against 400 × 400 mm, and it weighs 89 lb (40 kg) against 71 lb (32 kg). Choose the 65-inch for a larger room or where the wall mount must match the larger pattern.

Which operating system does it run and will it be updated?

It runs iQ 4 embedded computing on Android 15, with an octa-core processor, 8 GB DDR4 memory and 64-bit architecture. The manufacturer states it supports an automatic update to Android 17. Updates arrive over the air, so IT teams do not need to visit each panel to keep the software current.

Can I add a PC or computing module to the display?

Yes. The rear panel has one OPS slot that accepts SMART PCM modules and supports up to 85 W. Optional modules are listed in the manufacturer's accessories catalogue, and SmartRooms Qatar can confirm which module suits the MX065-V5 before you buy. Deciding early avoids a second quotation when a school later needs a PC inside the classroom.

How should a school in Al Sadd connect a laptop and a classroom PC?

Connect a laptop to the front 27 W USB-C port, which carries video, touch and data. Use one of the three rear HDMI 2.1 inputs for a classroom PC, and the rear 65 W USB-C port for a source that needs more power. Split screen or picture-in-picture lets a teacher show two sources at once, and the remote control or the display buttons switch inputs.

Will the display cope with summer heat in Doha?

The rated operating range is 5 to 35°C (41 to 95°F) with 5 to 80% relative humidity, non-condensing. Summer temperatures outside Doha can exceed 45°C, so the display should sit in an air-conditioned room, not a hot corridor or a space near an open loading door. Storage is rated from -20°C to 60°C. Request a site survey if the room has large sun-facing windows.

What power does the MX065-V5 need?

It is rated for 100 to 240 V AC at 50 to 60 Hz. Typical consumption is 90 W and standby draw is 0.2 W, which helps facilities teams plan circuits and switching. Qatar mains supply of 240 V at 50 Hz falls inside this range, and the box includes one country-specific power cable. Confirm the socket position for each panel with your quotation.

How do I mount it on a wall?

Use the 600 × 400 mm VESA M8 pattern, and the SMART wall mount WM-SBID-200 listed for MX series displays. The panel weighs 89 lb (40 kg) and has two handles for lifting. The wall must carry that weight, so SmartRooms Qatar offers free site surveys to check the wall, height and cable route before installation.

Can several people write at the same time?

Yes. The display supports simultaneous tool differentiation, with multitouch rated at 50 points on Windows and Mac, 32 on Android and 16 on Chrome OS. Several students or staff can write, erase and touch without interfering with each other's work. Two pens are included, and the magnetic and frame-mounted holders keep them within reach of the board.

Does the interface support Arabic?

Yes. The iQ embedded Android operating system lists Arabic among its supported languages, alongside English (UK). Offices and schools that work in Arabic and English can set the language to suit the teacher or meeting. Confirm the interface languages you need with your quotation, since the list reflects the manufacturer's supported set.

Can the MX065-V5 support a video meeting in a West Bay office?

The panel has a six-microphone array with onboard acoustic echo cancellation and two 20 W speakers, which helps room audio carry to remote participants. The optional SMART Ultra HD Camera 120 (SWC-120UHD), listed among the manufacturer's accessories, adds a camera for the room. Built-in Wi-Fi 6E and two RJ45 ports provide network options for the meeting.

Can a school order several units on one LPO?

Yes. SmartRooms Qatar accepts purchase orders and government tenders, including Monaqasat, and delivers to all 8 municipalities. For a school fitting out several classrooms with 65-inch panels, one quotation can list every unit, the wall mounts and any OPS modules, with installation planned around the school timetable.
