SMART Interactive Flat Panels Current

MX265P-V5

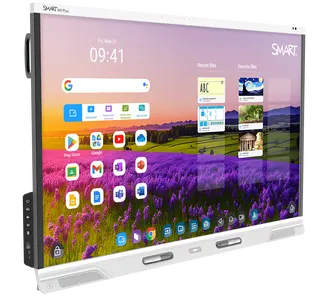

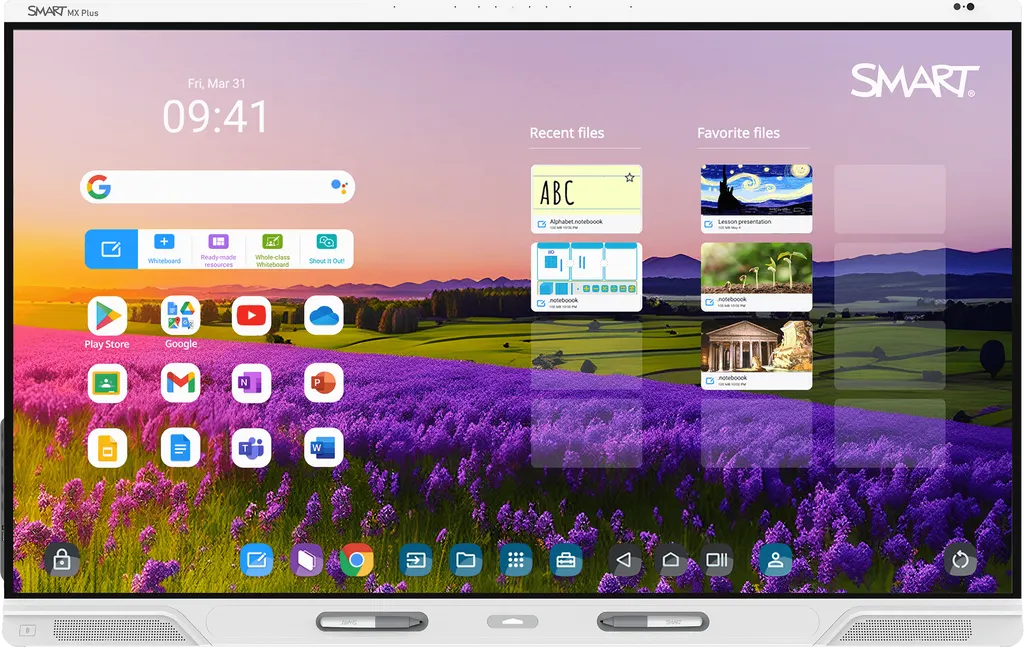

SMART Board MX065-V5 Plus 65-inch Interactive Display (MX265P-V5)

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: HyPr Touch with Advanced IR
System: Android version 15; Supports an…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

The SMART Board MX065-V5 Plus is a 65-inch 4K UHD interactive display with iQ 4 running Android 15, order code MX265P-V5. It offers 50-point multi-user touch on Windows, two 65 W USB-C ports for single-cable connection, built-in 2x20 W speakers with a 15 W subwoofer, and an OPS slot for a computing module. It suits classrooms, training rooms and meeting rooms in Doha, Lusail and Al Khor.

What the 65-inch MX065-V5 Plus is built for

The SMART Board MX065-V5 Plus (order code MX265P-V5) is a 65-inch interactive display with a 16:9 4K UHD LED panel rated at 490 cd/m² and a 178° viewing angle. Anti-glare, bonded glass limits reflections from ceiling lights and windows, which helps when a whole room needs to read the same content. At this size it suits classrooms, training rooms and medium meeting rooms.

Touch, ink and iQ 4 for shared work

HyPr Touch with advanced IR delivers 1 mm accuracy and detects objects from 2 mm, with palm rejection. Up to 50 touch points register at once on Windows and 20 on Mac OS, so several people can write or move content without switching tools. Two pens and magnetic and frame-mounted tool holders are included.

The embedded iQ 4 system runs Android 15 on an octa-core processor with 8 GB DDR4 memory and 64 GB storage. Updates arrive over the air automatically, and the system supports an automatic update to Android 17. SMART Notebook, SMART Ink and SMART Mirror are listed as free with every iQ display.

Connections, power and wireless

Front: one HDMI 2.1 input, one USB-C port with 65 W power delivery, two USB 3.2 Gen 1 Type-A ports and one Type-B port.
Rear: three HDMI 2.1 inputs, a second 65 W USB-C port, VGA, RS-232, two RJ45 ports, a microSD slot and one OPS slot for SMART OPS PC modules.
Wireless: Wi-Fi 6e (802.11ax) with WPA3 and 802.1X support, Bluetooth 5.2 and an integrated NFC reader for card sign-in.
Power: 100 to 240 V AC at 50 to 60 Hz, typically 94 W, and under 0.5 W on standby.

Where it fits in Qatar

A primary school in Al Wakrah fitting out a Year 5 classroom can run the lesson from one 65 W USB-C cable, then annotate with a pen and save the notes. In West Bay, a boardroom used for calls with teams abroad gets a shared surface where several people can annotate the same document at once. A training centre in Education City can let students join a session by QR code without creating an account.

Qatar's summer heat matters. The rated operating range is 5°C to 35°C with 5 to 80% humidity, non-condensing, so install the panel indoors in an air-conditioned room, away from direct sun and external glazing. A free site survey lets our team check the room before mounting.

Mounting and planning for installation

Width 60 inches (152.5 cm), height 37 1/2 inches (95.4 cm), depth 4 1/4 inches (10.9 cm).
Weight 93 lb (42 kg); shipping weight 108 lb (49 kg), shipped upright with two handles.
VESA pattern M8, 600 × 400 mm.

Confirm that the wall and mount can carry 42 kg, and plan for at least two people to lift the panel. The power cable is country-specific and supplied, so confirm the plug type for Qatar when you request a quote. The product is covered by the manufacturer's warranty, with terms varying by region. Request a quote from SmartRooms Qatar, and we will confirm lead times with your quotation and quote professional installation alongside the panel.

Highlights

65-inch 4K UHD LED display with 490 cd/m² brightness
Up to 50 simultaneous touch points on Windows
iQ 4 embedded Android 15 with 8 GB memory
Two 65 W USB-C ports for single-cable connection
Built-in 2x20 W speakers and 15 W subwoofer
OPS slot for SMART OPS PC modules

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

109 specifications · Source: manufacturer · checked Oct 2026

Display15

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Minimum lifespan: 50,000 hours
Brightness: 490 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Bonded, Anti-glare, Anti-fingerprint, Heat-tempered
Frame color: White
Convenience buttons: Power, Home, Volume, Microphone mute, Freeze frame
Sensors: Proximity, Ambient light, Infrared
Audio: Integrated soundbar featuring two 20 W speakers and a 15 W subwoofer; Integrated linear eight-microphone array with visual mute status indicator and support for onboard acoustic echo cancellation
NFC: Integrated RFID NFC reader/writer; CCID (chip card interface device) when used with a native operating system driver for Windows , Linux , or Mac; Supported protocols: ISO 14443A/B, ISO 15693, NFC Tag 1-4

Interactive experience9

Touch technology: HyPr Touch with Advanced IR
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch; Palm rejection
Typical touch response time: ≤ 4 ms
Frame rate: ≥ 300 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: iQ embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink; SMART Remote Management; SMART Control
Optional: SMART Notebook Plus; Lumio; SMART Control Signage

iQ embedded Android OS7

Operating system: Android version 15; Supports an automatic update to Android 17
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Updates: Automatic over‑the‑air ( OTA )

iQ embedded Android OS – iQ features and specifications1

_text: See  support.smarttech.com/docs/aboutiq4

OPS support3

Supported SMART appliances: SMART OPS PC modules
Power supply: 100 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot with security cover: Front: –; Back: 1
HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support: Front: 1; Back: 3
VGA video: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65 W power delivery: Front: 1; Back: 1
USB Type‑C, SuperSpeed (5 Gbps); 15 W power delivery: Front: –; Back: 1 (top)
USB 2.0 Type-A: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 2
USB 3.2 Gen 1 Type‑B: Front: 1; Back: 3

Outputs5

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support: Front: –; Back: 1
USB Type-C 4K @ 60Hz Display Port 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories10

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
SMART ID cards (for NFC sign in to a SMART Account): 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Bluetooth: 5.2 dual mode

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 5–80% relative humidity, non‑condensing

Power consumption1

Typical: 65": 94 W; 75": 105 W; 86": 122 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDQR65-A, IDQR75-A, IDQR86-A
US / Canada: FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM
Performance standards: ENERGY STAR, HDMI, HDCP, EPEAT

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

MX265P-V5: SMART Board MX065-V5 Plus interactive display with iQ
MX275P-V5: SMART Board MX075-V5 Plus interactive display with iQ
MX286P-V5: SMART Board MX086-V5 Plus interactive display with iQ

Purchasing information – Optional accessories5

SWC-120UHD: SMART Ultra HD Camera 120
SMS-TE-IQ4: SMART MultiStylus with Tool Explorer (V2) technology
SND-LK: SMART SoundLift voice amplification solution
SND-FL: SMART SoundFlow audio broadcasting system
Other accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 60ʺ (152.5 cm); Height: 37 1/2ʺ (95.4 cm); Depth: 4 1/4ʺ (10.9 cm)
Weight: 93 lb. ( 42 kg )
Shipping dimensions (including pallet): 65 1/2" × 46" × 7 1/8" ( 166.5 cm × 117 cm × 18 cm )
Shipping weight: 108 lb. ( 49 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 68 3/4ʺ (174.6 cm); Height: 42 1/2ʺ (107.8 cm); Depth: 4 1/4ʺ (10.9 cm)
Weight: 124 lb. ( 56 kg )
Shipping dimensions (including pallet): 74 5/8" × 50 7/8" × 7 1/8" ( 189.5 cm × 129.3 cm × 18 cm )
Shipping weight: 147 lb. ( 67 kg )
VESA mount: M8, 800 × 400 mm
Handles: 2

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 78 1/2ʺ (199.3 cm); Height: 47 7/8ʺ (121.7 cm); Depth: 4 3/4ʺ (12.1 cm)
Weight: 154 lb. ( 70 kg )
Shipping dimensions (including pallet): 84 1/4" × 57 1/4" × 7 5/8" ( 214 cm × 145.4 cm × 19.5 cm )
Shipping weight: 190 lb. ( 86 kg )
VESA mount: M8, 800 × 600 mm
Handles: 2

MX265P-V52

description: SMART Board MX065-V5 Plus interactive display with iQ
spec_page: SMART Board MX (V5) Plus series with iQ specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about MX265P-V5

Is the 65-inch MX065-V5 Plus the right size for a classroom in Doha?

For most primary and secondary classrooms and training rooms, a 65-inch panel gives students at the back a readable screen without filling the whole wall. The panel has a 3840 × 2160 resolution and a 178° viewing angle, so students seated to the side can still read it clearly. Rooms with long sightlines or larger seating should compare the 75-inch and 86-inch versions in the same series before requesting a quote.

How does a teacher in a Doha classroom connect a laptop with one cable?

Use the front USB-C port, which provides 65 W power delivery, video, touch and data over a single cord, so the laptop charges while it displays. The rear has a second 65 W USB-C port and three HDMI 2.1 inputs for other sources. Touch input returns to the laptop through the same connection, so the teacher can annotate directly on the lesson. Ask SmartRooms Qatar to confirm the cable kit for your laptop type.

How well does touch work when several students write at the same time?

The panel uses HyPr Touch with advanced IR, rated at 1 mm accuracy with a 2 mm minimum object size. On Windows it supports up to 50 simultaneous touch points, and on Mac OS up to 20. Palm rejection and object awareness help avoid accidental marks. Two pens are included, and the typical touch response time is listed as 4 ms or less.

What operating system and software come with the panel?

The panel runs iQ 4 embedded Android 15 on an octa-core CPU with 8 GB DDR4 memory and 64 GB storage, and the manufacturer states it supports an automatic update to Android 17. The included software list covers SMART Notebook, SMART Product Drivers and SMART Ink, SMART Mirror, SMART Remote Management and SMART Control. SMART Notebook Plus, Lumio and SMART Control Signage are optional extras.

Can I add a computer module to the panel?

Yes. The rear has one OPS PC accessory slot for SMART OPS PC modules, and the source data lists a 100 W power supply for OPS support. A module lets you run a computer inside the display rather than a separate PC on the desk, which suits rooms where desk space is limited. Check compatible modules at smarttech.com/accessories, and ask SmartRooms Qatar to match one to your applications when you request a quote.

Will the panel cope with Qatar's summer in a room with weak cooling?

The rated operating temperature is 5°C to 35°C, and storage is rated from -20°C to 60°C, with humidity of 5 to 80% non-condensing. A space that cannot hold a steady indoor temperature is not a suitable location. Install the panel in an air-conditioned room away from direct sun and external glass. If you are unsure about a lobby or corridor, ask SmartRooms Qatar to review the location during a free site survey before ordering.

Does the panel suit a boardroom in West Bay that holds calls with teams abroad?

A 65-inch panel suits a smaller boardroom or huddle room, where people at the table are close enough to annotate shared content together. Wi-Fi 6e and two wired RJ45 ports let the IT team choose the connection that suits the network. The panel does not include a camera, so video calls need a separate conferencing setup, which SmartRooms Qatar can quote alongside the display.

Are speakers and microphones built in?

Yes. The panel has 2x20 W speakers with a 15 W subwoofer and an integrated linear eight-microphone array with a visual mute indicator and onboard acoustic echo cancellation. The array can record lessons or pick up participants across the room. Volume and microphone mute are among the convenience buttons, and a remote control is included.

What wall space and mounting do I need?

The screen measures 60 inches wide, 37 1/2 inches high and 4 1/4 inches deep, and weighs 93 lb (42 kg). The VESA pattern is M8 at 600 × 400 mm. Confirm the wall structure and the mount's load rating before ordering, because the panel is heavy for a light partition. A free site survey checks wall type, sightlines and cable routes before installation.

Is the MX265P-V5 officially supplied in Qatar?

The manufacturer's availability notes list specific European and Turkish markets and do not name Qatar, so supply for Qatar needs to be confirmed. SmartRooms Qatar will confirm stock, supply and any regional requirements, including the country-specific power cable, in your quotation. Include the quantity and site location when you request a quote so the check can start straight away.

Can a school order several panels through an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supports government tenders, including Monaqasat. A school fitting out several classrooms can list the quantity, room sizes and wall-mount requirements in one request. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order.

Which warranty covers the MX065-V5 Plus?

The panel is covered by the manufacturer's warranty. The manufacturer notes that warranty terms and upgrade options vary by region and advises contacting the reseller for details. Because of this, SmartRooms Qatar will confirm the warranty terms that apply to the units supplied before you place an order, so you know exactly what cover your purchase includes.
