SMART Interactive Flat Panels Current

MX275-V5-PW

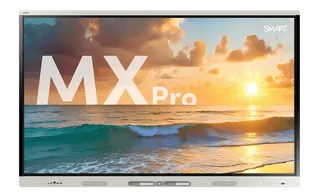

SMART Board MX075-V5 Pro (MX275-V5-PW) 75-inch Interactive Display with iQ

Screen size: 55"
Resolution: 4K UHD (3840 × 2160)
Touch: HyPr Touch with Advanced IR
System: Android version 15; Supports an…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

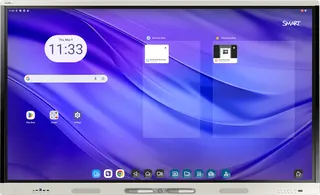

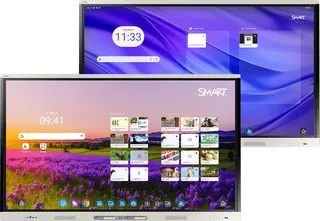

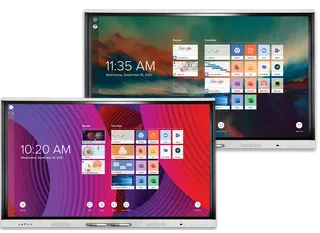

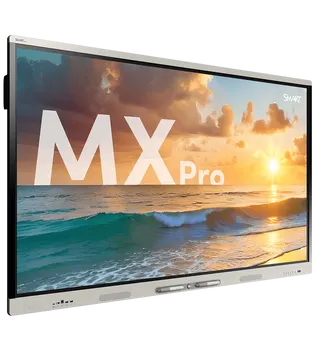

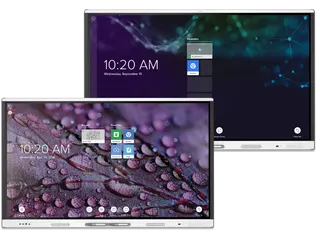

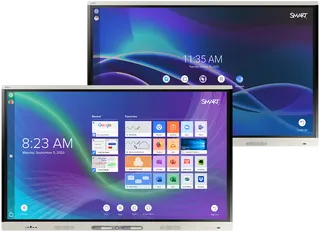

The SMART Board MX075-V5 Pro is a 75-inch 4K UHD interactive display running the built-in iQ Android platform. It offers 50-point touch, a 400 cd/m² panel, a six-microphone array for remote participants, and a slot for an OPS computing module. Suited to boardrooms, training rooms and hybrid meeting spaces across Doha, Lusail and Al Sadd. Request a quote.

What the 75-inch MX075-V5 Pro is

The SMART Board MX075-V5 Pro is the 75-inch member of the MX (V5) Pro series with iQ. It is a large-format interactive display with a 4K UHD (3840 × 2160) LED-backlit panel, a 16:9 aspect ratio, a 60 Hz refresh rate and a minimum rated lifespan of 50,000 hours. The bonded, fully heat-tempered glass is anti-glare and anti-fingerprint. The panel is rated at 400 cd/m² with a 178° viewing angle, and the frame is white.

Touch, writing and annotation for busy rooms

Touch uses HyPr Touch with Advanced IR, with up to 50 touch points depending on the operating system, 1 mm accuracy, a 2 mm minimum object size and a typical response time of 5 ms or less. Simultaneous tool differentiation allows one person to erase while another writes. SMART Ink writes directly into PDF and Microsoft Office files, so notes stay inside the document. Two pens are included, and the display offers magnetic and frame-mounted tool holders.

Connectivity for laptops, PCs and video calls

The front panel has one HDMI 2.1 input, one USB-C input carrying DisplayPort 1.2, touch and USB peripherals with 27 W of power delivery, two USB 3.2 Gen 1 Type-A ports and a USB Type-B port. The back adds three HDMI inputs, a second USB-C input with 65 W power delivery, VGA, a 3.5 mm audio connection, RS-232, RJ45 LAN, a microSD slot and an OPS accessory slot. Outputs include HDMI, a USB-C DisplayPort 1.4a output, optical S/PDIF and RJ45 LAN out. Wi-Fi 6E (802.11ax) and Bluetooth 5.2 are built in, and two external tri-band antennas are supplied.

Where the 75-inch size fits in Qatar

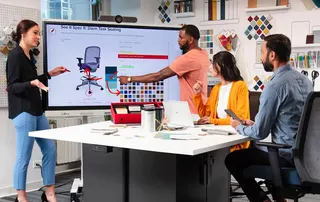

Executive boardrooms in West Bay or Msheireb: a 75-inch panel suits a mid-size room where a team reviews documents while colleagues join from abroad.
Training rooms at Education City or a training centre in Al Rayyan: trainees can write and interact on the same screen during workshops and simulations.
Classrooms at a private school in Al Wakrah: the size suits larger classrooms and seminar rooms where students at the back still need to read the content.

What to plan before installation

The 75-inch model measures 68 3/8 in (173.7 cm) wide, 41 3/4 in (106.1 cm) high and 3 1/2 in (8.9 cm) deep, and weighs 119 lb (54 kg). Its shipping weight is 159 lb (72 kg), so plan a lifting team for delivery. The VESA pattern is 800 × 400 mm, and the display has two handles, so the wall bracket and fixings must match that pattern and load. The operating range is 5–35°C at 5–80% relative humidity, non-condensing. Keep it in an air-conditioned indoor room, away from open halls and window-facing spots where Qatar summer heat and dust can push conditions outside that range. The power input accepts 100–240 V AC at 50–60 Hz, and one country-specific power cable is included. Leave space around the display for ventilation, and book a free site survey before wall mounting to check wall construction and cable routes.

Request a quote from the SmartRooms Qatar team to confirm quantities, mounting accessories and room requirements for your 75-inch installation.

Highlights

75-inch 4K UHD panel rated at 400 cd/m² brightness
Up to 50 touch points with 1 mm accuracy
iQ platform on Android 15, with automatic update to Android 17
Six-microphone array for remote participants
OPS accessory slot supplying 85 W to a computing module
Wi-Fi 6E, Bluetooth 5.2 and Arabic interface language support

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

115 specifications · Source: manufacturer · checked Oct 2026

Display13

Screen sizes (diagonal): 55", 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Minimum lifespan: 50,000 hours
Brightness: 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
Viewing angle: 178°
Glass: 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
Frame color: White
Convenience buttons: Power, Home, Volume, Input select, Screen shade, Freeze frame
Sensors: Proximity, Ambient light, Infrared
Audio: 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation

Interactive experience8

Touch technology: HyPr Touch with Advanced IR
Touch features: Simultaneous tool differentiation; Object Awareness
Typical touch response time: ≤ 5 ms
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: Room license, Personal licenses (×10)
Optional: SMART TeamWorks; SMART Control Signage

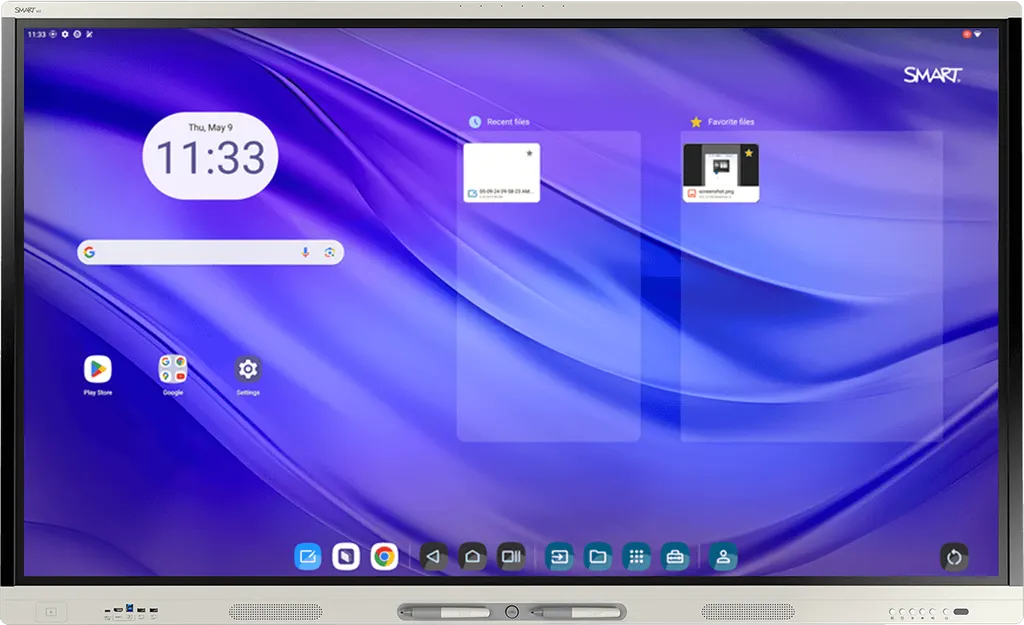

iQ embedded Android OS9

Operating system: Android version 15; Supports an automatic update to Android 17
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Other features: Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; File and app libraries
Languages supported: Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
Updates: Automatic over‑the‑air ( OTA )

PC computing3

OPS support: SMART PCM modules
PC module power supported OPS: 85 W
Optional computing module: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot with security cover: Front: –; Back: 1
HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support: Front: 1; Back: 3
VGA video: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery: Front: 1; Back: –
USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery: Front: –; Back: 1
USB 2.0 Type-A: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 2
USB 3.2 Gen 1 Type‑B: Front: 1; Back: 3

Outputs5

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support: Front: –; Back: 1
USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories9

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Bluetooth: 5.2 dual mode

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 5–80% relative humidity, non‑condensing

Power consumption2

Typical: 55": 72 W; 65": 90 W; 86": 149 W
Standby: 0.2 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
US / Canada: UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM, RSM
Performance standards: ENERGY STAR, HDMI, HDCP, EPEAT

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers4

MX255-V5-PW: SMART Board MX055-V5 Pro interactive display with iQ
MX265-V5-PW: SMART Board MX065-V5 Pro interactive display with iQ
MX275-V5-PW: SMART Board MX075-V5 Pro interactive display with iQ
MX286-V5-PW: SMART Board MX086-V5 Pro interactive display with iQ

Purchasing information – Optional accessories6

WM-SBID-200: SMART Wall Mount for SMART MX series interactive displays
SWC-120UHD: SMART Ultra HD Camera 120
SMS-TE-IQ4: SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
SND-FL: SMART SoundFlow audio broadcasting system
SND-LK: SMART SoundLift voice amplification solution
Other accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.

Installation, dimensions, and weights – 55" models6

Dimensions: Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
Weight: 71 lb. ( 32 kg )
Shipping dimensions (including pallet): 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
Shipping weight: 103 lb. ( 47 kg )
VESA mount: M8, 400 × 400 mm
Handles: –

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 89 lb. ( 40 kg )
Shipping dimensions (including pallet): 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
Shipping weight: 124 lb. ( 56 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 119 lb. ( 54 kg )
Shipping dimensions (including pallet): 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
Shipping weight: 159 lb. ( 72 kg )
VESA mount: M8, 800 × 400 mm
Handles: 2

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
Weight: 150 lb. ( 68 kg )
Shipping dimensions (including pallet): 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
Shipping weight: 207 lb. ( 94 kg )
VESA mount: M8, 800 × 600 mm
Handles: 4

MX275-V5-PW2

description: SMART Board MX075-V5 Pro interactive display with iQ
spec_page: SMART Board MX (V5) Pro series with iQ specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about MX275-V5-PW

Which kind of meeting room in Qatar is the 75-inch MX075-V5 Pro best suited to?

It suits a mid-size executive meeting room in West Bay or Msheireb, where a team reviews documents and joins calls with colleagues abroad. The panel is rated at 400 cd/m², and the six-microphone array picks up speakers around the table for remote participants. For a larger lecture hall or auditorium, the 86-inch model in the same series is a better match.

How does the 75-inch model differ from the 65-inch and 86-inch versions?

The 75-inch model shares the 4K UHD resolution, 400 cd/m² brightness, 50-point touch, iQ platform and 2 x 20 W speakers with the 65-inch and 86-inch versions. Its panel is 68 3/8 in wide and weighs 119 lb (54 kg), compared with 59 3/8 in and 89 lb for the 65-inch, and 78 in and 150 lb for the 86-inch. Choose it when the room and wall allow the larger screen.

Does the iQ software support Arabic for an office that works in Arabic and English?

Yes. The embedded iQ Android interface lists Arabic among its supported languages, alongside English (UK), so a Doha office can set the display language to suit its staff. The platform runs Android version 15 and supports an automatic over-the-air update to Android 17. Ask your installer to confirm the language setting during commissioning.

Can several people write on the screen at the same time during a workshop?

Yes. Simultaneous tool differentiation allows multiple users to write, erase and move objects at once, and the panel supports up to 50 touch points depending on the operating system. A 2 mm minimum object size helps with fine writing. In a training room at a hospital or training centre in Doha, a group can split around one display instead of taking turns at a single pen. Two pens are included.

Which connections does a laptop need, and can the display power it?

The front USB-C input carries DisplayPort 1.2 video, touch and USB peripherals, and provides 27 W of power delivery, so a compatible laptop can connect through one cable. The back USB-C input offers 65 W power delivery. HDMI 2.1 is available at the front and three times at the back, and a 1.8 m USB 3.2 Gen 1 Type-C cable is included.

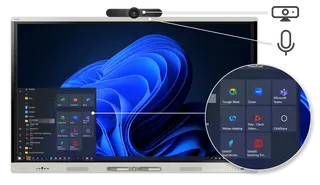

Can we host video calls on Zoom or Microsoft Teams from our Lusail office with teams abroad?

The display supports hosting video meetings on Microsoft Teams, Zoom, Google Meet and Cisco Webex directly from the screen. It has an onboard six-microphone array with acoustic echo cancellation, plus two RJ45 1000BASE-T ports and Wi-Fi 6E for the network. Confirm the camera and audio requirements of your chosen platform when you request a quote.

Is this model a good fit for classrooms at a private school in Al Wakrah?

It suits larger classrooms, seminar rooms and training rooms more than small rooms, because the screen is 68 3/8 in wide. The six-microphone array helps when a teacher speaks from the front of the room. For smaller classrooms, the 65-inch version in the same series is a practical alternative. Request a quote that states the number of units and the mounting plan.

What should we plan before wall mounting a display that weighs 119 lb?

The display weighs 119 lb (54 kg) and uses an 800 x 400 mm VESA pattern, so the wall bracket must match that pattern and carry the load. The WM-SBID-200 wall mount is listed as an optional accessory for SMART MX series displays. A free site survey from the SmartRooms Qatar team can check wall construction and cable routes. Plan a lifting team for the 159 lb shipping weight.

Will the display cope with summer heat and dust in a space that is not air-conditioned?

No, it should not be installed in an unconditioned space. The operating range is 5–35°C at 5–80% relative humidity, non-condensing, while summer temperatures in Qatar can exceed 45°C. It suits air-conditioned indoor rooms, not open lobbies or window-facing areas exposed to heat and dust. Confirm the room conditions with the SmartRooms Qatar team before you request a quote.

Can I add a computing module, and which types are supported?

Yes. The back of the display has one OPS accessory slot that supports SMART PCM modules, supplying 85 W to the module. Optional computing modules are listed on the manufacturer's accessories website, so confirm the exact module with your quotation. The built-in iQ platform works without an added module, so a module is only needed if you want fixed PC hardware in the room.

We need several units for a school or government entity. How do we order?

Send us your requirements and we will issue a quotation, usually within one working day. Orders can be placed by purchase order (LPO) or through a government tender, including Monaqasat. Payment is by bank transfer, cheque or purchase order. Each unit includes one country-specific power cable, two pens, a remote control, two external Wi-Fi antennas, a room licence and ten personal licences. Delivery covers all eight municipalities of Qatar, with professional installation available.
